Inverter welder Hyundai MIG-180 for MIG/MAG/MMA
€674.94
Qty

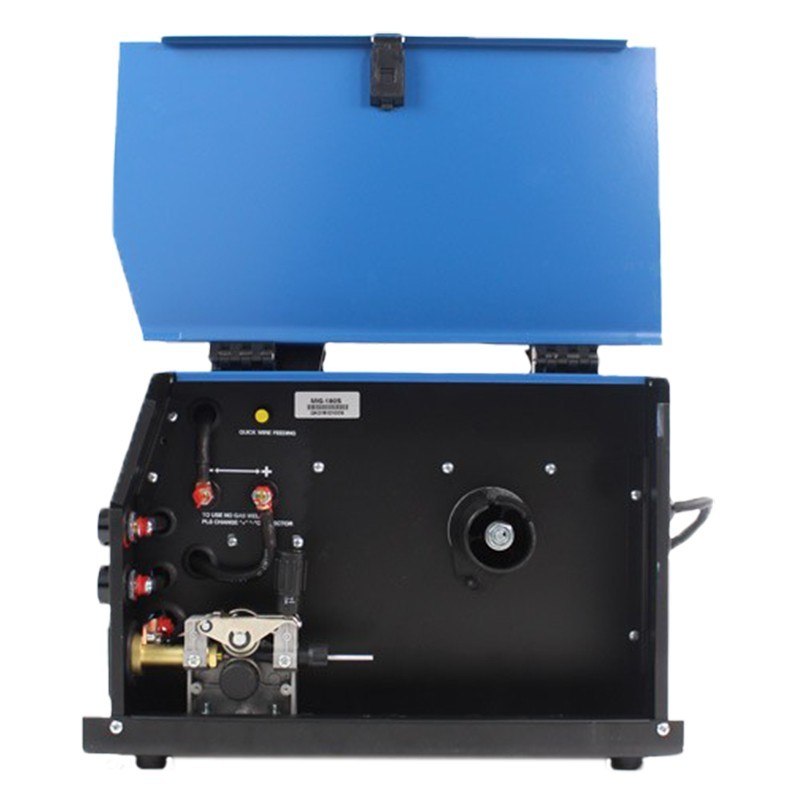

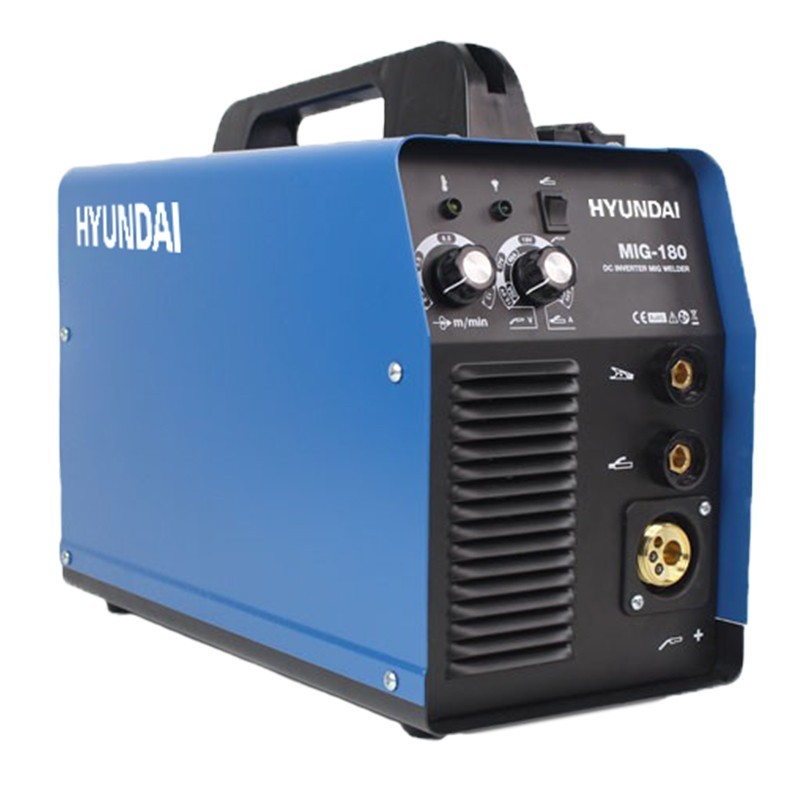

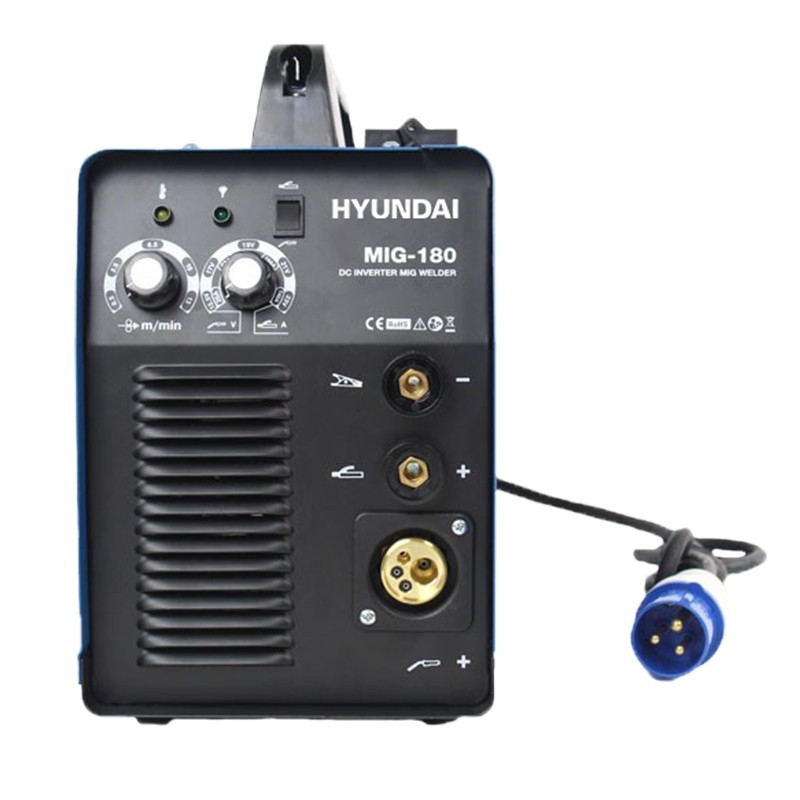

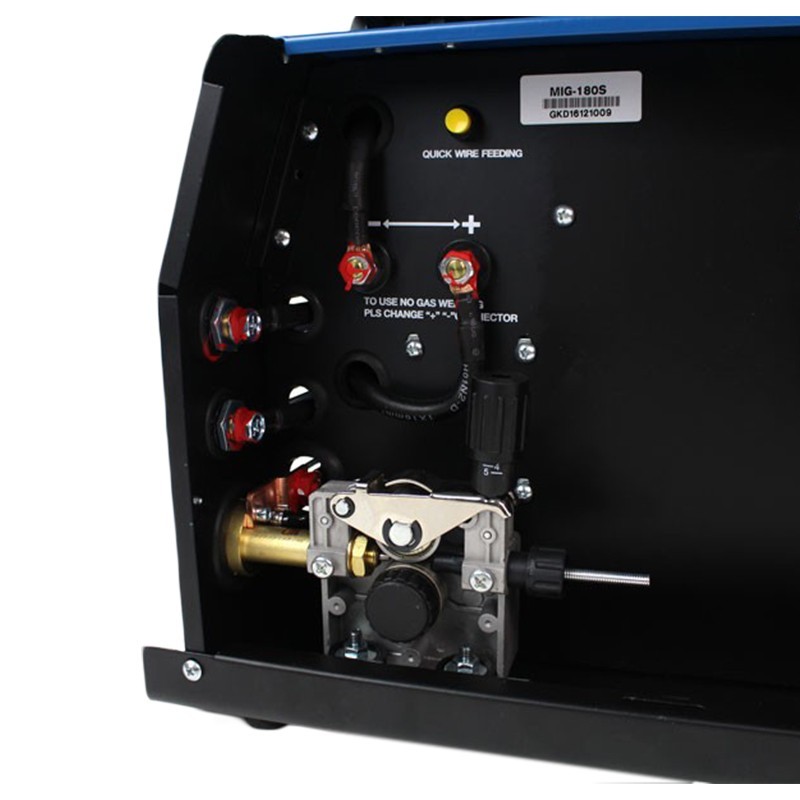

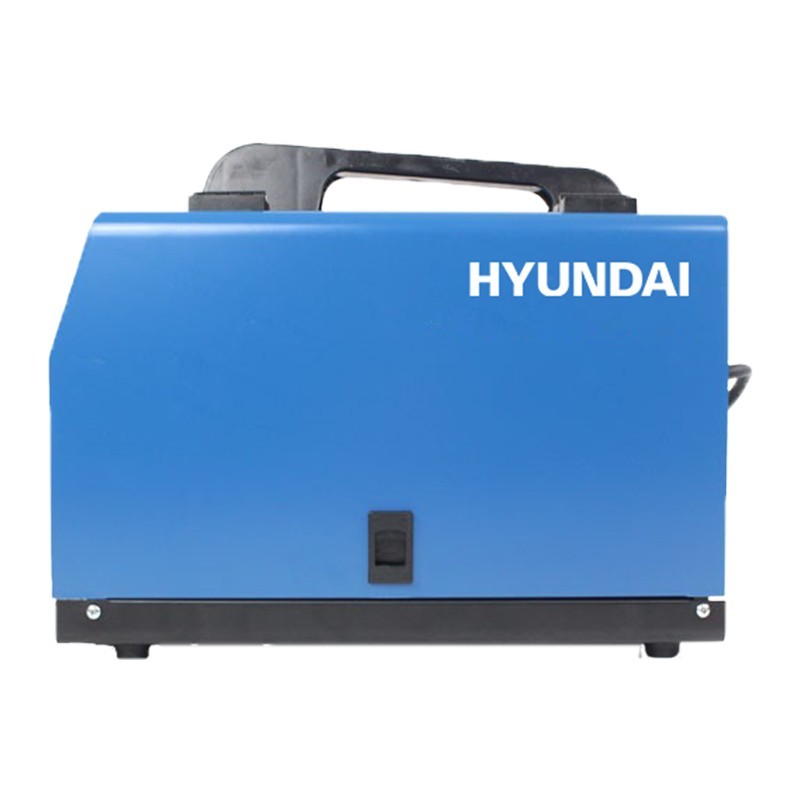

Inverter welding machine Hyundai MIG-180

The welding machine Hyundai MIG-180 is a multifunctional machine that allows MIG, MAG and MMA welding, both with and without gas. It stands out for its ability to generate less spatter, maintain a stable arc and form weld seams of excellent quality.

Its power consumption is 6.7 kVA, with a rated current of 20-140 A for MMA and 30-180 A for MIG. This welding machine is ideal for working with electrodes from 1 to 4 mm and offers a no-load voltage of 60 V, achieving an efficiency of 80 %.

Thanks to its Inverter IGBT technology, the Hyundai MIG-180 is light and compact, but without compromising its high performance. In addition, it features integrated functions such as Hot Start, Anti-Stick and ARC Force, which make it easy to use and improve the quality of the work performed.

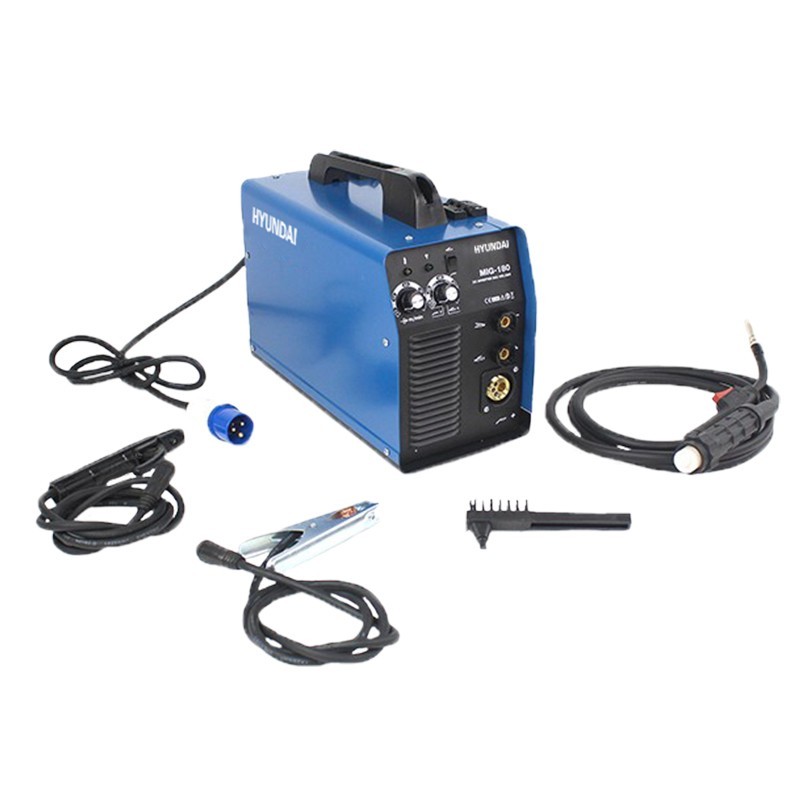

Accessories

  • MIG torch with 3 m cable.

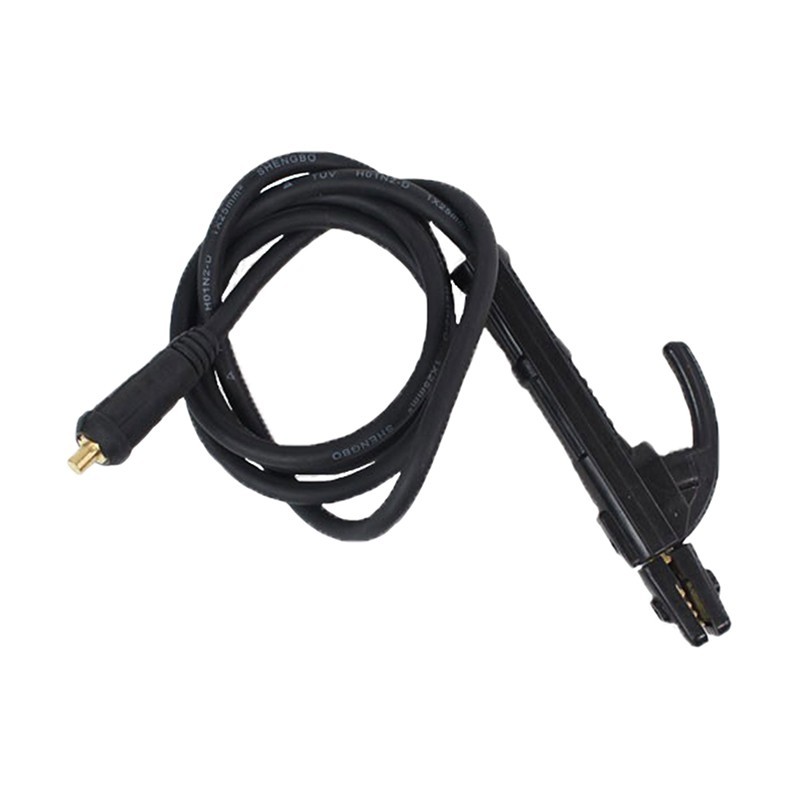

  • Electrode holder with 2 m cable.

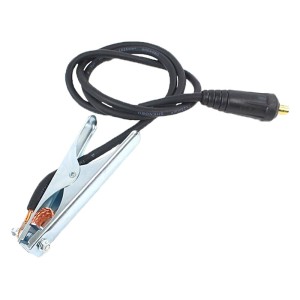

  • Clamp with 1.5 m cable.
  • Simple mask.

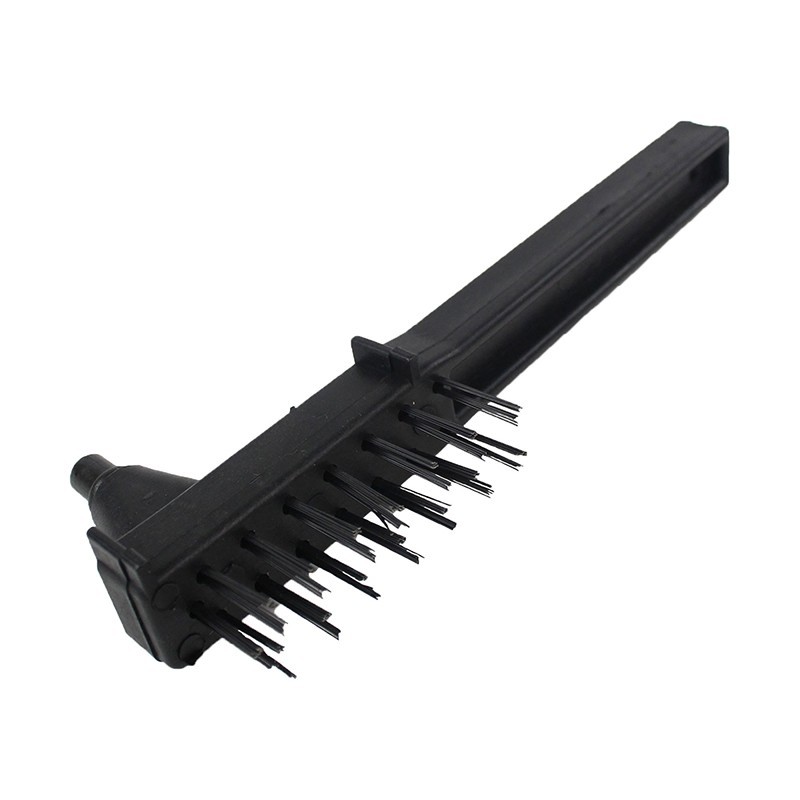

  • Hammer and brush.

Technical data sheet

Nominal input voltage 1P AC 230V, 50Hz
Absorbed Power 6,7 kVA
Rated MMA current 20-140 A
Rated MIG current 30-180 A
MMA Output Current and Voltage 20 A / 20,8 V
MIG Output Current and Voltage 30 A / 15.5 V
Utilization factor MMA 35%@140A
60%@110A
100%@100A
Utilization factor MIG 35%@180A
60%@140A
100%@105A
Electrodes 1 to 4 mm
No-load voltage 60 V
Efficiency 80 %
Power factor 0,7
Protection Class IP21S
Dia. Welding cable - MIG 0.8 - 1.0 mm
Wire diameter - MMA Application Electrode - MMA 1.0 - 4.0 mm
Speed Power Supply wire 0.5 -13 m/min
Net / gross weight 13,5 / 16,5 Kg
Dimensions 540 x 320 x 405 mm
260817

Data sheet

Current
Single-phase
Typology Welder
MIG
MMA
No-load voltage
60 V
Service 40ºC
60 %
Regulating range
20 - 140 A
Usable electrodes
1 - 4 mm
Weight
13.5 Kg

Specific References

EAN-13
8809429749215
MPN
HY-MIG-180
New
