Inverter welder Gala gar Smart MIG 500 MP Multiprocess


  • Current : Single phase
  • Welder Type : Multiprocess
  • Weight : 52 Kg
  • Service 40ºC : 35 %
  • Regulation range : 20 - 500 A
En stock
icon Current
Current
Three-phase
icon Typology Welder
Typology Welder
Multiprocess
icon Panel
Panel
digital
icon No-load voltage
No-load voltage
75 V
icon Service 40ºC
Service 40ºC
60 %
icon Regulating range
Regulating range
20 - 500 A
icon Usable electrodes
Usable electrodes
1 - 1.6 mm
icon TIG type
TIG type
TIG lift
icon ✔️
✔️
Water-cooled
icon ✔️
✔️
Aluminum welding
icon Weight
Weight
35 Kg
€3,460.31 excl. VAT
- 4%
€3,321.89 excl. VAT
€4,019.49 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Inverter welder Gala gar Smart MIG 500 MP Multiprocess
€4,019.49
Qty

Inverter welder Gala gar Smart MIG 500 MP

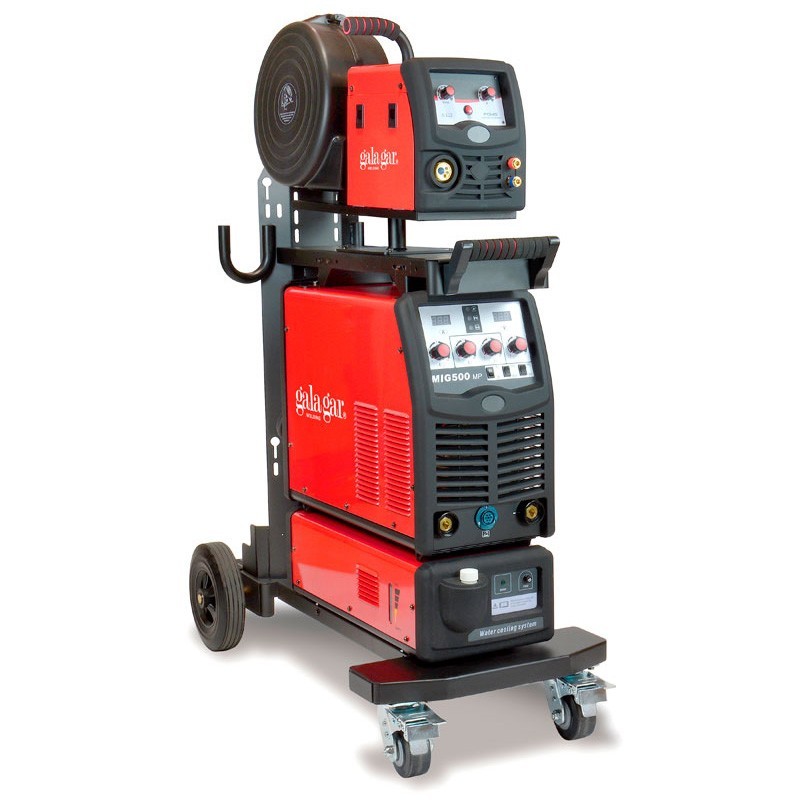

The Gala Gar Smart MIG 500 MP inverter welder with capabilities for MIG/MAG welding of normal steels, stainless steels and aluminum, its versatility stands out. Moreover, its ability to work in additional processes such as MMA/TIG makes it even more adaptable to different projects.

Equipped with a cooled modular system and electronic constant voltage regulation, this welder offers precise and constant control during welding.

Electronic inductance and regulation of the final crater fill cycle are features that enhance its ability to adjust to the specific needs of the welding process, ensuring optimal results.

With manual options for MMA and DC TIG welding, including scratch priming and manual gas control, this equipment provides the flexibility and control needed to perform detailed work with different materials and welding techniques.

Accessories

  • WF-4R wire feeder.
  • WCS cooling module.
  • Set of refrigerated cables 5 or 10 m.
  • Drive wheels 1,0 - 1,2 "V".
  • Transport trolley and bottle holder.
  • Cable with grounding.
  • Equipment assembled and tested.

Technical data

Input voltage U1(1Ph.- 60hz) 3 Ph 400V ± 10 %
Maximum absorbed power 20 KVA
Maximum input current 38 A
Maximum effective current 29 A
MIG/MAG regulation range 20 - 500 A/60%
MMA welding current range 20 - 500 A
MIG welding current range 50 - 500 A
I2 MIG welding current ED= 60% 500 A
MIG welding current I2 ED = 100% I2 387 A
Inductance regulation system Electronic
No load voltage 75 V
Applicable electrode diameters 1,0/1,2/1,6 mm
Maximum wire speed 18 m/min
Measuring system V-I parameters DIGITAL
Mechanical protection index IP 21S
Ventilation Forced
Weight 35 Kg
Dimensions 285 x 543 x 595 mm

Interesting links

259434

Data sheet

Current
Three-phase
Typology Welder
Multiprocess
Panel
digital
No-load voltage
75 V
Service 40ºC
60 %
Regulating range
20 - 500 A
Usable electrodes
1 - 1.6 mm
TIG type
TIG lift
✔️
Aluminum welding
Water-cooled
Weight
35 Kg

Specific References

MPN
22300500MPKIT
New
