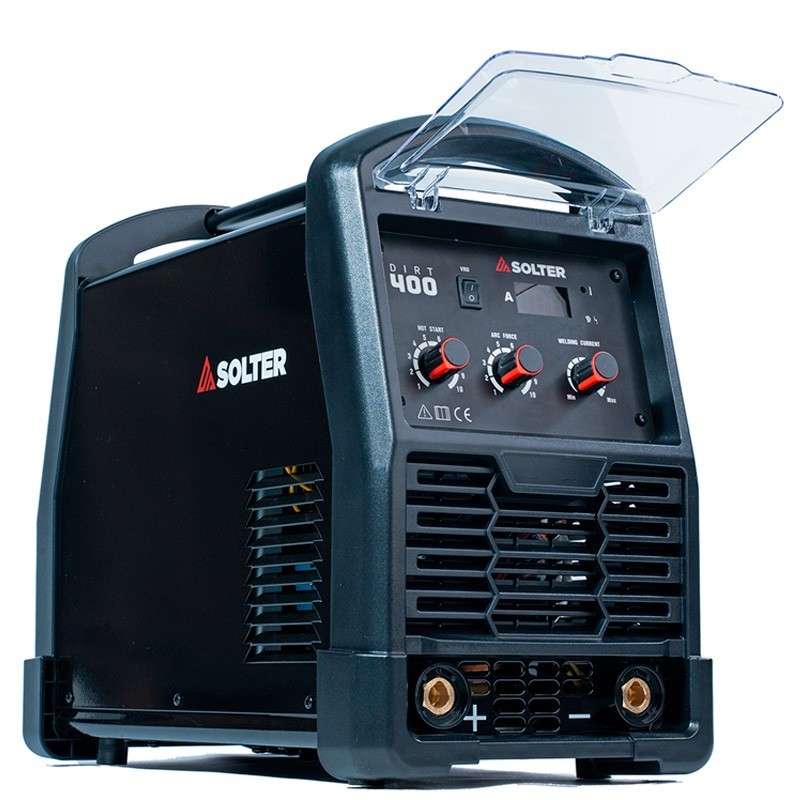

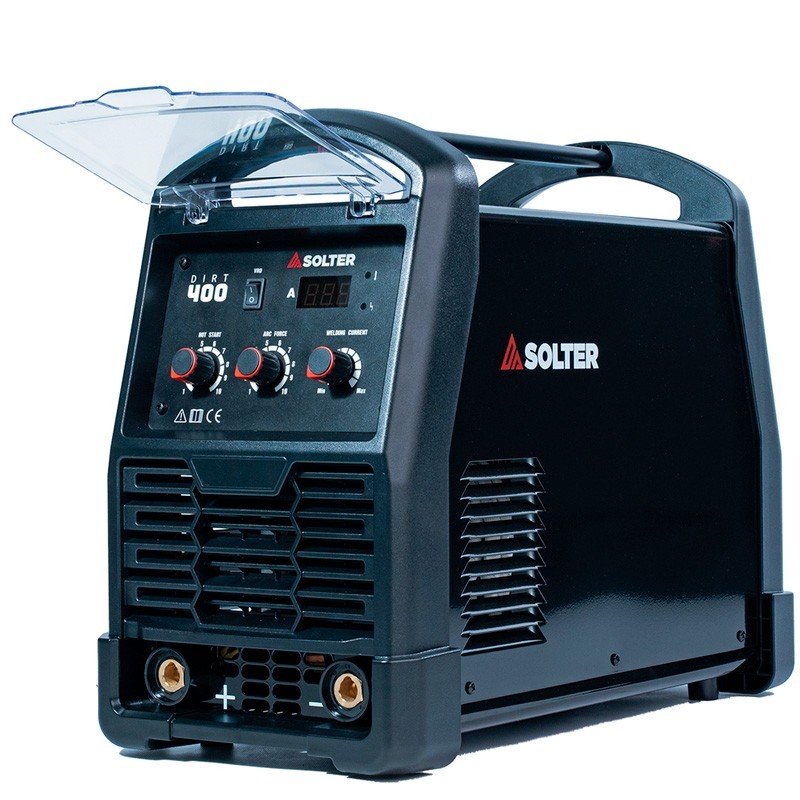

Inverter Welder Solter Dirt 400 CEL MMA TIG 400A
Inverter Welder Solter Dirt 400 CEL MMA TIG 400A
Inverter Welder Solter Dirt 400 CEL MMA TIG 400A
Inverter Welder Solter Dirt 400 CEL MMA TIG 400A

Inverter Welder Solter Dirt 400 CEL MMA TIG 400A


  • Regulation range: 15-400A
  • Intensity at 60% (100%) at 40ºC: 306A (237A)
  • Maximum intensity: 400 A
En stock
icon Current
Current
Three-phase
icon Typology Welder
Typology Welder
MMA / TIG
icon Panel
Panel
digital
icon No-load voltage
No-load voltage
82 V
icon Service 40ºC
Service 40ºC
35 %
icon Regulating range
Regulating range
15 - 400 A
icon Usable electrodes
Usable electrodes
1.6 - 5 mm
icon TIG type
TIG type
TIG lift
icon ✔️
✔️
Aluminum welding
icon Weight
Weight
23 Kg
€935.77 excl. VAT
- 4%
€898.34 excl. VAT
€1,086.99 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Inverter Welder Solter Dirt 400 CEL MMA TIG 400A
€1,086.99
Qty

Inverter Welder Solter Dirt 400

The inverter welder Solter Dirt 400 is a robust and efficient solution for demanding welding tasks. Its ability to operate at a maximum intensity of 400A and an adjustable range of 15-400A makes it suitable for a variety of applications, including MMA and TIG.

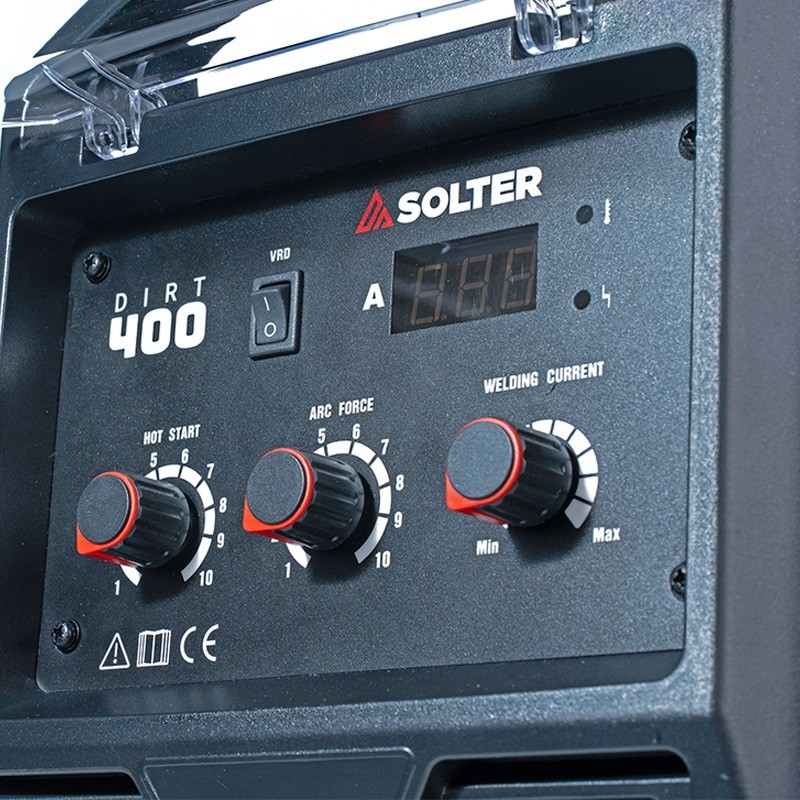

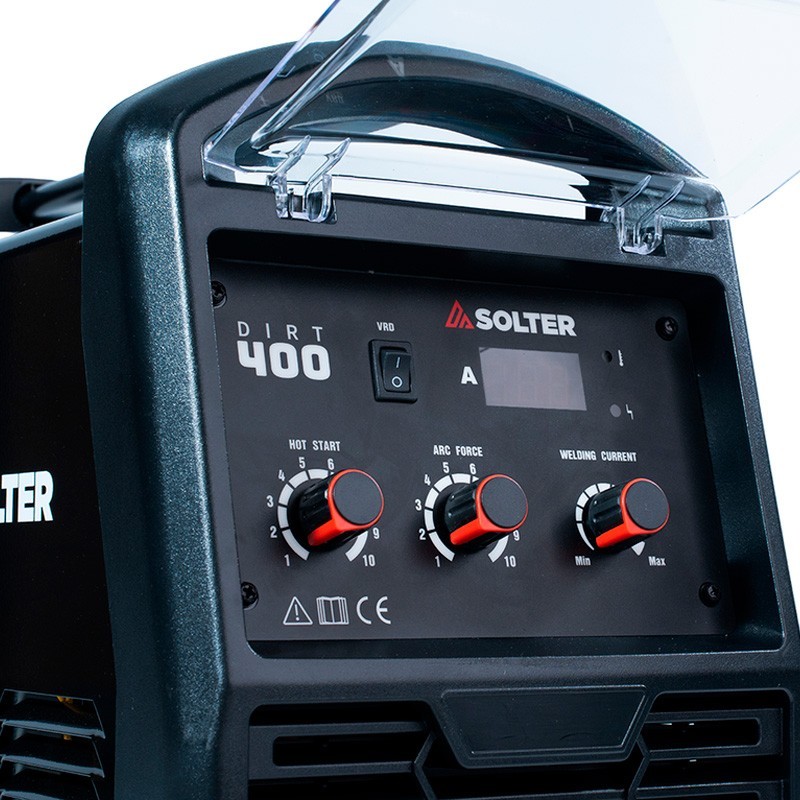

Compatible with electrodes from 1.6mm to 5.0mm in MMA and up to 4.0mm in TIG, it offers versatility and precision. Equipped with a forced ventilation system, thermal protection at 80ºC, and a Solter Digital control panel, it ensures safety and ease of use.

Its efficiency of 89% and a power factor of 0.9 make it energy-efficient and reliable. Ideal for industrial environments, with EMC emission class type A.

Compact and portable, with a weight of 23 kg, it includes as standard a 4m electrode holder and a 3m ground cable, ensuring immediate and effective use. Perfect for those seeking performance and durability.

Specifications

MODEL DIRT 400
Intensity at 60%(100%) at 40ºC 306A (237A)
MAX. Intensity 400A
Regulation range 15-400A
Performance at 40ºC 35%
Secondary voltage in idle 82V ± 5%
Usable electrodes MMA 1.6mm - 5.0mm
Usable electrodes TIG 1.6mm - 4.0mm
Network voltage 3~400V ± 15% 50/60Hz
Idle consumption 30 W
Equipment efficiency 89%
Power factor 0.9 (cos0)
Thermal protection of IGBT modules 80ºC ± 3ºC
Insulation type H
EMC emission class A (industrial)
Max absorbed power 20kw
Maximum input intensity 29A
Dimensions 510 x 240 x 420 mm
Packaging dimensions 615 x 335 x 460 mm
Protection index IP21S
Regulation panel SOLTER DIGITAL
Weight 23 kg
Ventilation Forced Auto
Included as standard
  • Electrode holder: 4m Ø25
  • Ground cable: 3m Ø25
261676

Data sheet

Current
Three-phase
Typology Welder
MMA / TIG
Panel
digital
No-load voltage
82 V
Service 40ºC
35 %
Regulating range
15 - 400 A
Usable electrodes
1.6 - 5 mm
TIG type
TIG lift
✔️
Aluminum welding
Weight
23 Kg

Specific References

EAN-13
8427338104880
MPN
10488
New
