Inverter welder Gala gar Smart 160 MMA 160 A
Inverter welder Gala gar Smart 160 MMA 160 A

Inverter welder Gala gar Smart 160 MMA 160 A


  • Current : Single phase
  • Welder Type : MMA
  • Weight : 3,2 Kg
  • Digital panel : Yes
  • No load voltage : 63 V
  • Service 40ºC : 35 %
  • Adjustment range : 20 - 160 A
  • Usable electrodes : 2 - 4 mm
En stock
icon Current
Current
Single-phase
icon Typology Welder
Typology Welder
MMA
icon Panel
Panel
digital
icon No-load voltage
No-load voltage
63 V
icon Service 40ºC
Service 40ºC
35 %
icon Regulating range
Regulating range
20 - 160 A
icon Usable electrodes
Usable electrodes
2 - 4 mm
icon Weight
Weight
3.2 Kg
€229.84 excl. VAT
- 4%
€220.65 excl. VAT
€266.99 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Inverter welder Gala gar Smart 160 MMA 160 A
€266.99
Qty

Inverter Welder Gala gar Smart 160 MMA 160 A

The Gala Gar Smart 160 MMA Inverter Welder is a versatile tool designed for MMA welding processes, offering compatibility with a wide range of electrodes, from rutile to stainless and special electrodes.

With an effective power of 3.7 KVA and a maximum effective current of 16 A, this device allows diverse applications in metal carpentry, maintenance and repairs.

Its continuous regulation range of 20 to 160 A and the duty factor of 35% to 160 A during 5 minutes at 40ºC ambient temperature, provide a reliable performance even in demanding conditions.

In addition, it has a mechanical protection degree IP21 and thermal protection F (155 ºC), ensuring durability and safety in its operation. With the capacity to use electrodes up to 3.25 mm, this welder provides efficiency and precision in welding jobs.

Accessories

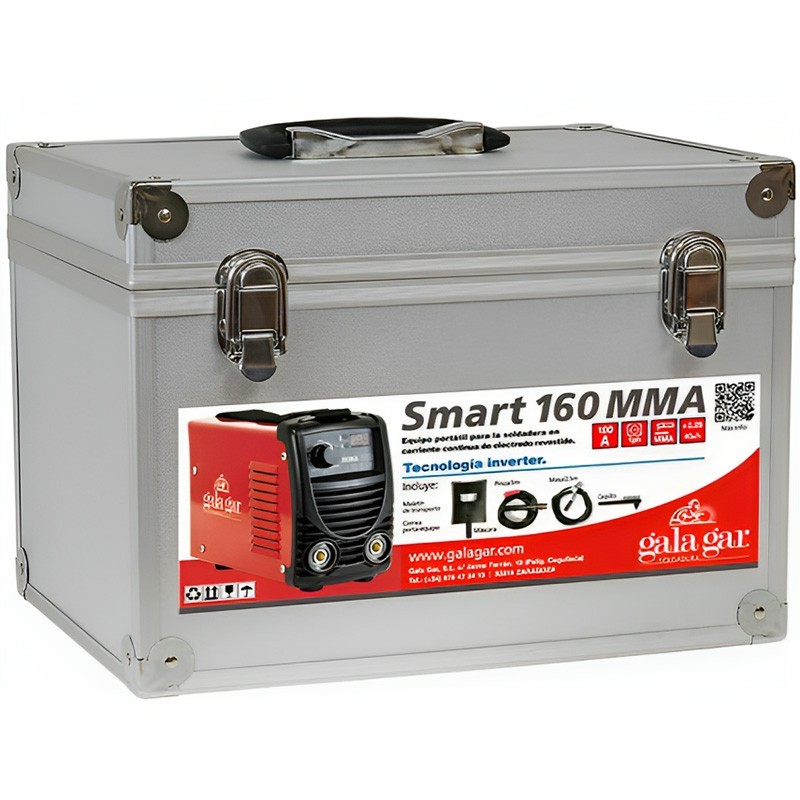

  • Carrying case.
  • Welding ground clamp with 2.5 m cable.
  • Electrode holder clamp with 3 m cable.
  • Metal spiked brush with pickaxe.
  • Disassembled welding mask.
  • Nylon strap for carrying the equipment.

Technical data sheet

Supply voltage (U1-I 50/60 Hz) 1Ph 230V ± 10%
Effective power (S1max eff) 3.7 KVA
Maximum effective current (I1max eff) 16 A
No-load voltage (U2o) 63 V
Continuous regulation range MMA (I2min - I2max) 20 - 160 A
Maximum coated electrode diameter 4.0 mm
Duty cycle factor (I2 max ; tc=5' ; Tamb=40ºC) 160 A / 35%
Degree of mechanical protection IP IP 21
Thermal protection degree F (155 ºC)
Weight 3.2 Kg
Dimensions 110 x 170 x 260 mm
ELECTRODES / HOUR (Tamb=25 ºC)
Electrode Diameter 2.00 mm CONTINUOUS
2.50 mm CONTINUOUS
3.25 mm > 40 electrodes
4.00 mm 25 e (150 A)
