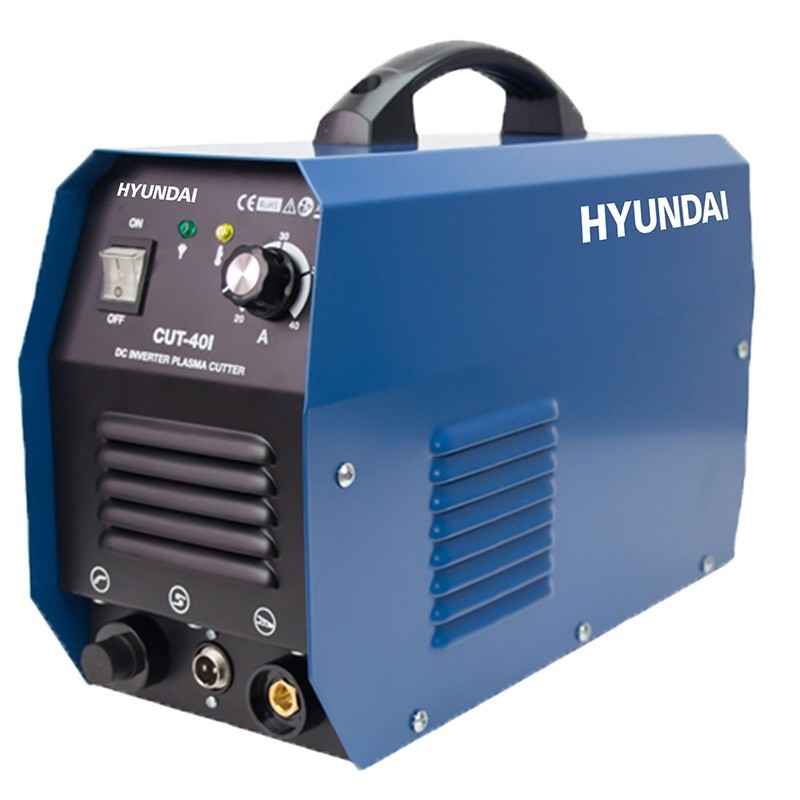

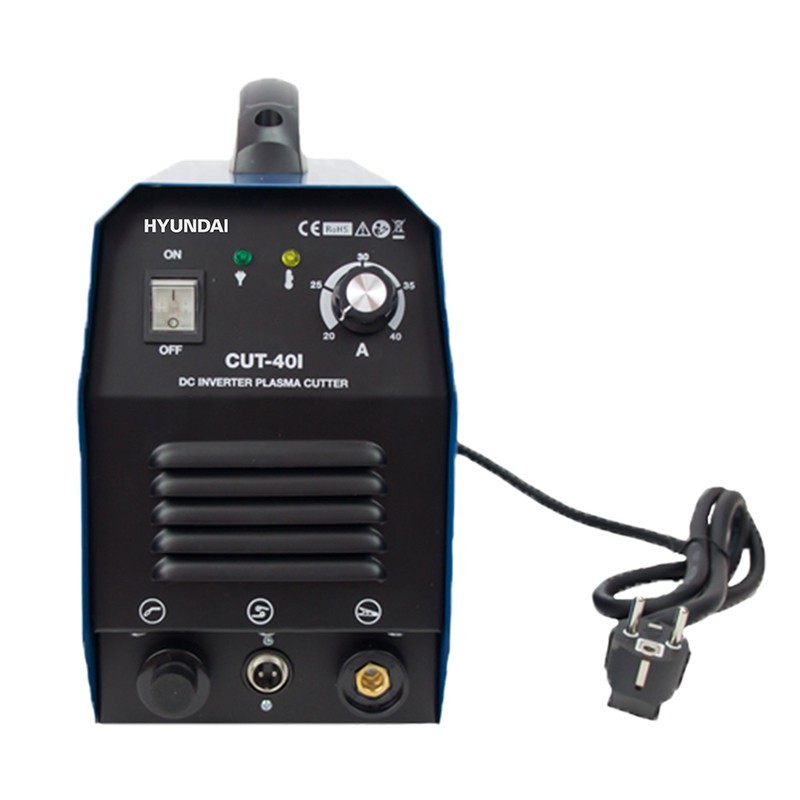

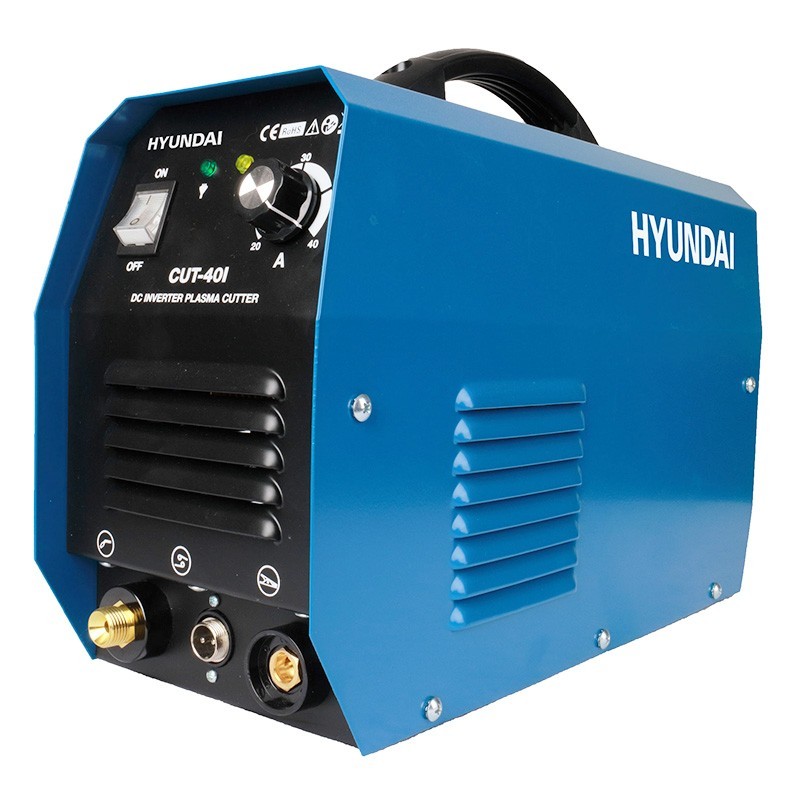

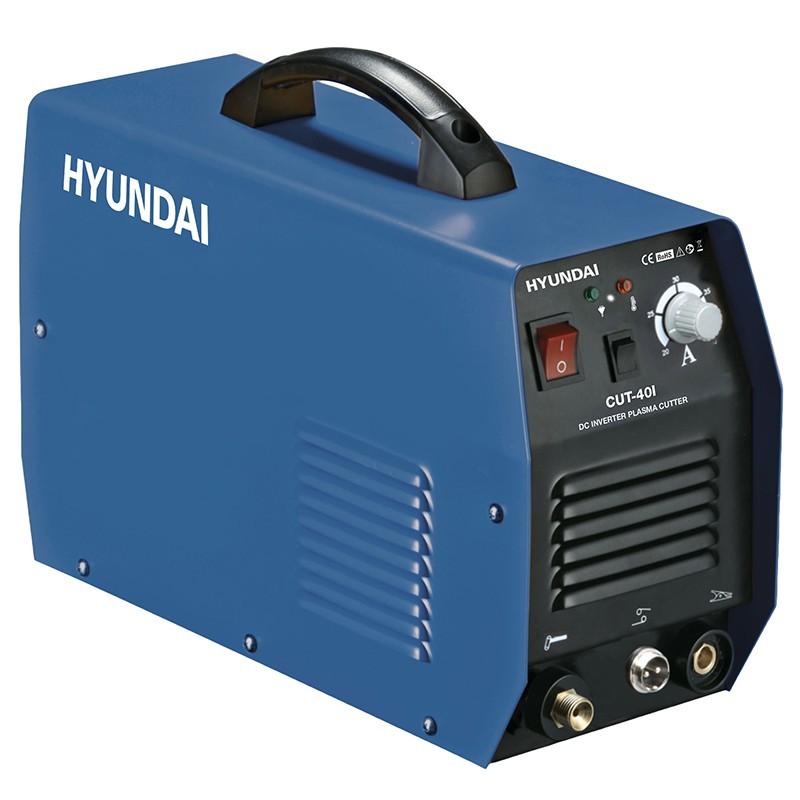

Plasma welding machine Hyundai CUT-40i
The welder Hyundai CUT-40i is an advanced tool that uses Inverter IGBT technology. It stands out for being light and compact, offering high efficiency in its operation. With an absorbed power of 6.9 kVA and a rated current of 30 A, this welder is designed to provide optimum performance in a variety of cutting applications.
The CUT-40i model provides an output current of 40 A at 96 V and operates at a no-load voltage of 240 V. Rated with IP21S protection and Class F insulation, it ensures safe and durable operation.
Equipped with an oscillating Pilot Arc HF system, it enables fast ignition and deformation-free cutting on materials with an inner burner diameter of 1 mm and an air compressor pressure of 4-5 kg.
Thanks to its PMW control technology, the Hyundai CUT-40i guarantees fast and precise cuts, with cutting widths ranging from 1 to 12 mm.
It uses an inverter compressed air plasma cutting system, which significantly improves cut quality and energy efficiency. This welder is ideal for jobs that require precision and speed without compromising material integrity.

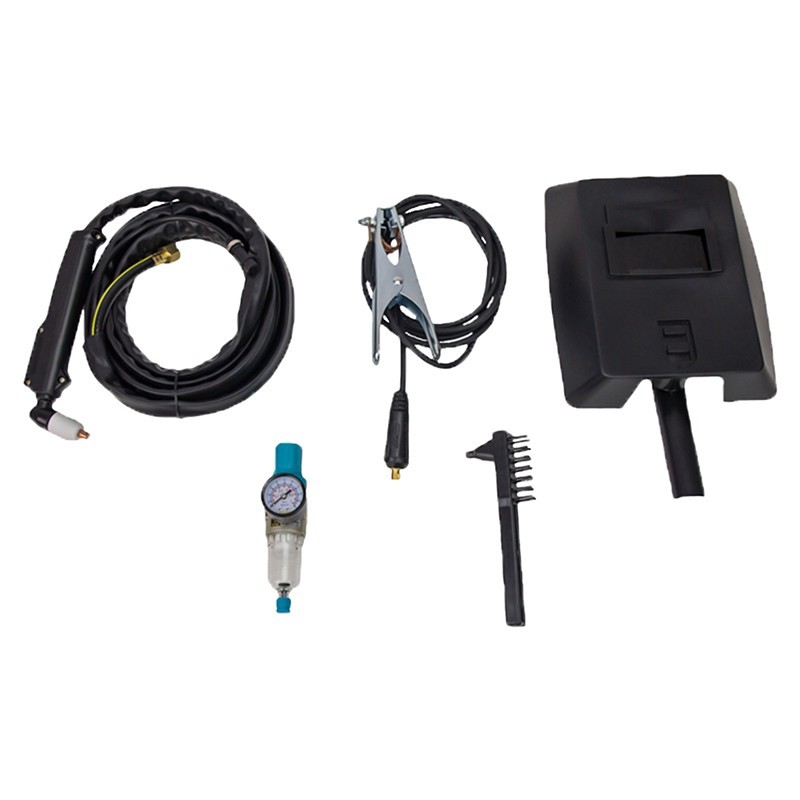

Accessories
- Plasma cutting torch.
- with 4 m cable.
- Clamp with 2.5 m cable.
- Simple mask.
- Hammer and brush.
- Air pressure indicator.
Technical data sheet
| Nominal input voltage |
1P AC 230V, 50Hz |
| Power absorbed |
6.9 kVA |
| Rated current |
30 A |
| Output Current / Voltage |
40 A / 96 V |
| No load voltage |
240 V |
| Protection Class |
IP21S |
| Insulation Class |
F |
| Pilot Arc Model |
HF oscillating |
| Inter. burner diameter |
1 mm |
| Air Compressor Pressure |
4-5 kg |
| Cutting width |
1-12 mm |
| Net / Gross weight |
10 / 11 Kg |
| Dimensions |
460 x 280 x 345 mm |
