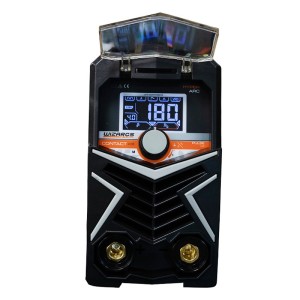

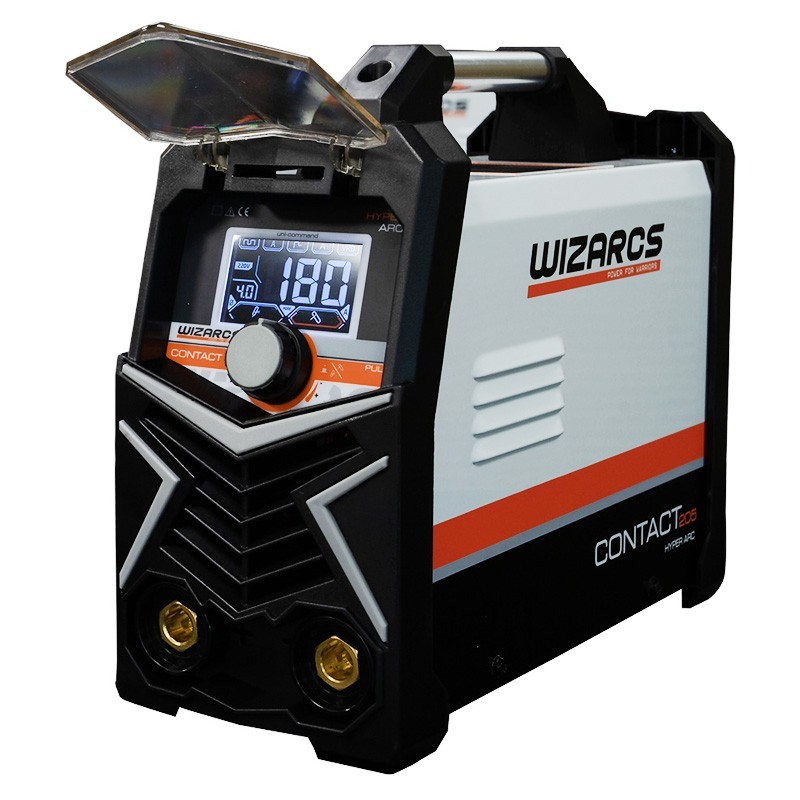

Inverter welder Wizarcs CONTACT 205 180 A
Inverter welder Wizarcs CONTACT 205 180 A

Inverter welder Wizarcs CONTACT 205 180 A

Rating:
(0)
  • Current : Double Voltage
  • Type of Welder : MMA / TIG
  • Weight : 4 Kg
  • Digital panel : Yes
  • No load voltage : 70 V
  • Service 40ºC : 50 %
  • Regulation range : 10 - 180 A
  • Usable electrodes : 3,2 - 4 mm
  • TIG type : TIG lift
En stock
icon Current
Current
Single-phase
icon Typology Welder
Typology Welder
MMA / TIG
icon Panel
Panel
digital
icon No-load voltage
No-load voltage
70 V
icon Service 40ºC
Service 40ºC
50 %
icon Regulating range
Regulating range
10 - 180 A
icon Usable electrodes
Usable electrodes
3.2 - 4 mm
icon TIG type
TIG type
TIG lift
icon ✔️
✔️
Aluminum welding
icon Weight
Weight
4 Kg
€142.60 excl. VAT
- 4%
€136.90 excl. VAT
€165.65 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Inverter welder Wizarcs CONTACT 205 180 A
€165.65
Qty

Inverter welder Wizarcs CONTACT 205 180 A

The inverter welder Wizarcs CONTACT 205 with a capacity to weld a variety of electrodes such as E-6010, E-6011, E-6013, E-7018, cast iron, stainless steel, aluminum and hard coatings makes it an ideal choice for different projects.

Its LCD screen and large knob with Soft Touch technology facilitate its use and adjustment, providing comfort to the operator during the work. In addition, its ability to connect to generators and its compatibility with extensions of up to 10 meters in both input and output (AWG2 and AWG8 respectively) extend its reach in larger working environments.

With 230V-50/60 Hz connection and an amperage range of 10-180A, this welder adapts to various working conditions and needs. Its dual functionality, in both MMA and TIG mode with TIG LIFT ARC, makes it a complete tool for demanding welders on the job.

Features

Soldador inverter Wizarcs

Electrodes up to Ø 4mm and protruding for 3.2mm.

 Soldador inverter Wizarcs caracteristicas

Safety system V.R.D. (Voltage Reduction Device), reduces the risk of electric shock.
Puede conectarse a Generadores.

Can be connected to generators with a minimum nominal power of 6.5Kw.

 Perilla en Goma

Rubber knob for better grip with gloves.
HYPER-ARC

HYPER-ARC, with HOT START, ARC FORCE and ANTI-STICK.

 Pantalla LCD de alto contraste.

High contrast LCD display.
Conectores rápidos tipo DINSE 10/25.

9 mm quick connectors.

Technical data

Connection 230V-50/60 Hz +/- 10%R
Amperage range 10-180A
Duty cycle At 40ºC 50%
No-load voltage (OCV - U0) 70V
Modes MMA / TIG
TIG Type TIG LIFT ARC
Connectors 3/8" (9mm) Quick Connectors
iP IP21S
Display Type LCD / Uni-Command
Knob Large size - Soft touch
Generators Connectable to generators (6.5 KW - 220V)
Extensions (Output) Up to 10m - AWG8
Extensions (Input) Up to 10m - AWG2
Control Hyper Arc
Weight 4 Kg
Dimensions 320 x 270 x 135 mm
259386

Data sheet

Current
Single-phase
Typology Welder
MMA / TIG
Panel
digital
No-load voltage
70 V
Service 40ºC
50 %
Regulating range
10 - 180 A
Usable electrodes
3.2 - 4 mm
TIG type
TIG lift
✔️
Aluminum welding
Weight
4 Kg

Specific References

EAN-13
7503034302018
