Inverter Welder Gala gar Smart 400 TIG Pulse Three-phase
Inverter Welder Gala gar Smart 400 TIG Pulse Three-phase

Inverter Welder Gala gar Smart 400 TIG Pulse Three-phase


  • Current : Three phase
  • Welder Type : Tig
  • Weight : 30 Kg
  • Service 40ºC : 50 %
  • Regulation range : 30 - 400 A
En stock
icon Current
Current
Three-phase
icon Typology Welder
Typology Welder
MMA / TIG
icon Panel
Panel
digital
icon No-load voltage
No-load voltage
68 V
icon Service 40ºC
Service 40ºC
50 %
icon Regulating range
Regulating range
30 - 400 A
icon Usable electrodes
Usable electrodes
1 - 4 mm
icon TIG type
TIG type
High frequency TIG
icon ✔️
✔️
Water-cooled
icon Weight
Weight
30 Kg
€3,466.72 excl. VAT
- 4%
€3,328.05 excl. VAT
€4,026.94 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Inverter Welder Gala gar Smart 400 TIG Pulse Three-phase
€4,026.94
Qty

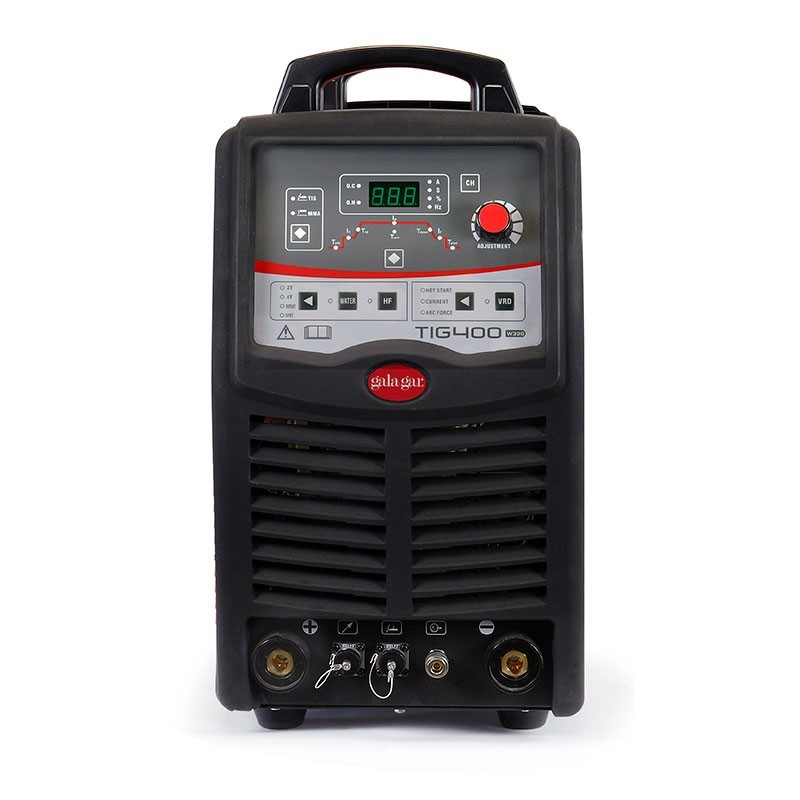

Inverter welder Gala gar Smart 400 TIG Pulse

The Gala Gar Smart 400 TIG Pulse Inverter Welder is a versatile machine that offers a wide range of functions for TIG Pulse, TIG DC HF and MMA welding. With a design based on industrial IGBT technology, it guarantees high precision performance.

Its high-precision MCU chip supports its reliability, while the non-contact arc ignition system (HF) facilitates welding start-up. This equipment stands out for its customization capabilities, with 2T/4T pulse modes and the possibility of adjusting parameters such as ascent/descent slope, pre/post gas and crater/initial/weld current.

In addition, its intuitive digital interface panel allows easy upgrades and offers a dedicated gas test mode for the DC TIG function. With 8 automatic channels of welding parameters, this welder provides exceptional flexibility and is even suitable for use with generator sets with regulated output.

Accessories

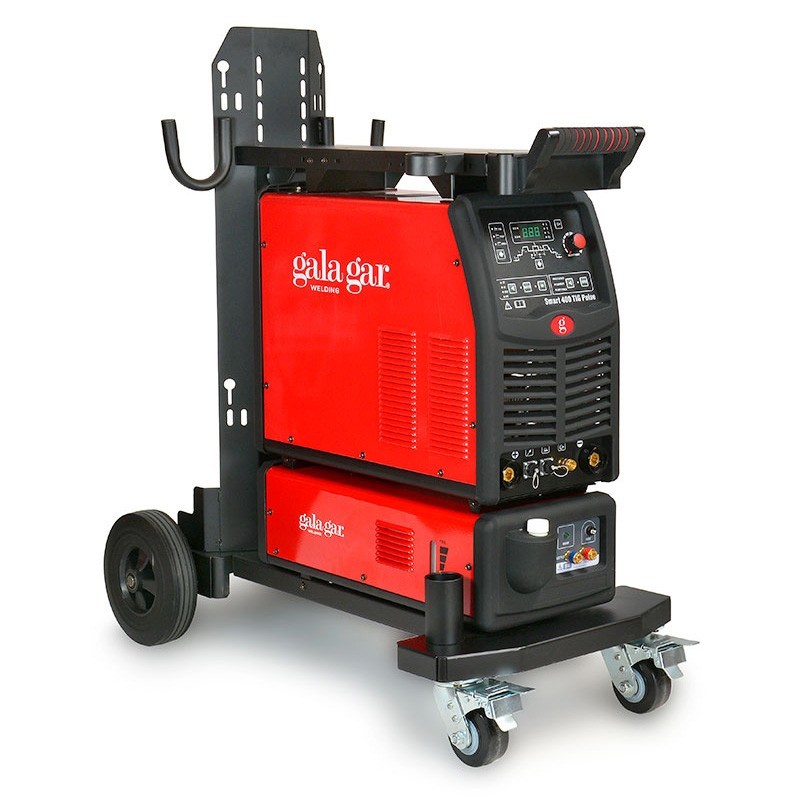

  • Transport trolley.
  • Cooling module.
  • Remote control foot pedal with 2m cable.
  • 35/50 connector with ground connection.

Technical data

Supply voltage (50/60 Hz) 3 Ph. 400 V
Maximum input current 26 A
Effective input current 15 A
Maximum power 17.9 KVA
No-load voltage 68 V
Maximum TIG DC welding current 400 A / 50 %
Nominal TIG DC welding current 283 A / 100%
Maximum MMA welding current 400 A / 30 %
Rated MMA welding current 219 A / 100%
TIG electrode diameter 1 - 4 mm
MMA electrode diameter 1 - 6 mm
Remote control OPTIONAL
Weight 30 Kg
Dimensions 297 x 528 x 595 mm

Interesting links

259436

Data sheet

Current
Three-phase
Typology Welder
MMA / TIG
Panel
digital
No-load voltage
68 V
Service 40ºC
50 %
Regulating range
30 - 400 A
Usable electrodes
1 - 4 mm
TIG type
High frequency TIG
✔️
Water-cooled
Weight
30 Kg

Specific References

MPN
22300400T
New
