Inverter Welder Wizarcs Boost 185 150 A
Inverter Welder Wizarcs Boost 185 150 A

Inverter Welder Wizarcs Boost 185 150 A

Rating:
(0)
  • Current : Double Voltage
  • Type of Welder : MMA / TIG
  • Weight : 2,2 Kg
  • Digital panel : Yes
  • No load voltage : 70 V
  • Service 40ºC : 50 %
  • Adjustment range : 10 - 150 A
  • Usable electrodes : 2,5 - 3,2 mm
  • TIG type : TIG lift
En stock
icon Current
Current
Single-phase
icon Typology Welder
Typology Welder
MMA / TIG
icon Panel
Panel
digital
icon No-load voltage
No-load voltage
70 V
icon Service 40ºC
Service 40ºC
50 %
icon Regulating range
Regulating range
10 - 150 A
icon Usable electrodes
Usable electrodes
2.5 - 3.2 mm
icon TIG type
TIG type
TIG lift
icon Weight
Weight
2.2 Kg
€101.44 excl. VAT
- 6%
€95.36 excl. VAT
€115.38 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Inverter Welder Wizarcs Boost 185 150 A
€115.38
Qty

Inverter Welder Wizarcs Boost 185 150 A

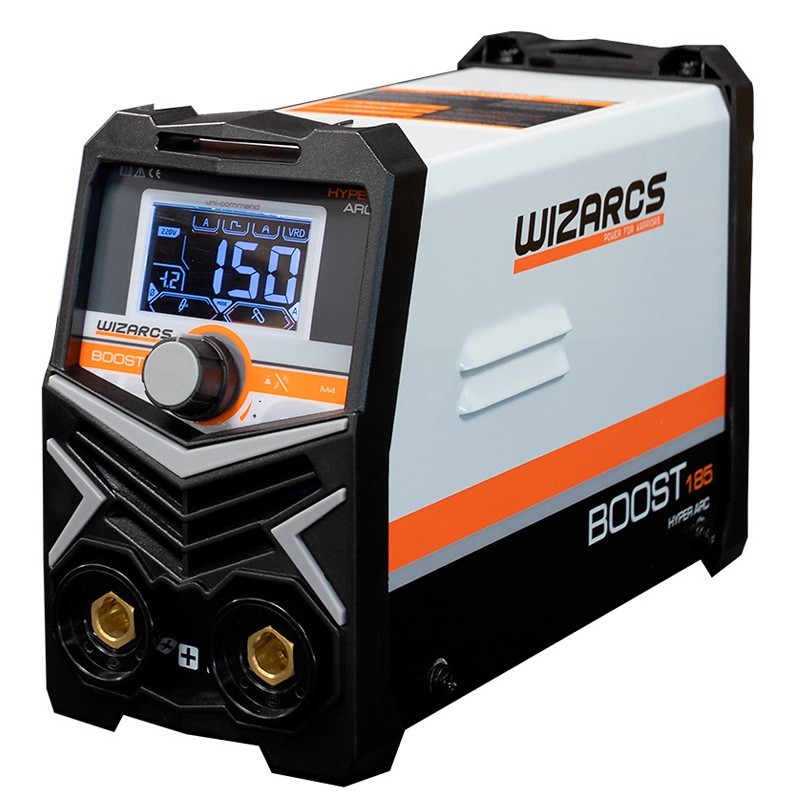

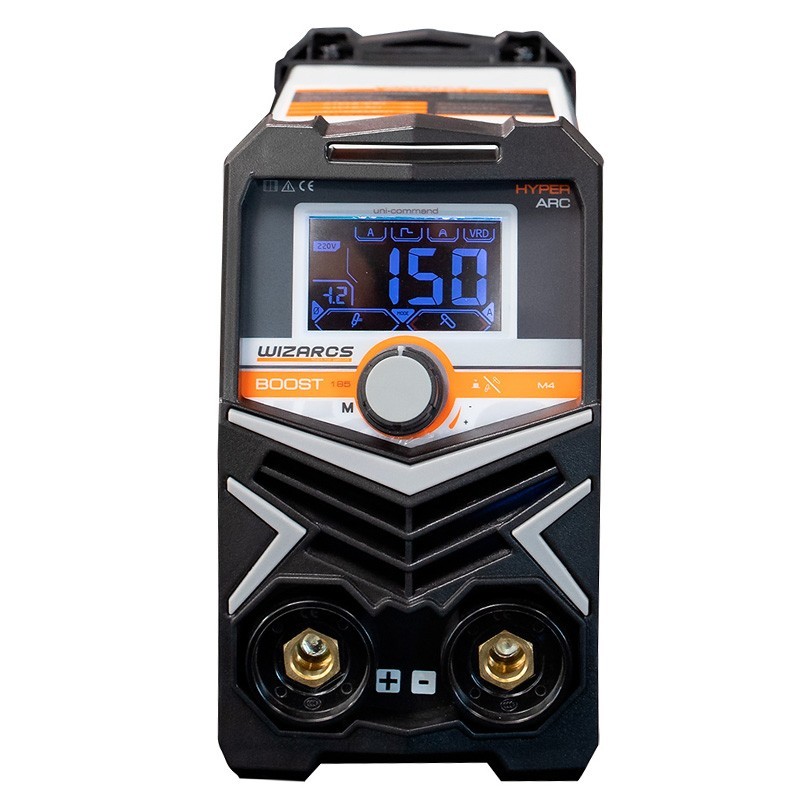

The Inverter Welder Wizarcs Boost 185 with its 230V-50/60 Hz connection capability and wide amperage range, from 10 to 150A, provides flexibility to adapt to different projects.

Its 50% duty cycle at 40°C ensures continuous and stable operation, while its dual MMA/TIG mode with TIG LIFT ARC provides versatile options for various welding techniques. Equipped with an LCD display and Uni-Command interface, this welder offers an intuitive and easy-to-control user experience.

Its 3/8" quick connectors allow for safe and fast connection, while its ability to connect to generators (up to 4.5 Kw - 220V) makes it an ideal choice for jobs in remote locations or with limited power supply.

Features

Soldador inverter Wizarcs

Electrodes up to Ø 3.2mm and protruding for 2.5mm.

 Soldador inverter Wizarcs caracteristicas

Safety system V.R.D. (Voltage Reduction Device), reduces the risk of electric shock.
Puede conectarse a Generadores.

Can be connected to generators.

 Perilla en Goma

Rubber knob, for better grip with gloves.
HYPER-ARC

HYPER-ARC, with HOT START, ARC FORCE and ANTI-STICK.

 Pantalla LCD de alto contraste.

High contrast LCD display.
Conectores rápidos tipo DINSE 10/25.

9mm quick connectors.

Technical data

Connection 230V-50/60 Hz +/- 10%
Amperage range 10-150A
Duty cycle At 40ºC 50%
No-load voltage (OCV - U0) 70V
Modes MMA / TIG
TIG Type TIG LIFT ARC
Connectors 3/8" (9mm) Quick Connectors
iP IP21S
Display Type LCD / Uni-Command
Knob Large size - Soft touch
Generators Connectable to generators (4.5 Kw - 220V)
Extensions (Output) Up to 10m - AWG4
Extensions (Input) Up to 10m - AWG10
Control Hyper Arc
Weight 2.2 Kg
Dimensions 280x185x160 mm
259385

Data sheet

Current
Single-phase
Typology Welder
MMA / TIG
Panel
digital
No-load voltage
70 V
Service 40ºC
50 %
Regulating range
10 - 150 A
Usable electrodes
2.5 - 3.2 mm
TIG type
TIG lift
Weight
2.2 Kg

Specific References

EAN-13
7503034302001
