Inverter Multiprocess Welder Wizarcs Infinity 160 160 A
Inverter Multiprocess Welder Wizarcs Infinity 160 160 A

Inverter Multiprocess Welder Wizarcs Infinity 160 160 A

Rating:
(0)
  • Current : Double Voltage
  • Type of Welder : MMA / TIG
  • Weight : 6 Kg
  • Digital panel : Yes
  • No load voltage : 70 V
  • Service 40ºC : 50 %
  • Adjustment range : 10 - 200 A
  • Usable electrodes : 4 - 5 mm
  • TIG type : TIG lift
En stock
icon Current
Current
Single-phase
icon Typology Welder
Typology Welder
Multiprocess
icon Panel
Panel
digital
icon No-load voltage
No-load voltage
70 V
icon Service 40ºC
Service 40ºC
50 %
icon Regulating range
Regulating range
10 - 160 A
icon Usable electrodes
Usable electrodes
2.5 - 3.2 mm
icon TIG type
TIG type
TIG lift
icon Weight
Weight
6.5 Kg
€216.59 excl. VAT
- 4%
€207.93 excl. VAT
€251.60 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Inverter Multiprocess Welder Wizarcs Infinity 160 160 A
€251.60
Qty

Inverter Multiprocess Welder Wizarcs Infinity 160 160 A

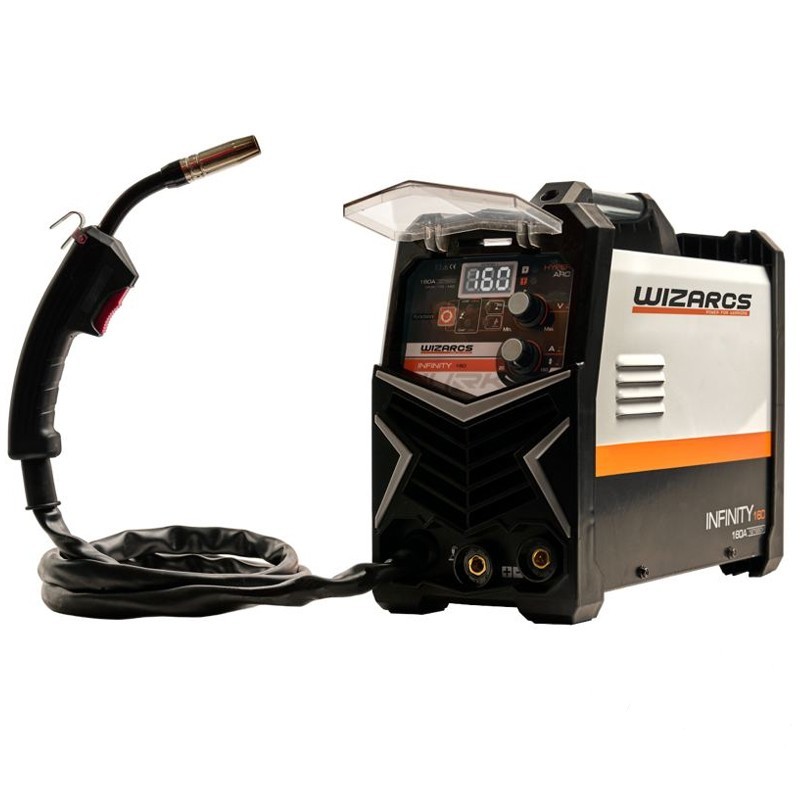

The inverter multiprocess welder Wizarcs Infinity 160 with a duty cycle of 50% at 40ºC and a no-load voltage of 70V, this equipment is ideal for multiple welding modes, including MMA, TIG, FCAW and MIG MAG (from M2).

Its ability to use different wire diameters, such as the recommended 0.035" / 0.9mm and a maximum of 0.040" / 1.0mm, provides flexibility in various welding tasks.

Thanks to its TIG LIFT ARC type and 3/8" (9mm) quick connectors, the Wizarcs Infinity 160 allows you to work with ease and precision, whether electrode welding, using TIG(requiring a TIG torch, not included) or handling self-shielded or gas-shielded wires (on M2 and later versions).

Features

Soldador inverter Wizarcs

Electrodes up to Ø 3,2mm and protruding for 2,5mm.

 Conectores rápidos tipo DINSE 35/50.

Quick connectors 13 mm.
Puede conectarse a Generadores.

Can be connected to generators with a minimum nominal power of 6.5Kw.

 Perilla en Goma

Rubber knob, for a better grip with gloves.
HYPER-ARC

HYPER-ARC, with HOT START, ARC FORCE and ANTI-STICK.

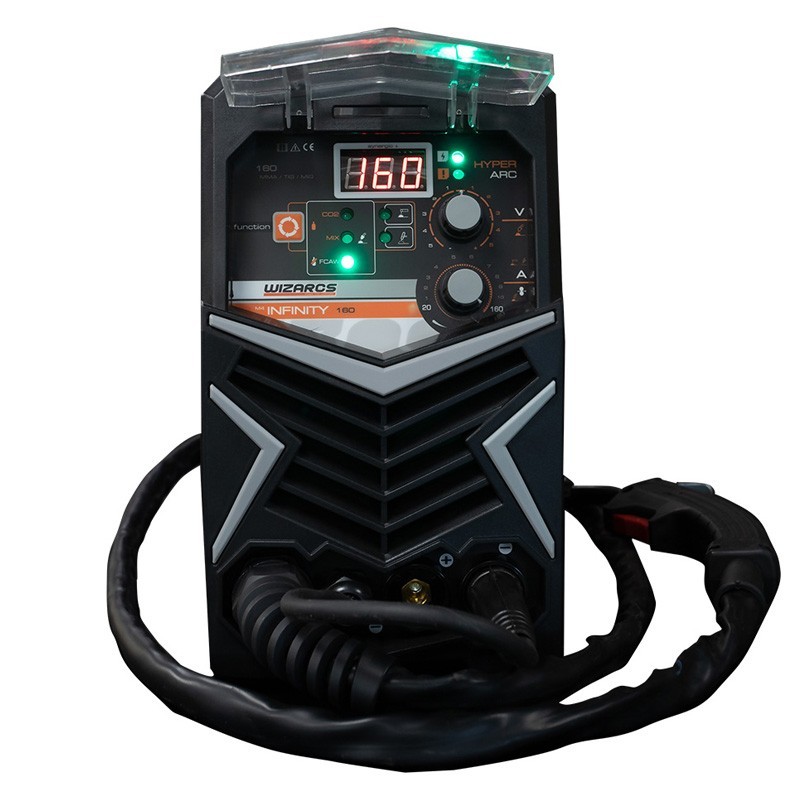

 Pantalla LCD de alto contraste.

High contrast LCD display.

Technical data

Connection 230V-50/60 Hz +/- 10%
Amperage range - 220V 10-160A
Duty cycle At 40ºC 50%
No-load voltage (OCV - U0) 70V
Modes MMA / TIG / FCAW / MIG MAG (M2 onwards)
Recommended wire Ø 0.035″ / 0.9mm
Ø Maximum wire size 0.040″ / 1.0mm
TIG Type TIG LIFT ARC
Connectors 13 mm quick connectors
iP IP21S
Type of display LED | SINERGIC +
Knob Large size - Soft touch
Generators Connectable to generators (6.5 KW - 220V)
Extensions (Output) Up to 10m - AWG8
Extensions (Input) Up to 10m - AWG2
Control Hyper Arc
Weight 6.5 Kg
Dimensions 415 x 255 x 355 mm
259388

Data sheet

Current
Single-phase
Typology Welder
Multiprocess
Panel
digital
No-load voltage
70 V
Service 40ºC
50 %
Regulating range
10 - 160 A
Usable electrodes
2.5 - 3.2 mm
TIG type
TIG lift
Weight
6.5 Kg

Specific References

EAN-13
7503034302032
New

✔️ Advantages of making purchases in the Spanish territory

  • National warranty: By purchasing from authorized distributors throughout Spain, you are assured of receiving a 100% Spanish warranty for your products.
  • Local after-sales service: In case of any inconvenience or need for after-sales service, you will have a more efficient and accessible support when purchasing within Spain.

❌ Disadvantages of buying outside Spanish territory

  • Complicated warranty management: Buying products outside Spain can make warranty management difficult, as there may be problems with the Spanish serial number or delays in the process.
  • Limited after-sales service: The availability of after-sales service may be limited or less accessible when purchasing products abroad.
  • Tax declaration: When purchasing products outside Spain, customers may be required to make an additional tax declaration, such as an intra-community purchase, which may involve additional tax formalities.
