Unified reduction for DELEKS power take-off
- Unified reduction for DELEKS power take-offs
€50.50 VAT incl.
CARDAN SHAFT INCLUDED
Deleks products take about 15 to 25 days. |

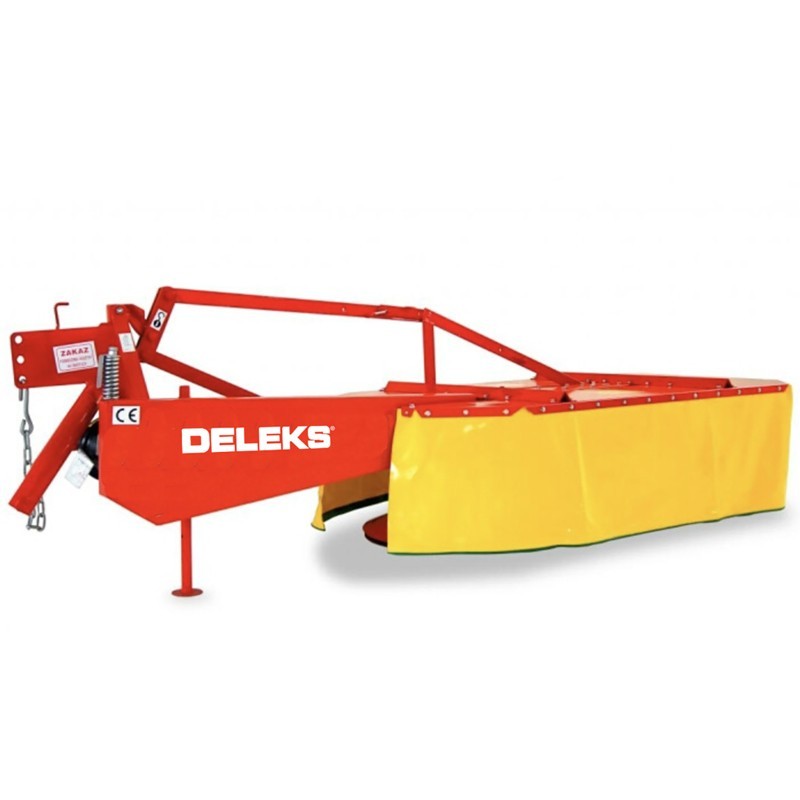

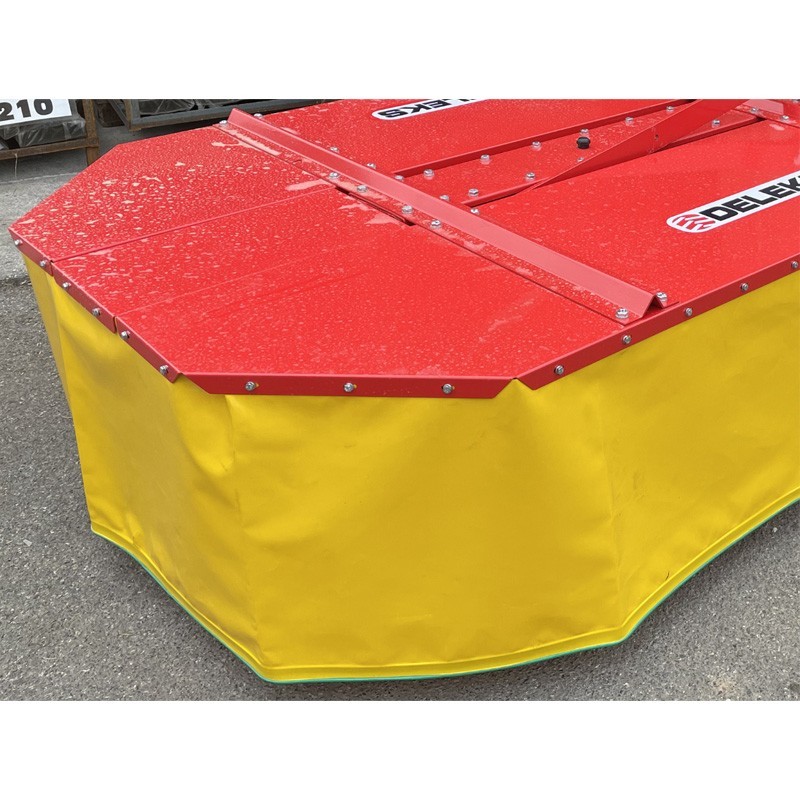

The rotary mower for tractor Deleks DFR-185 1800 mm has a simple and robust conception, this mower allows to reduce the time of hay production. The drum has a fixed shaft. This model has 2 discs for its operation. The lower disc rotates and prevents the cutting disc from getting stuck in the ground.
Making the mower usable on a flat or uneven field, this mower is compatible with all types of 70 - 100 HP tractors.
This mower can be hydraulically lifted for safe transport, its light and robust design allows its use with low power tractors, it has a safety release system to avoid damage, its discs are easily accessible to replace the blades. It can be used in all conditions to make hay all year round.
Ithas a locking system that allows the mower to overcome obstacles and keep the machine in safety during transport.
Working width | 1800.0 mm |
Overall width | 3300.0 mm |
Cutting height min/max | 50.0 mm |
Weight | 420.0 kg |
Tractor power | 70-100 hp |
3-point hitch | Cat. 2 (ø 25.0-28.0mm) |
Distance between lower points | 670.0-790.0 mm |
Total length | 1500.0 mm |
Space between ground and transmission box | 530.0 mm |

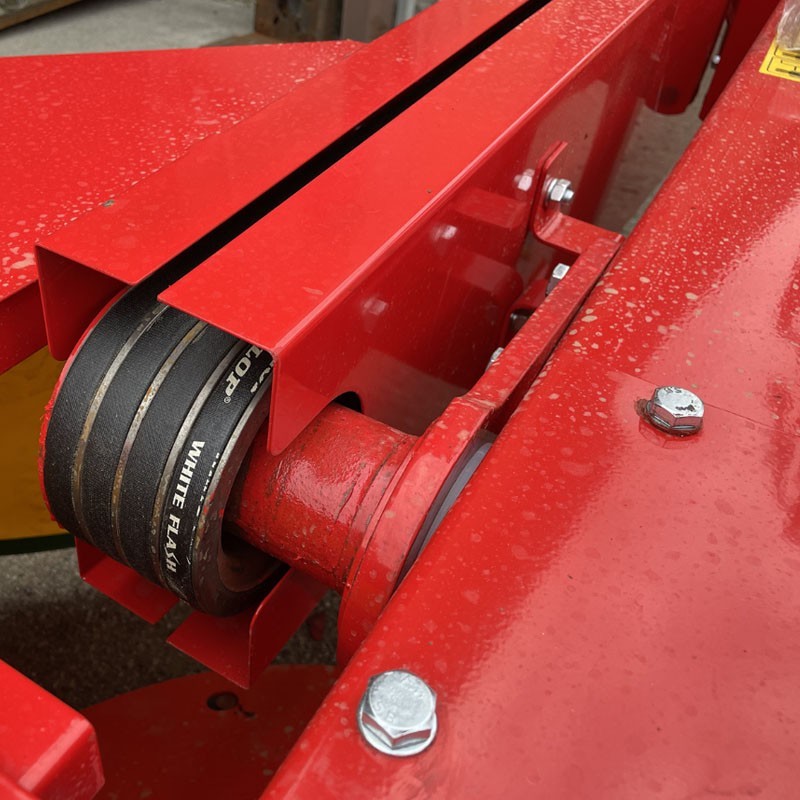

Transmission type | V-belts |
Transmission: PTO | 540 r/min |
Transmission: direction of rotation | Schedule |
Transmission: freewheel | √ |
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
Transmission: number of cores | 4 |
Arm length | 1250.0 mm |
Coverage | Metal |

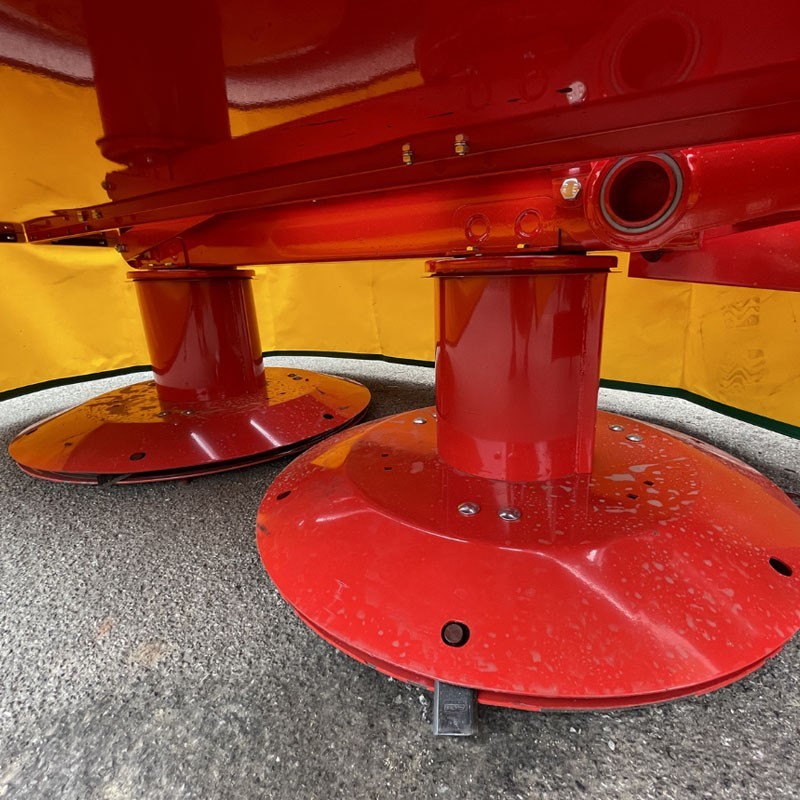

No. of drums | 2 |
Drum height | 600.0 mm |
Type of lifting | manual |
Transmission | Bevel gear |
Cardan | CE 6x1000 mm |
No. of blades | 8 |
Blades: Weight | 150.0 g |
Blades: dimension | 95.0 / 48.0 mm |
Blades: hole dia | 18.0 mm |
Packing dimension | 1850.0*1000.0*2300.0 mm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
