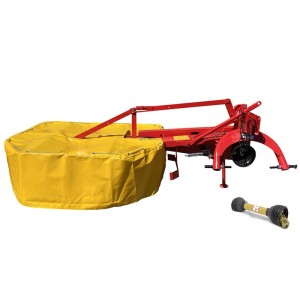

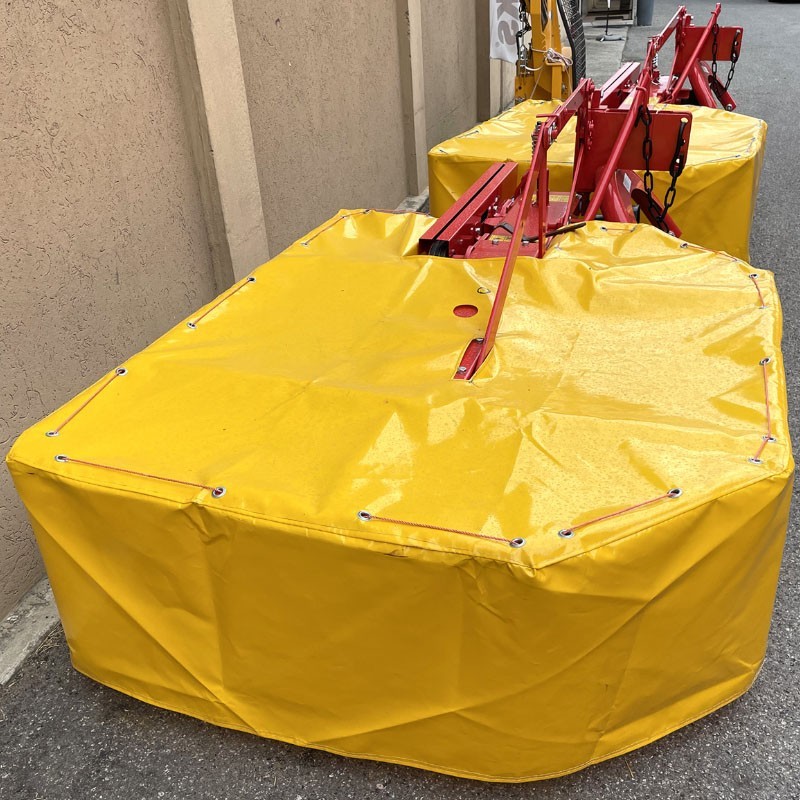

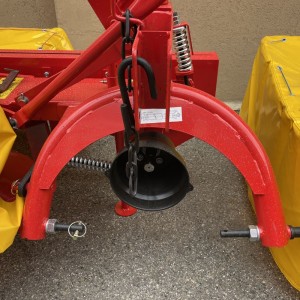

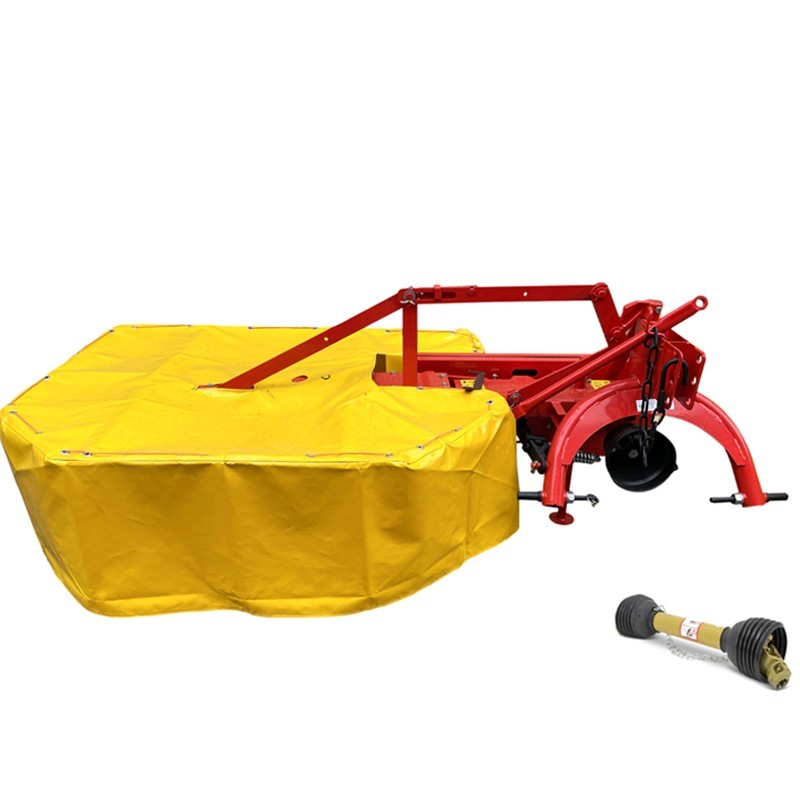

Rotary mower for tractor Deleks DFR-135 16-35HP
- Power: 25 - 60 HP
- Cutting height: 50 mm
- Cutting width: 1350mm
- Number of blades: 8
€1,968.21 VAT incl.
Deleks products take about 15 to 25 days. |
The rotary mower for tractor Deleks DFR-135 Mini thanks to its simple and robust conception, this mower allows to reduce the time of hay production, its drum has a fixed axle. This model has 2 discs for its operation.
The lower disc rotates and prevents the cutting disc from blocking in the ground, so the mower can be used on a flat or uneven field. This mower is compatible with all types of tractors with a power of 18 to 45 HP.
Its light and robust conception allows its use with low power tractors, it has a safety release system to avoid damage, its discs are easily accessible to replace the blades, it can be used in all conditions to make hay all year round, It has a locking system that allows the mower to overcome obstacles.
This makes the machine safe during transport, making this mower a versatile and very useful machine to be used in the working area.
Working width | 1350 mm |
Overall width | 2400.0 mm |
Cutting height min/max | 50 mm |
Weight | 280.0 kg |
Tractor power | 18-45 HP |
3-point hitch | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
Distance between lower points | 420-810 mm |
Total length | 1300 mm |
Space between ground and transmission box | 430 mm |

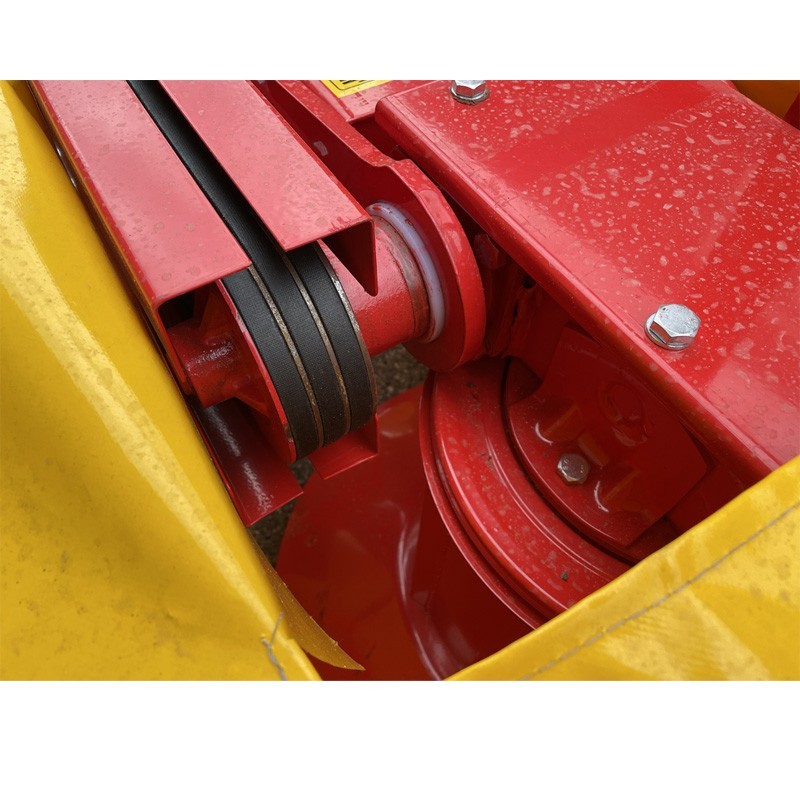

Transmission type | V-belts |
Transmission: PTO | 540 r/min |
Transmission: direction of rotation | Schedule |
Transmission: freewheel | √ |
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
Transmission: number of cores | 3 |
Arm length | 650.0 mm |
Coverage | Metal |

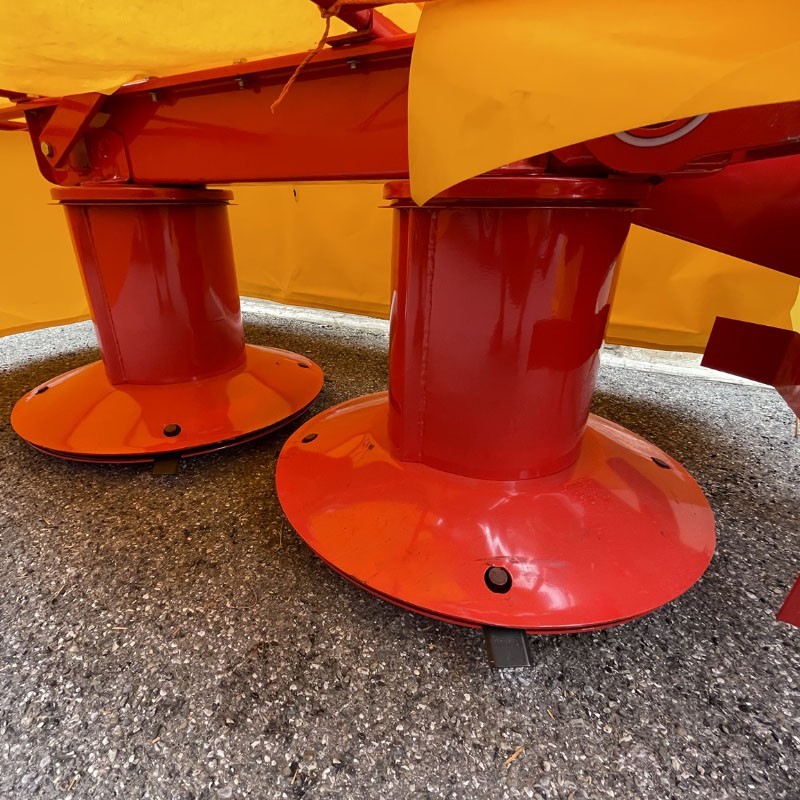

No. of drums | 2 |
Drum height | 600 mm |
Type of lifting | Manual |
Transmission | Bevel gear |
Cardan | CE 4x800 mm |
No. of blades | 8 |
Blades: Weight | 150 g |
Slats: dimension | 95 / 48 mm |
Blades: hole dia | 18 mm |
Packing dimension | 1350*800*2000 mm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
