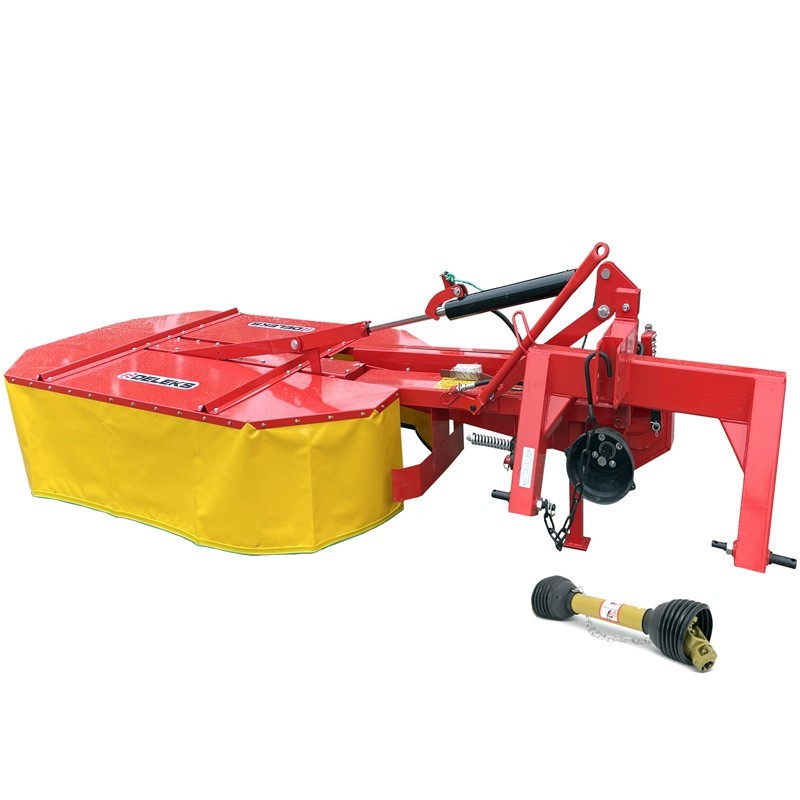

Rotary mower for tractor Deleks DFR-185-H 70-100HP

Rating:
(0)
  • Tractor power: 70 - 100 HP
  • Cutting height: 50 mm
  • Cutting width: 1800mm
  • Number of blades: 8
Deleks products take about 15 to 25 days.
En stock
icon Working width
Working width
180 - 189 cm
icon Country of manufacture
Country of manufacture
Italy
€2,629.34 excl. VAT
- 2%
€2,576.75 excl. VAT
€3,117.87 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Rotary mower for tractor Deleks DFR-185-H 70-100HP
€3,117.87
Qty

Rotary mower for tractor Deleks DFR-185-H

The Rotary mower Deleks DFR-185-H It is specially designed for tractors with power of 70-100HP. This shredder model is used to reduce hay production time.

The model Deleks DFR-185-H features a drum with a fixed axis. This model has 2 discs for its operation. The lower disc rotates and prevents the cutting disc from getting stuck in the ground, allowing the mower to be used on flat or uneven fields.

This Mower of Deleks also has a universal 3-point hitch of CAT 2. This is compatible with almost all mini tractors. As for its features, we can highlight its good transmission box through V-belts.. This comes with a freewheel.

The DFR-185-H Mower It comes with Universal joint included, it also includes a safety release system to prevent damage. The implement can be used on low-power tractors in gardens and orchards. This is thanks to its weight of 430Kg.

This model of Rotary mower Deleks It ensures the operator good comfort and ease of work. This is thanks to its notable good features.

Among these features, we can highlight the working width of 1850mm and the total width of 3300mm. We can also highlight the maximum cutting height of 50mm and the total length of 1500mm.

Characteristics

Working width 1800 mm
Total width 3300 mm
Cutting height min/max 50 mm
Weight 430 kg
Tractor power 70-100 hp
Hitch 3 points Cat. 2 (ø 25.0-28.0mm)
Distance between the lower points 670-790 mm
Total length 1500 mm
Space between the ground and the transmission box 530 mm
Type of transmission Correas V
Transmission: PTO 540 revolutions per minute
Transmission: direction of rotation Schedule
Transmission: freewheel This is the square root symbol in Spanish.
Transmission: gearbox oil Yes / SAE 120 - ISO 72925
Transmission: number of cores 4
Arm length 1250 mm
Coverage Metallic
No. drums 2
Drum height 600 mm
Type of survey Hydraulic
Transmission Bevel gears
Cardan refers to a type of universal joint used in mechanical engineering to transmit power between two shafts that are not in line with each other. It allows for the transmission of rotational motion at an angle. CE 6x1000 mm
Number of slats 8
Lamas: Weight 150 g
Lamas: dimension 95 / 48 mm
Lamas: ø hole 18 mm
Packaging dimensions 1850*1000*2300 mm

Advantages

  • It can be hydraulically elevated for safe transportation.
  • Its light and robust design allows it to be used with low-power tractors.
  • Safety release system to prevent damage
  • Easily accessible discs for replacing the slats
  • It can be used in all conditions to make hay throughout the year.
  • Locking system that allows the mower to overcome obstacles and keep the machine secure during transport.
  • CE cardan included.
IMPORTANT NOTICE
Mandatory on the part of the client, check Oil and grease levels should be checked before starting up. If the merchandise cannot be inspected at the time of delivery, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam.
