Standard disc mowers for tractor Zeppelin 236 cm
- Working width : 2360 mm
- Power requirement : 45 - 100 HP
- Number of discs : 6
€4,949.13 VAT incl.
Assembly and set-up INCLUDED |

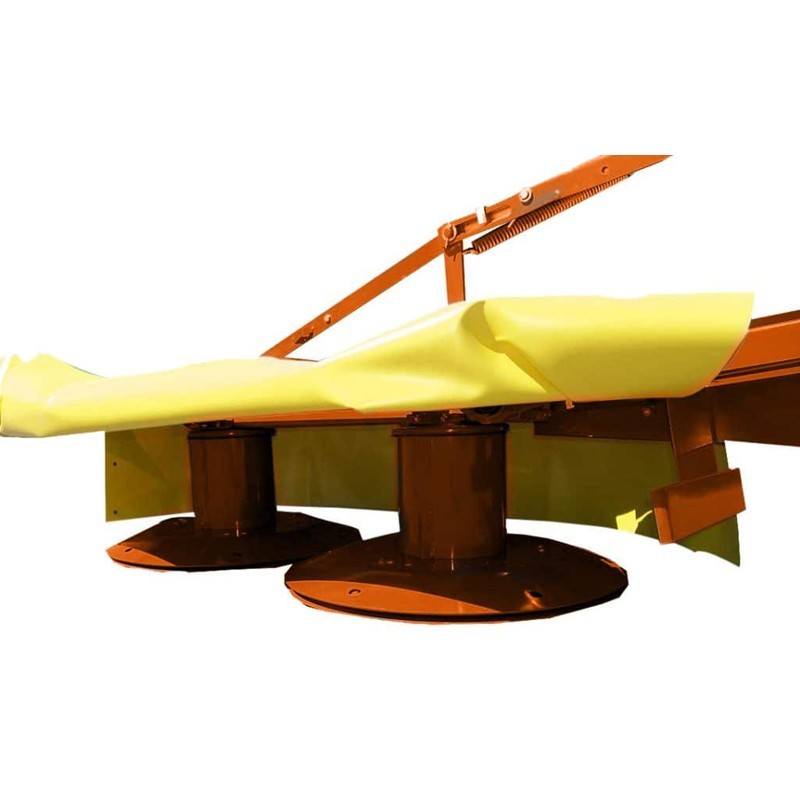

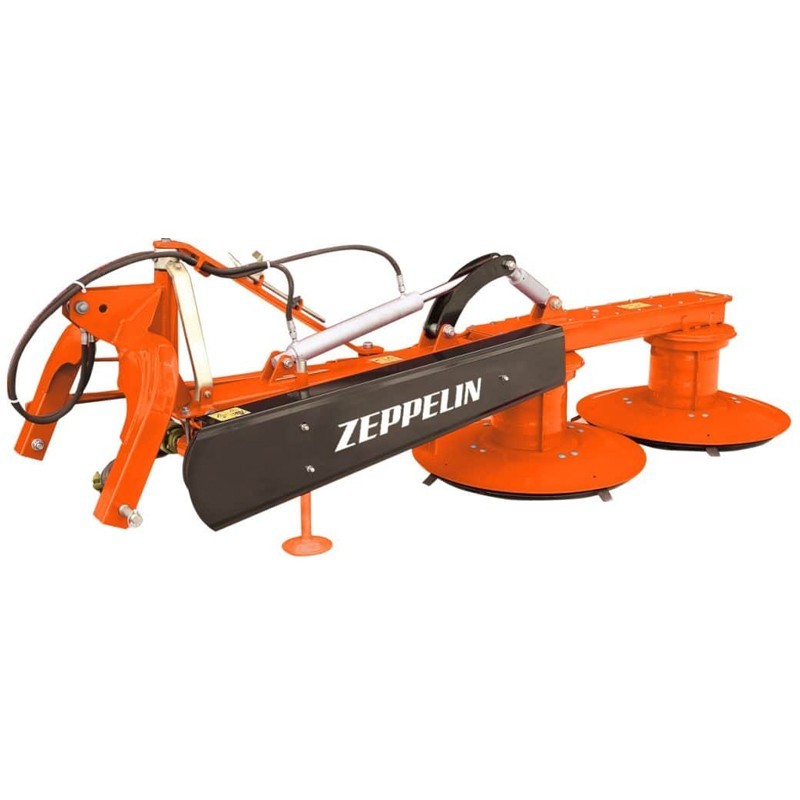

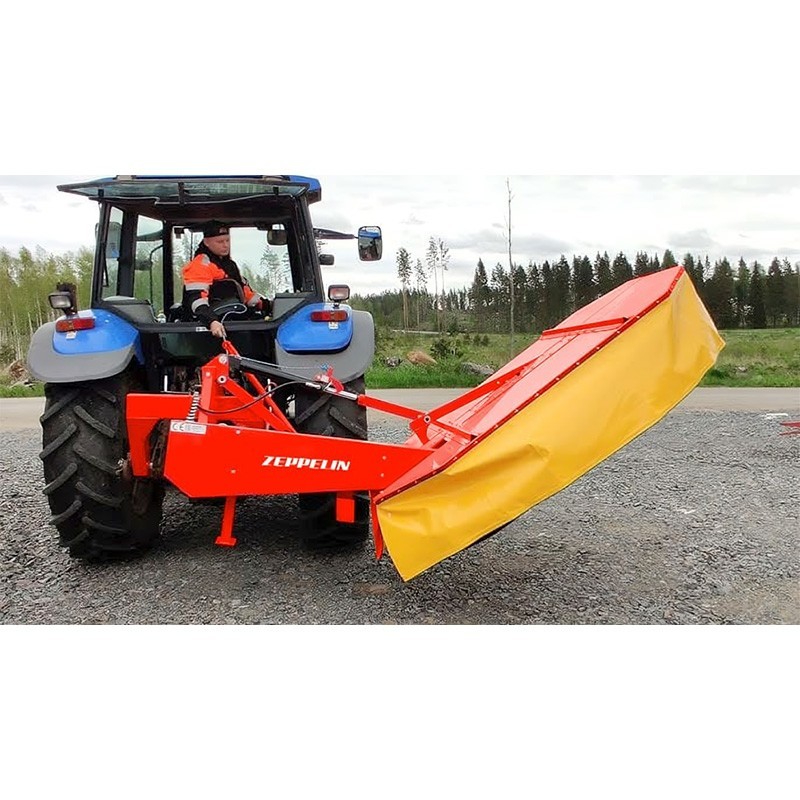

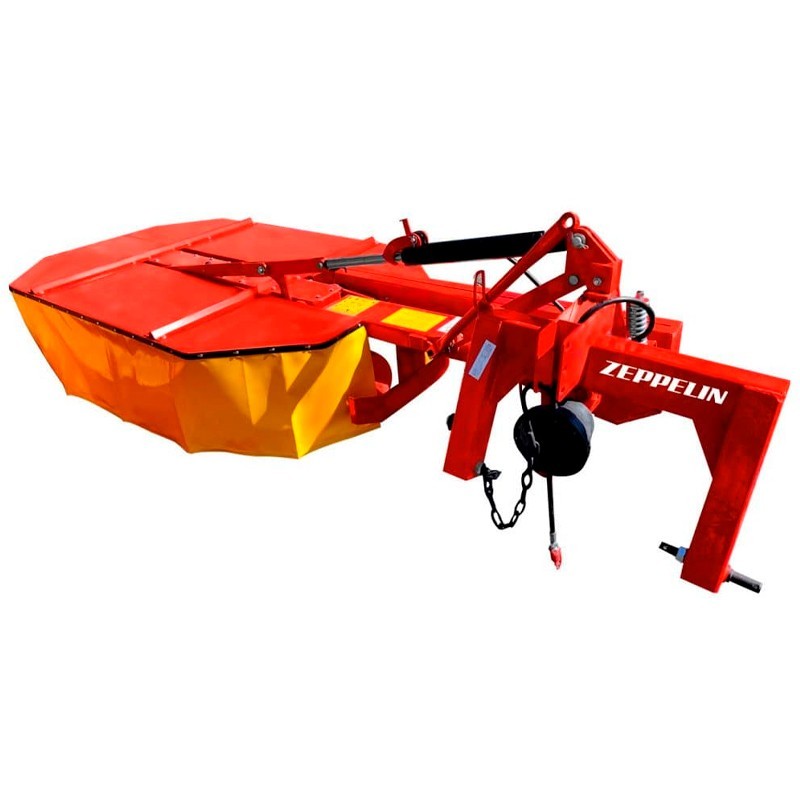

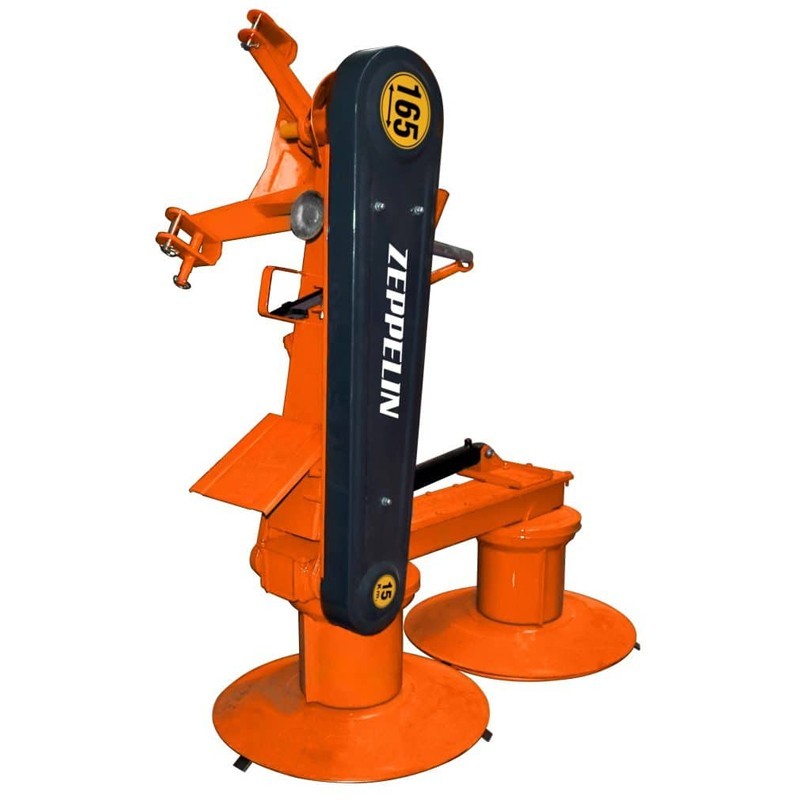

The double disc drum mower Zeppelin Calanda is an agricultural tool of the standard range, designed to optimize hay production by significantly reducing working time in the field.

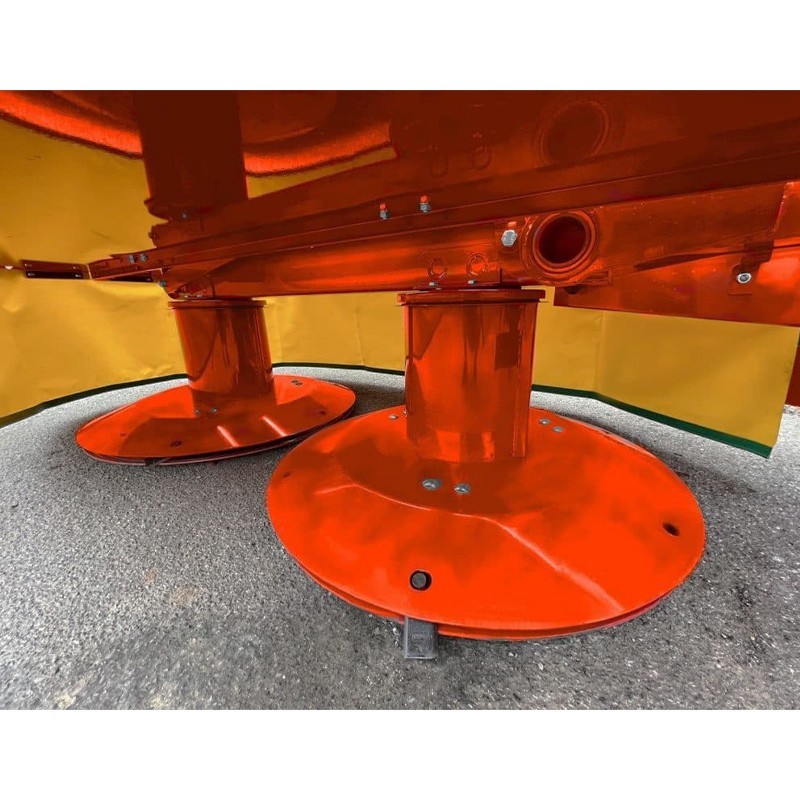

Thanks to its system of rotating lower discs, it avoids blockages on the ground, allowing efficient cutting on both flat and uneven surfaces. It includes a cardan shaft and is available in versions with different working widths (1350, 1650 and 1850 mm) and mechanical or hydraulic lifting options.
Among its advantages are the easy access to the discs, the included protection and a safe locking system for transport. Its models offer power requirements from 27 to 75 Hp, with a large diameter drum and optimal revolutions for a clean and fast cut.
Models | ESSEG135M | ESSEG165M/H | ESSEG185M/H |
Working width | 1350 mm | 1650 mm | 1850 mm |
Power requirement | 27 Hp | 54 Hp | 75 Hp |
Drums | 2 | 2 | 2 |
Blades | 4 | 6 | 6 |
Revolutions per minute | 2070 | 2070 | 2000 |
Drum diameter | 680 mm | 780 mm | 880 mm |
PTO | 540 rpm | 540 rpm | 540 rpm |
Lift | Mechanical | Mechanical or Hydraulic | Mechanical or Hydraulic |
Weight | 300 Kg | 360 Kg | 405 Kg |
IMPORTANT NOTICES |
It is compulsory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the transporter's sheet that the customer is in agreement except for pending examination. |
Data sheet
Specific References
At Intermaquinas, we make sure that your agricultural machinery always works at 100%. We offer a complete after-sales service that covers any possible incident with your equipment.
Whenever there is a warranty or factory defect, your machine will be covered: 1 year for professionals and 2-3 years for individuals. We take care of everything: we or the carrier will pick up the machinery and send it to the factory for repair or, if necessary, replacement.
To solve minor problems in the most agile way, we have our online mechanics service. Our specialized mechanics will guide you step by step over the phone to solve the breakdown quickly and easily, avoiding unnecessary trips. Intermaquinas recommends greasing after each operation to ensure perfect performance and extend the life of the machines.
If the problem is more complex or cannot be solved with telephone assistance, we take care of everything. We pick up your machine and take it to our workshop, where our specialized mechanics will repair it, whether it is light or heavy machinery. We know that many technical services are far away and that a van is not always available for transport. Carrying it by car can be uncomfortable, as well as entailing the risk of scratches or dirt. Therefore, with our pick-up service you save time and complications, ensuring that your equipment arrives in perfect condition for repair.
Our team of specialists is available to ensure that your machinery is always in the best condition. Contact us and we will help you with the fastest and most effective solution.
CARDAN SHAFT INCLUDED
