Rotary mower for tractor Deleks DFR-100 16-35HP
- Tractor power: 16 - 35 HP
- Cutting height: 50 mm
- Cutting width: 1000mm
- Number of blades: 6
Deleks products take about 15 to 25 days. |

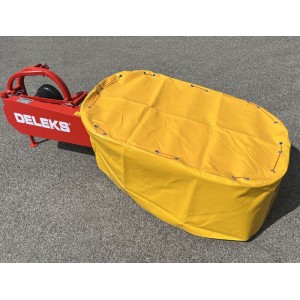

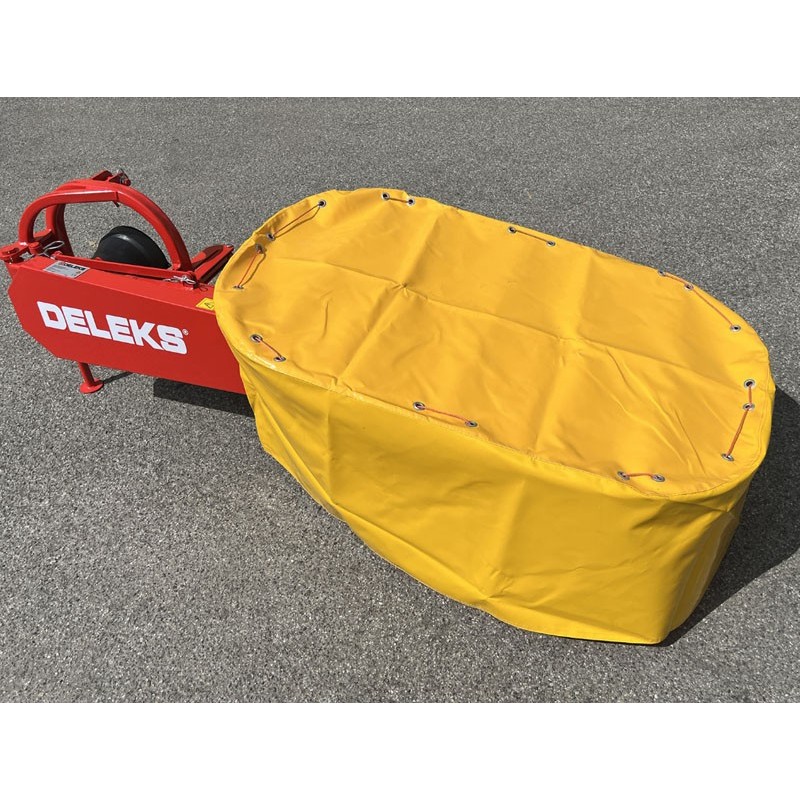

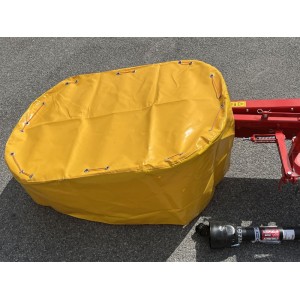

Rotary mower for tractor Deleks DFR-100
The rotary mower Deleks DFR-100 is specially designed for tractors with power of 16-35HP. This mower model is used to reduce hay production time.

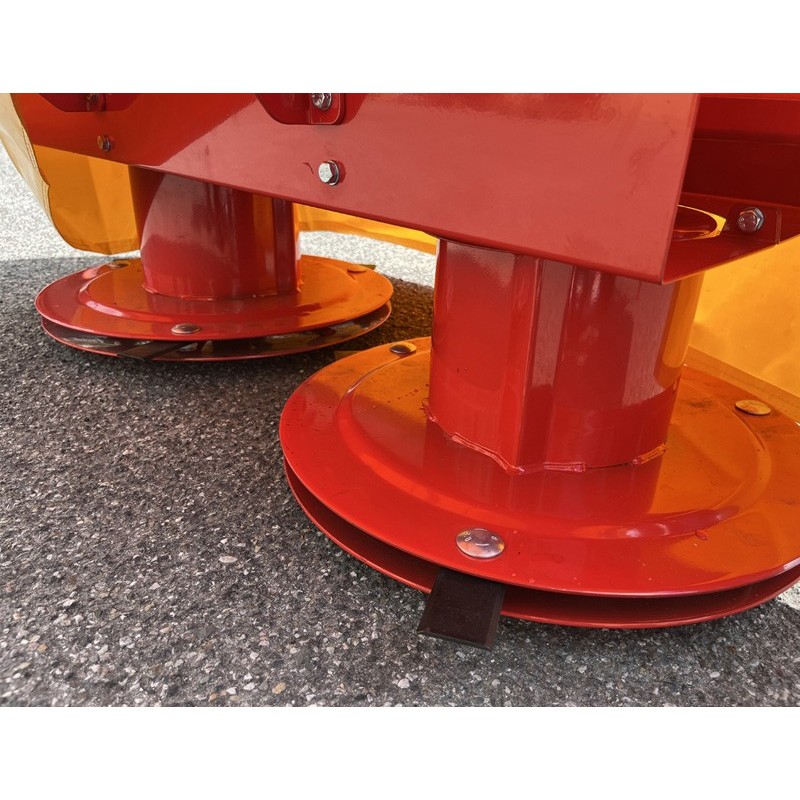

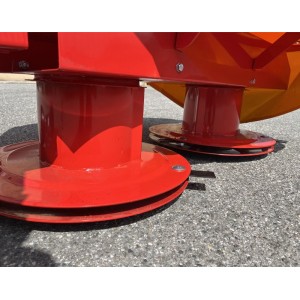

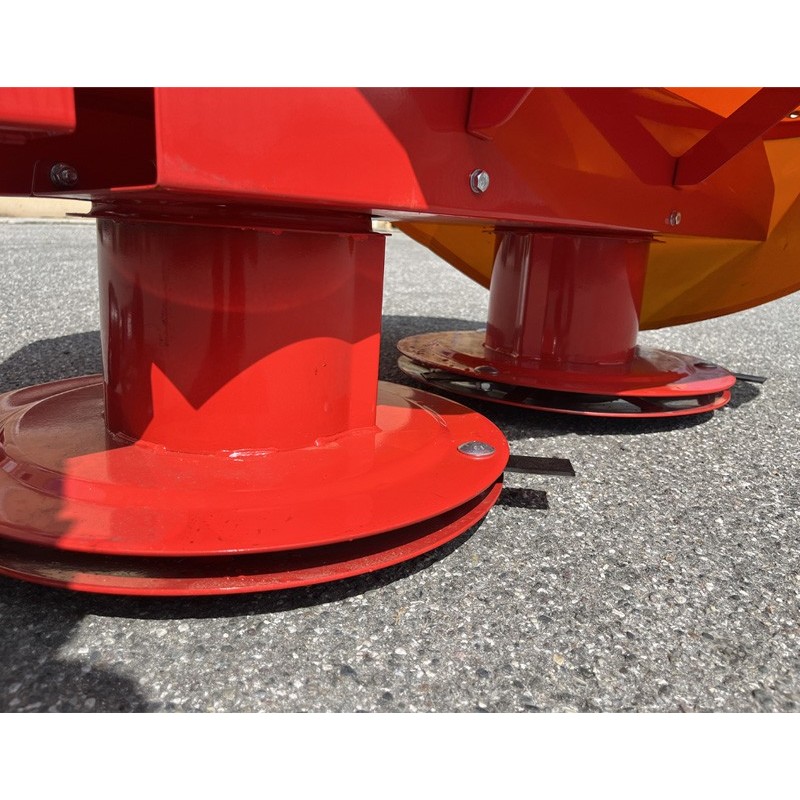

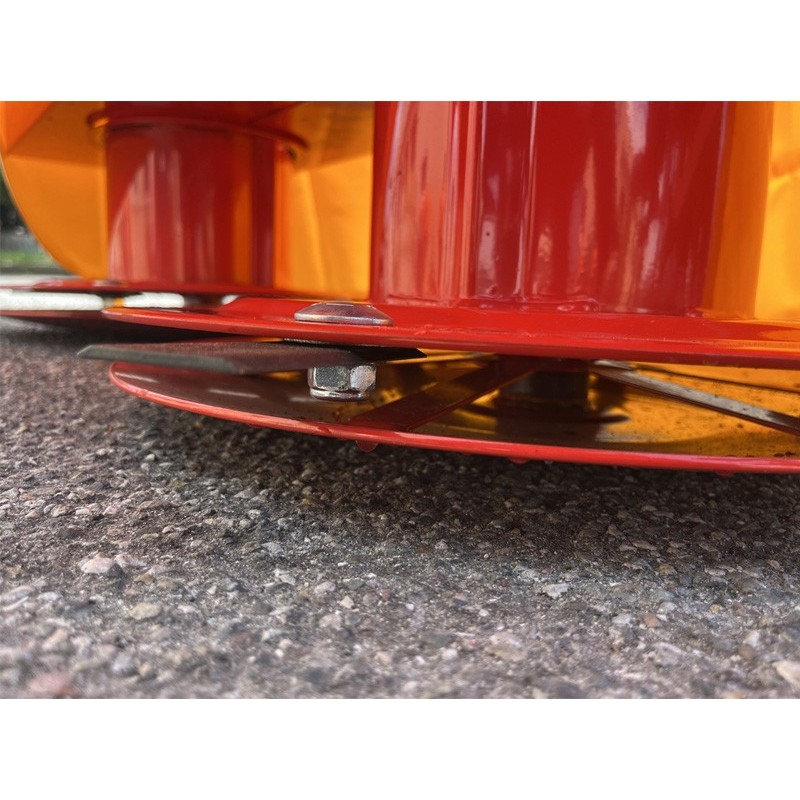

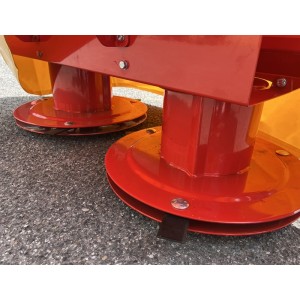

The model Deleks DFR-100 has a drum with fixed shaft. This model has 2 discs for operation. The lower disc rotates and prevents the cutting disc from locking into the ground, so the mower can be used on a flat or uneven field.

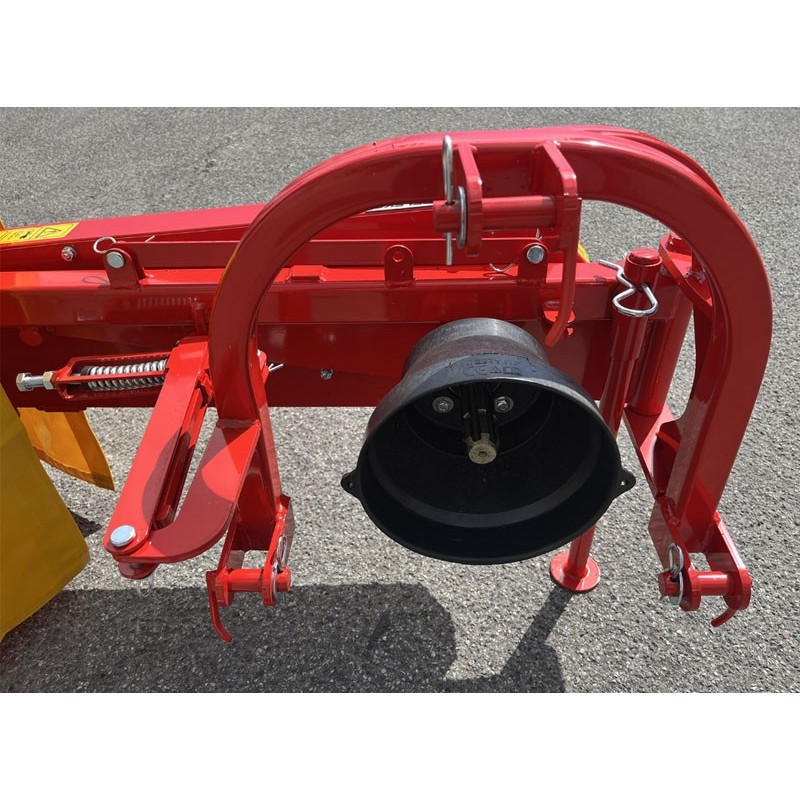

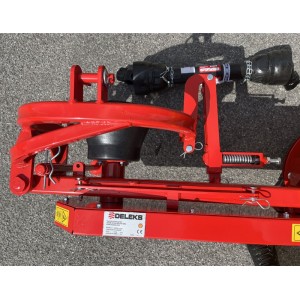

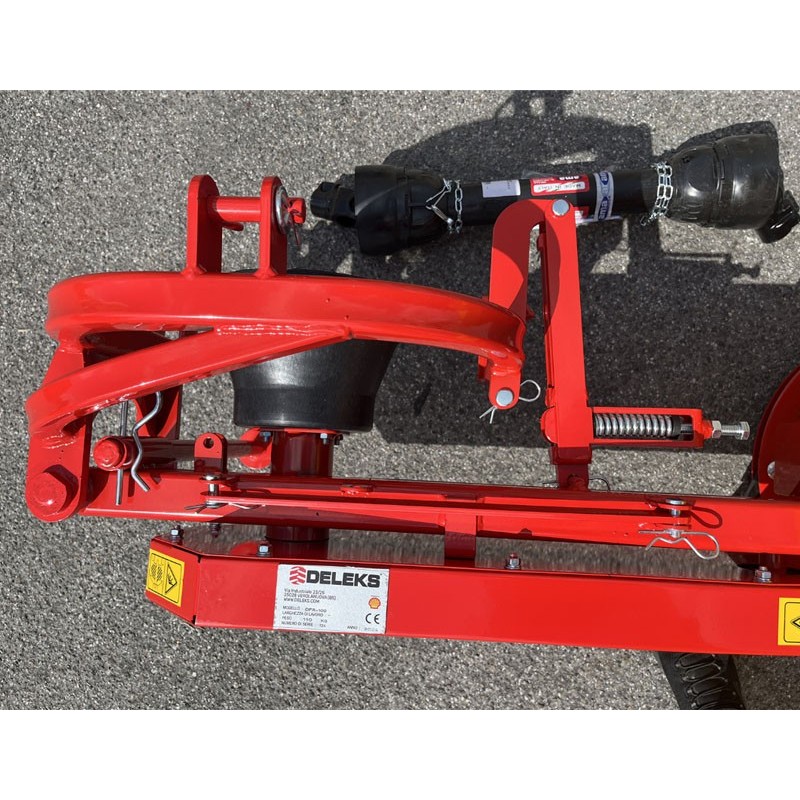

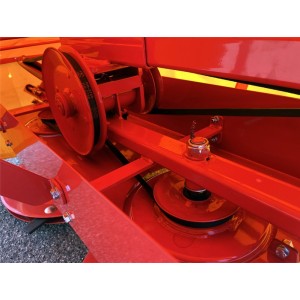

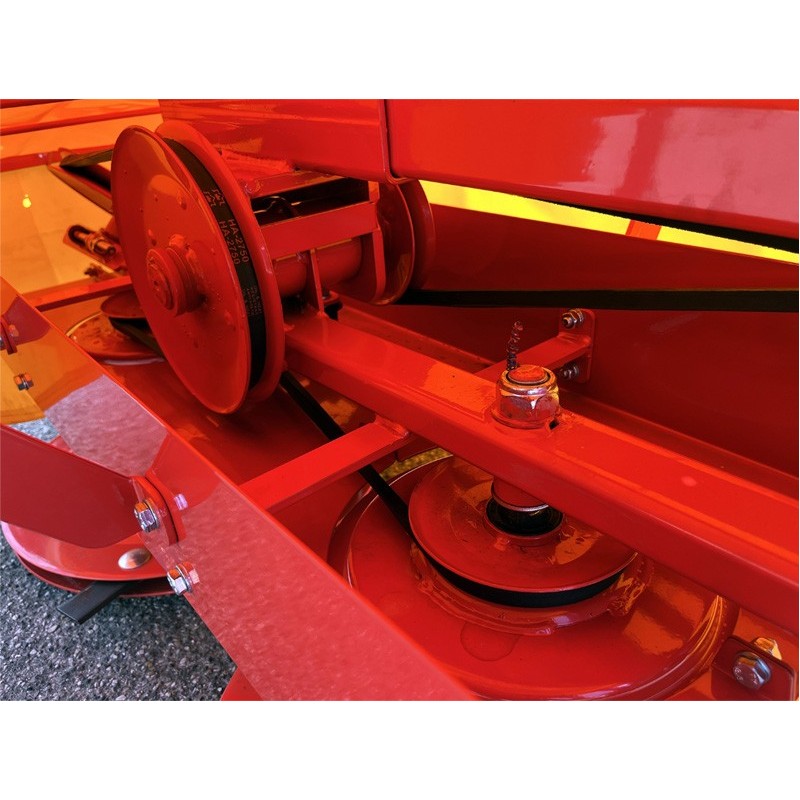

This mower from Deleks also has a universal CAT 1 3-point hitch . This is compatible with almost all mini tractors. As for its features we can highlight its good transmission box through V-belts. It comes with a freewheel.

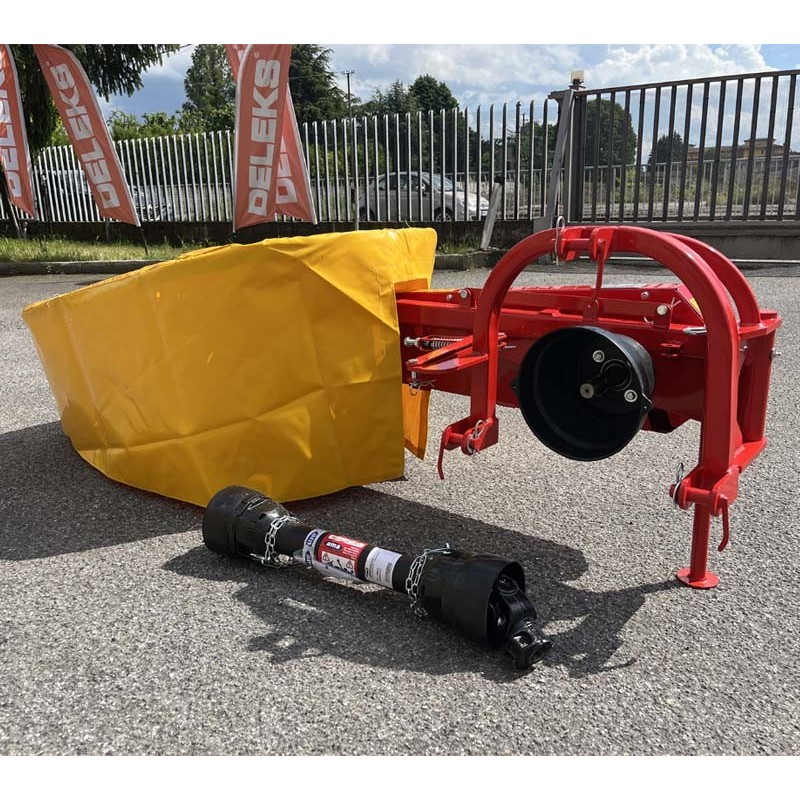

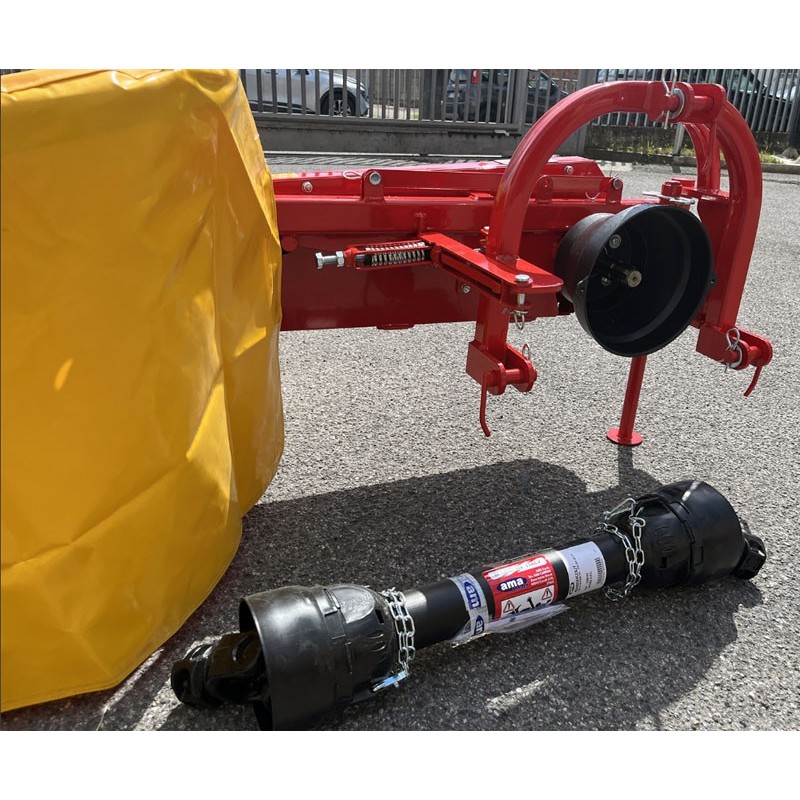

The DFR-100 mower comes with CE gimbal included, it also includes a safety release system to prevent damage. The mower can be used on tractors with low power in gardens and orchards. This is thanks to its weight of 110 kg.
This model of rotary mower Deleks guarantees the operator good comfort and ease of work. This is thanks to its outstanding features.
Among these features we can highlight the working width of 1000mm and the total width of 2000mm. We can also highlight the maximum cutting height of 50mm and the total length of 800mm.
Features
Working width | 1000 mm |
Total width | 2000 mm |
Cutting height min/max | 50 mm |
Weight | 110 kg |
Tractor power | 16-35 hp |
3-point hitch | Cat. 1 (ø 19.0-22.0mm) |
Distance between lower points | 410-485 mm |
Total length | 800 mm |
Space between ground and transmission box | 380 mm |
Transmission type | V-belts |
Transmission: PTO | 540 r/min |
Transmission: rotation direction | Schedule |
Transmission: freewheel | √ |
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
Transmission: number of cores | 1 + 1 |
Arm length | 650 mm |
Number of drums | 2 |
Drum height | 260 mm |
Type of lifting | Manual |
Transmission | Bevel gear |
Cardan | CE 4x800 mm |

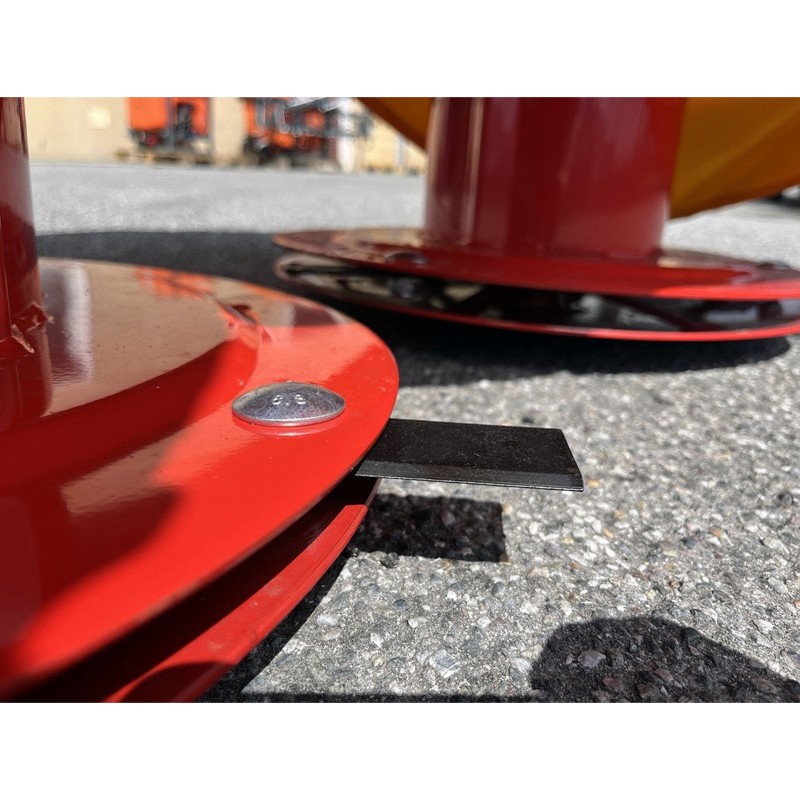

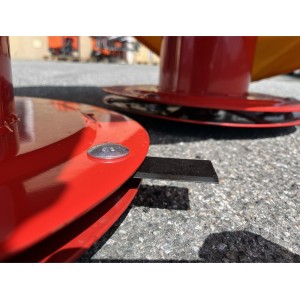

No. of blades | 6 |
Blades: Weight | 150 g |
Slats: dimension | 95 / 48 mm |
Blades: hole dia | 18 mm |

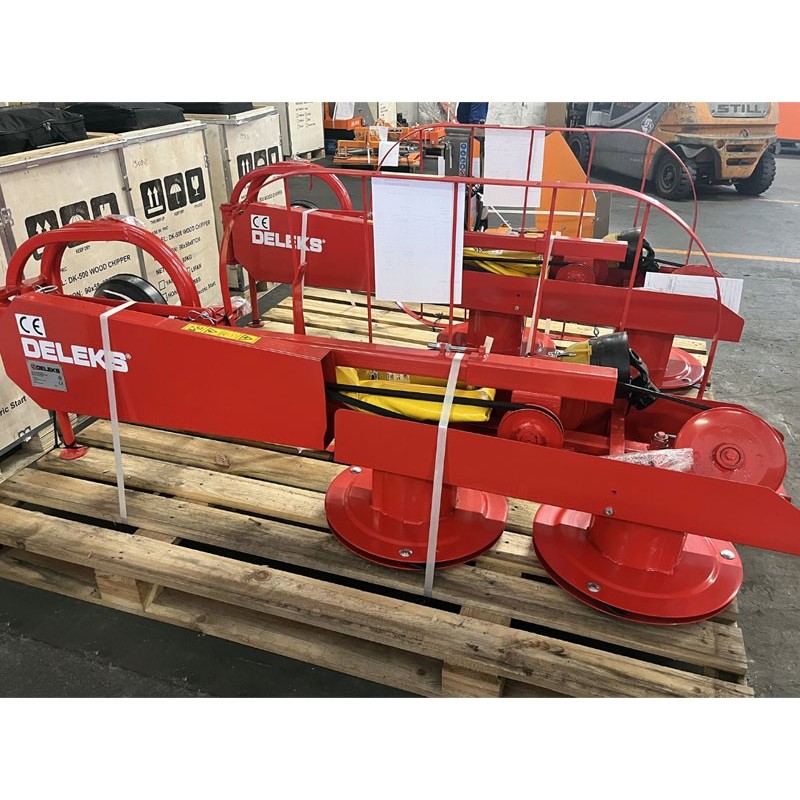

Packing dimensions | 1200*800*800 mm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
Data sheet
- Working width
- 100 - 109 cm
- Country of manufacture
- Italy
Specific References
- EAN-13
- 8053470237652
