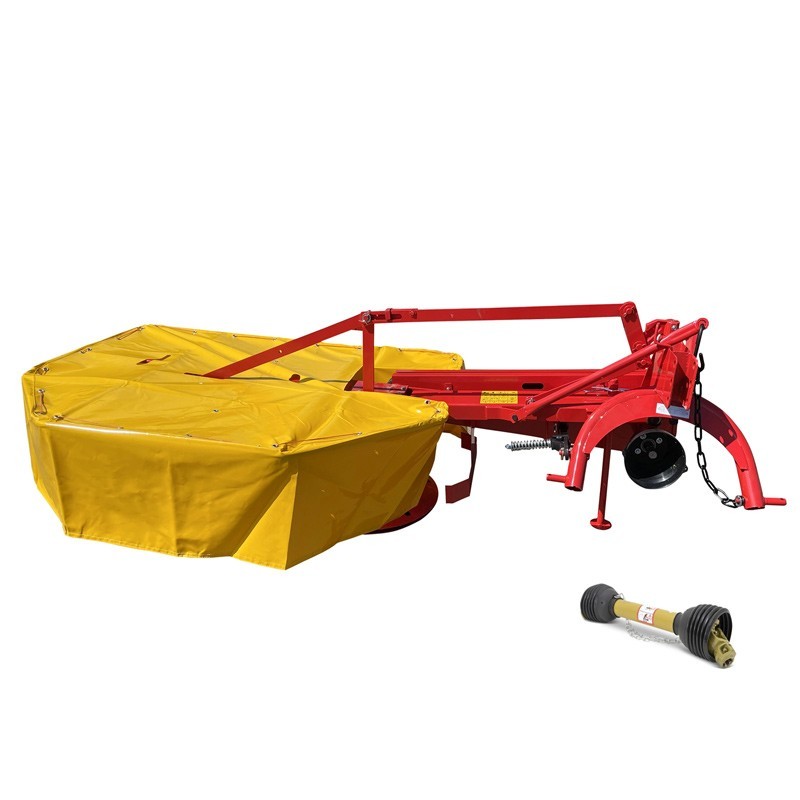

Rotary mower for tractor Deleks DFR-165
The Rotary mower Deleks DFR-165 It is specially designed for tractors with power of 40-90HP. This shredder model is used to reduce hay production time.
The model Deleks DFR-165 features a drum with a fixed axis. This model has 2 discs for its operation. The lower disc rotates and prevents the cutting disc from getting stuck in the ground, allowing the mower to be used on flat or uneven fields.
This Mower of Deleks also has a universal 3-point hitch of CAT 1-2. This is compatible with almost all mini tractors. As for its features, we can highlight its good transmission box through V-belts.. This comes with a freewheel.
The DFR-165 Mower It comes with Universal joint included, it also includes a safety release system to prevent damage. The implement can be used on low-power tractors in gardens and orchards. This is thanks to its weight of 350Kg.
This model of Rotary mower Deleks It ensures the operator good comfort and ease of work. This is thanks to its notable good features.
Among these features, we can highlight the working width of 1650mm and the total width of 3000mm. We can also highlight the maximum cutting height of 50mm and the Total length of 1400mm.
Characteristics
| Working width |
1650 mm |
| Total width |
3000 mm |
| Cutting height min/max |
50 mm |
| Weight |
350 kg |
| Tractor power |
40-90 hp |
| Hitch 3 points |
Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Distance between the lower points |
670-790 mm |
| Total length |
1400 mm |
| Space between the ground and the transmission box |
530 mm |
| Type of transmission |
Correas V |
| Transmission: PTO |
540 revolutions per minute |
| Transmission: direction of rotation |
Schedule |
| Transmission: freewheel |
This is the square root symbol in Spanish. |
| Transmission: gearbox oil |
Yes / SAE 120 - ISO 72925 |
| Transmission: number of cores |
4 |
| Arm length |
1150 mm |
| Coverage |
Plastic |
| No. drums |
2 |
| Drum height |
600 mm |
| Type of survey |
Manual |
| Transmission |
Bevel gears |
| Cardan refers to a type of universal joint used in mechanical engineering to transmit power between two shafts that are not in line with each other. It allows for the transmission of rotational motion at an angle. |
CE 6x1000 mm |
| Number of slats |
6 |
| Lamas: Weight |
150 g |
| Lamas: dimension |
95 / 48 mm |
| Lamas: ø hole |
18 mm |
| Packaging dimensions |
1650*800*2200 mm |
Advantages
- Its light and robust design allows it to be used with low-power tractors.
- Safety release system to prevent damage.
- Easily accessible discs to replace the slats.
- It can be used in all conditions to make hay throughout the year.
- Locking system that allows the mower to overcome obstacles and keep the machine safe during transport.
- CE cardan included.
| IMPORTANT NOTICE |
|
| Mandatory on the part of the client, check Oil and grease levels should be checked before starting up. If the merchandise cannot be inspected at the time of delivery, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
