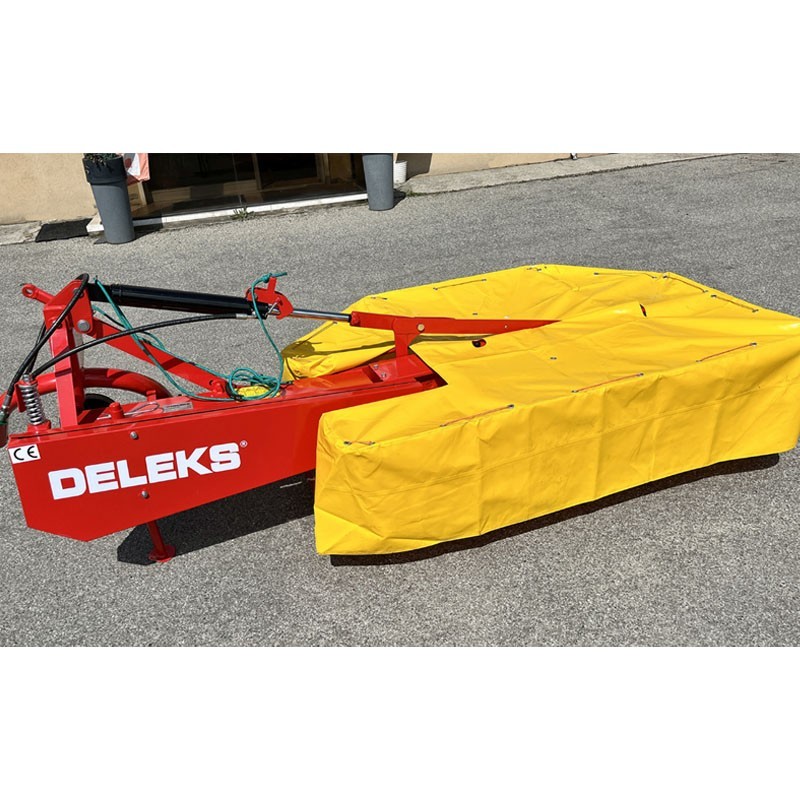

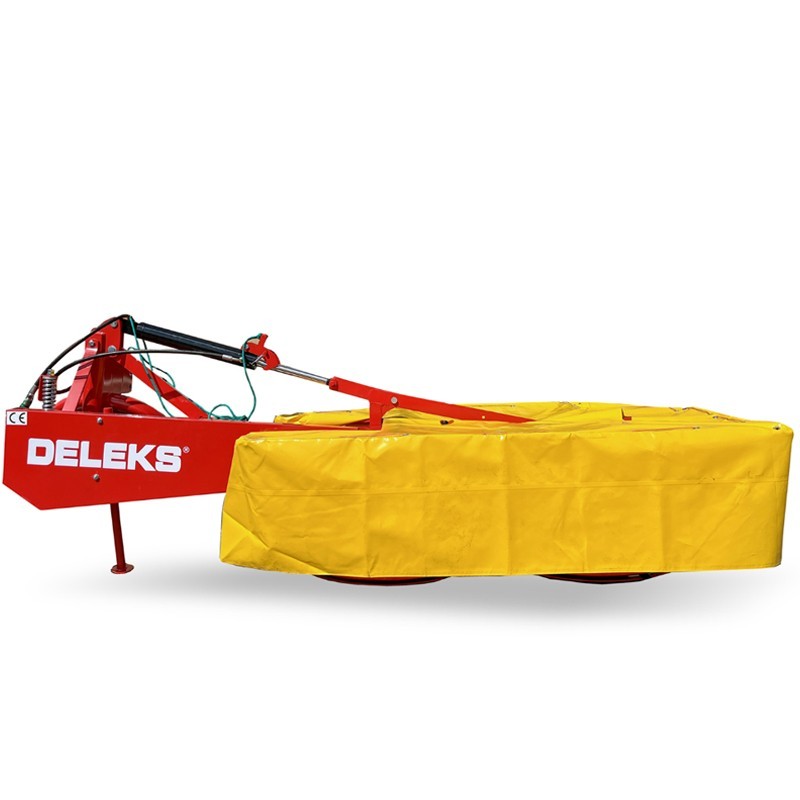

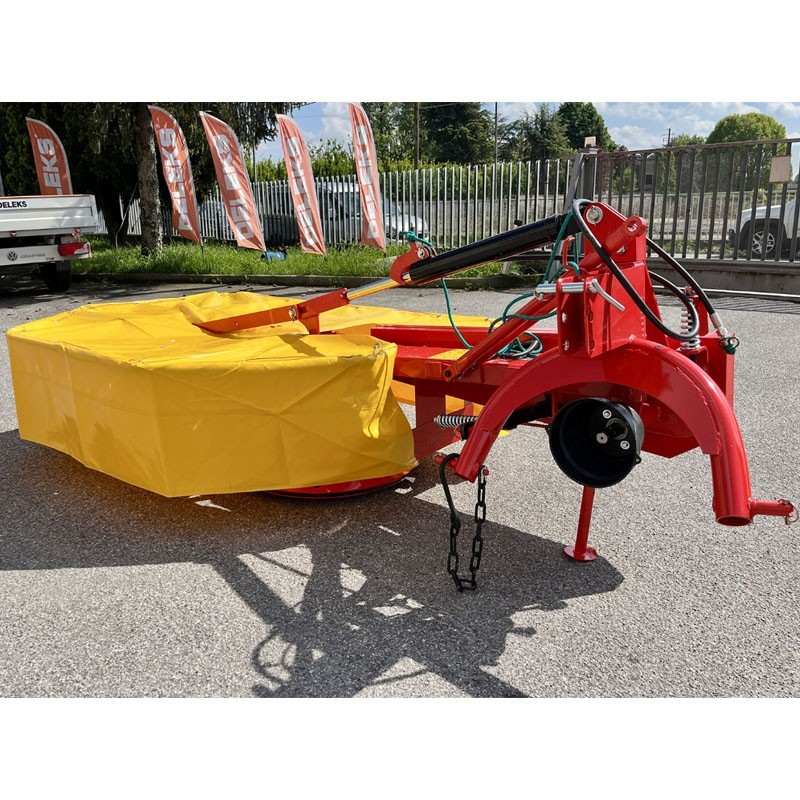

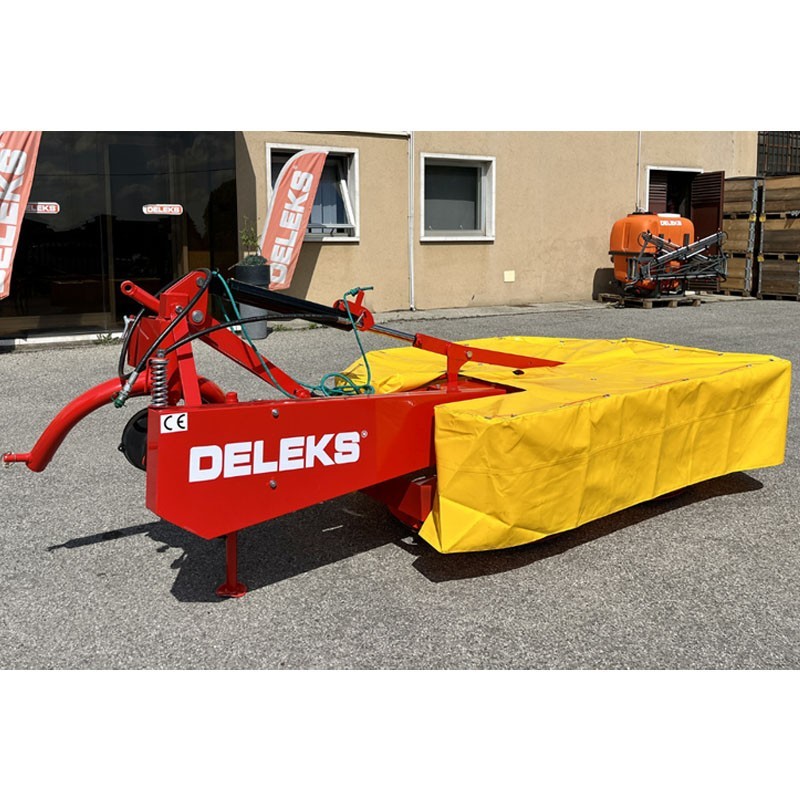

The rotary mower for tractor Deleks DFR-165H, thanks to its simple and robust conception, this mower allows to reduce hay production time.
The drum has a fixed shaft. This model has 2 discs for its operation. The lower disc rotates and prevents the cutting disc from locking into the ground, so the mower can be used on a flat or uneven field.

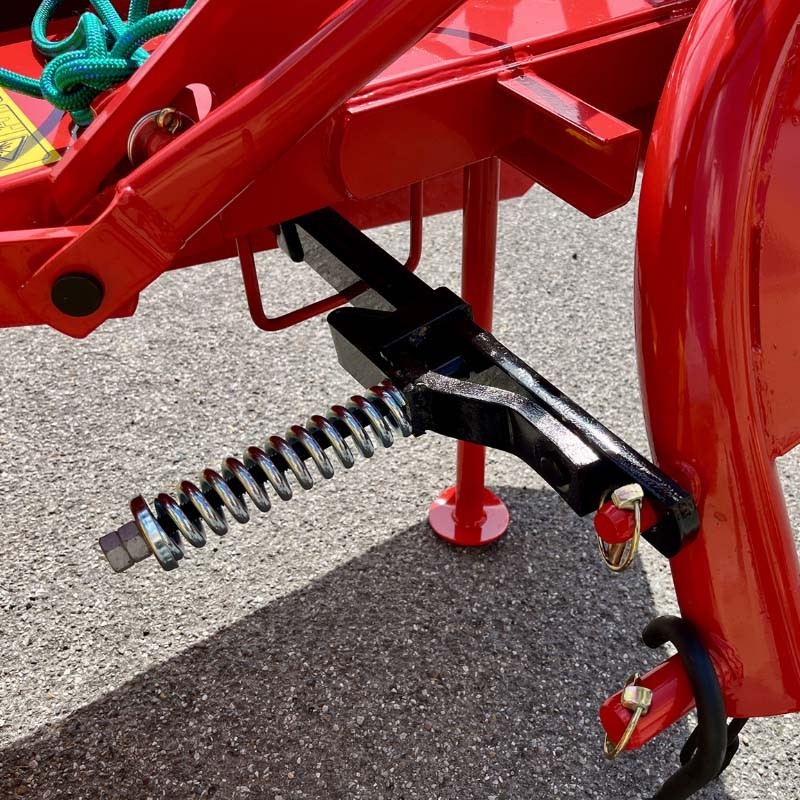

This mower can be hydraulically lifted for safe transport, its light and robust conception allows its use with low power tractors, its safety release system to avoid damage.

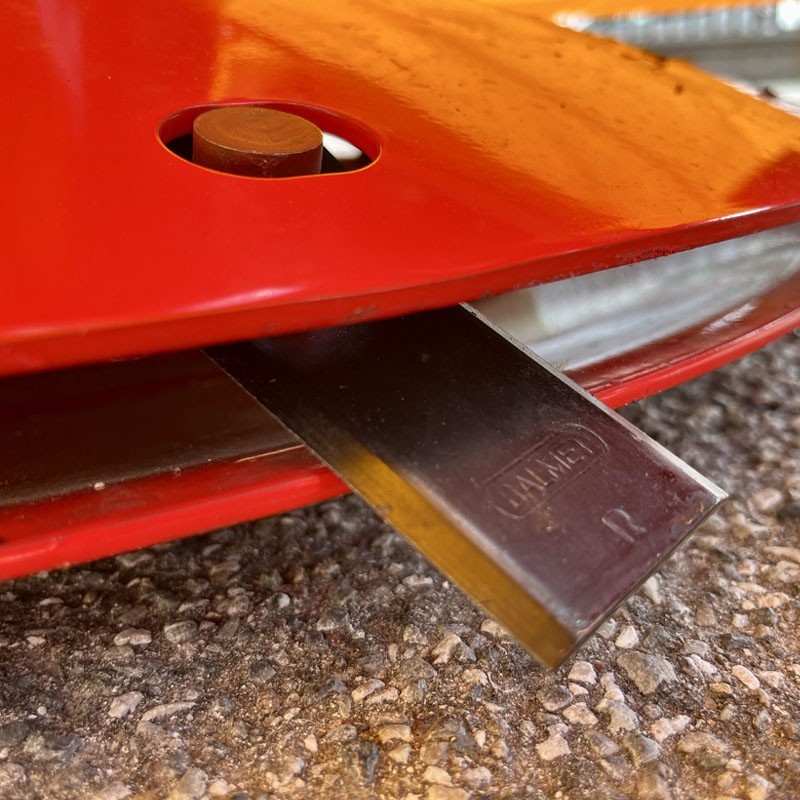

Its discs are easily accessible to replace the blades, it can be used in all conditions to make hay all year round.
It has a locking system that allows the mower to overcome obstacles and keep the machine in safety during transport
Working width | 1650.0 mm |
Overall width | 3000.0 mm |
Cutting height min/max | 50 mm |
Weight | 380.0 kg |
Tractor power | 40-90 HP |

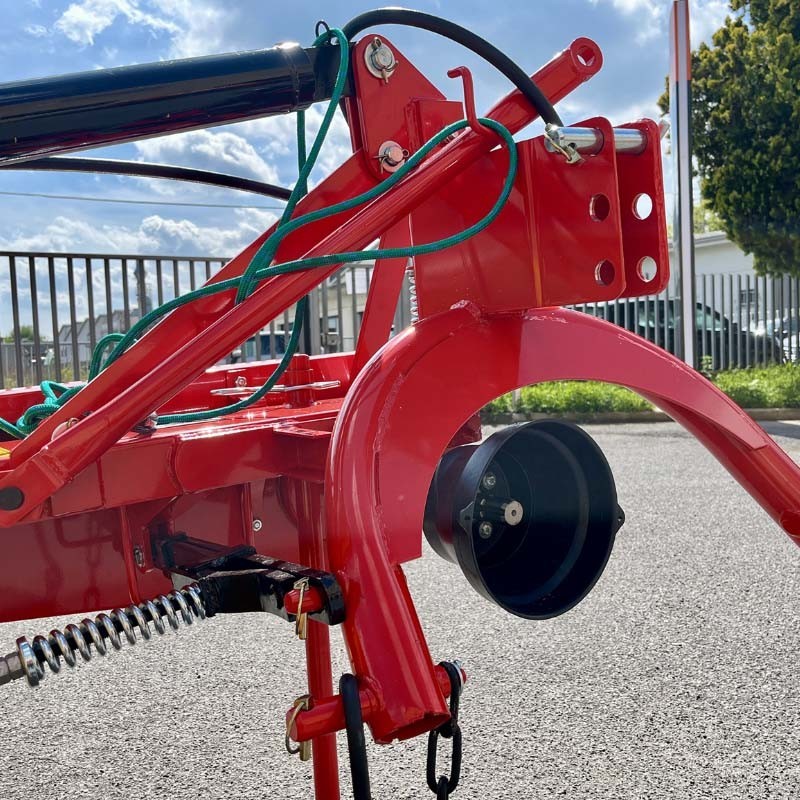

3-point hitch | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
Distance between lower points | 670.0-790.0 mm |
Total length | 1400.0 mm |
Space between ground and transmission box | 530.0 mm |

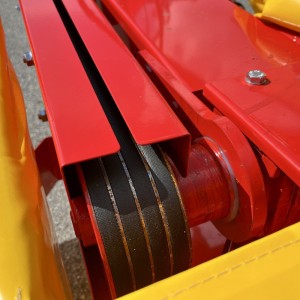

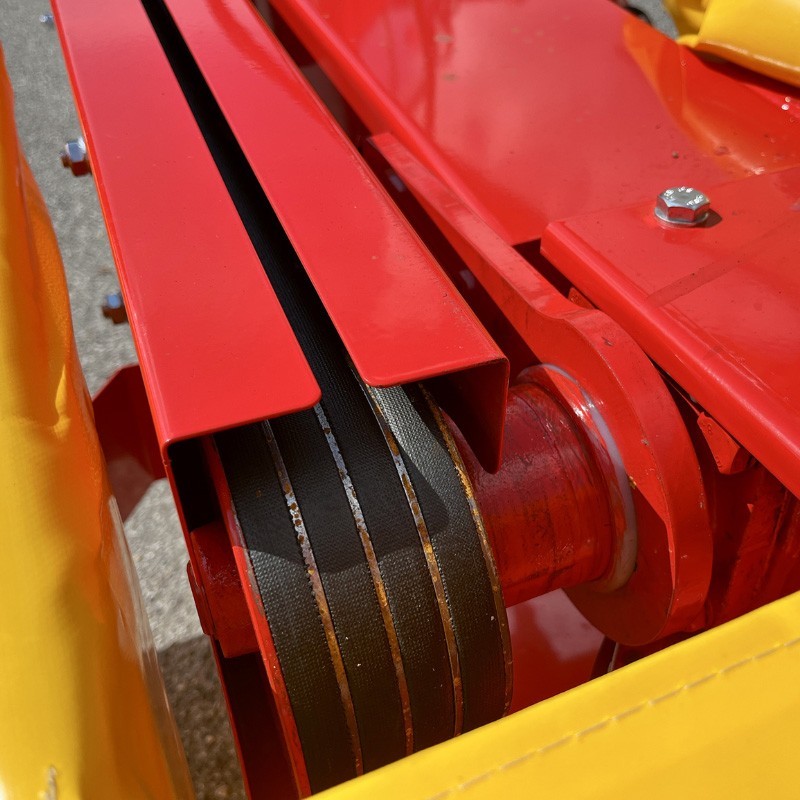

Transmission type | V-belts |
Transmission: PTO | 540 r/min |
Transmission: direction of rotation | Schedule |
Transmission: freewheel | √ |
Transmission: gearbox oil | Yes / SAE 120 - ISO 72925 |
Transmission: number of cores | 4 |
Arm length | 1150.0 mm |
Coverage | Plastic |
No. of drums | 2 |
Drum height | 600 mm |
Type of lifting | Hydraulic |
Transmission | Bevel gear |

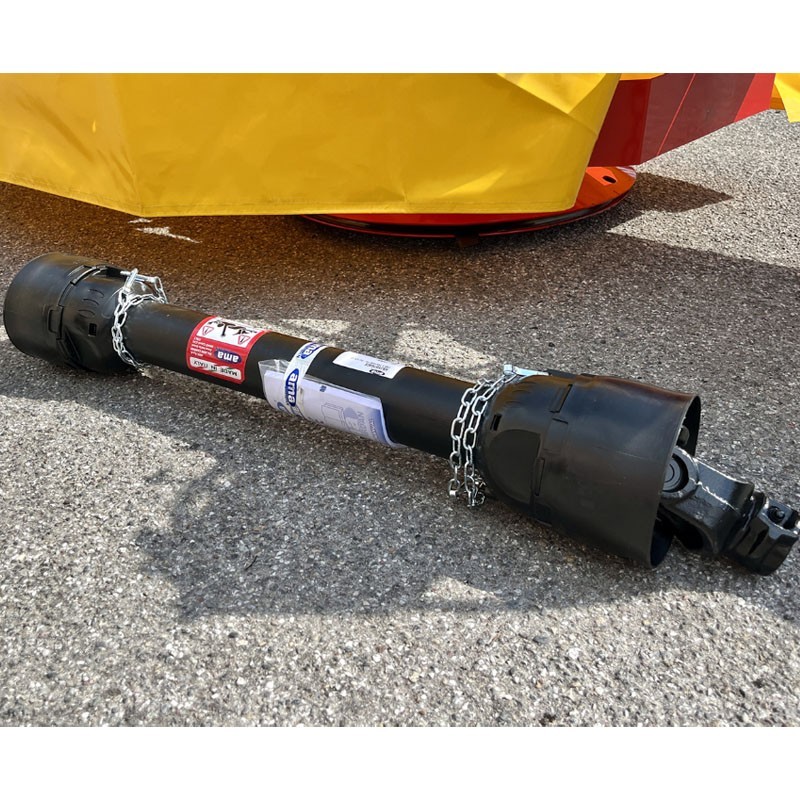

Cardan | CE 6x1000 mm |
No. of blades | 6 |
Blades: Weight | 150 g |
Slats: dimension | 95 / 48 mm |
Blades: hole dia | 18 mm |
Packing dimensions | 165 x 80 x 220 cm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
