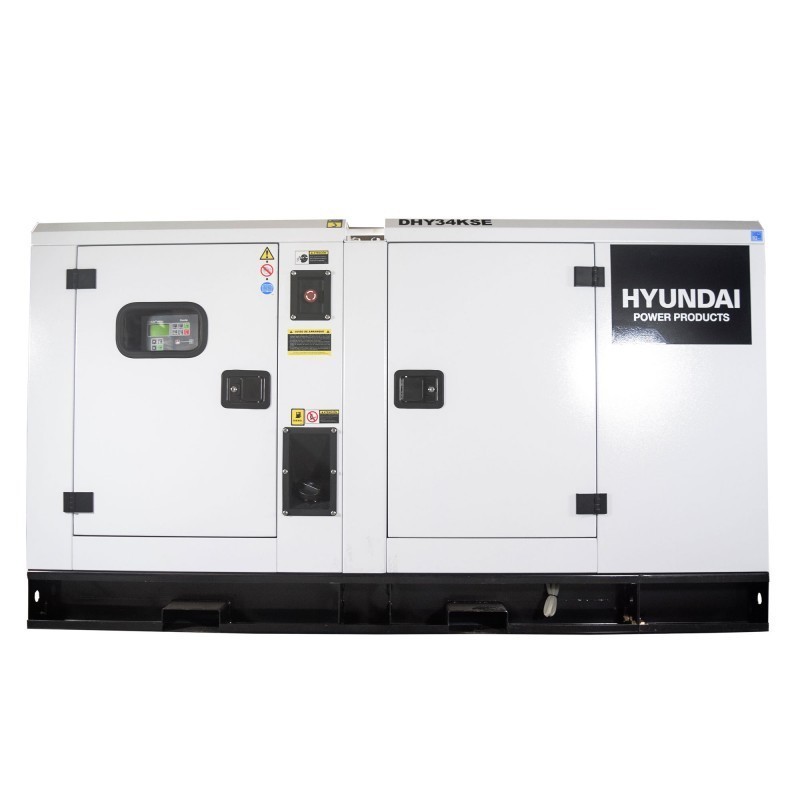

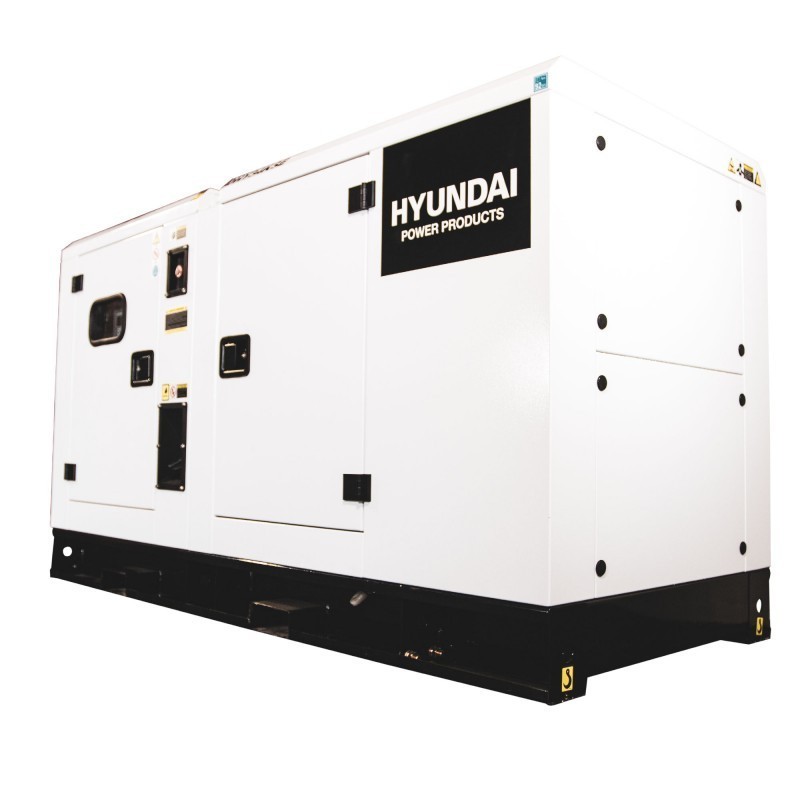

This DHY22KSEm generator set Hyundai is perfect for those looking for a quiet and efficient option for outdoor or indoor use. Its soundproof design minimizes noise, making it an excellent choice for campgrounds, tents or any environment that requires unobtrusive operation. In addition, it is constructed of galvanized steel, protecting it against rust and ensuring long-term strength.

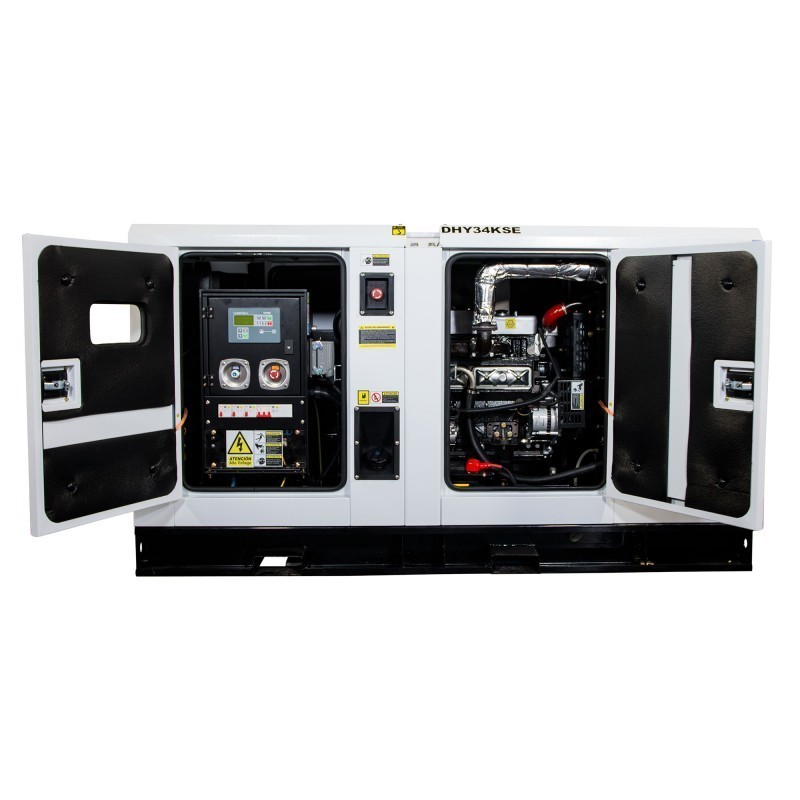

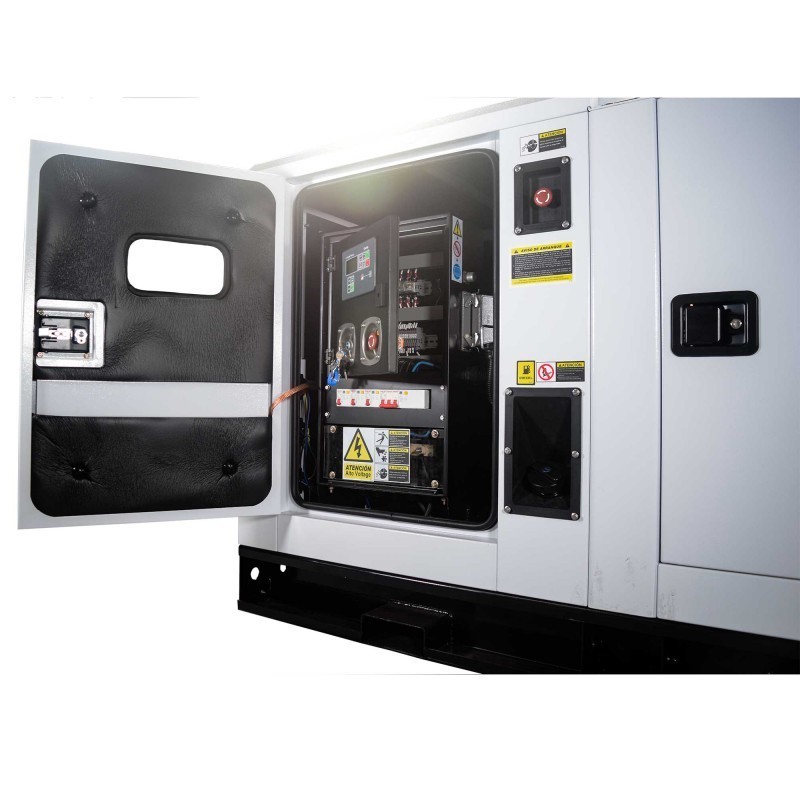

It offers manual or voltage-free contact start (ATS, timer, etc.), providing flexible and convenient operation. With IP67 single-phase outputs and an AVR regulator, it ensures a constant and reliable power supply. The wide doors provide easy access for maintenance, optimizing service time and extending its service life.

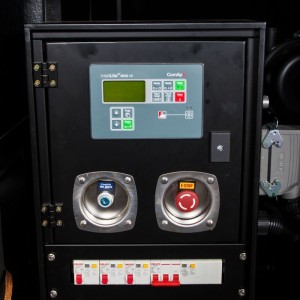

This genset also features an advanced monitoring system to control essential parameters such as cooling temperature, oil pressure and fuel level. With safety alarms for critical situations, such as low oil pressure or high temperature, it ensures safe and stable operation at all times.
| MODEL | DHY22KSEm |
| Voltage | 230 V |
| Net Weight | 870 kg |
| Nominal power | 20 Kw |
| Displacement | 3.800 cc |
| Product Dimensions | 220x95x125 cm |
| Frequency | 50 Hz |
| Motor model | HY4102 |
| Oil capacity | 7,5 L |
| Alternator | 184G |
| Power factor | 1 |
| Revolutions per minute | 1500 RPM |
| Emergency power | 22 Kw |
| Nominal Intensity | 86,9 A |
| Autonomy at 100% | 10 H |
| Consumption at 100% (L/Hours) | 7,8 L/H |
| Radiator coolant capacity | 10,2 L |
| Standard tank capacity | 77 L |
| Cylinders | 4 |
| Aspiration | Natural |
| Noise level at 7 mts (75% load) | 67 dBA |
| IP Protection | IP23 |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If the goods cannot be checked at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
| This generating set allows to request, with a surcharge, a tank extension of 500L, 1000L or 1500L through our customer service. |
