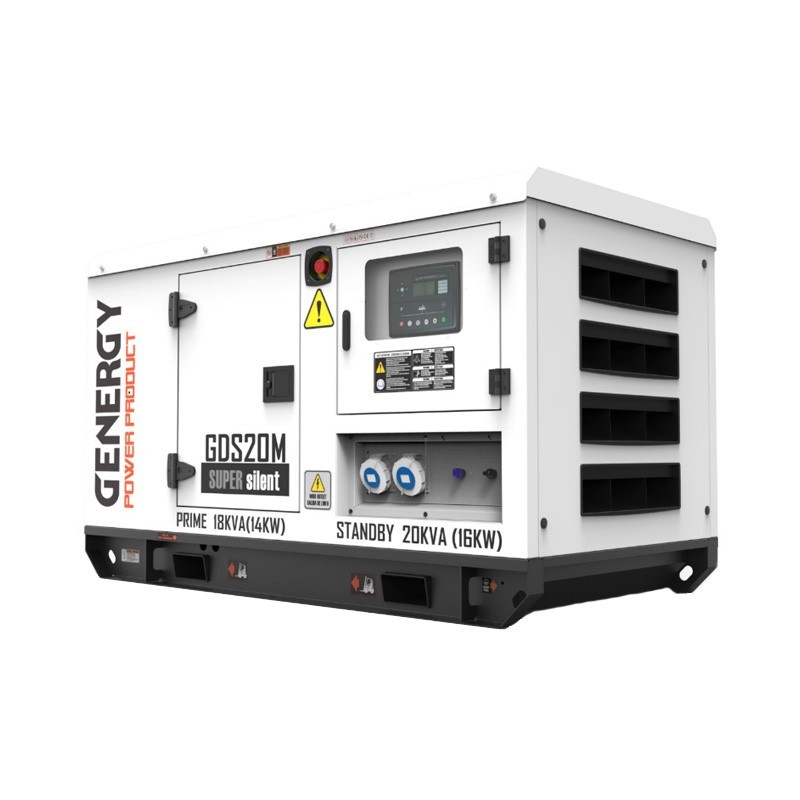

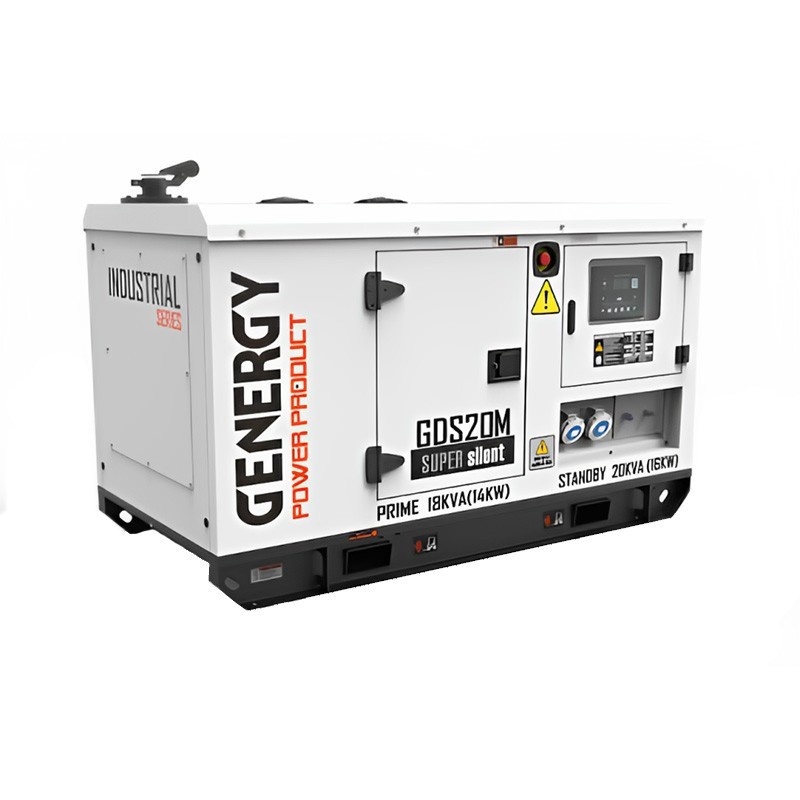

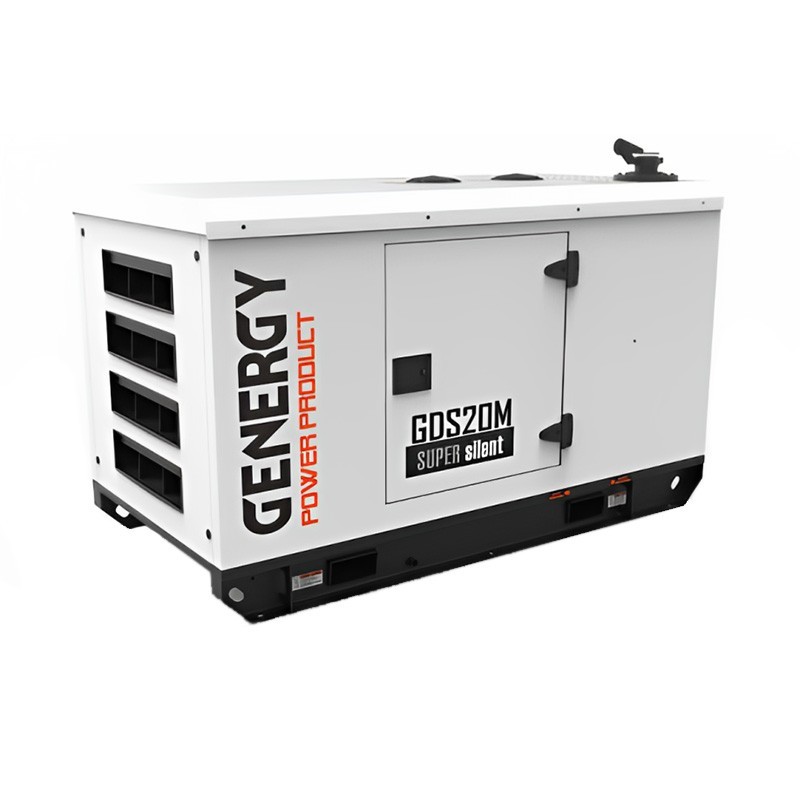

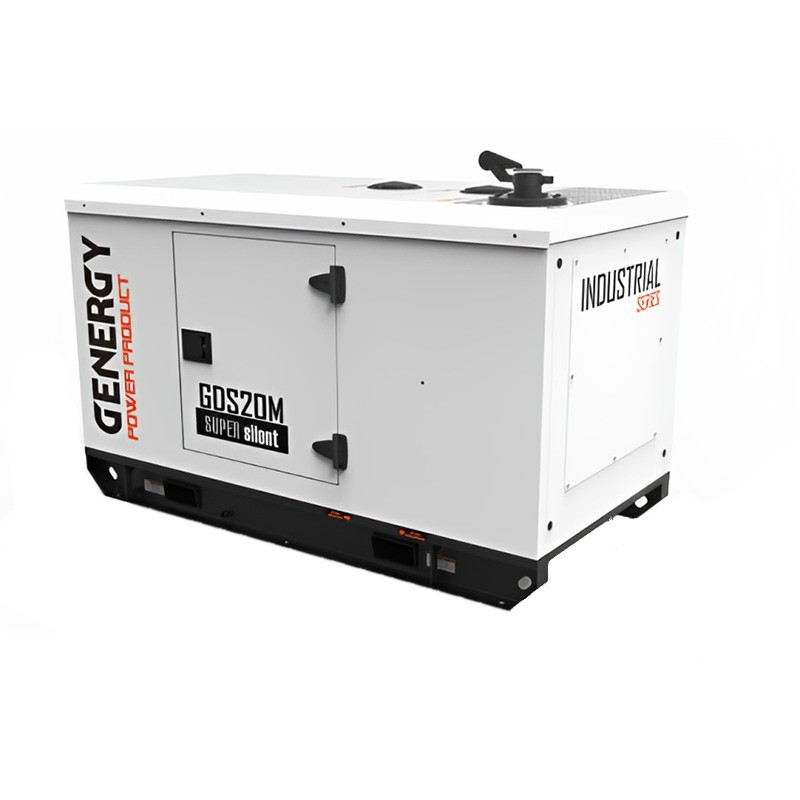

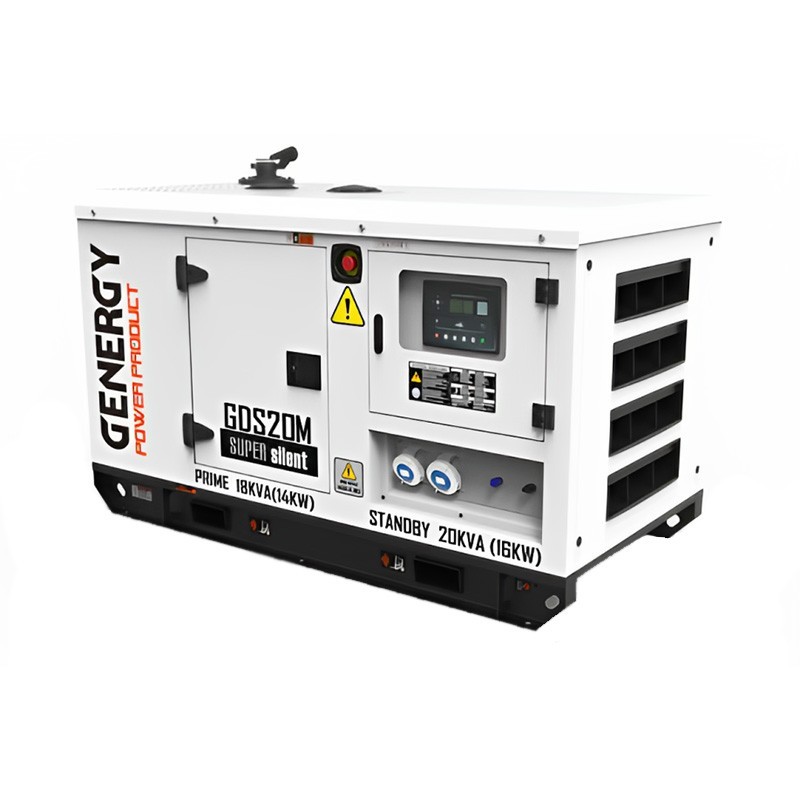

The single-phase generator set Genergy GDS20M 20kVA has a single-phase current type, with dimensions of 1900x950x1095 mm, and its average sound pressure is 72 dB. Its weight is 800 kg and it has a voltage of 230 V.
It has a rated power of 18 kVA / 14.4 kW and a maximum power of 20 kVA / 16 kW. Its fuel consumption is 1.3l/h - 2.59l/h - 3.89l/h - 5.18l/h at 25% 50% - 75% - 100% of its power respectively.
The Single Phase Genset Genergy GDS20M 20kVA with a frequency of 50 Hz has an Electronic stabilization system "AVR", and a fuel tank capacity of 50L. It is equipped with a copper coil and has a displacement of 2540 cc.
GENERATOR MODEL | GDS20M (REF 20022) |

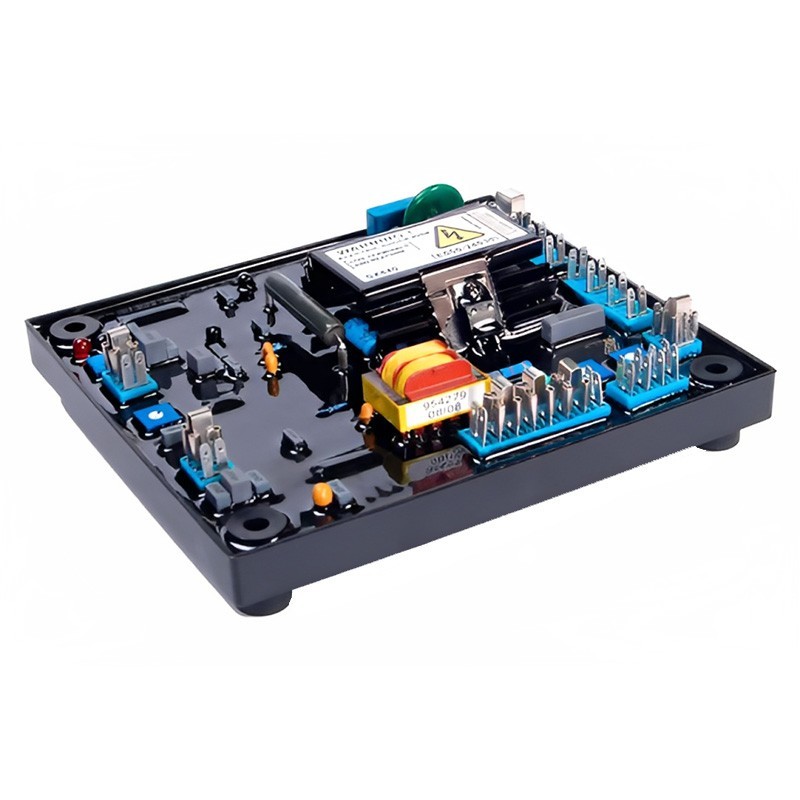

Stabilization system | AVR" electronics |
Voltage - Frequency | 230V - 50Hz |
Maximum Power | 18 kVA (14.4kW) |
Nominal Power | 20 kVA (16kW) |
Power Factor | 0.8 |
Nominal current | 78 A |
Average sound pressure at 7Mts LpA | 72 dB |
Guaranteed sound power level LwA 2000/14/EC Amendment 2005/88/EC | 97 dB |
Start-up type | Electric |
Fuel tank capacity | 50 L |
Fuel consumption 25% 50% 75% 100% (L/H) | 1.3 - 2.59 - 3.89 - 5.18 |
General protection degree | IP23 |
Dimensions | 1900x950x1095mm |
Weight | 800 Kg |

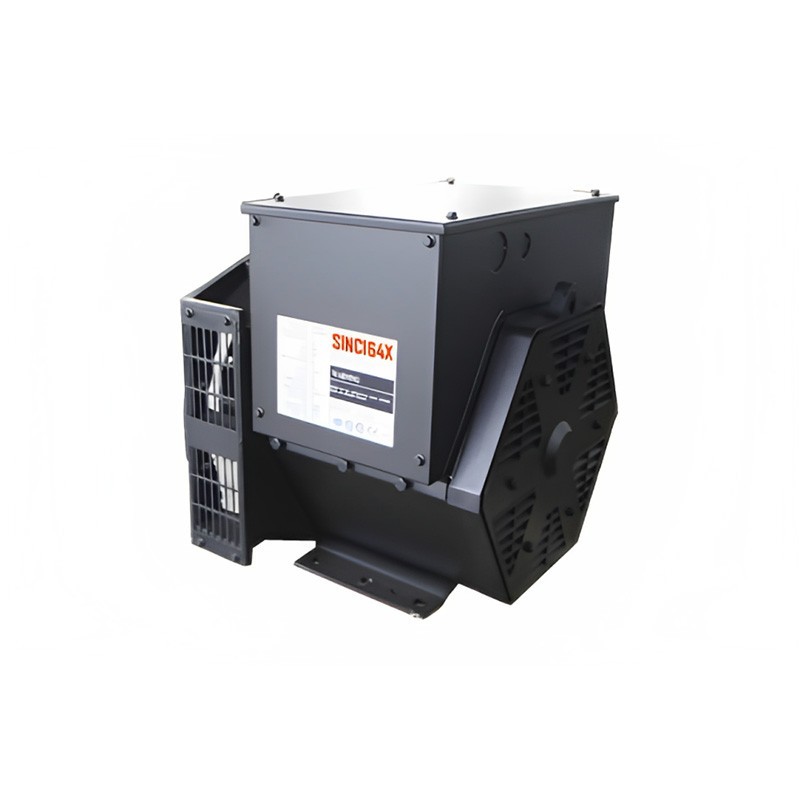

ALTERNATOR | SINC184ESX |
Nominal speed - Number of poles | 1500RPM - 4 |
Excitation system | Self-excited |
Phases | Single phase |
Total harmonic distortion | No load |
Telephone interference | >2% |
Efficiency | 84.3% |
Insulation grade | H |
Degree of protection | IP23 |
MOTOR | GENERGY-SDE490DY |
Displacement | 2540 cc |
Speed control | Mechanics |
Number of cylinders and arrangement | 4 in line |
Injection system | Direct |
Aspiration | Natural |
Cooling system | Water |
Diameter X Stroke | 90x100 mm |
Motor drive power | 21 kW |
Lubrication oil capacity | 6L (SAE10W40) |
Coolant capacity | 12 L |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
