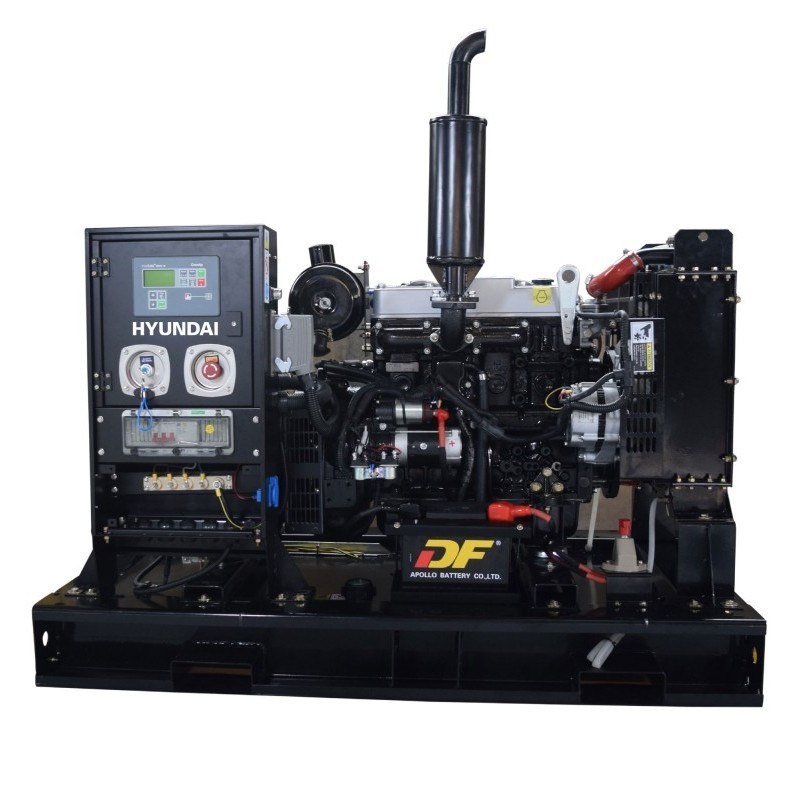

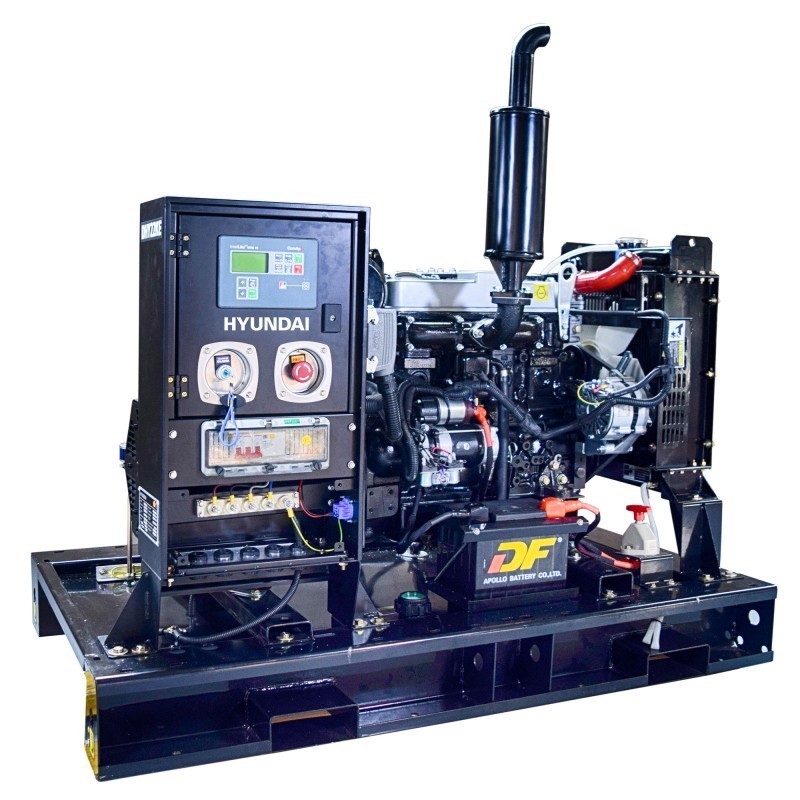

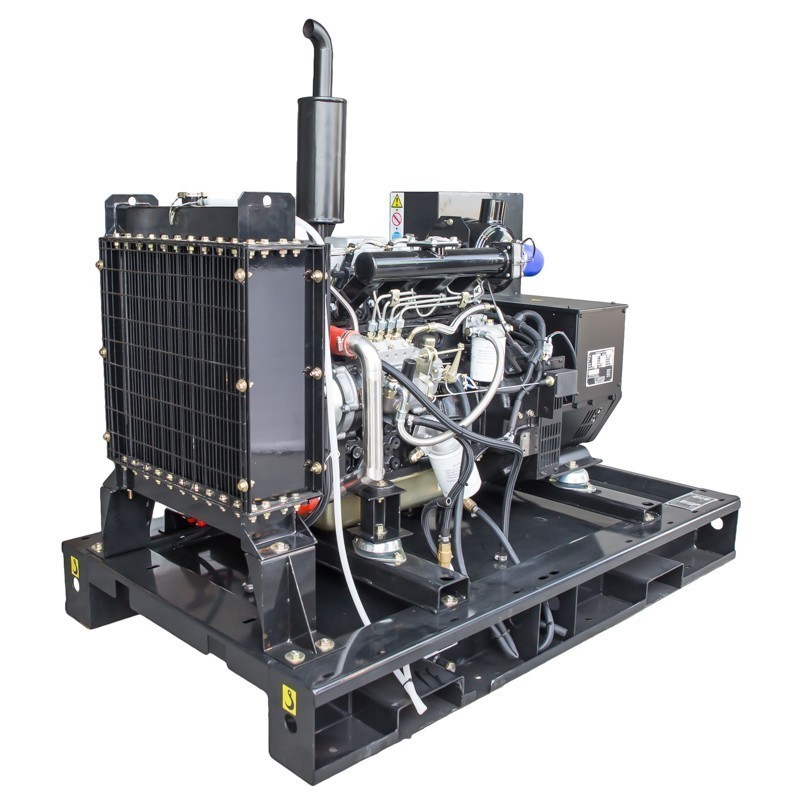

The DHY34KE generator is an ideal solution for those looking for power and reliability in three-phase applications. With a power rating of 31.3 KVA / 25 kW and a rotational speed of 1,500 rpm, this generator offers consistent and efficient performance, suitable for a variety of industrial and commercial needs. Its robust design ensures long service life and endurance under demanding conditions.
Thanks to its digital display, the DHY34KE provides accurate readings on critical parameters such as fuel level, cooling temperature and oil pressure. In addition, safety alarms such as low oil pressure or low battery ensure safe operation and prevent possible failures during operation, increasing reliability.
With an autonomy of 10 hours at full load and a consumption of 9.5 L/h, the generator is fuel efficient, allowing long working days without interruptions. Its 66 dBA sound level makes it an ideal choice for environments where noise must be kept under control. In addition, its reinforced structure includes forklift access and lifting rings for easy transport.
| MODEL | DHY34KE |
| Frequency (Hz) | 50 |
| Rotation speed (r/min) | 1.500 |
| Power Factor | 0,8 |
| Rated Power (KVA/KW) | 31,3 KVA / 25 kW |
| Emergency Power (KVA) | 34,4 KVA |
| Rated Current (A) | 45 A |
| Noise Level (7m, 75% load) (dBA) | 66 dBA |
| Autonomy at 100% | 10 h |
| Consumption at 100% load (L/hours) | 9.5 L/h |
| Radiator coolant capacity (L) | 12 L |
| Standard tank capacity (L) | 93 L |
| Engine model | HY4102 |
| Rated power at 1,500 rpm (kW) | 32 kW |
| Number of cylinders | 4 |
| Intake | Natural |
| Oil sump capacity (L) | 10,2 L |
| Displacement (cc) | 3.800 cc |
| Alternator | 184G |
| Degree of protection | IP23/H |
| Weight (Kg) | 690 Kg |
| Dimensions (cm) | 180 x 95 x 101 cm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
| This generating set allows to request, with a surcharge, a tank extension of 500L, 1000L or 1500L through our customer service. |
