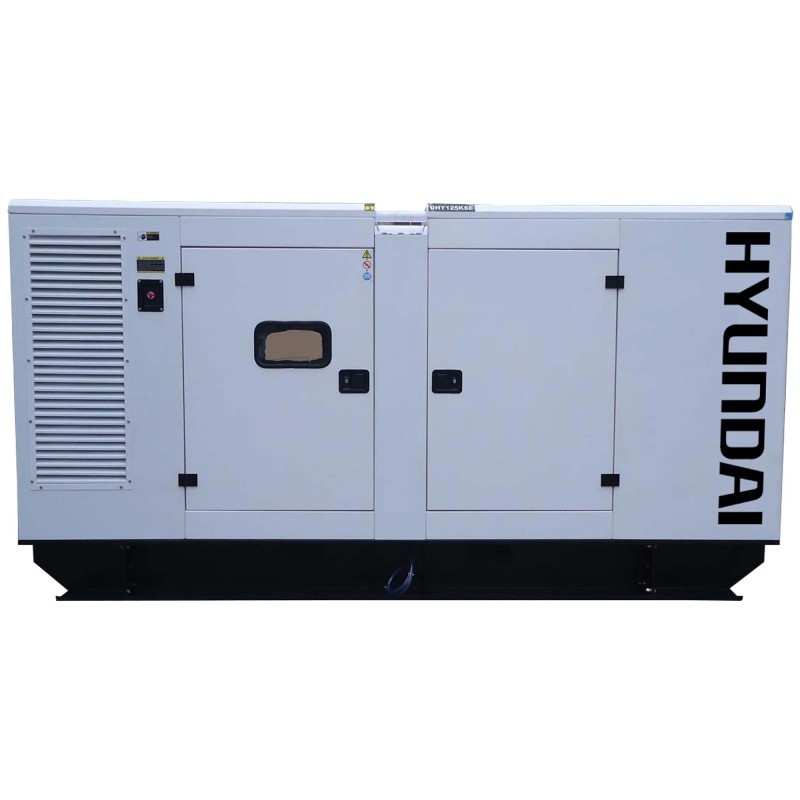

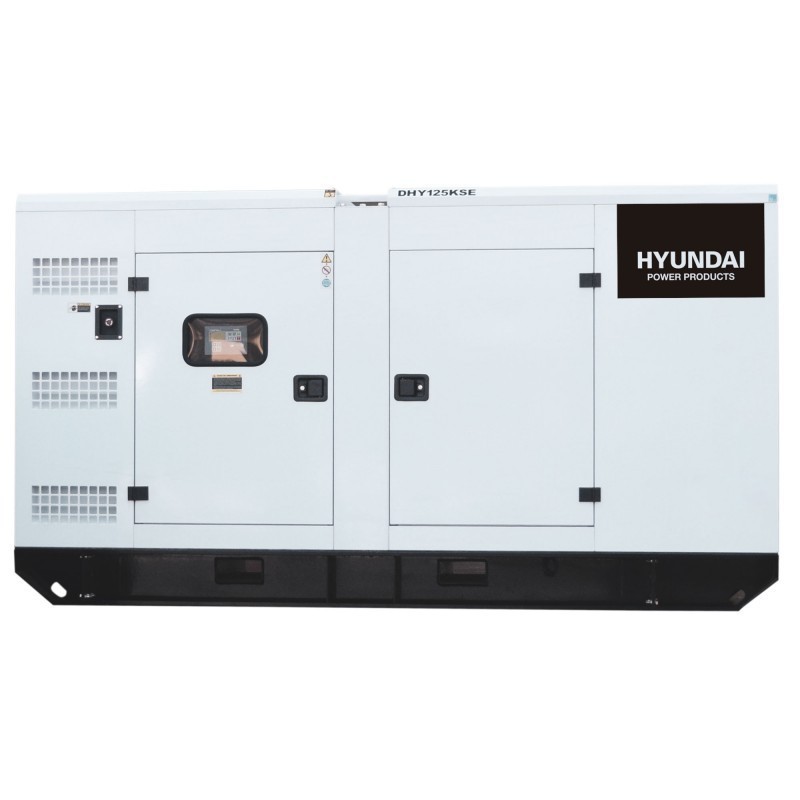

The 1,500 RPM Three-Phase Soundproof Generator Hyundai DHY125KSE stands out for its rated power of 112 KVA / 90 kW and its emergency capacity of 125 KVA, providing a reliable and continuous power source. Its AVR regulator ensures stable voltage output, ideal for powering sensitive equipment, while its efficient performance makes it the perfect choice for industrial and commercial installations.

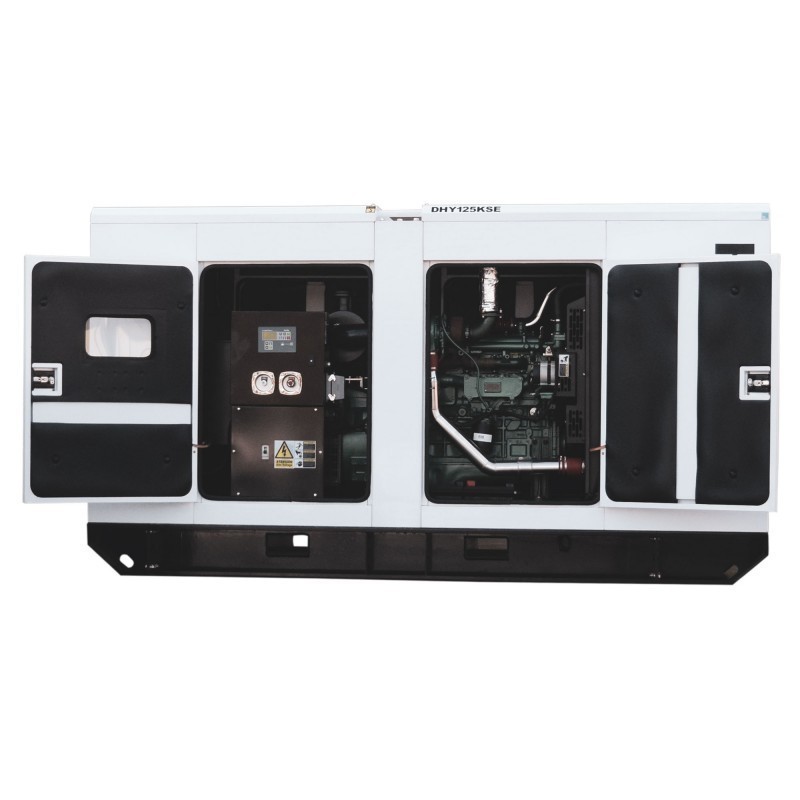

This generator is constructed with a galvanized and painted steel body, making it highly resistant to corrosion and easy to maintain. Its wide access doors make it easy to service and check the system, while its manual or voltage-free contact start system (ATS) allows it to adapt to a variety of operational needs.
Thanks to its advanced monitoring system, the DHY125KSE provides real-time readings on key parameters such as cooling temperature, oil pressure, and fuel level. In addition, the generator includes alarms for critical conditions, such as low oil pressure or high temperature, ensuring safe, uninterrupted operation.
With a sound level of 69 dBA at 75% load and an autonomy of 9 hours at 100% load, this model provides an excellent balance between power and efficiency. Its 28 L/h consumption and 245 L tank capacity guarantee prolonged operation without the need for frequent refueling, making it a reliable, high-performance energy solution.
| MODEL | DHY125KSE |
| Frequency (Hz) | 50 Hz |
| Rotation Speed (r/min) | 1.500 r/min |
| Power Factor | 0,8 |
| Rated Power (KVA/KW) | 112 KVA / 90 kW |
| Emergency Power (KVA) | 125 KVA |
| Rated Current (A) | 162 A |
| Sound Level (7m, 75% load) (dBA) | 69 dBA |
| Autonomy at 100% | 9 H |
| Consumption at 100% load (L/hours) | 28 L/H |
| Radiator coolant capacity (L) | 24 L |
| Standard tank capacity (L) | 245 L |
| HYUNDAI engine model | HY4A180 |
| Rated power at 1,500 rpm (kW) | 103 kW |
| Number of cylinders | 4 |
| Aspiration | Turbo |
| Oil sump capacity (L) | 24 L |
| Displacement (cc) | 6.870 cc |
| Model | 274D |
| Degree of protection | IP23/H |
| Weight (Kg) | 1.900 Kg |
| Dimensions (cm) | 340 x 105 x 176 cm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
| This generating set allows to request, with a surcharge, a tank extension of 500L, 1000L or 1500L through our customer service. |
