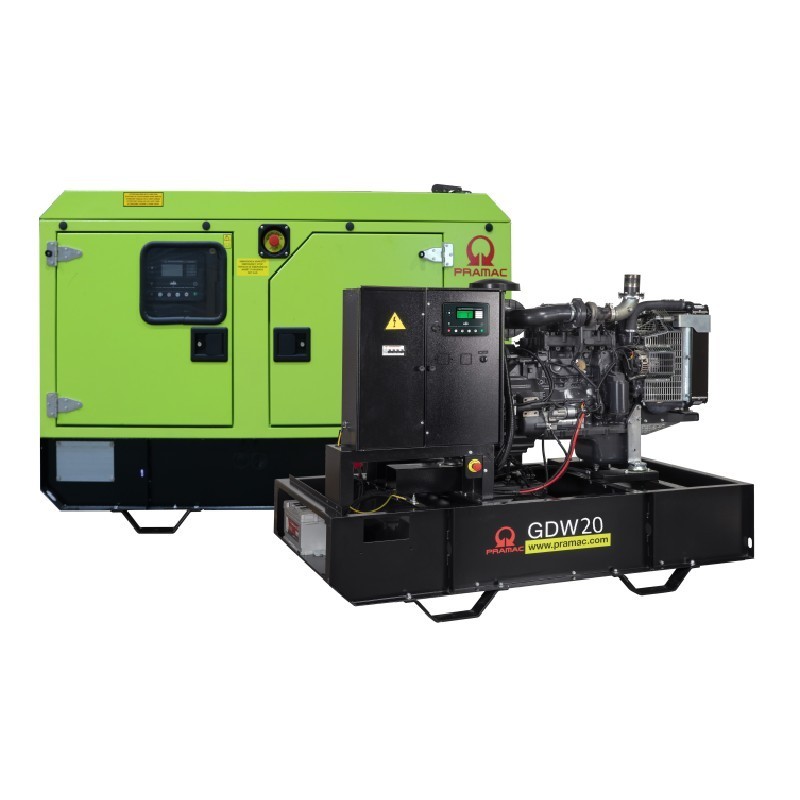

The GDW20Y/FS5 Generator Set is a 1500RPM, three-phase, 50 Hz generator, ideal for environments where constant, quality power is required. It offers a rated power of 18.3 kVA / 14.6 kW, perfect for industrial, commercial or agricultural uses that demand reliability and continuous performance.
Its brushless Mecc Alte alternator ensures stable output, and its soundproof design allows it to operate with reduced sound levels down to 60 dBA at 7 meters, ideal for noise-sensitive environments. Its 68-liter tank provides long, uninterrupted working days.
Thanks to its 4-cylinder configuration, low power consumption and high quality components, this generator is a robust and efficient solution for any installation requiring constant and safe electrical support.
MODEL | GDW20Y |
Frequency | 50 Hz |
Rotational Speed | 1500RPM |
Power Factor | 0,8 ϕ |
Rated Power (KVA/KW) | 18.3 kVA / 14.6 kW |
Emergency Power (KVA/KW) | 19.2 kVA / 15.4 kW |
Motor | |
Autonomy at 75% | 19.05 h |
Consumption at 75% load | 3.57 L/h |
Refrigerant capacity | 2.7 L |
Standard tank capacity | 68 L |
Engine model | 4TNV88-BIPGE |
Number of cylinders | 4 |
Aspiration | Natural |
Oil capacity | 7.4 L |
Displacement | 2190 cc |
Sound level Soundproof version | |
Guaranteed sound level (LWA) | 89 dBA |
Sound pressure @ 1 m | 73 dBA |
Sound pressure @ 7 m | 60 dBA |
Alternator Specifications | |
Alternator | Mecc Alte |
Model | ECP28 M4 C |
Winding | Standard |
Connections | Star Series |
Frequency | 50 Hz |
Voltage | 400 V |
Phases | 3 |
Power factor | 0.8 ϕ |
Emergency power (27ºC) | 22 kVA |
Nominal power (40ºC) | 20 kVA |
Efficiency @ 100% | 87% |
Type | Brushless |
Poles | 4 |
Voltage tolerance | ±1% |
Class | H |
Protection | IP 23 |
Battery values | |
Battery voltage | 12 V |
Battery capacity | 80 Ah |
Voltage | 400 V |
Frequency | 50 Hz |
Phases | 3 |
Power factor | 0.8 ϕ |
Maximum current | 28 A |
Rated current | 26 A |
Thermomagnetic circuit breaker | 25 A |
Weight and Dimensions | |
Open weight | 521 Kg |
Weight Soundproof Weight | 651 Kg |
Open Dimensions (cm) | 159 x 90 x 110.6 |
Soundproof Dimensions (cm) | 181.3 x 93.3 x 129.2 |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
The batteries included in some machines are a free gift, so they are exempt from warranty. |
