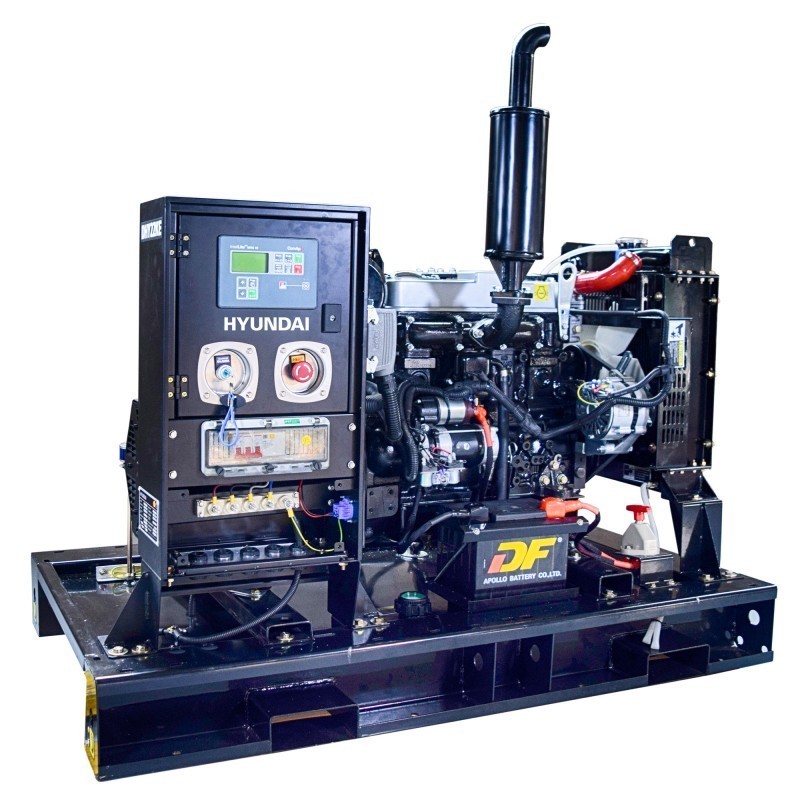

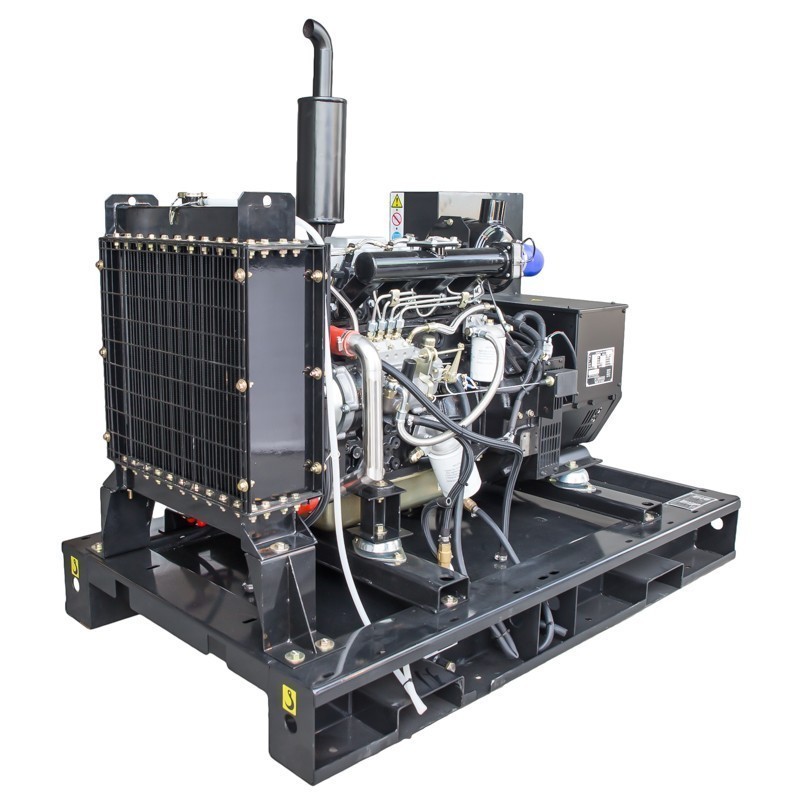

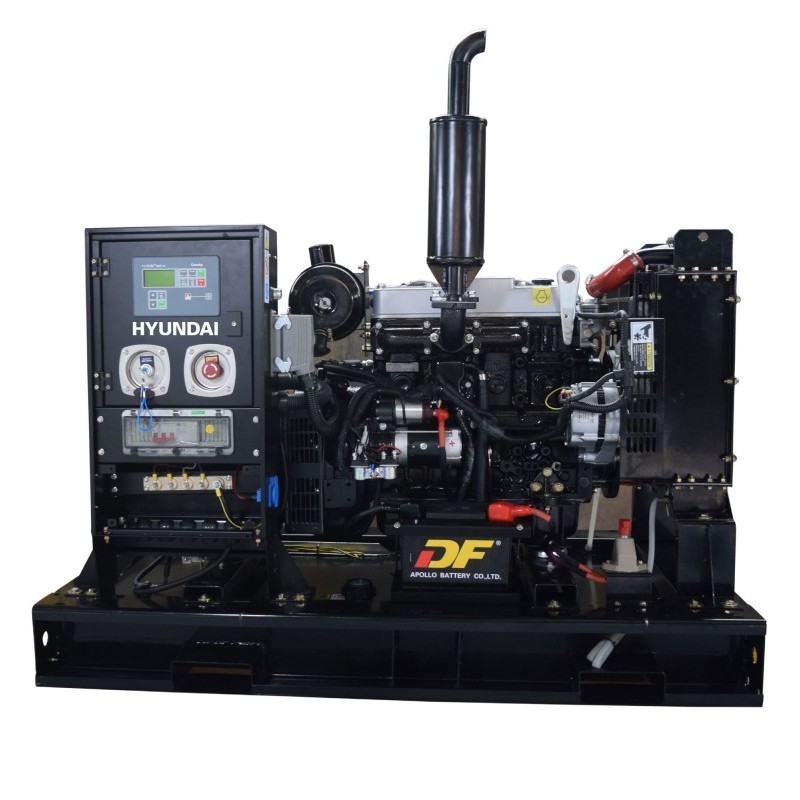

The DHY125KE open three-phase 1,500 RPM generator is a robust solution to cover large energy needs. With a rated power of 112 KVA and an emergency power of 125 KVA, it is perfect for industrial sectors that require a reliable, high-performance generator. In addition, its 4-cylinder turbo engine with a displacement of 6,870 cc guarantees efficiency and durability in its operation.
This generator has an advanced digital display that shows alerts and readings on oil pressure, water temperature, frequency, voltage and other key operating parameters. It also includes alarms to alert of any low oil pressure or low fuel level, providing safe and efficient operation. The DHY125KE generator is designed to ensure that every aspect of performance is monitored in real time.
With an autonomy of 9 hours at full load and a consumption of 28 L/h, this generator presents itself as a high-capacity option to keep equipment running for long periods. In addition, its efficient cooling system with a capacity of 24 L ensures proper operation, even in demanding working conditions. The forklift-accessible design and liquid drainage through a 1/4-turn valve facilitate maintenance.
The DHY125KE open three-phase 1,500 RPM generator is ideal for applications that require a reliable and constant power source. Its low sound level of 69 dBA at 75% load ensures that noise is not a concern, allowing it to be installed in a variety of working environments. With its IP23/H protection rating, it is ready to withstand harsh environmental conditions, ensuring durability and continuous performance.
| MODEL | DHY125KE |
| Frequency (Hz) | 50 |
| Rotation Speed (r/min) | 1.500 |
| Power Factor | 0,8 |
| Rated Power (KVA/KW) | 112 KVA / 90 kW |
| Emergency Power (KVA) | 125 KVA |
| Rated Current (A) | 162 A |
| Sound Level (7m, 75% load) (dBA) | 69 dBA |
| Autonomy at 100% | 9 h |
| Consumption at 100% load (L/hours) | 28 L/h |
| Radiator coolant capacity (L) | 24 L |
| Standard tank capacity (L) | 245 L |
| Engine model | HY4A180 |
| Rated power at 1,500 rpm (kW) | 103 kW |
| Number of cylinders | 4 |
| Aspiration | Turbo |
| Oil sump capacity (L) | 24 L |
| Displacement (cc) | 6.870 cc |
| Alternator | 274D |
| Degree of protection | IP23/H |
| Weight (Kg) | 1.220 Kg |
| Dimensions (cm) | 235 x 100 x 148 cm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
| This generating set allows to request, with a surcharge, a tank extension of 500L, 1000L or 1500L through our customer service. |
