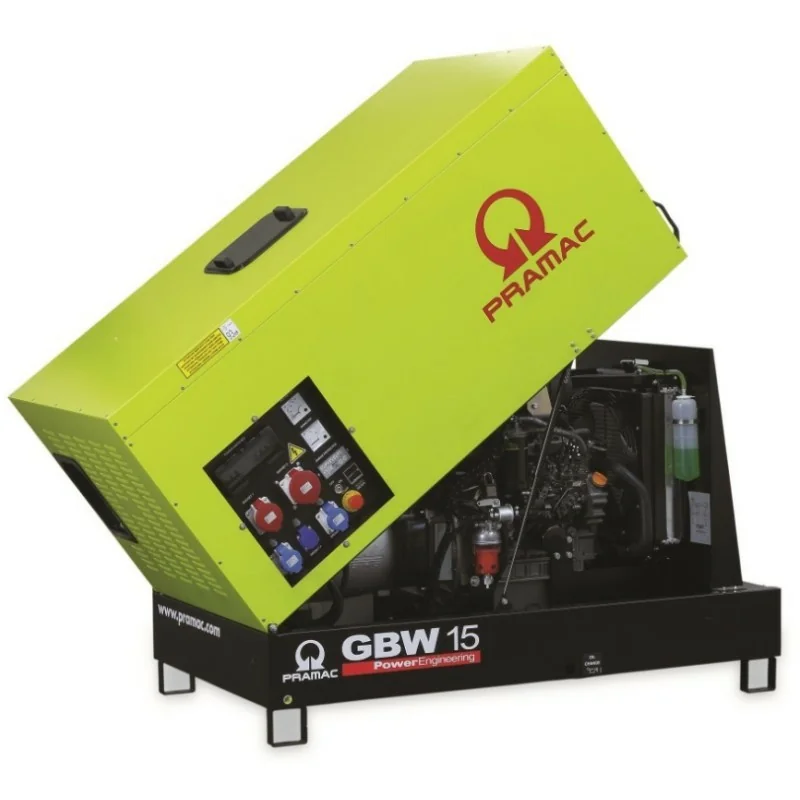

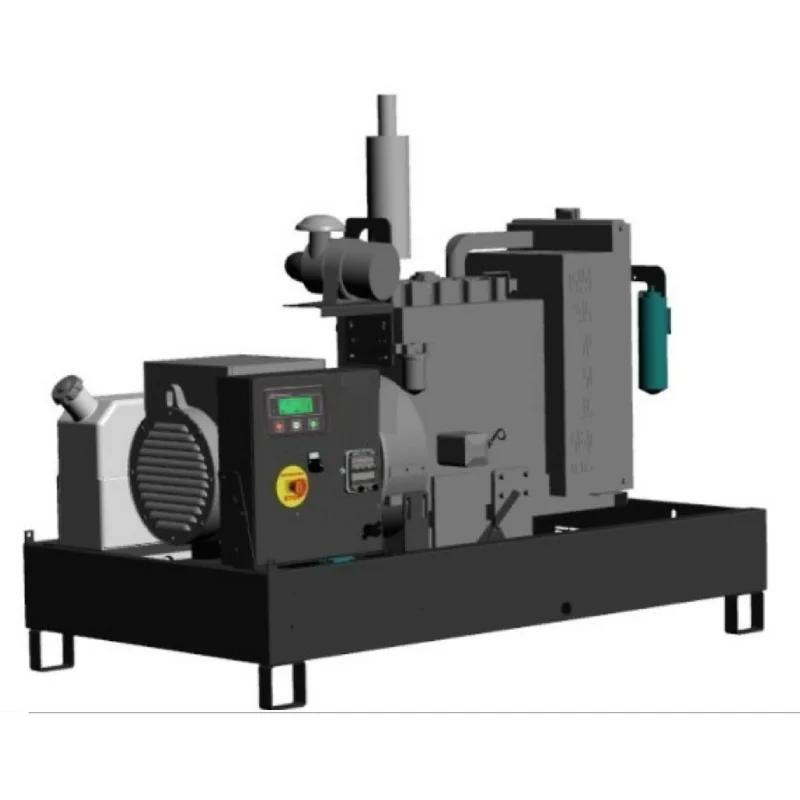

This GBW15Y generator set is an ideal three-phase solution for applications requiring reliability, low power consumption and continuous performance. With a rated power of 12.61 kVA / 10.09 kW, it ensures a stable power supply for both emergency and extended use.
It incorporates a water-cooled Yanmar diesel engine, which offers excellent autonomy and efficiency. Its optimized consumption allows it to operate for up to 20 hours at 75% load, reducing downtime and operating costs. It also has an electric starter for greater convenience.
The brushed Linz alternator maintains stable output even in demanding conditions. Its low noise level of 64 dBA at 7 meters makes it perfect for environments where noise is a key factor.
Compact yet robust, this generator stands out for its efficient design, IP21 protection, and easy maintenance. Ideal for industries, construction sites or services that need safe energy at any time.
MODEL | GBW15Y |
Frequency | 50 Hz |
Voltage | 400 V |
Power factor | 0.8 ϕ |
Phases | 3 |
Emergency Power (kVA/kW) | 13.46 kVA / 10.77 kW |
Rated Power (kVA/kW) | 12.61 kVA / 10.09 kW |
Motor | |
Engine Make | Yanmar |
Model | 3TNV88F-UGPGE |
Cooling System | Water |
Number of cylinders | 3 in line |
Displacement | 1642 cc |
Intake | Natural |
Speed regulator | Mechanical |
Prime gross power | 12.4 kW |
Maximum power | 13.2 kW |
Oil capacity | 6.7 L |
Coolant capacity | 2 L |
Fuel | Diesel |
Consumption at 75% load | 2.53 L/h |
Consumption at 100% load | 3.32 L/h |
Autonomy at 75% load | 20.16 h |
Autonomy at 100% | 15.36 h |
Starting system | Electric |
Starting capacity | 1.2 kW |
System voltage | 12 V |
Alternator Specifications | |
Alternator | Linz |
Model | E1S13MD |
Voltage | 400 V |
Frequency | 50 Hz |
Power factor | 0.8 ϕ |
Poles | 4 |
Type | Brushed |
Voltage tolerance | ±4% |
Efficiency at 75% load | 85.4% |
Class | H |
Protection | IP 21 |
Sound level | |
Guaranteed sound level (LWA) Soundproof version | 93 dBA |
Sound pressure @ 7 m (23 ft) Soundproof version | 64 dBA |
Weight and Dimensions | |
Dimensions (cm) | 175 x 90 x 100 |
Dry weight | 395 Kg |
Dimensions (cm) Soundproof version | 164.5 x 87 x 107.2 |
Dry weight Soundproofed version | 465 Kg |
Tank capacity | 51 L |
Tank material | Plastic |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
The batteries included in some machines are a free gift, so they are exempt from warranty. |
