Diesel Generator Set Pramac GDW200P 183.4 kVA


  • Engine Make: Perkins
  • Revolutions per minute: 1500RPM
  • Rated power (KVA/kW): 183.4 kVA / 146.7 kW
  • Displacementrated power (KVA/kW): 7010 cc
  • Number of cylinders: 6 in line
En stock
icon Power Supply
Power Supply
Diesel
icon Stabilization
Stabilization
AVR
icon Current
Current
Three-phase
icon Engine
Engine
Perkins
icon Displacement
Displacement
7010 cc
icon Power rating
Power rating
183.4 kVA
icon Maximum power
Maximum power
203 kVA
icon Type of winding
Type of winding
Copper
icon Generator Type
Generator Type
Open
icon Generator Type
Generator Type
Soundproofed
icon Panel
Panel
digital
icon Cylinders
Cylinders
6
icon ✔️
✔️
Water-cooled
€22,917.78 excl. VAT
€27,730.51 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Diesel Generator Set Pramac GDW200P 183.4 kVA
€27,730.51
Select
Qty

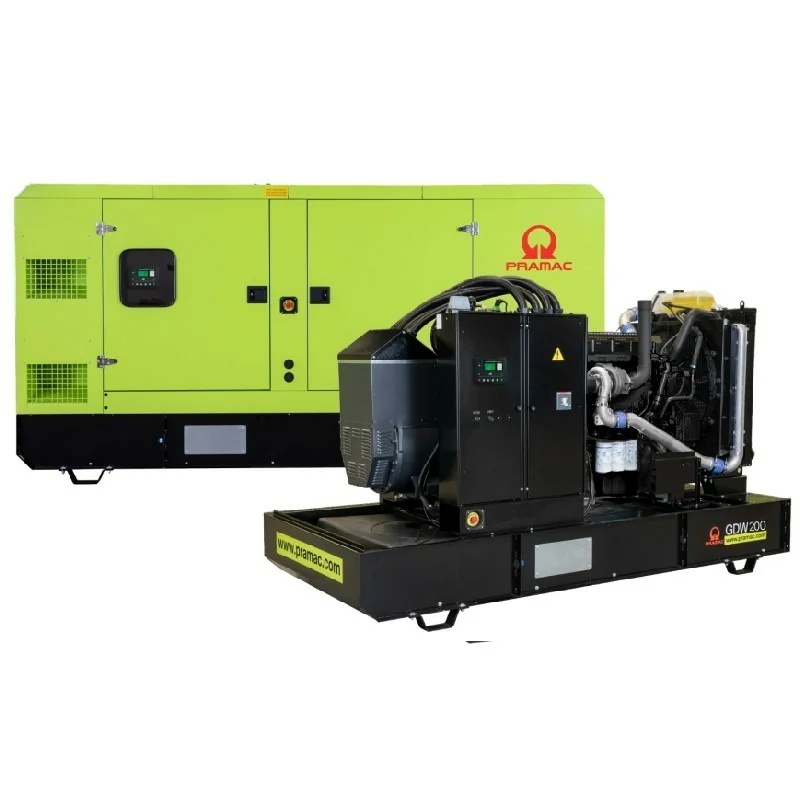

Generating set Pramac GDW200P

The Pramac GDW200P generator set is a high-performance solution designed to provide continuous and reliable power in industrial environments, construction sites or critical facilities. Rated at 183.4 kVA and 203 kVA in emergency, this three-phase generator provides solid backup for extended power outages or as a primary source in off-grid areas.

It is equipped with a turbocharged 6-cylinder engine, which provides efficient and stable operation. Thanks to its autonomy of 10.89 hours at 75% load and its 350-liter fuel tank, it can operate for long days without interruption. Its low consumption of 32.13 L/h makes it a cost-effective option in the long term, optimizing the use of resources.

Another strong point is its brushless Mecc Alte alternator , which delivers 92.7% efficiency and guarantees a clean electrical output, ideal for sensitive equipment. Its capacity to withstand demanding conditions is reinforced with IP 23 protection, thermal class H and voltage tolerance of ±1%, which ensures great durability.

The soundproof design of the Pramac GDW200P makes it perfect for locations where noise is a consideration. With only 78 dBA at 1 meter, it offers quiet operation without sacrificing power. In addition, its compact structure (305 x 120 x 165 cm) allows for a practical and versatile installation. Ideal for those looking for performance, strength and reliability in a single unit.

MODELGDW200P/FNE
Frequency50 Hz
Rotation speed1500RPM
Power Factor0.8 ϕ
Rated Power (KVA/KW)183.4 kVA / 146.7 kW
Emergency Power (KVA/KW)203 kVA / 162.4 kW
Engine
Autonomy at 75%10.89 h
Consumption at 75% load32.13 L/h
Refrigerant capacity20.5 L
Standard tank capacity350 L
Engine modelPerkins 1106A-70TAG3
Number of cylinders6 in line
AspirationTurbo
Oil capacity18 L
Displacement7010 cc
Sound level Soundproof version
Guaranteed sound level (LWA)97 dBA
Sound pressure @ 1 m78 dBA
Sound pressure @ 7 m68 dBA
Alternator Specifications
AlternatorMecc Alte
ModelECO38 2S4 C
ConnectionsStar Series
Frequency50 Hz
Voltage400 V
Phases3
Power factor0.8 ϕ
Emergency power (27ºC)220 kVA
Nominal power (40ºC)200 kVA
Efficiency @ 100%92.7%
TypeBrushless
Poles4
Voltage tolerance±1%
ClassH
ProtectionIP 23
Battery values
Battery voltage12 V
Voltage400/230 V
Frequency50 Hz
Phases3
Power factor0.8 ϕ
Maximum current293 A
Rated current265 A
Thermomagnetic circuit breaker400 A
Weight and Dimensions
Open weight2320 Kg
Soundproof Weight1768 Kg
Open Dimensions (cm)305 x 120 x 165
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination.
The batteries included in some machines are a free gift, so they are exempt from warranty.
