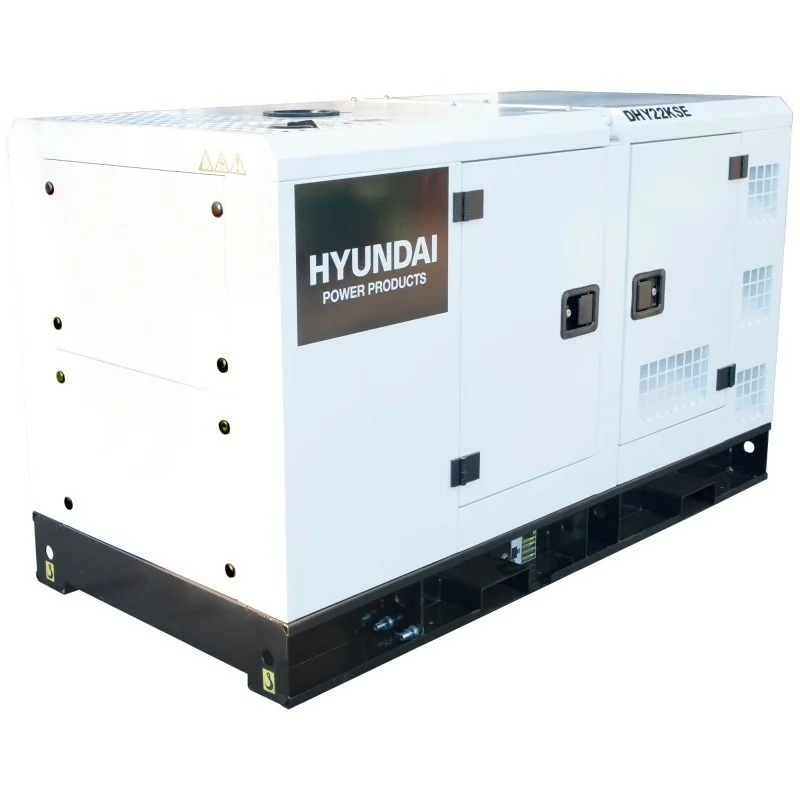

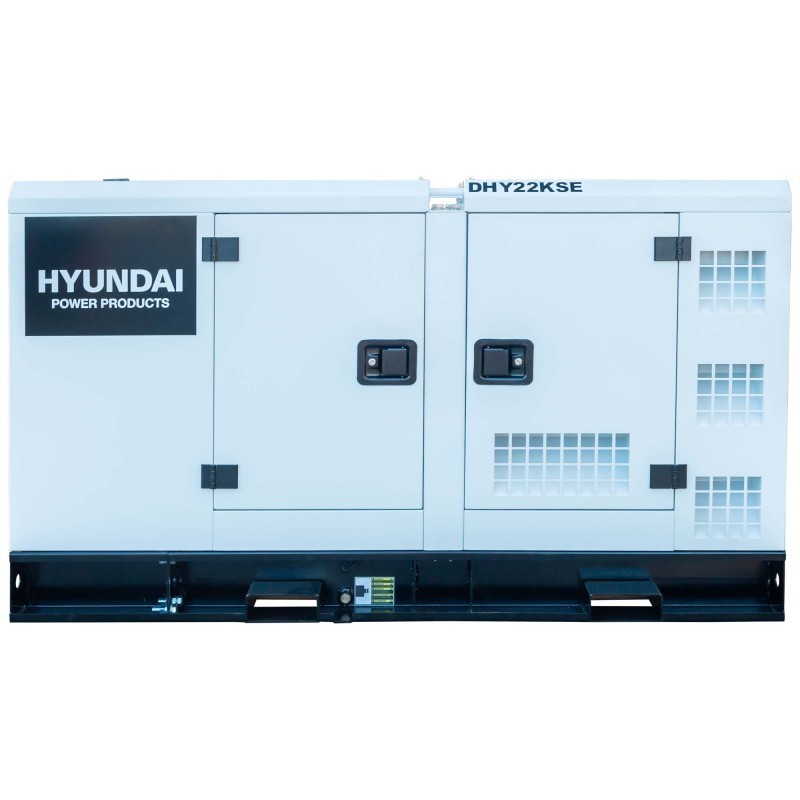

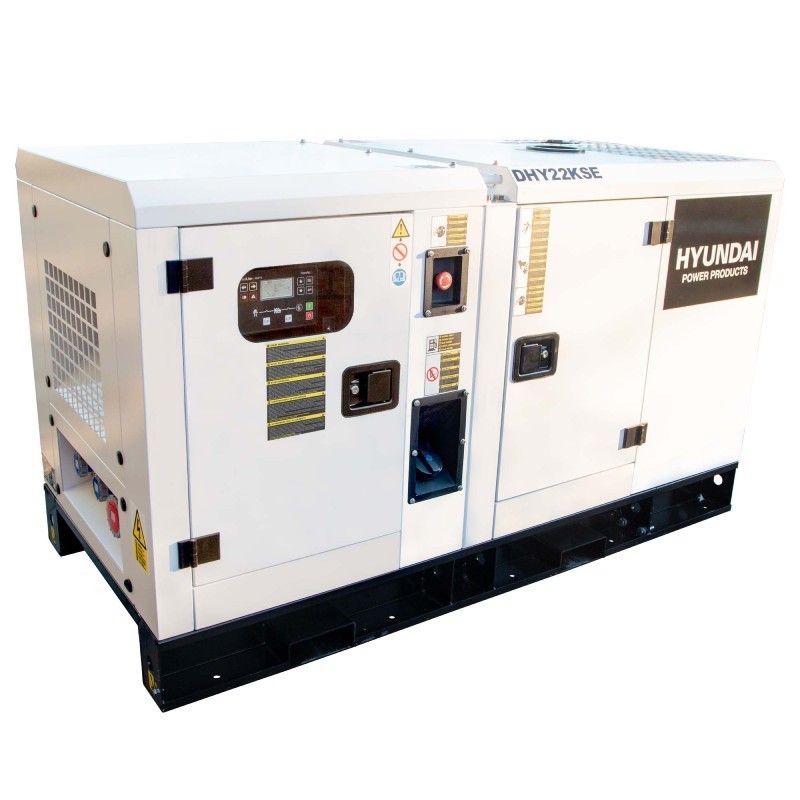

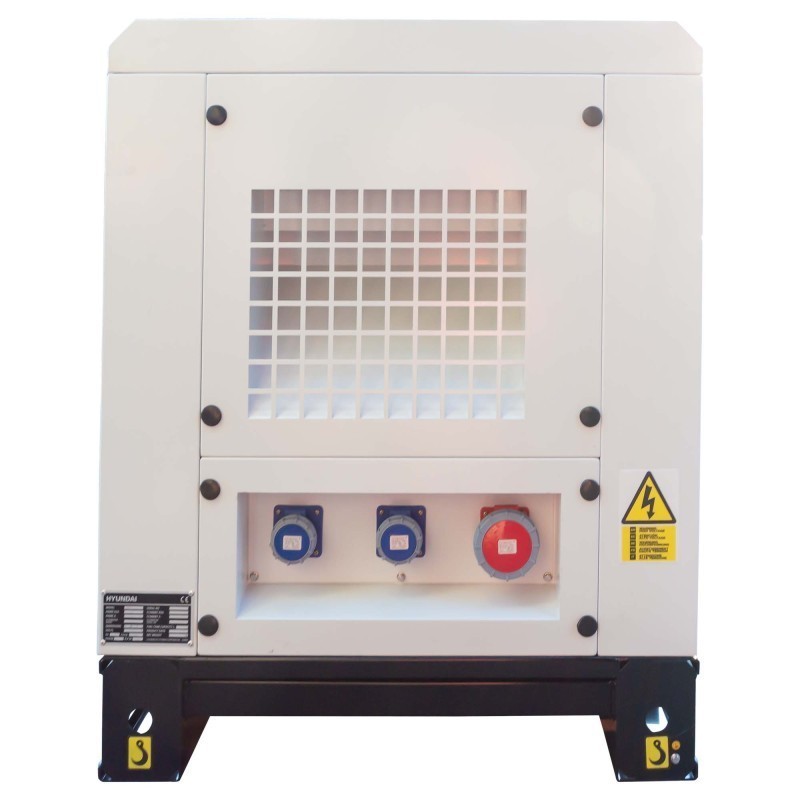

Generating set Hyundai DHY22KSE, three-phase soundproofed 22 KVA, with 4-cylinder HY490 engine. Its robust and efficient design makes it ideal for industrial uses.
This generator has a galvanized steel body that protects against rust and facilitates maintenance. Equipped with an AVR regulator for constant voltage and a digital display that shows vital information such as oil pressure, cooling temperature and fuel level. In addition, its sound level of only 65 dBA makes it ideal for noise-sensitive environments.
The rated power of 20 KVA (16 kW) and an emergency power of 22 KVA ensure reliable performance. With an autonomy of 12 hours at 100% load and a consumption of 6.3 L/h, it is perfect for applications requiring continuous and stable power. In addition, its 78 L tank capacity ensures long working days without interruptions.

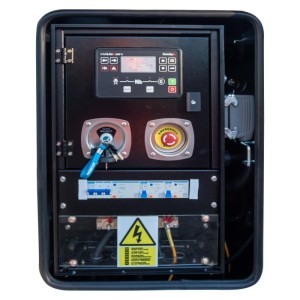

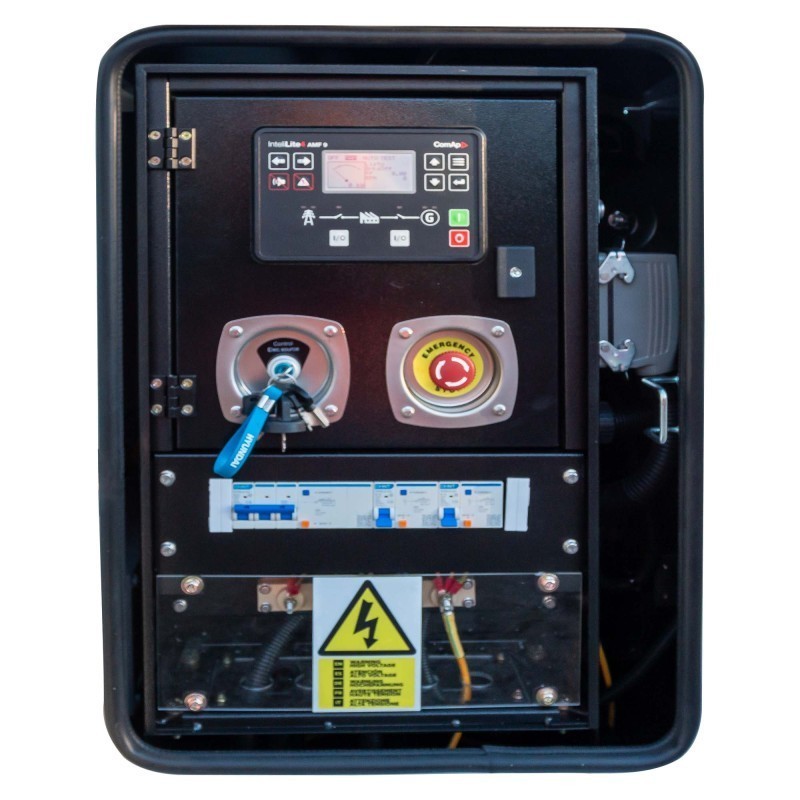

The control panel features safety alarms, such as low oil pressure and high cooling temperature, and allows remote connection for easy generator control. With an IP23/H protection rating, it is ideal for outdoor use and harsh conditions.
| MODEL | DHY22KSE |
| Frequency (Hz) | 50 Hz |
| Rotation Speed (r/min) | 1.500 r/min |
| Power Factor | 0,8 |
| Rated Power (KVA/KW) | 20 KVA / 16 kW |
| Emergency Power (KVA) | 22 KVA |
| Rated Current (A) | 29 A |
| Noise Level (7m, 75% load) (dBA) | 65 dBA |
| Autonomy at 100% | 12 h |
| Consumption at 100% load (L/hours) | 6.3 L/h |
| Radiator coolant capacity (L) | 10,2 L |
| Standard tank capacity (L) | 78 L |
| HYUNDAI engine model | HY490 |
| Rated power at 1,500 rpm (kW) | 21 kW |
| Number of cylinders | 4 |
| Aspiration | Natural |
| Oil sump capacity (L) | 6,5 L |
| Displacement (cc) | 2.500 cc |
| Model | 184E |
| Degree of protection | IP23/H |
| Weight (Kg) | 786 kg |
| Dimensions (cm) | 190 x 90 x 110 cm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
| This generating set allows to request, with a surcharge, a tank extension of 500L, 1000L or 1500L through our customer service. |
