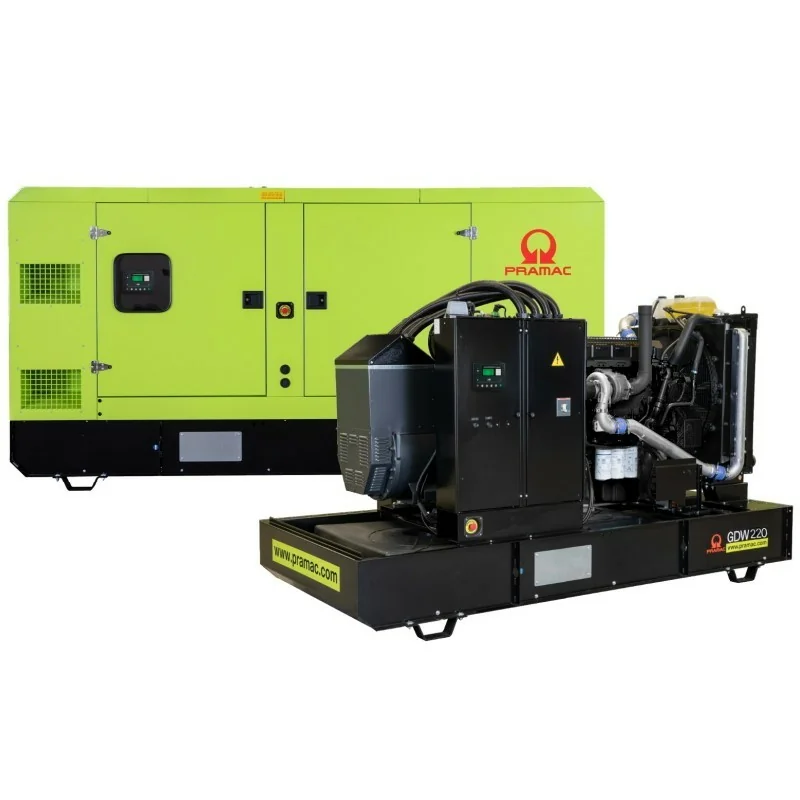

Diesel Generator Set Pramac GDW220P 200 kVA


  • Engine Make: Perkins
  • Revolutions per minute: 1500RPM
  • Rated power (KVA/kW): 200 kVA / 160 kW
  • Displacementrated power (KVA/kW): 7010 cc
  • Number of cylinders: 6 in line
En stock
icon Power Supply
Power Supply
Diesel
icon Stabilization
Stabilization
AVR
icon Current
Current
Three-phase
icon Engine
Engine
Perkins
icon Displacement
Displacement
7010 cc
icon Power rating
Power rating
200 kVA
icon Maximum power
Maximum power
220 kVA
icon Type of winding
Type of winding
Copper
icon Generator Type
Generator Type
Open
icon Generator Type
Generator Type
Soundproofed
icon Panel
Panel
digital
icon Cylinders
Cylinders
6
icon ✔️
✔️
Water-cooled
€23,707.57 excl. VAT
€28,686.16 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Diesel Generator Set Pramac GDW220P 200 kVA
€28,686.16
Select
Qty

Generating set Pramac GDW220P

The genset Pramac GDW220P is designed to provide reliable power supply in demanding environments, with a rated power of 200 kVA and up to 220 kVA in emergency. Its 1500RPM rotational speed and 0.8 ϕ power factor ensure efficient and stable operation, even under high demand.

This three-phase generator has a turbocharged 6-cylinder engine , which ensures a powerful and constant response. Its autonomy of 9.75 hours at 75% load and a tank of 350 liters allow long periods of operation without refueling. In addition, its optimized consumption of 35.88 L/h makes it a profitable option in the long term.

The Mecc Alte brushless alternator, with an efficiency of 92.7% and IP 23 protection, guarantees a stable and safe output for sensitive electronic equipment. The voltage tolerance ±1% and its thermal class H ensure reliable operation, even in demanding thermal conditions.

Thanks to its soundproof version, this genset maintains a low noise level, with only 78 dBA at 1 meter, ideal for urban areas or environments where silence is key. The Pramac GDW220P is a robust and efficient choice for projects that require continuous power, reliability and controlled sound performance.

MODEL GDW220P/FNE
Frequency 50 Hz
Rotational Speed 1500RPM
Power Factor 0.8 ϕ
Rated Power (KVA/KW) 200.0 kVA / 160.0 kW
Emergency Power (KVA/KW) 220.0 kVA / 176.0 kW
Motor
Autonomy at 75% 9.75 h
Consumption at 75% load 35.88 L/h
Refrigerant capacity 20.5 L
Standard tank capacity 350 L
Engine model Perkins 1106A-70TAG4
Number of cylinders 6 in line
Aspiration Turbo
Oil capacity 18 L
Displacement 7010 cc
Sound level Soundproof version
Guaranteed sound level (LWA) 97 dBA
Sound pressure @ 1 m 78 dBA
Sound pressure @ 7 m 68 dBA
Alternator Specifications
Alternator Mecc Alte
Model ECO38 2S4 C
Winding Standard
Connections Star Series
Frequency 50 Hz
Voltage 400 V
Phases 3
Power factor 0.8 ϕ
Emergency power (27ºC) 220 kVA
Nominal power (40ºC) 200 kVA
Efficiency @ 100% 92.7%
Type Brushless
Poles 4
Voltage tolerance ±1%
Class H
Protection IP 23
Battery values
Battery voltage 12 V
Voltage 400/230 V
Frequency 50 Hz
Phases 3
Power factor 0.8 ϕ
Maximum current 318 A
Rated current 289 A
Thermomagnetic circuit breaker 400 A
Weight and Dimensions
Open weight 2320 Kg
Soundproof Weight 1768 Kg
Open Dimensions (cm) 305 x 120 x 165
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination.
The batteries included in some machines are a free gift, so they are exempt from warranty.
