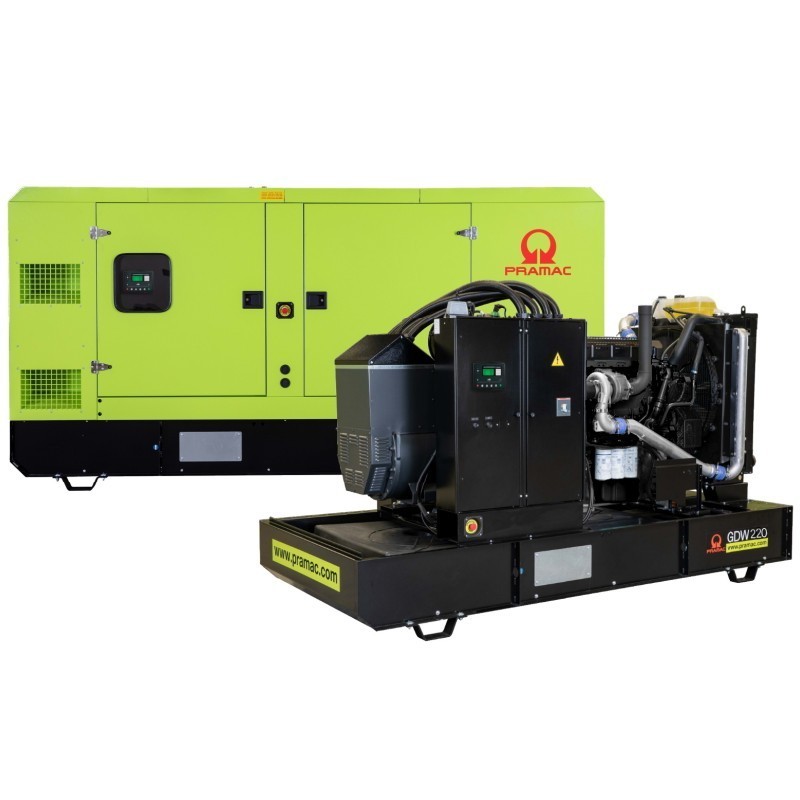

The genset Pramac GDW220P is designed to provide reliable power supply in demanding environments, with a rated power of 200 kVA and up to 220 kVA in emergency. Its 1500RPM rotational speed and 0.8 ϕ power factor ensure efficient and stable operation, even under high demand.
This three-phase generator has a turbocharged 6-cylinder engine , which ensures a powerful and constant response. Its autonomy of 9.75 hours at 75% load and a tank of 350 liters allow long periods of operation without refueling. In addition, its optimized consumption of 35.88 L/h makes it a profitable option in the long term.
The Mecc Alte brushless alternator, with an efficiency of 92.7% and IP 23 protection, guarantees a stable and safe output for sensitive electronic equipment. The voltage tolerance ±1% and its thermal class H ensure reliable operation, even in demanding thermal conditions.
Thanks to its soundproof version, this genset maintains a low noise level, with only 78 dBA at 1 meter, ideal for urban areas or environments where silence is key. The Pramac GDW220P is a robust and efficient choice for projects that require continuous power, reliability and controlled sound performance.
MODEL | GDW220P/FNE |
Frequency | 50 Hz |
Rotational Speed | 1500RPM |
Power Factor | 0.8 ϕ |
Rated Power (KVA/KW) | 200.0 kVA / 160.0 kW |
Emergency Power (KVA/KW) | 220.0 kVA / 176.0 kW |
Motor | |
Autonomy at 75% | 9.75 h |
Consumption at 75% load | 35.88 L/h |
Refrigerant capacity | 20.5 L |
Standard tank capacity | 350 L |
Engine model | Perkins 1106A-70TAG4 |
Number of cylinders | 6 in line |
Aspiration | Turbo |
Oil capacity | 18 L |
Displacement | 7010 cc |
Sound level Soundproof version | |
Guaranteed sound level (LWA) | 97 dBA |
Sound pressure @ 1 m | 78 dBA |
Sound pressure @ 7 m | 68 dBA |
Alternator Specifications | |
Alternator | Mecc Alte |
Model | ECO38 2S4 C |
Winding | Standard |
Connections | Star Series |
Frequency | 50 Hz |
Voltage | 400 V |
Phases | 3 |
Power factor | 0.8 ϕ |
Emergency power (27ºC) | 220 kVA |
Nominal power (40ºC) | 200 kVA |
Efficiency @ 100% | 92.7% |
Type | Brushless |
Poles | 4 |
Voltage tolerance | ±1% |
Class | H |
Protection | IP 23 |
Battery values | |
Battery voltage | 12 V |
Voltage | 400/230 V |
Frequency | 50 Hz |
Phases | 3 |
Power factor | 0.8 ϕ |
Maximum current | 318 A |
Rated current | 289 A |
Thermomagnetic circuit breaker | 400 A |
Weight and Dimensions | |
Open weight | 2320 Kg |
Soundproof Weight | 1768 Kg |
Open Dimensions (cm) | 305 x 120 x 165 |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
The batteries included in some machines are a free gift, so they are exempt from warranty. |
