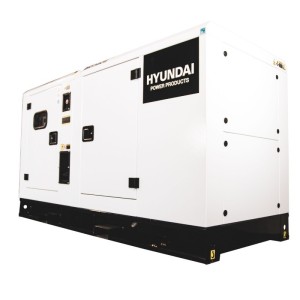

Designed to provide constant power, the DHY35KSEm generator set Hyundai DHY35KSEm without excessive noise, this 35 kW unit is ideal for installations where stable and quiet power is required. Its soundproof design makes it perfect for sound-sensitive environments, such as residential areas or workplaces. In addition, it allows manual or automatic start with ATS systems, programmers and others.

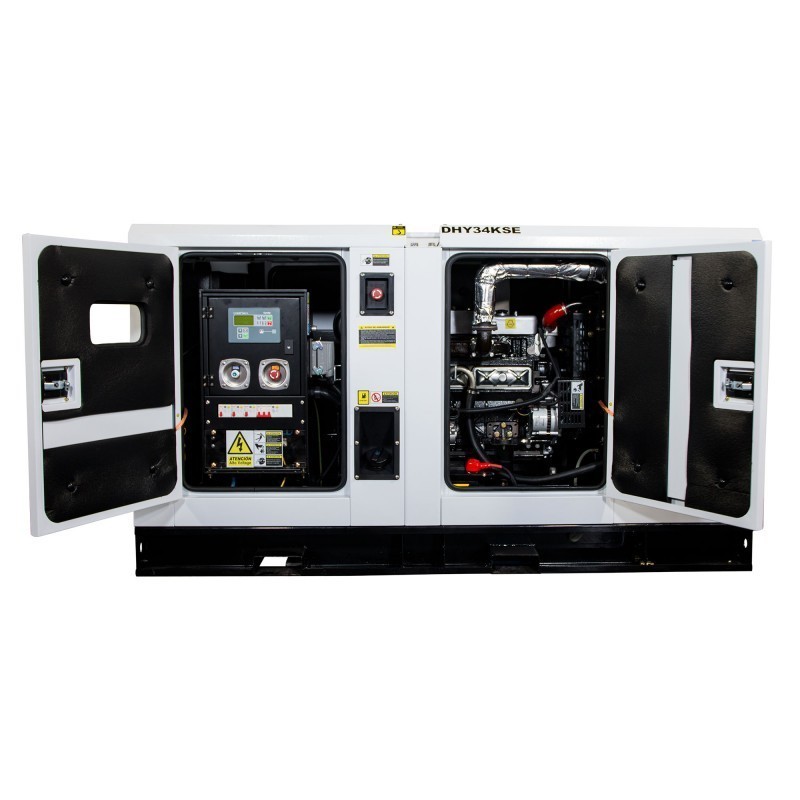

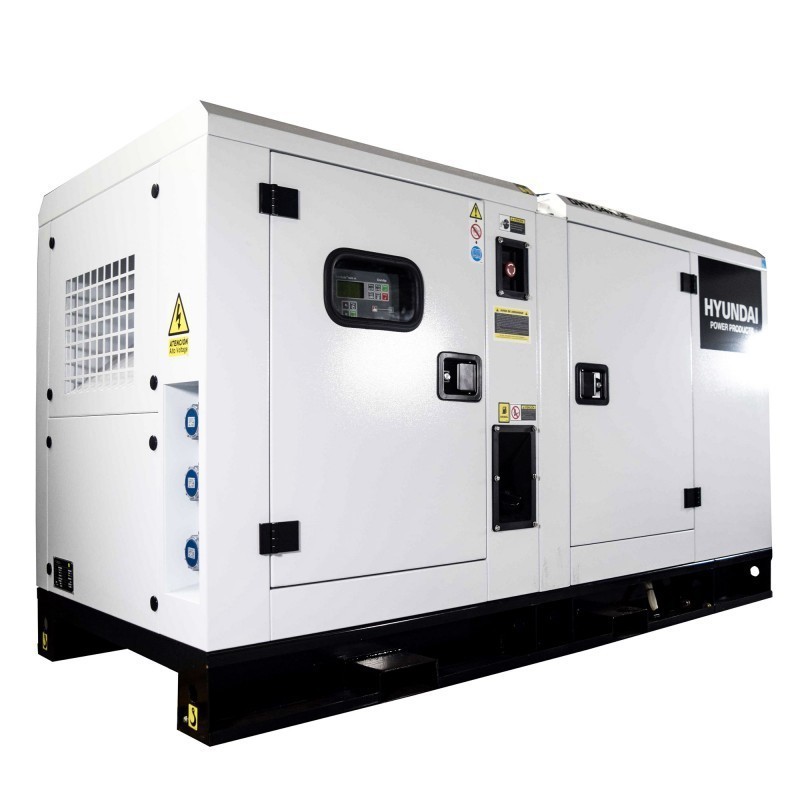

The structure of galvanized and painted steel protects it from rust and adverse conditions. It has wide doors for convenient maintenance, external fuel filling and single-phase IP67 outlets, safe and resistant. The integrated AVR regulator ensures stable voltage output, protecting your connected devices.

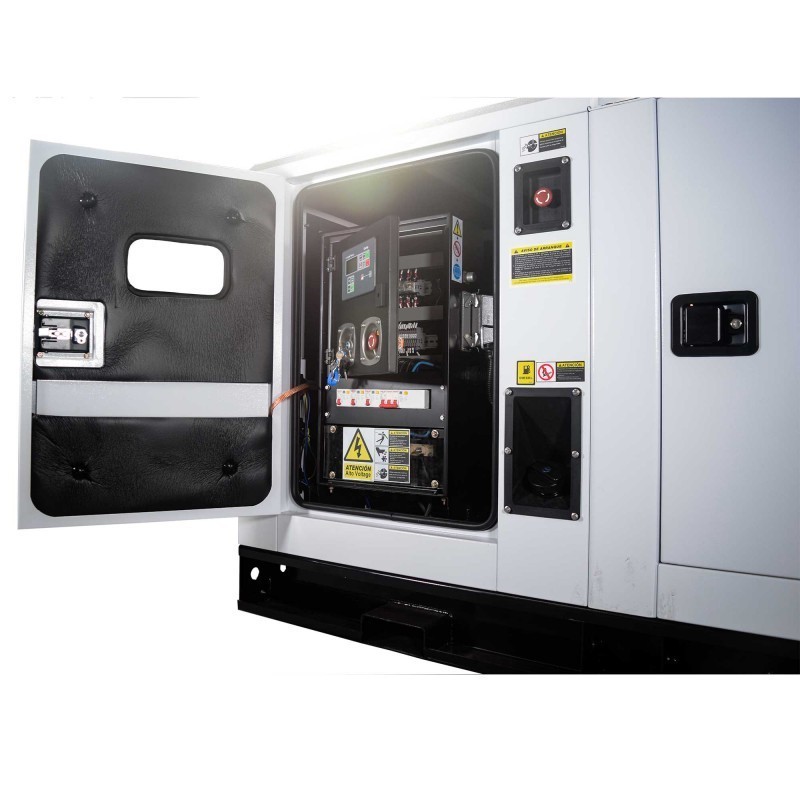

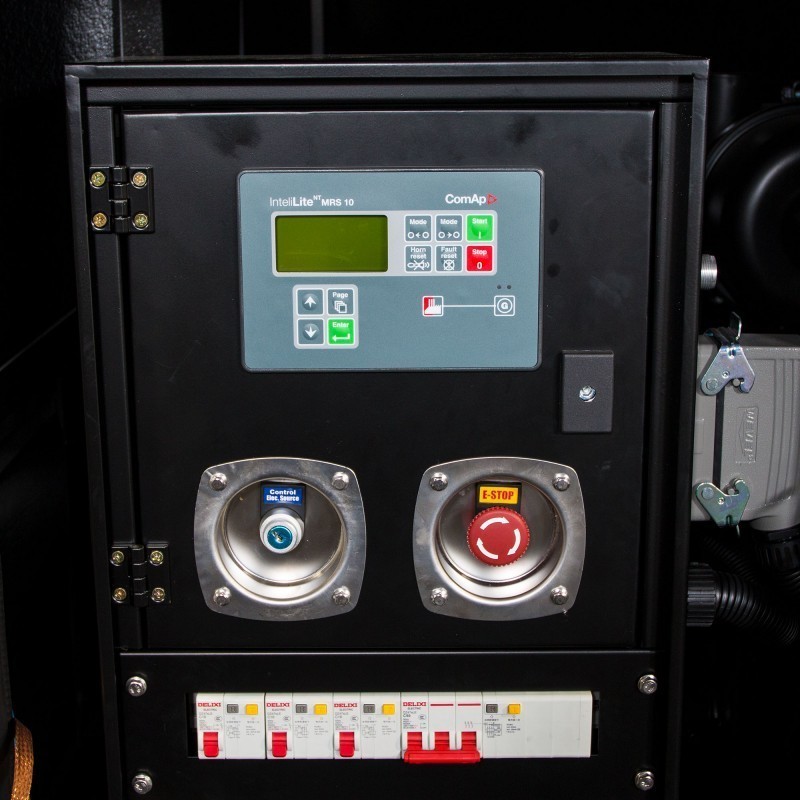

It includes detailed engine readings, such as temperature, oil pressure, rpm or fuel level. It also displays load data such as frequency, voltage and currents. Its alarm system reports low oil pressure, high temperature, battery failure or low fuel level, ensuring safe and continuous operation.
| MODEL | DHY35KSEm |
| Voltage | 230 V |
| Net Weight | 1.045 kg |
| Nominal power | 32 Kw |
| Displacement | 4.100 cc |
| Product Dimensions | 220 x 95 x 130 cm |
| Frequency | 50 Hz |
| Motor model | HY4105 |
| Oil capacity | 8,3 L |
| Alternator | 224D |
| Power factor | 1 |
| Revolutions per minute | 1500 RPM |
| Emergency power | 35 Kw |
| Rated current | 139 A |
| Autonomy at 100% | 8 H |
| Consumption at 100% (L/Hours) | 11 L/H |
| Radiator coolant capacity | 10,2 L |
| Standard tank capacity | 95 L |
| Cylinders | 4 |
| Aspiration | Natural |
| Noise level at 7 mts (75% load) | 68 dBA |
| IP Protection | IP23 |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
| This generating set allows to request, with a surcharge, a tank extension of 500L, 1000L or 1500L through our customer service. |
