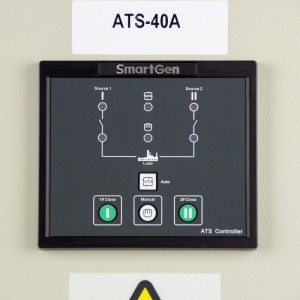

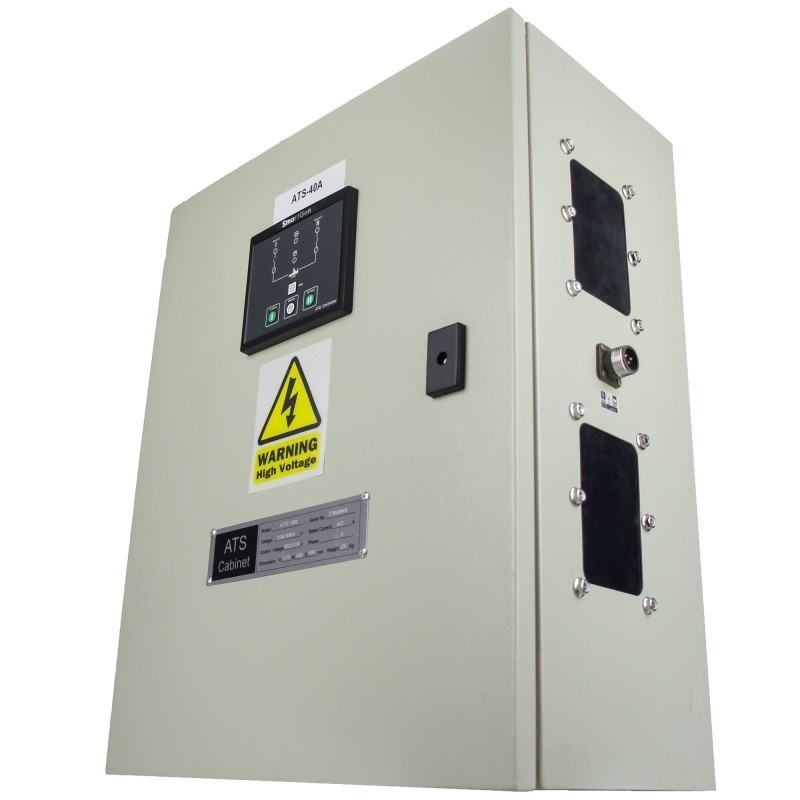

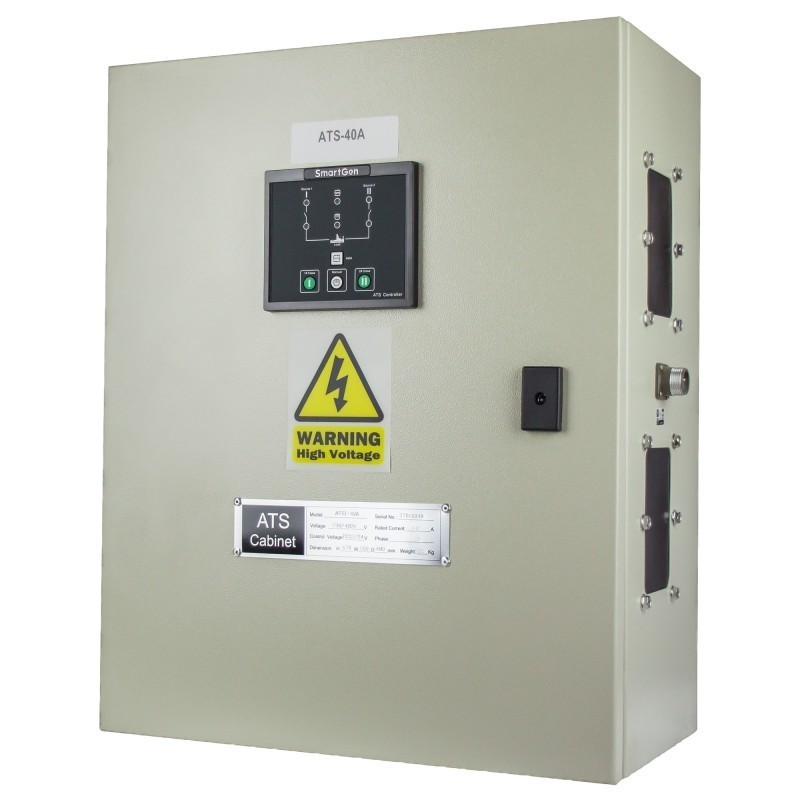

ATS Box Hyundai ATS1 100Am AC 660V DC 125V
- Current(A): 100A
- Voltage range (V): AC 660V, DC125V
- No. of poles: 2P
- Coil capacity: 2.7 / AC220V - 3.8 / AC220V
ATS Box Hyundai ATS1-100Am

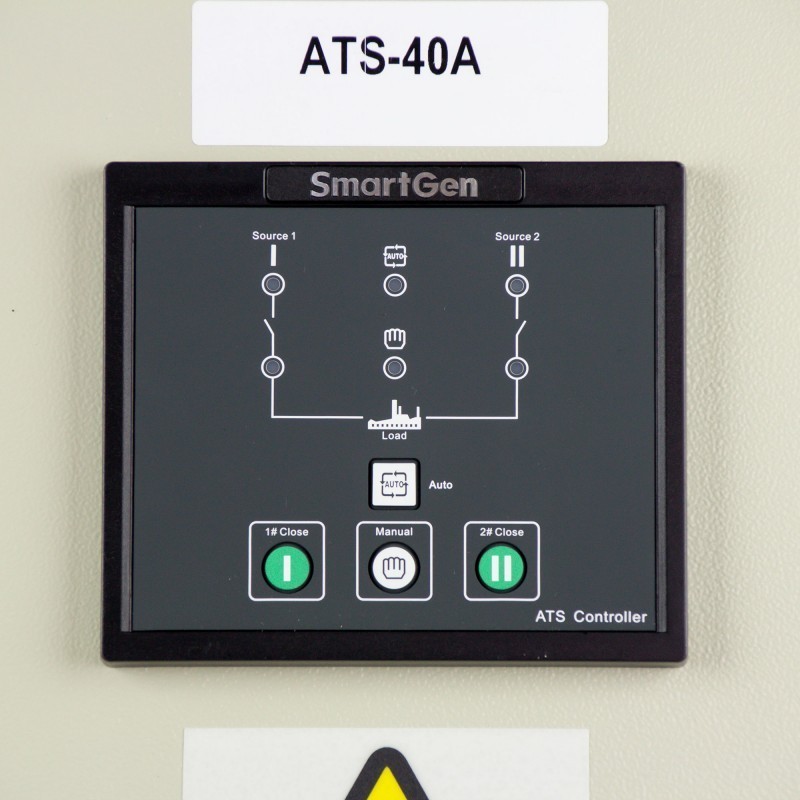

The ATS1-100AM 100A Automatic Control Box (Single Phase) is an automatic transfer system designed to ensure an efficient and continuous transition between the mains and generator, especially for DHY11,DH18,DH22 Yy 35 models. With 8-bit microprocessor control, it automatically detects faults in the power Supply power supply (high or low voltage) and instantly switches to the secondary source of power Supply, activating the generator. Includes battery charger and 30 meters of cable for signal and charging
Power consumption
- When the module is at rated voltage, the power consumption of the voltage circuit is no more than 2VA.
- Environmental conditions.
- Working temperature: (~30~+70)ºC humidity:(20~95)%
Action time
- Closing time: 5 seconds. During this period, if closing signal is detected, it is activated, disconnecting immediately.
- Normal delay voltage: (0~60) seconds (can be adjusted through the potentiometer panel).
- Abnormal delay voltage: (0~60) seconds (can be adjusted through potentiometer panel) default: 5 seconds.
- Opening delay: After the first delay (0~60 seconds (can be adjusted through the potentiometer panel) the delayed start is switched off.
- Delayed stop: After the first delay (0~90 seconds) can be set through the potentiometer panel or Pc, by default 90 seconds, the genset start relay is deactivated.
Rated voltage and rated frequency
- 2-phase, AC230v. 50Hz / 60 Hz.
- Over voltage threshold value: 264V (PHASE-n) UNDER VOLTAGE THRESHOLD VALUE, 172v (phase-N).
- AC voltage measurement accuracy: 2%.
- Three-phase AC voltage measuring range: (160~300) V±20%.
Features
MODEL | ATS1-100Am |
Suitable for models | DHY11,DH18,DHY22 and DHY35 |
Voltage range (V) | AC 660V / DC 125V |
Current (A) | 100 A |
Connections | Front |
No. of poles | 2P |
Coil capacity | 2.7 / AC220V-3.8 / AC220V |
Short-time current | 5 KA |
IP protection | IP |
Life expectancy | Mechanical 10,000 times / Electrical 5,000 times |
Opening and closing frequency | 4 (150 times/hour) |
Operation time | Open time ≤ 0,06 sec. / Closing time ≤ 0,20 sec. |
Weight (Kg) | 17,5 Kg |
Dimensions (mm) | 400 x 260 x 570 mm |
