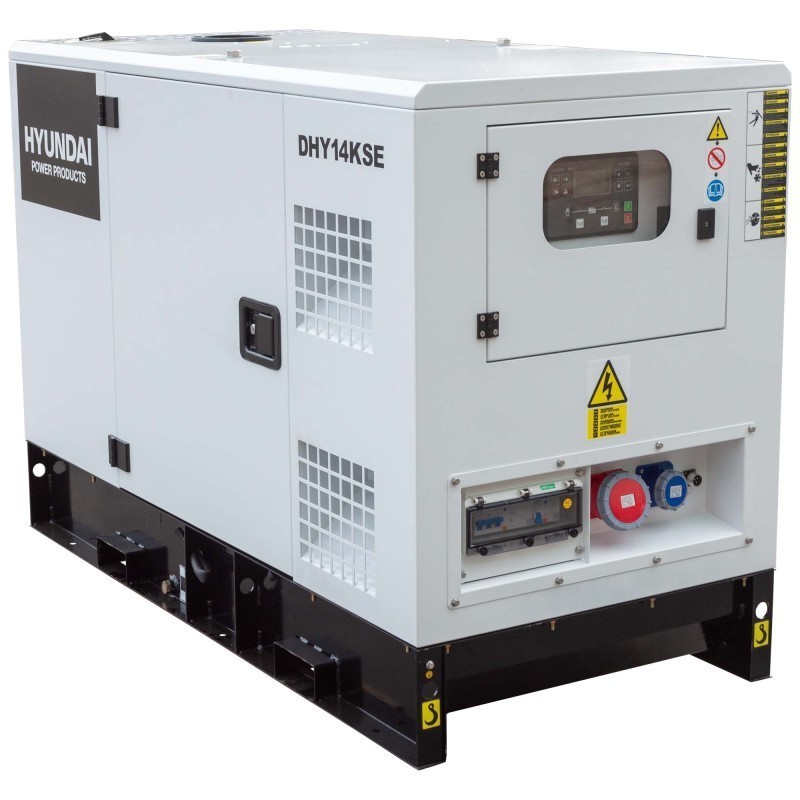

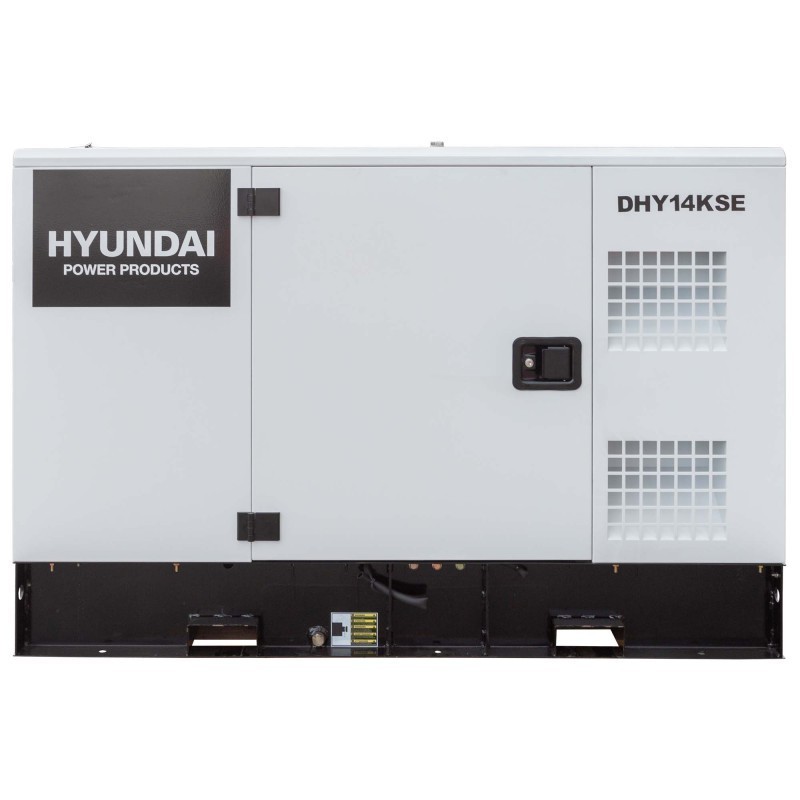

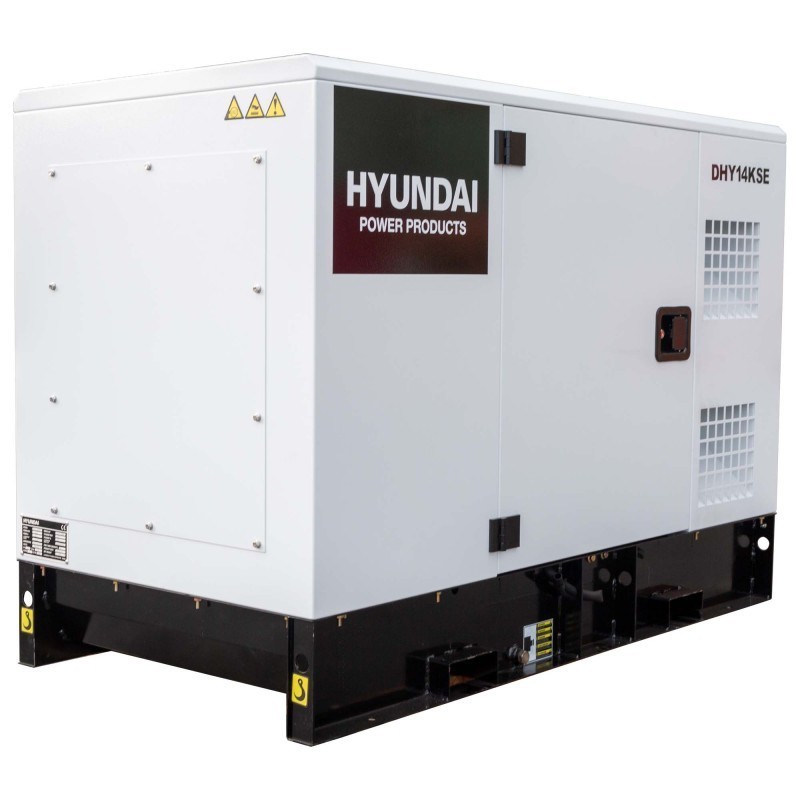

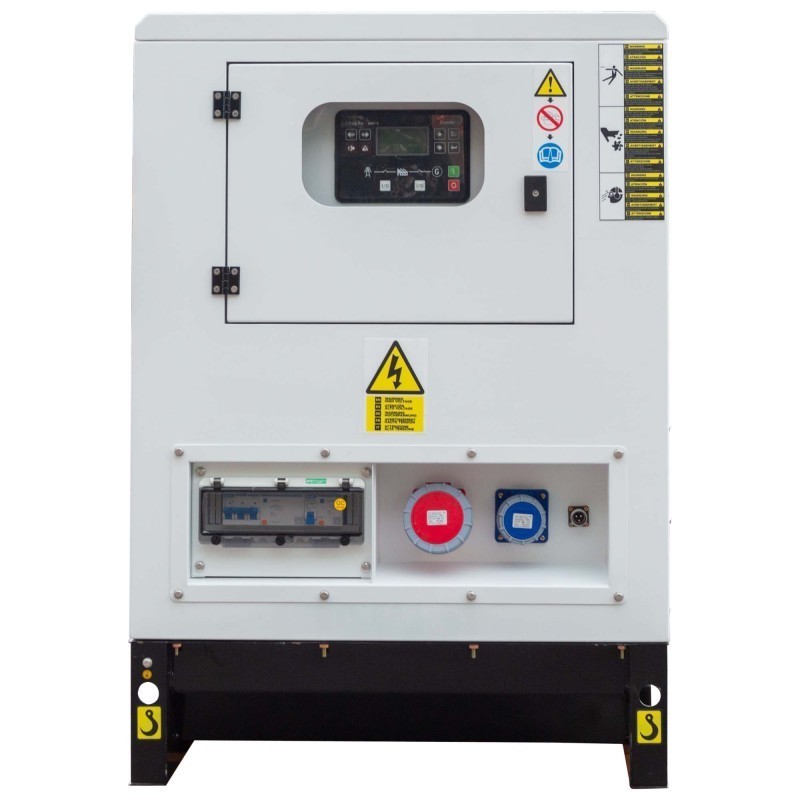

Powerful and quiet, this soundproof three-phase generator is ideal for industrial, commercial and residential environments that require constant power without noise disturbance. Its rugged galvanized and painted steel design protects against rust, while wide doors provide easy access to the interior for simple maintenance. With manual or automatic start, it offers flexibility for different types of installations.
Equipped with an AVR regulator, it ensures stable voltage to protect connected equipment. In addition, it has three-phase outputs and a system of detailed engine readings, such as cooling temperature, oil pressure and fuel level, providing complete real-time monitoring.
This generator includes safety alarms such as low oil pressure, high temperature or low fuel level, allowing for safe operation. It is the perfect choice to maintain the continuity of your work without worrying about possible power failures or interruptions.
| MODEL | DHY14KSE |
| Frequency (Hz) | 50 Hz |
| Rotation Speed (r/min) | 1.500 r/min |
| Power Factor | 0,8 |
| Rated Power (KVA/KW) | 12,5 KVA / 10 kW |
| Emergency Power (KVA) | 14 KVA |
| Rated Current (A) | 18 A |
| Sound Level (7m, 75% load) (dBA) | 66 dBA |
| Autonomy at 100% | 17 h |
| Consumption at 100% load (L/hours) | 4.5 L/h |
| Radiator coolant capacity (L) | 6 L |
| Standard tank capacity (L) | 46 L |
| HYUNDAI engine model | HY390 |
| Rated power at 1,500 rpm (kW) | 14 kW |
| Number of cylinders | 3 |
| Intake | Natural |
| Oil sump capacity (L) | 5 L |
| Displacement (cc) | 1.360 cc |
| Model | 164C |
| Degree of protection | IP23/H |
| Weight (Kg) | 655 kg |
| Dimensions (cm) | 163 x 78 x 110 cm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless there is a pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
| This generating set allows to request, with a surcharge, a tank extension of 500L, 1000L or 1500L through our customer service. |
