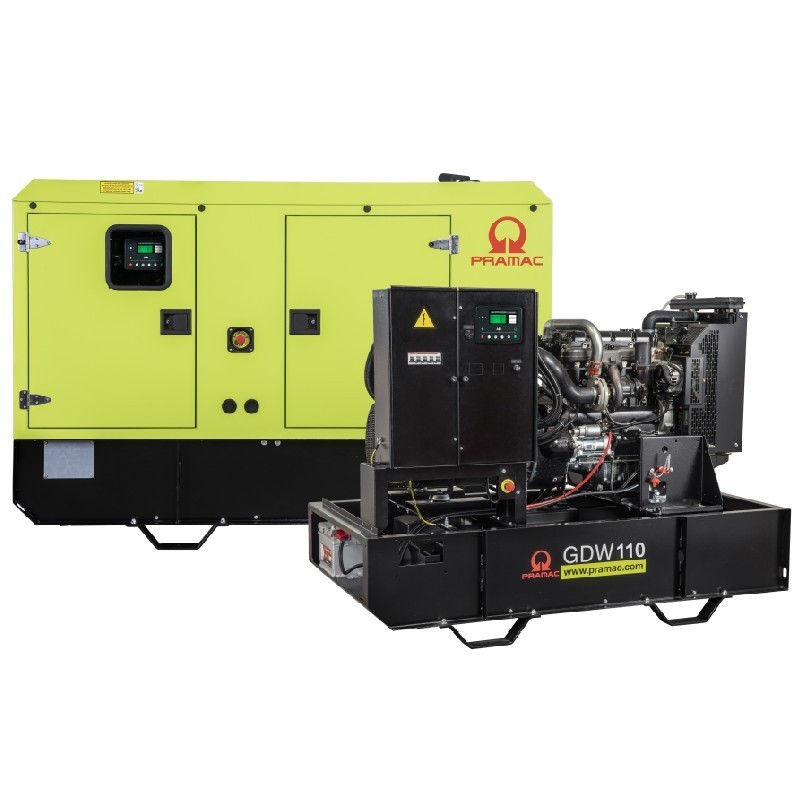

The GDW110P/FS2 generator set is ideal for demanding applications where continuous power and energy efficiency are required. Its Perkins Turbo engine offers excellent performance with low consumption, ensuring an autonomy of more than 20 hours at 75% load.
It has a high efficiency brushless Mecc Alte alternator, capable of delivering up to 110 kVA in emergencies. The quality of its components guarantees stable operation even in adverse conditions.
With a sound pressure of only 66 dBA at 7 meters, this soundproof equipment is perfect for environments requiring low noise levels. In addition, its IP 23 protection system provides safety and durability.
MODEL | GDW110P/FS2 |
Frequency | 50 Hz |
Rotation Speed | 1500RPM |
Power Factor | 0.8 ϕ |
Rated Power (KVA/KW) | 100.0 kVA / 80.0 kW |
Emergency Power (KVA/KW) | 110.0 kVA / 88.0 kW |
Motor | |
Autonomy at 75% | 20.15 h |
Consumption at 75% load | 17.37 L/h |
Refrigerant capacity | 12.6 L |
Standard tank capacity | 350 L |
Engine model | Perkins 1104C-44TAG2 |
Number of cylinders | 4 in line |
Aspiration | Turbo |
Oil capacity | 8 L |
Displacement | 4400 cc |
Sound level Soundproof version | |
Guaranteed sound level (LWA) | 95 dBA |
Sound pressure @ 1 m | 77 dBA |
Sound pressure @ 7 m | 66 dBA |
Alternator Specifications | |
Alternator | Mecc Alte |
Model | ECP34-2S 4C |
Connections | Star Series |
Frequency | 50 Hz |
Voltage | 400 V |
Phases | 3 |
Power factor | 0.8 ϕ |
Emergency power (27ºC) | 110 kVA |
Nominal power (40ºC) | 100 kVA |
Efficiency @ 100% | 92% |
Type | Brushless |
Poles | 4 |
Voltage tolerance | ±1% |
Class | H |
Protection | IP 23 |
Battery values | |
Battery voltage | 12 V |
Battery capacity | 80 Ah |
Voltage | 400/230 V |
Frequency | 50 Hz |
Phases | 3 |
Power factor | 0.8 ϕ |
Maximum current | 159 A |
Rated current | 144 A |
Thermomagnetic circuit breaker | 160 A |
Weight and Dimensions | |
Open weight | 1057 Kg |
Weight Soundproof Weight | 1449 Kg |
Open Dimensions (cm) | 234 x 110 x 151 |
Soundproof Dimensions (cm) | 275 x 112 x 184 |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
The batteries included in some machines are a free gift, so they are exempt from warranty. |
