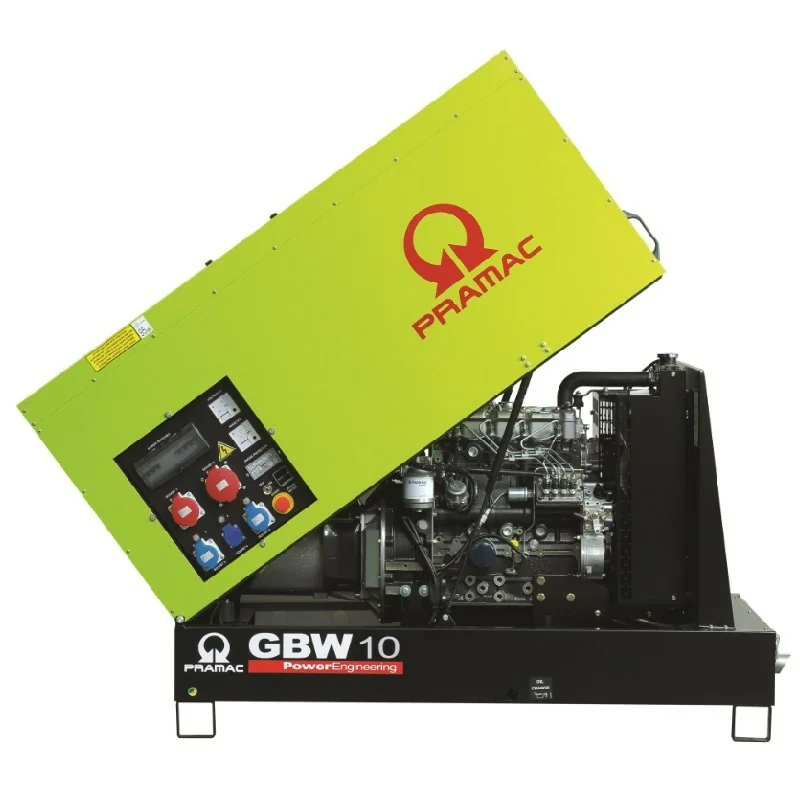

The generator set Pramac GBW10Y offers an excellent combination of efficiency and performance for low power applications. With a power nominal from 8.40 kVA and up to 8.92 kVA in emergency, the energy saving system is ideal for small industries, construction sites or installations that require constant energy with low power consumption.
This three-phase generator operates with a 3-cylinder Yanmar engine, water-cooled, water-cooled and natural aspiration, which delivers up to 9 kW maximum power. Its consumption reduced of 1.92 L/h at 75% load allows for an outstanding autonomy of 26.56 hours, ideal for working days long without interruptions.
Equipped with a linz alternator with brushes, guarantees a stable output with voltage tolerance of ±4% y iP 21 protection. The 83.5% efficiency makes it competitive in its segment. In addition, thanks to its low sound level of 64 dBA at 7 meters, is perfect for environments where noise is a concern.
With a 51-liter plastic tank, , 420 kg dry weight and a compact design of 164.5 x 87 x 107.2 cm in its soundproof version, this generator is easy to transport and install. The Pramac GBW10Y is a practical and reliable solution for those looking for efficient performance in a reduced format.
| MODEL | GBW10Y |
| Frequency | 50 Hz |
| Voltage | 400 V |
| Power factor | 0.8 ϕ |
| Phases | 3 |
| Emergency Power (kVA/kW) | 8.92 kVA / 7.14 kW |
| Rated Power (kVA/kW) | 8.40 kVA / 6.72 kW |
| Engine | |
| Motor Brand | Yanmar |
| Model | 3TNV80F-NGPGE |
| Cooling system | Water |
| Number of cylinders | 3 in line |
| Displacement | 1267 cc |
| Aspiration | Natural |
| Speed regulator | Mechanics |
| Prime gross power | 8.5 kW |
| Maximum power | 9 kW |
| Oil capacity | 3.4 L |
| Refrigerant capacity | 0.9 L |
| Fuel | Diesel |
| Consumption at 75% load | 1.92 L/h |
| Consumption at 100% load | 2.83 L/h |
| Autonomy at 75% | 26.56 h |
| 100% autonomy | 18.02 h |
| Start-up system | Electric |
| Start-up capacity | 1.1 kW |
| System voltage | 12 V |
| Alternator specifications | |
| Alternator | Linz |
| Model | E1S13SB |
| Voltage | 400 V |
| Frequency | 50 Hz |
| Power factor | 0.8 ϕ |
| Poles | 4 |
| Type | With brushes |
| Tension tolerance | ±4% |
| Efficiency at 75% load | 83.5% |
| Class | H |
| Protection | IP 21 |
| Sound Level | |
| Guaranteed sound level (LWA) | 93 dBA |
| Sound pressure @ 7 m | 64 dBA |
| Weight and Dimensions | |
| Dimensions Open (cm) | 160 x 87 x 87.5 |
| Open dry weight | 350 Kg |
| Dimensions Soundproofing (cm) | 164 x 87 x 107 |
| Dry weight Soundproofing | 420 Kg |
| Tank capacity | 51 L |
| Tank material | Plastic |
| IMPORTANT NOTICE |
| Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included with some machines are a free gift, so they are free of charge exempted from warranty. |
