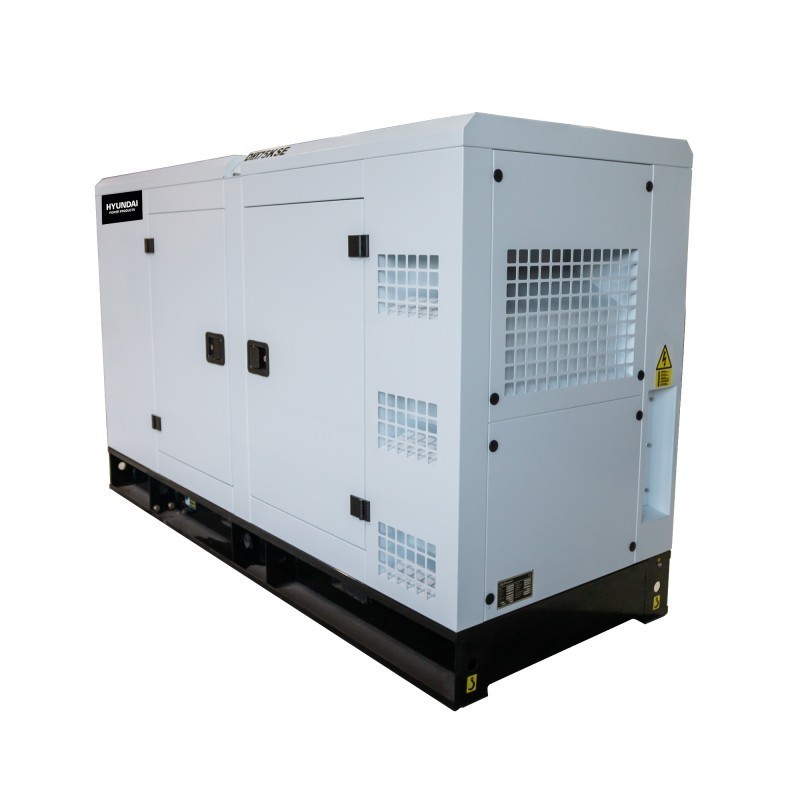

The Hyundai DHY75KSE 72KVA Soundproof Generator Set is an ideal choice for those who need a reliable and quiet power source. With a rated output of 66 KVA / 53 kW and an emergency power rating of 72 KVA, this generator is perfect for industrial applications that require continuous, efficient operation. Its soundproof design reduces noise to only 66 dBA at 75% load, making it suitable for areas where noise is a concern.
Equipped with a galvanized and painted steel body, the DHY75KSE is protected against corrosion, ensuring a long service life even under demanding conditions. In addition, its AVR regulator guarantees a stable voltage supply, ideal for sensitive equipment. Access to the interior is easy thanks to its wide doors, and fuel filling is conveniently done from the outside, minimizing maintenance time.
This generator features a variety of readouts and alarms, such as fuel level, cooling temperature and oil pressure, providing constant monitoring of performance. With an autonomy of 10 hours at 100% load and a consumption of 18 L/h, the Hyundai DHY75KSE 72KVA is an efficient and durable solution to ensure power supply in any situation.
| MODEL | DHY75KSE |
| Frequency (Hz) | 50 Hz |
| Rotation Speed (r/min) | 1.500 r/min |
| Power Factor | 0,8 |
| Rated Power (KVA/KW) | 66 KVA / 53 kW |
| Emergency Power (KVA) | 72 KVA |
| Rated Current (A) | 95 A |
| Noise Level (7m, 75% load) (dBA) | 66 dBA |
| Autonomy at 100% | 10 h |
| Consumption at 100% load (L/hours) | 18 L/h |
| Radiator coolant capacity (L) | 12 L |
| Standard tank capacity (L) | 180 L |
| HYUNDAI engine model | HY4D90Z-D20 |
| Rated power at 1,500 rpm (kW) | 60 kW |
| Number of cylinders | 4 |
| Aspiration | Turbo |
| Oil sump capacity (L) | 11 L |
| Displacement (cc) | 4.200 cc |
| Model | 224F |
| Degree of protection | IP23/H |
| Weight (Kg) | 1.290 kg |
| Dimensions (cm) | 250 x 95 x 150 cm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
| This generating set allows to request, with a surcharge, a tank extension of 500L, 1000L or 1500L through our customer service. |
