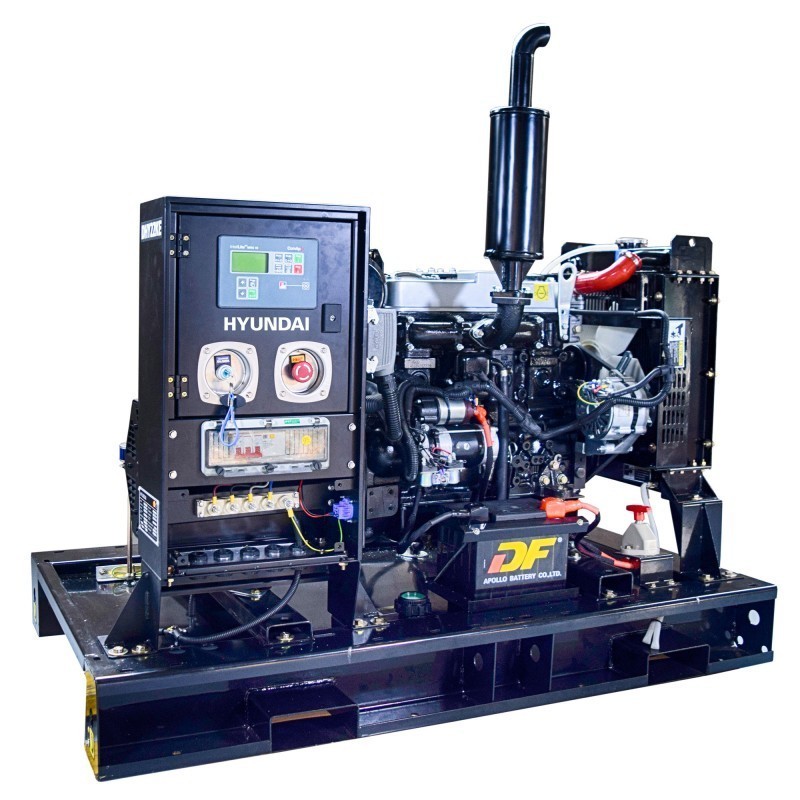

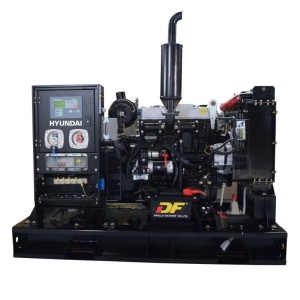

DHY85KE open three-phase 1,500 RPM generator is a powerful and reliable option to meet your power needs. With a rated power of 77 KVA / 62 kW and a maximum power output of 85 KVA, this generator is ideal for commercial and industrial applications. In addition, its autonomy of up to 13 hours makes it an efficient choice for long periods of continuous use.

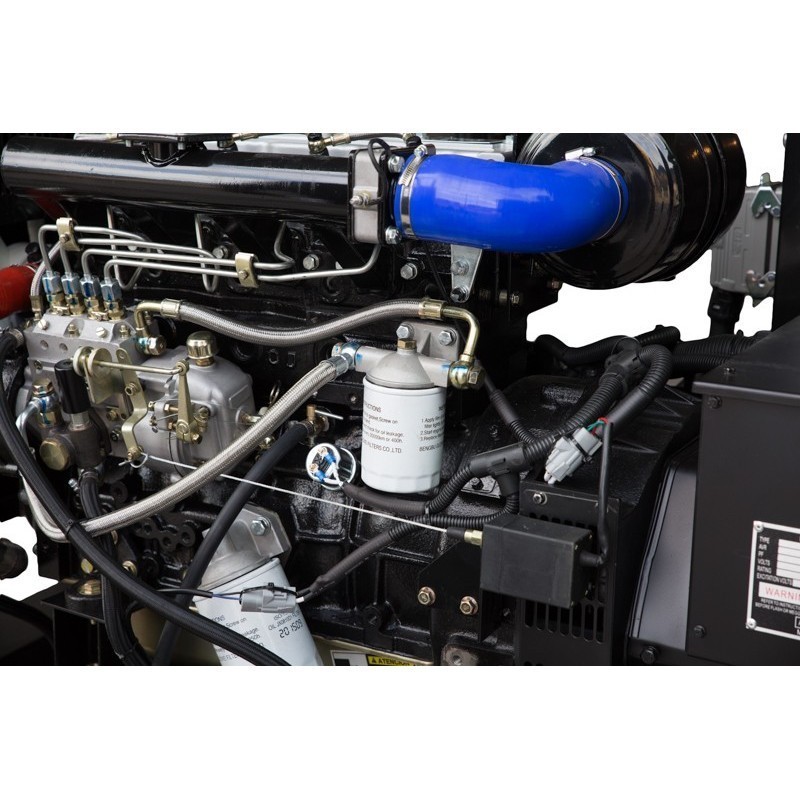

This generator features a 4-cylinder engine and turbo aspiration, ensuring robust and long-lasting performance. The digital display allows you to monitor various critical readings, such as oil pressure, water temperature, amperage, and frequency, in real time to ensure safe and efficient operation. Safety alarms, such as low oil pressure and low battery, alert you when maintenance is required.
In addition to its powerful performance, the DHY85KE is designed for ease of transport and handling. Its forklift access and robust lift rings allow it to be moved comfortably anywhere. Its 180 L tank capacity and efficient fuel consumption of 18 L/h ensure that you can operate worry-free for long periods of time.
In summary, the DHY85KE open three-phase 1500 RPM generator is a versatile and reliable choice for those who require continuous power in demanding environments. With its robust performance and advanced safety features, this generator is ideal for those seeking reliability and efficiency.
| MODEL | DHY85KE |
| Frequency (Hz) | 50 |
| Rotation speed (r/min) | 1.500 |
| Power Factor | 0,8 |
| Rated Power (KVA/KW) | 77 KVA / 62 kW |
| Emergency Power (KVA) | 85 KVA |
| Rated Current (A) | 111 A |
| Noise Level (7m, 75% load) (dBA) | 66 dBA |
| Autonomy at 100% | 13 h |
| Consumption at 100% load (L/hours) | 18 L/h |
| Radiator coolant capacity (L) | 12 L |
| Standard tank capacity (L) | 180 L |
| Engine model | HY4100Z-D20 |
| Rated power at 1,500 rpm (kW) | 70 kW |
| Number of cylinders | 4 |
| Aspiration | Turbo |
| Oil sump capacity (L) | 13 L |
| Displacement (cc) | 4.800 cc |
| Alternator | 224G |
| Degree of protection | IP23/H |
| Weight (Kg) | 995 Kg |
| Dimensions (cm) | 195,5 x 95 x 136 cm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
| This generating set allows to request, with a surcharge, a tank extension of 500L, 1000L or 1500L through our customer service. |
