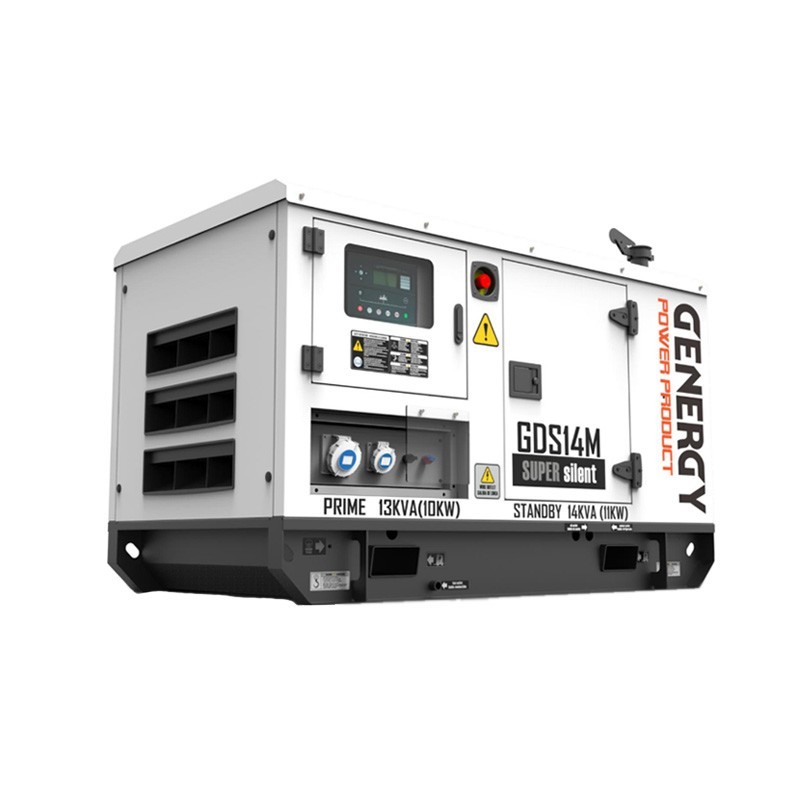

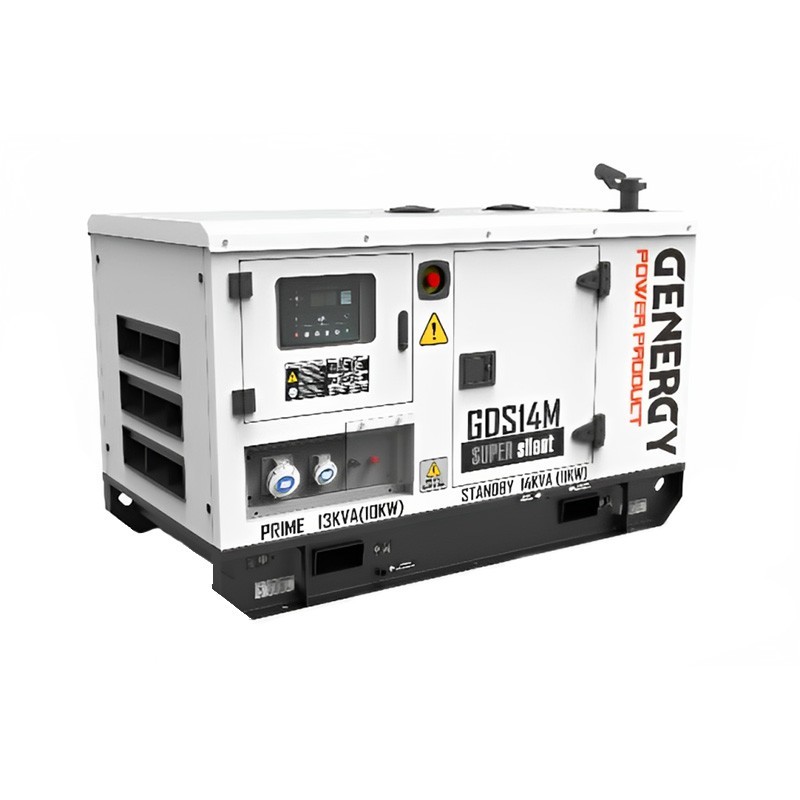

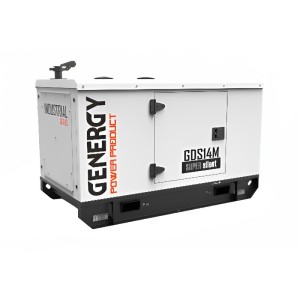

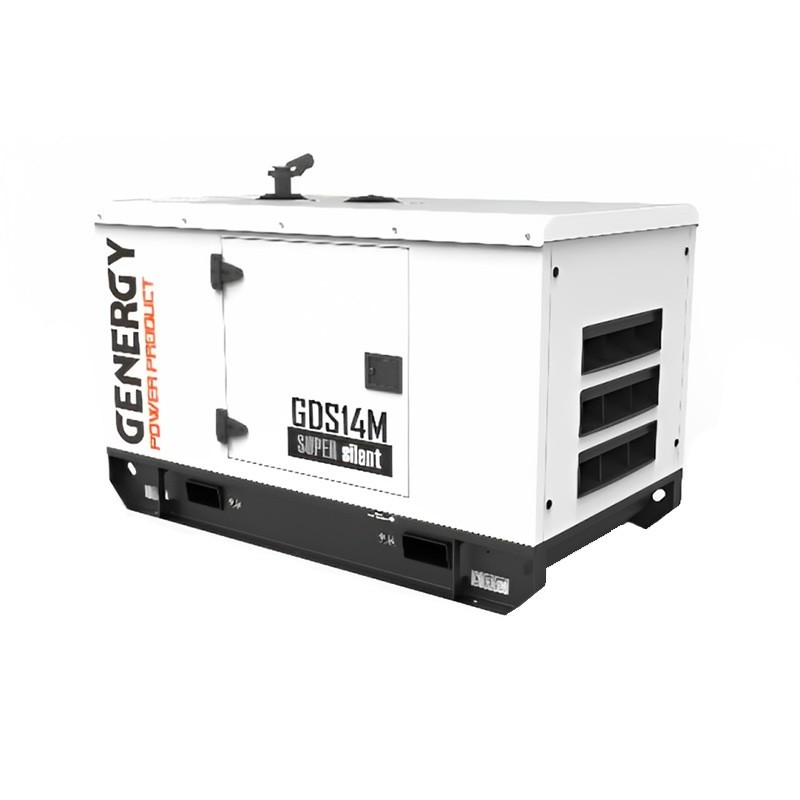

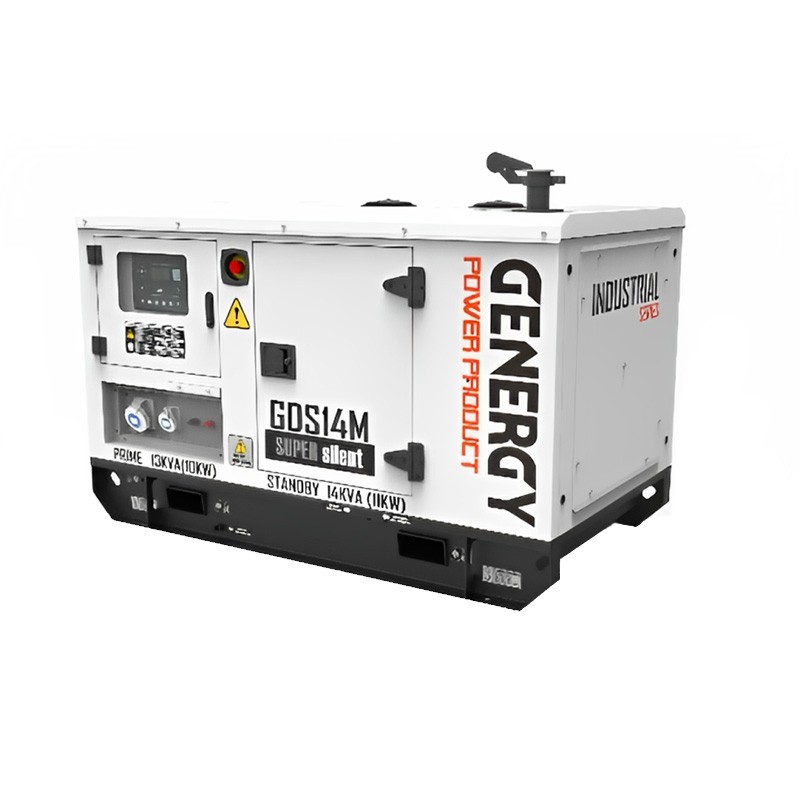

The Single Phase Genset Genergy GDS14M 14kVA has a nominal power of 13 kVA / 10.4 kW and a maximum power of 14 kVA / 11.2 kW, a frequency of 50 Hz, and a single phase type current.
With an electronic AVR stabilization system, it has a fuel tank capacity of 50L, and its average sound pressure is 70dB. It has a voltage of 230 V is equipped with a copper coil, has a displacement of 1809 cc, and its weight is 500Kg.
The Single Phase Genset Genergy GDS14M 14kVA has dimensions of 1800x900x1100 mm, its fuel consumption is 0.78l/h - 1.57l/h - 2.35l/h - 3.13l/h at 25% 50% 50% 75% 100% of its power respectively.
| GENERATOR MODEL | GDS14M (REF 20015) |

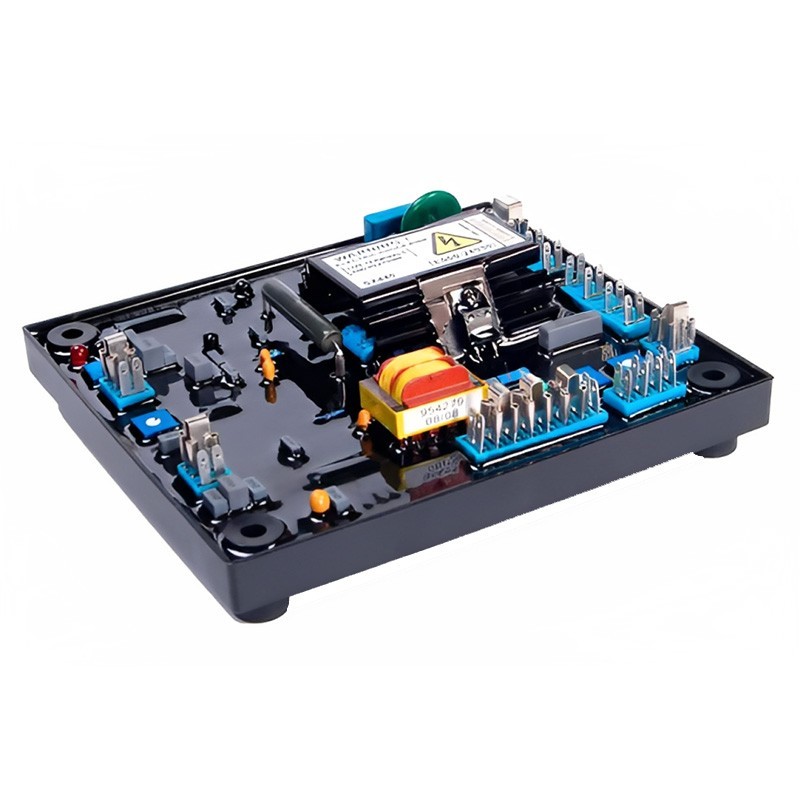

| Stabilization system | AVR" electronics |
| Voltage - Frequency | 230V - 50Hz |
| Maximum Power | 13 kVA (10.4kW) |
| Nominal Power | 14 kVA (11.2kW) |
| Power Factor | 0.8 |
| Nominal current | 57 A |
| Average sound pressure at 7Mts LpA | 70 dB |
| Guaranteed sound power level LwA 2000/14/EC Amendment 2005/88/EC | 95 dB |
| Start-up type | Electric |
| Fuel tank capacity | 50 L |
| Fuel consumption 25% 50% 75% 100% (L/H) | 0.78 - 1.57 - 2.35 - 3.13 |
| General protection degree | IP23 |
| Dimensions | 1800x900x1100mm |
| Weight | 650 Kg |

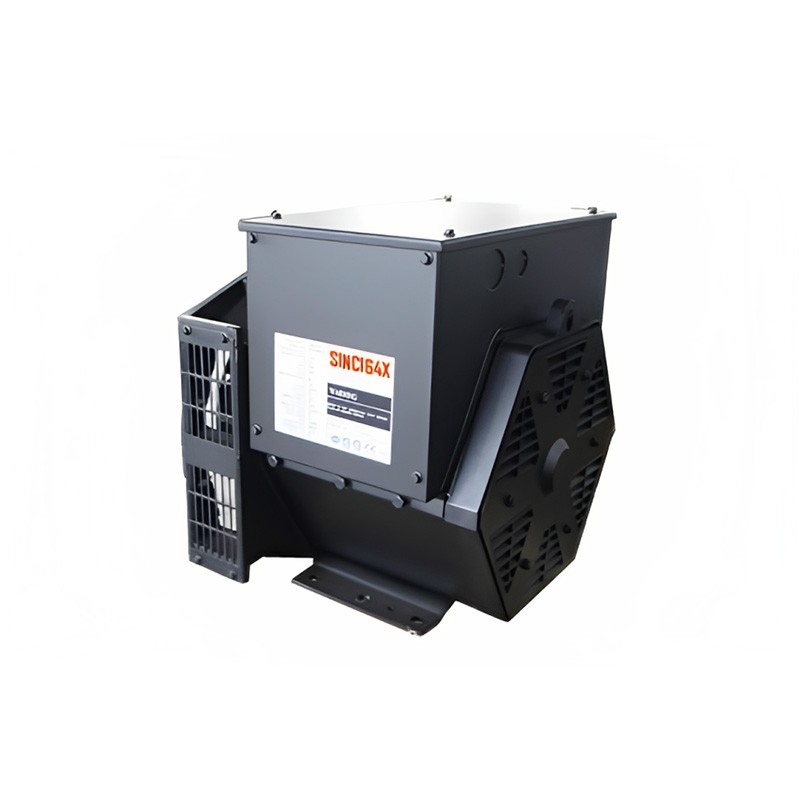

| ALTERNATOR | SINC164CX |
| Nominal speed - Number of poles | 1500RPM - 4 |
| Excitation system | Self-excited |
| Phases | Single phase |
| Total harmonic distortion | No load |
| Telephone interference | >2% |
| Efficiency | 81% |
| Insulation grade | H |
| Degree of protection | IP23 |
| MOTOR | GENERGY-SDE480DY |
| Displacement | 1809 cc |
| Speed control | Mechanics |
| Number of cylinders and arrangement | 4 in line |
| Injection system | Direct |
| Aspiration | Natural |
| Cooling system | Water |
| Diameter X Stroke | 80X90 mm |
| Motor drive power | 14 kW |
| Lubrication oil capacity | 5.5L (SAE10W40) |
| Coolant capacity | 8 L |
| IMPORTANT It is mandatory for the customer to check oil and grease levels before start-up ! |
| If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
