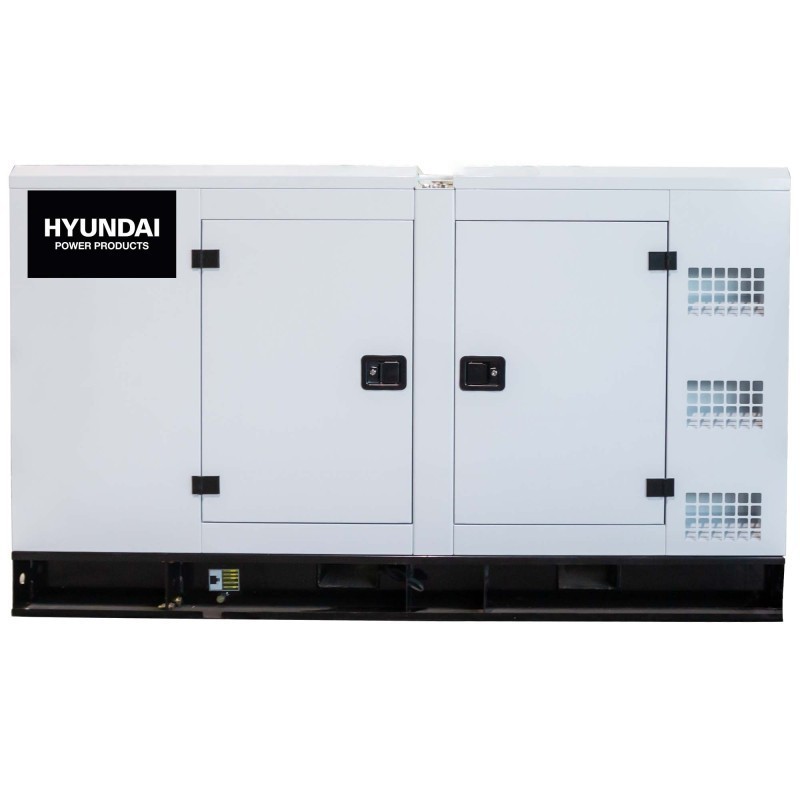

The Hyundai DHY85KSE 85KVA with 1500RPM generator set is designed to provide a reliable and quiet power supply in demanding environments. With a rated power of 77 KVA / 62 kW and an emergency power of 85 KVA, it is ideal for industrial, commercial or backup needs in critical events.
Its soundproof structure reduces the sound level to only 66 dBA, ensuring efficient operation without causing discomfort. In addition, it incorporates a 180 L tank that provides an autonomy of up to 13 hours at 100% load, with an optimized consumption of 18 L/h. Its AVR regulator ensures a stable voltage, protecting the connected equipment.
It is equipped with emergency stop buttons, essential data reader such as temperature, oil pressure, fuel level and multiple alarms that improve operational safety. Made of galvanized steel, it resists corrosion and allows easy maintenance thanks to its wide doors.
| MODEL | DHY85KSE |
| Frequency (Hz) | 50 Hz |
| Rotation Speed (r/min) | 1.500 r/min |
| Power Factor | 0,8 |
| Rated Power (KVA/KW) | 77 KVA / 62 kW |
| Emergency Power (KVA) | 85 KVA |
| Rated Current (A) | 111 A |
| Noise Level (7m, 75% load) (dBA) | 66 dBA |
| Autonomy at 100% | 13 h |
| Consumption at 100% load (L/hours) | 18 L/h |
| Radiator coolant capacity (L) | 12 L |
| Standard tank capacity (L) | 180 L |
| HYUNDAI engine model | HY4100Z-D20 |
| Rated power at 1,500 rpm (kW) | 70 kW |
| Number of cylinders | 4 |
| Aspiration | Turbo |
| Oil sump capacity (L) | 13 L |
| Displacement (cc) | 4.800 cc |
| Model | 224G |
| Degree of protection | IP23/H |
| Weight (Kg) | 1.350 kg |
| Dimensions (cm) | 250 x 95 x 150 cm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
| This generating set allows to request, with a surcharge, a tank extension of 500L, 1000L or 1500L through our customer service. |
