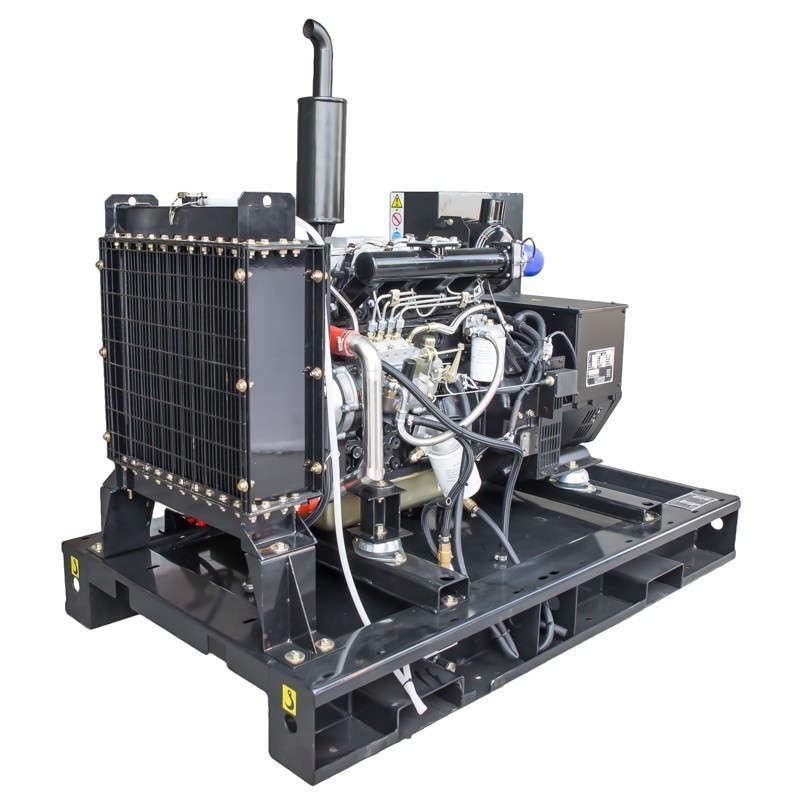

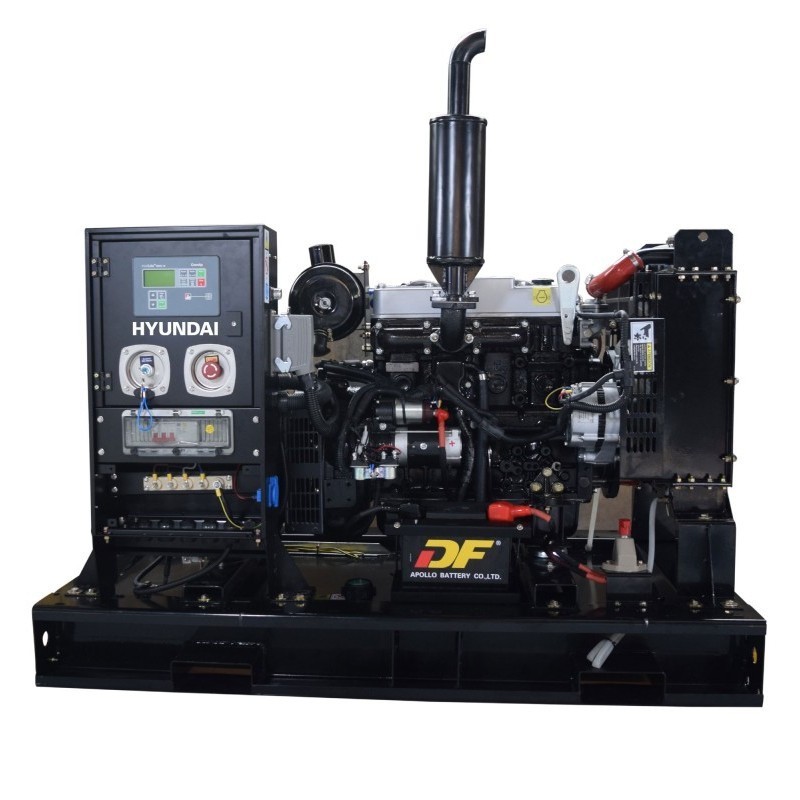

Powerful and efficient, this 14 Kva open three-phase generator set offers optimum performance in industrial and commercial environments. It operates at 1,500 RPM, ensuring longer life and less engine wear. Ideal as a main or backup source in demanding installations.
Includes digital display with visual alarms and readings such as amperage, frequency, voltage and motor status. The 1/4 valve drain system facilitates maintenance, while forklift access and sturdy lifting rings ensure safe and convenient transport.
Intelligent monitoring detects problems such as low oil pressure, high temperature, alternator failure or low fuel level. In addition, it provides accurate data on rpm, working hours, alternator voltage and more, ensuring constant monitoring and reliable operation.
| MODEL | DHY14KE |
| Frequency (Hz) | 50 Hz |
| Rotation speed (r/min) | 1.500 r/min |
| Power Factor | 0,8 |
| Rated Power (KVA/KW) | 12,5 KVA / 10 kW |
| Emergency Power (KVA) | 14 KVA |
| Rated Current (A) | 18 A |
| Noise Level (7m, 75% load) (dBA) | 66 dBA |
| Autonomy at 100% | 17 H |
| Consumption at 100% load (L/hours) | 4.5 L/H |
| Radiator coolant capacity (L) | 6 L |
| Standard tank capacity (L) | 46 L |
| HYUNDAI engine model | HY390 |
| Rated power at 1,500 rpm (kW) | 14 kW |
| Number of cylinders | 3 |
| Intake | Natural |
| Oil sump capacity (L) | 5 L |
| Displacement (cc) | 1.360 cc |
| Model | 164C |
| Degree of protection | IP23/H |
| Weight (Kg) | 435 Kg |
| Dimensions (cm) | 125 x 80 x 95 cm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
| This generating set allows to request, with a surcharge, a tank extension of 500L, 1000L or 1500L through our customer service. |
