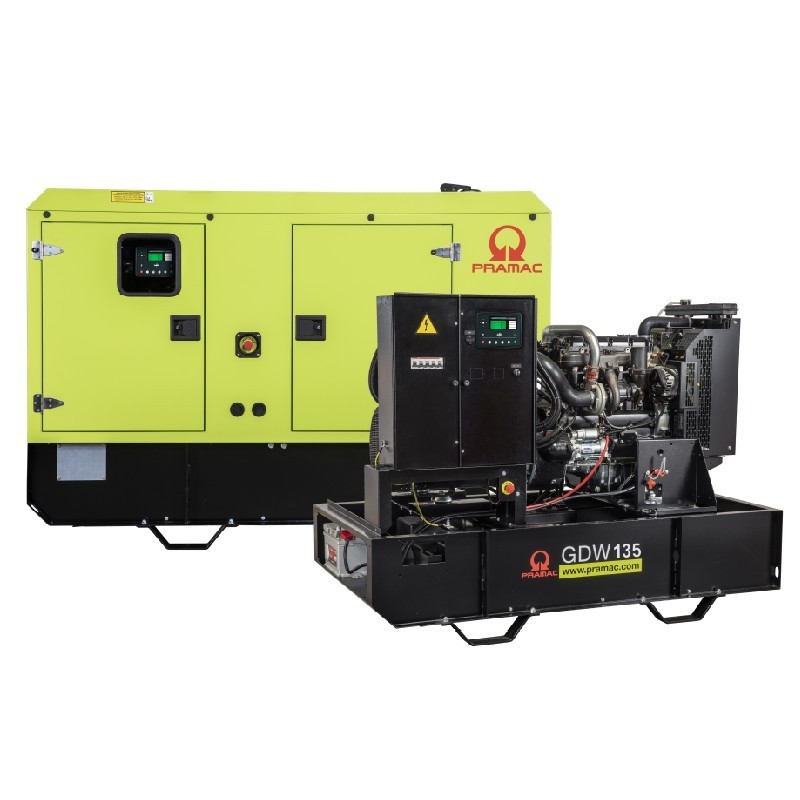

The GDW135I/FNE generator set is an ideal solution for applications requiring high power and efficiency. With a rated power of 123.5 kVA / 98.8 kW and an emergency power of 136.1 kVA / 108.9 kW, it is perfect for maintaining operation at critical times. Its turbocharged NEF45TM3 engine offers superior performance, with an autonomy of up to 17.49 hours at 75% load, ideal for extended use.
Designed with a Mecc Alte alternator and a brushless system, this generator ensures a stable and reliable power supply. In addition, it has a reduced sound level thanks to its soundproof version, with a sound pressure of only 68 dBA at 7 meters, making it suitable for environments where noise must be minimized.
The GDW135I/FNE is a robust and efficient option, capable of withstanding demanding conditions. With a fuel capacity of 350 L and a consumption of 20.01 L/h at 75% load, it is ideal for operations requiring high autonomy. In addition, its IP 23 protection and 92.3% efficiency at full load guarantee long-lasting and safe performance.
MODEL | GDW135I/FNE |
Frequency | 50 Hz |
Rotation Speed | 1500RPM |
Power Factor | 0.8 ϕ |
Rated Power (KVA/KW) | 123.5 kVA / 98.8 kW |
Emergency Power (KVA/KW) | 136.1 kVA / 108.9 kW |
Motor | |
Autonomy at 75% | 17.49 h |
Consumption at 75% load | 20.01 L/h |
Refrigerant capacity | 18.5 L |
Standard tank capacity | 350 L |
Engine model | NEF45TM3 |
Number of cylinders | 4 |
Aspiration | Turbo intercooled |
Oil capacity | 12.8 L |
Displacement | 4500 cc |
Sound level Soundproof version | |
Guaranteed sound level (LWA) | 97 dBA |
Sound pressure @ 1 m | 79 dBA |
Sound pressure @ 7 m | 68 dBA |
Alternator Specifications | |
Alternator | Mecc Alte |
Model | ECP34-1M 4C |
Connections | Star Series |
Frequency | 50 Hz |
Voltage | 400 V |
Phases | 3 |
Power factor | 0.8 ϕ |
Emergency power (27ºC) | 137 kVA |
Nominal power (40ºC) | 125 kVA |
Efficiency @ 100% | 92.3% |
Type | Brushless |
Poles | 4 |
Voltage tolerance | ±1% |
Class | H |
Protection | IP 23 |
Battery values | |
Battery voltage | 12 V |
Battery capacity | 100 Ah |
Voltage | 400 V |
Frequency | 50 Hz |
Phases | 3 |
Power factor | 0.8 ϕ |
Maximum current | 196 A |
Rated current | 178 A |
Thermomagnetic circuit breaker | 250 A |
Weight and Dimensions | |
Open weight | 1070 Kg |
Soundproof Weight | 1580 Kg |
Open Dimensions (cm) | 234 x 110 x 163 |
Soundproof Dimensions (cm) | 275 x 112 x 184 |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
The batteries included in some machines are a free gift, so they are exempt from warranty. |
