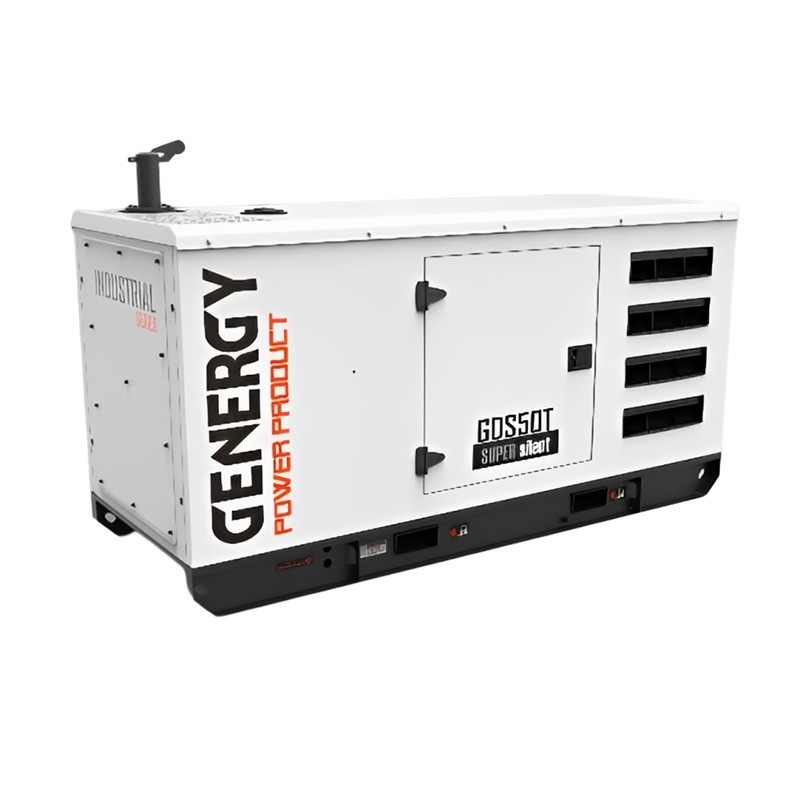

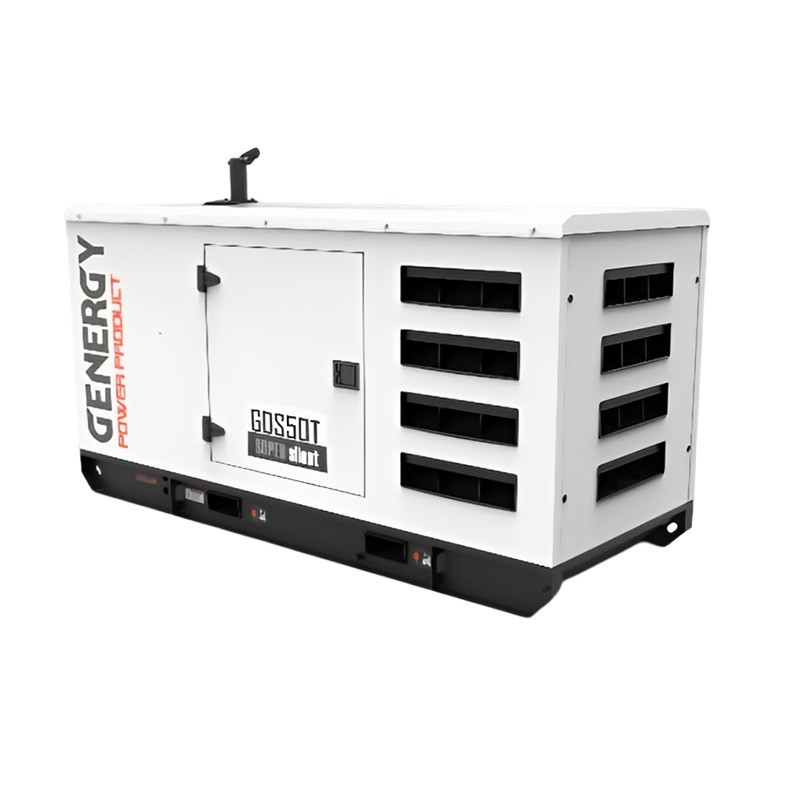

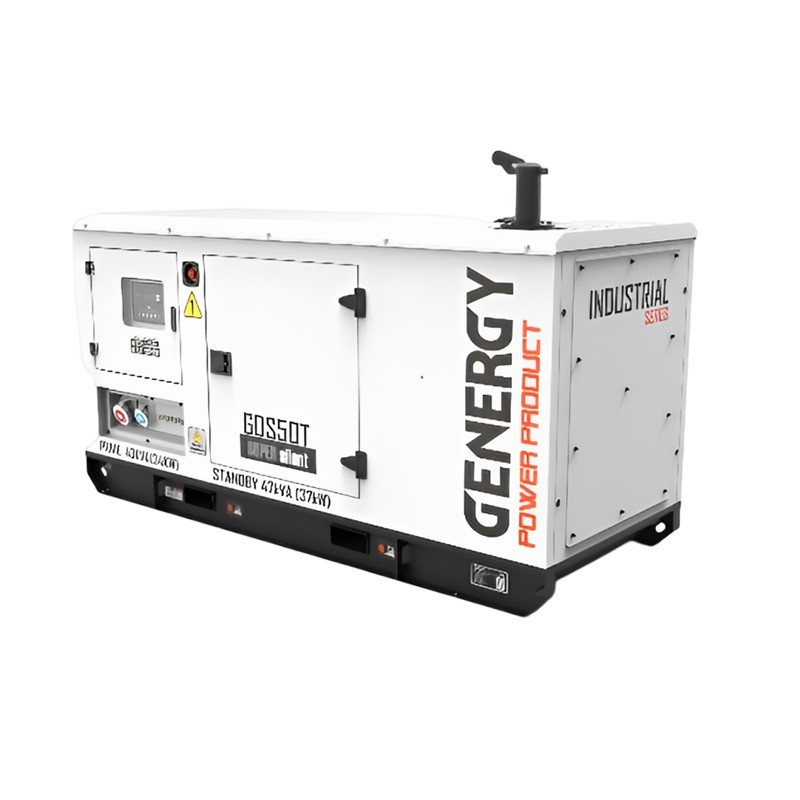

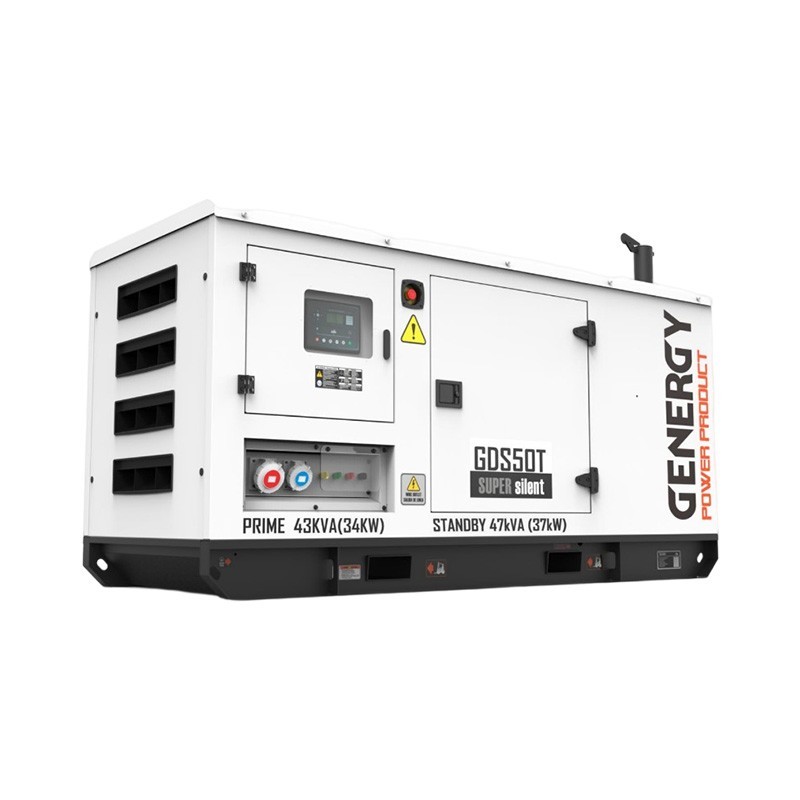

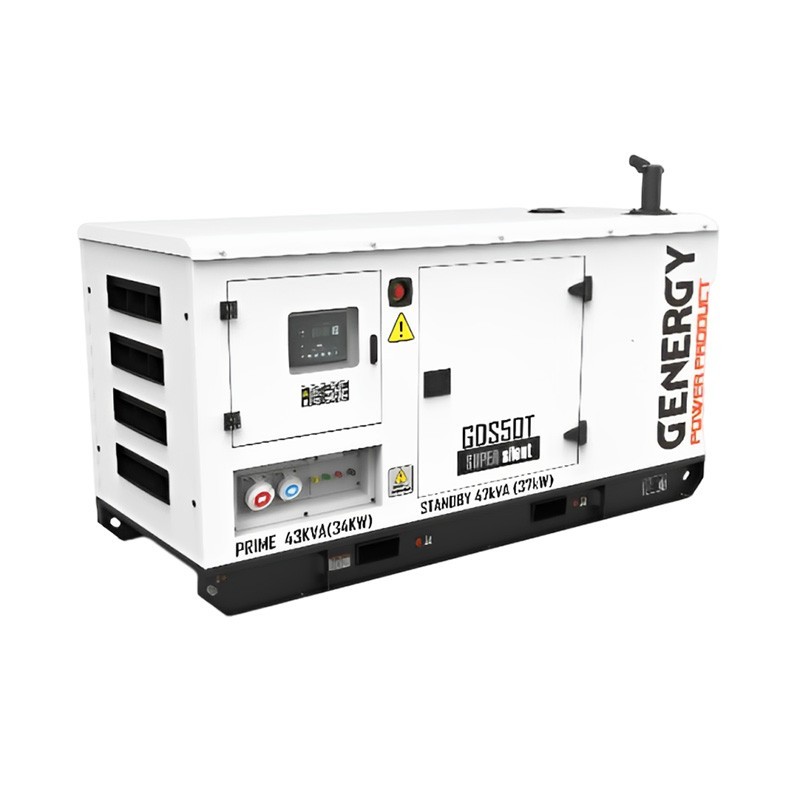

The Diesel Generator Set Genergy GDS50T 47kVA with a displacement of 5180 cc, has a fuel consumption of this machine is 2.72l/h - 5.80l/h - 8.04l/h - 11l/h in 25% 50% 75% 100% of its power respectively.

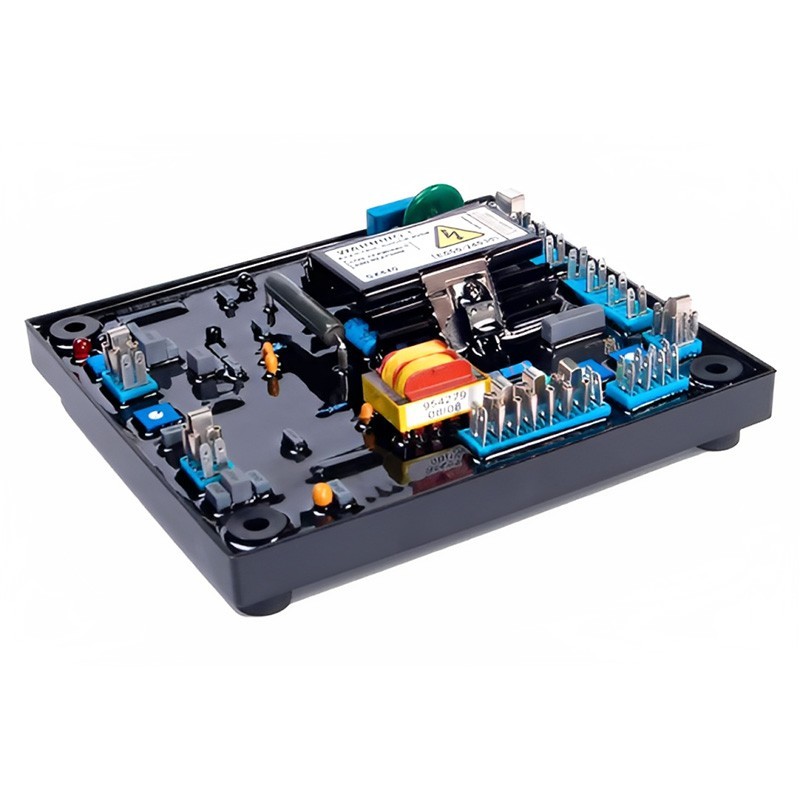

It has an Electronic stabilization system "AVR", an average acoustic pressure of 72 dB, and a general degree of protection IP23. It has a voltage of 400 V, its fuel tank capacity is 120 L, and it has a three-phase current type.
The Diesel Generator Set Genergy GDS50T 47kVA has a frequency of 50 Hz gives a nominal power of 43 kVA / 34 kW, a maximum power of 47 kVA / 37 kW, and a weight of 1350 kg with dimensions of 2400x1050x1350 mm. It is equipped with a copper coil.
| GENERATOR MODEL | GDS50T (REF 21065) |
| Stabilization system | AVR" electronics |
| Voltage - Frequency | 400V - 50Hz |
| Maximum Power | 43 kVA (34kW) |
| Nominal Power | 47 kVA (37kW) |
| Power Factor | 0.8 |
| Nominal current | 61 A |
| Average sound pressure at 7Mts LpA | 72 dB |
| Guaranteed sound power level LwA 2000/14/EC Amendment 2005/88/EC | 97 dB |
| Start-up type | Electric |
| Fuel tank capacity | 120 L |
| Fuel consumption 25% 50% 75% 100% (L/H) | 2.72 - 5.80 - 8.04 - 11 |
| General protection degree | IP23 |
| Dimensions | 2400x1050x1350 mm |
| Weight | 1350 kg |
| ALTERNATOR | SINC224CX |
| Nominal speed - Number of poles | 1500RPM - 4 |
| Excitation system | Self-excited |
| Phases | Three-phase |
| Total harmonic distortion | No load |
| Telephone interference | >2% |
| Efficiency | 81.1% |
| Insulation grade | H |
| Degree of protection | IP23 |
| MOTOR | GENERGY-SDE4108DT |
| Displacement | 5180 cc |
| Speed control | Mechanics |
| Number of cylinders and arrangement | 4 in line |
| Injection system | Direct |
| Aspiration | Natural |
| Cooling system | Water |
| Diameter X Stroke | 108x135 mm |
| Engine power | 52 kW |
| Lubrication oil capacity | 14L (SAE10W40) |
| Coolant capacity | 12 L |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
