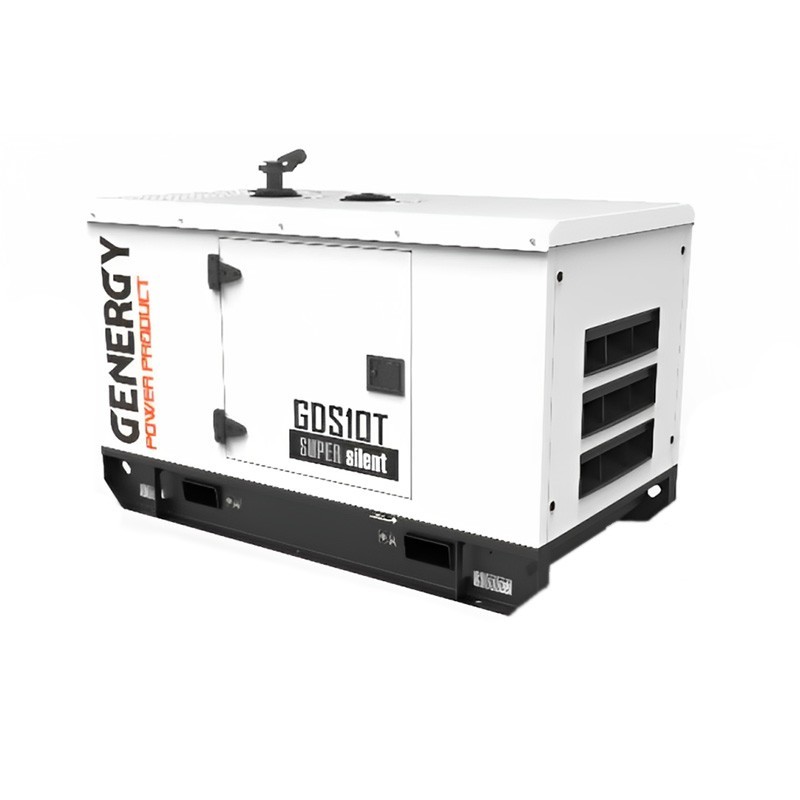

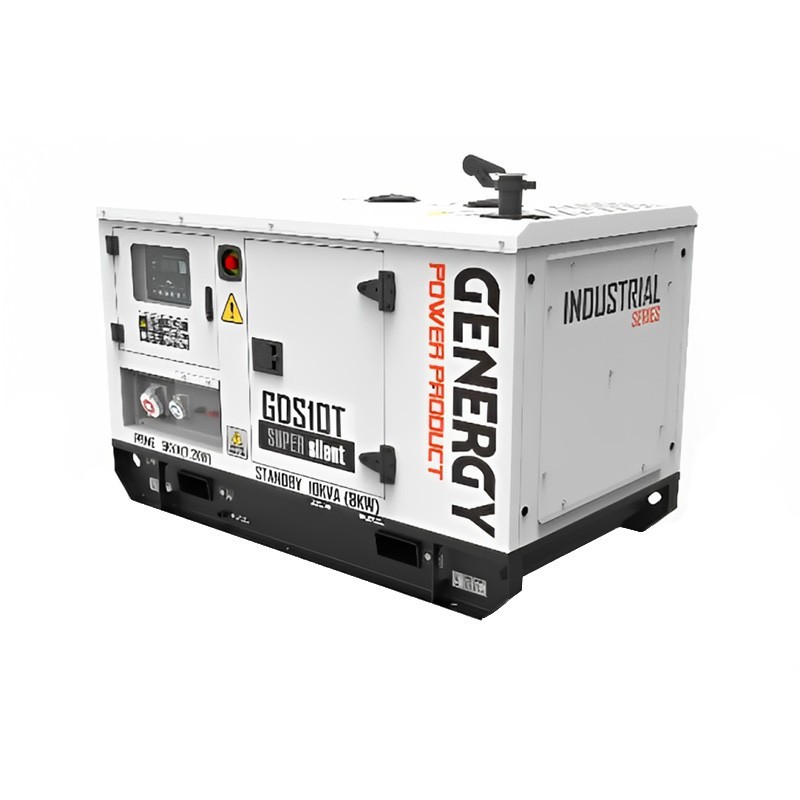

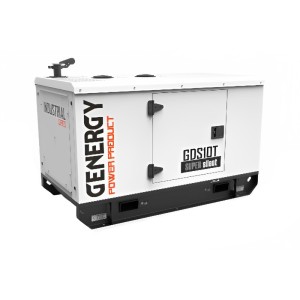

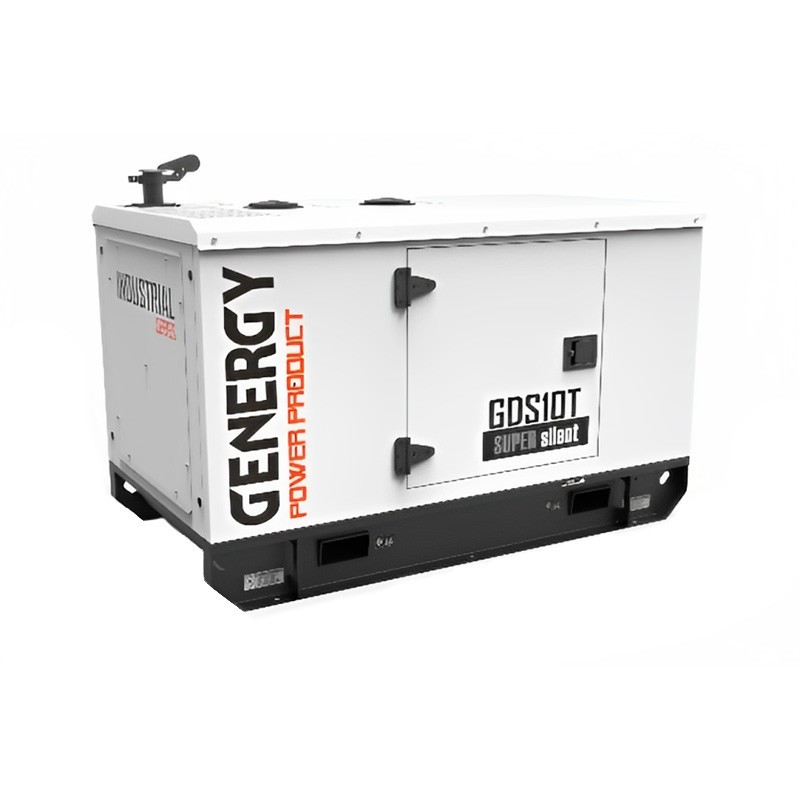

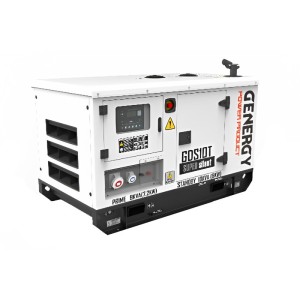

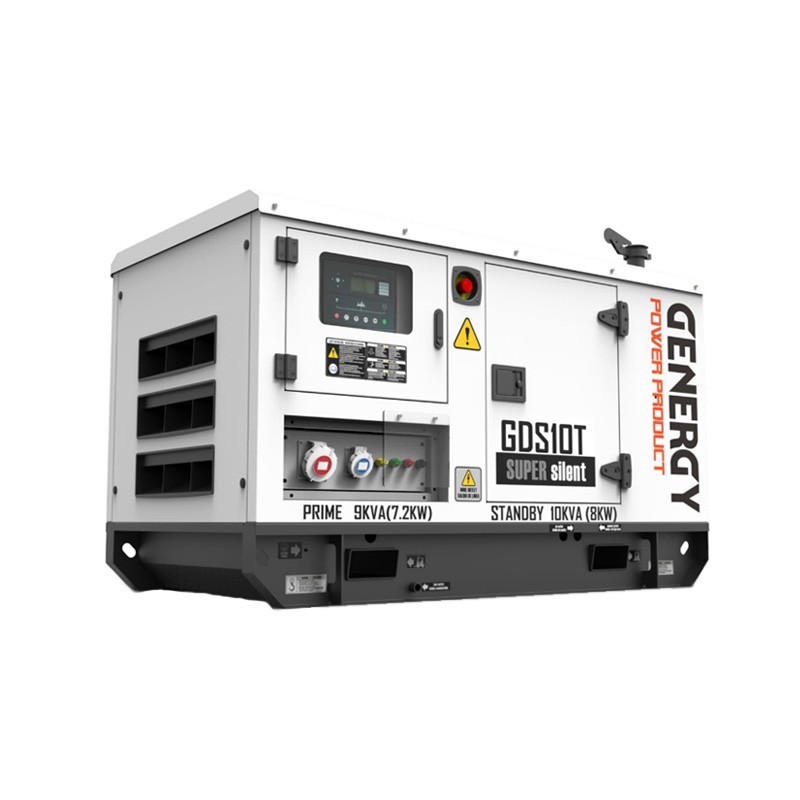

The Diesel Generator Set Genergy GDS10T 10kVA has a nominal power of 9 kVA / 7.2 kW and a maximum power of 10 kVA / 8 kW. Its fuel consumption is 0.47l/h - 0.94l/h - 1.41l/h - 1.88l/h at 25% 50% - 75% - 100% of its power respectively.
It is equipped with a copper coil, has an electronic stabilization system "AVR", and weighs 500kg. Its fuel tank capacity is 35L and its average sound pressure is 70dB.
The Diesel Generator Set Genergy GDS10T 10kVA has a voltage of 400 V and a frequency of 50 Hz, with a three-phase current, and dimensions of 1709x940x1121 mm, it has a displacement of 1357 cc.
| GENERATOR MODEL | GDS10T (REF 21005) |
| Stabilization system | AVR" electronics |
| Voltage - Frequency | 400V - 50Hz |
| Maximum Power | 9 kVA (7.2kW) |
| Nominal Power | 10 kVA (8kW) |
| Power Factor | 0.8 |
| Nominal Current | 13 A |
| Average sound pressure at 7Mts LpA | 70 dB |
| Guaranteed sound power level LwA 2000/14/EC Amendment 2005/88/EC | 95 dB |
| Start-up type | Electric |
| Fuel tank capacity | 35 L |
| Fuel consumption 25% 50% 75% 100% (L/H) | 0.47 - 0.94 - 1.41 - 1.88 |
| General protection degree | IP23 |
| Dimensions | 1709x940x1121 mm |
| Weight | 500 Kg |
| ALTERNATOR | SINC164BX |
| Nominal speed - Number of poles | 1500RPM - 4 |
| Excitation system | Self-excited |
| Phases | Three-phase |
| Total harmonic distortion | No load |
| Telephone interference | >2% |
| Efficiency | 80.1% |
| Insulation grade | H |
| Degree of protection | IP23 |
| MOTOR | GENERGY-380DY |
| Displacement | 1357 cc |
| Speed control | Mechanics |
| Number of cylinders and arrangement | 3 in line |
| Injection system | Direct |
| Aspiration | Natural |
| Cooling system | Water |
| Diameter X Stroke | 80X90 mm |
| Motor drive power | 11 kW |
| Lubrication oil capacity | 4.5L (SAE10W40) |
| Coolant capacity | 4 L |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
