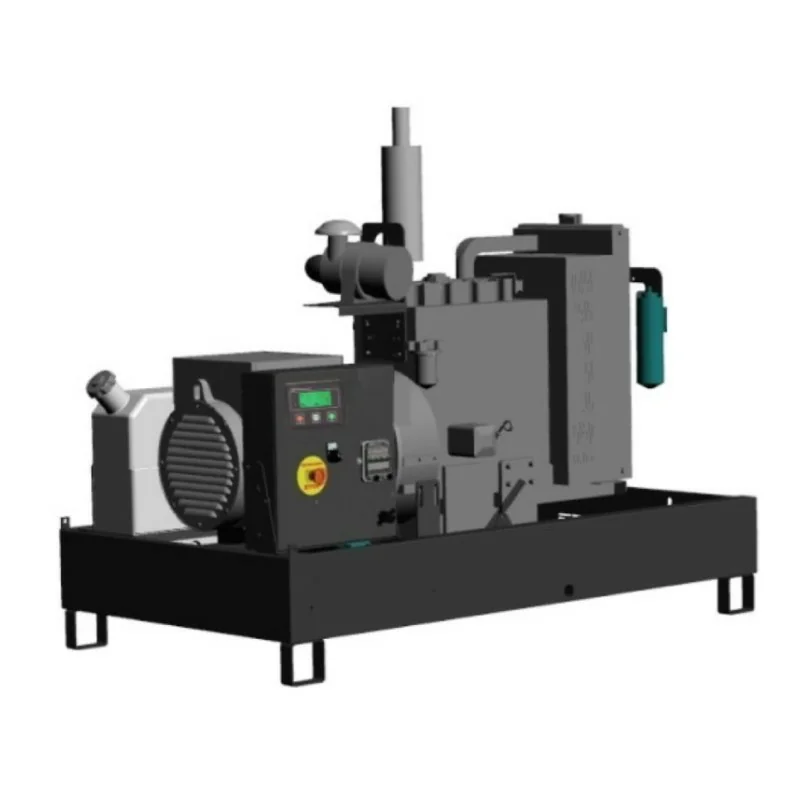

Three-phase genset Pramac GBW45P 45.22 kVA


  • Engine Make: Perkins
  • Rated power (KVA/kW): 45,22 kVA / 36,18 kW
  • Displacementengine displacement: 3300 cc
  • Number of cylinders: 3 in line
En stock
icon Power Supply
Power Supply
Diesel
icon Stabilization
Stabilization
AVR
icon Current
Current
Three-phase
icon Engine
Engine
Perkins
icon Displacement
Displacement
3300 cc
icon Power rating
Power rating
45.22 kVA
icon Maximum power
Maximum power
49.50 kVA
icon Type of winding
Type of winding
Copper
icon Generator Type
Generator Type
Open
icon Panel
Panel
digital
icon Cylinders
Cylinders
3
icon ✔️
✔️
Water-cooled
€8,564.12 excl. VAT
€10,362.59 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Three-phase genset Pramac GBW45P 45.22 kVA
€10,362.59
Qty

3-cylinder generator set Pramac GBW30P

The GBW45P generator set is a robust and reliable option to guarantee power in industrial applications. With an emergency power rating of 49.50 kVA and 45.22 kVA nominal, it is ideal for maintaining critical operations without interruptions. Its Perkins 1103A-33TG1 3-cylinder, 3300 cm³ Perkins engine ensures exceptional performance and efficient diesel consumption, with a consumption at 75% load of 8.16 L/h.

This generator stands out for its Mecc Alte ECP32 2S4 C alternator, with an efficiency of 88.7% at 75% load, offering stable and reliable energy. Its water cooling system and brushless design ensure a long service life and low maintenance. In addition, its electric starter facilitates fast and efficient start-up at any time.

With a runtime of up to 6.25 hours at 75% load, the GBW45P is perfect for situations where a continuous power supply is required. Thanks to its IP 23 protection, this generator set is prepared to face demanding outdoor conditions, while maintaining safe and stable operation.

The GBW45P generator set is the ideal solution for those who need power, reliability and efficiency. With its high quality engine, optimized consumption and advanced protection systems, it guarantees superior performance in various applications.

MODEL GBW45P
Frequency 50 Hz
Voltage 400 V
Power factor 0.8 ϕ
Phases 3
Emergency Power (kVA/kW) 49.50 kVA / 39.60 kW
Rated Power (kVA/kW) 45.22 kVA / 36.18 kW
Motor
Engine Make Perkins
Model 1103A-33TG1
Cooling System Water
Number of cylinders 3 in line
Displacement 3300 cc
Aspiration Turbo
Speed regulator Mechanics
Prime gross power 42.2 kW
Maximum power 46.5 kW
Oil capacity 7.9 L
Coolant capacity 10.2 L
Fuel Diesel
Consumption at 75% load 8.16 L/h
Consumption at 100% load 10.70 L/h
Autonomy at 75% load 6.25 h
Autonomy at 100% 4.77 h
Starting system Electric
Starting capacity 3 kW
System voltage 12 V
Alternator Specifications
Alternator Mecc Alte
Model ECP32 2S4 C
Voltage 400 V
Frequency 50 Hz
Power factor 0.8 ϕ
Poles 4
Type Brushless
Voltage tolerance ±1 %
Efficiency @ 75% load 88.7 %
Class H
Protection IP 23
Dimensions and weight
Dimensions (cm) 200 x 92 x 110 cm
Dry weight 743 kg
Fuel tank capacity 51 L
Tank material Plastic
