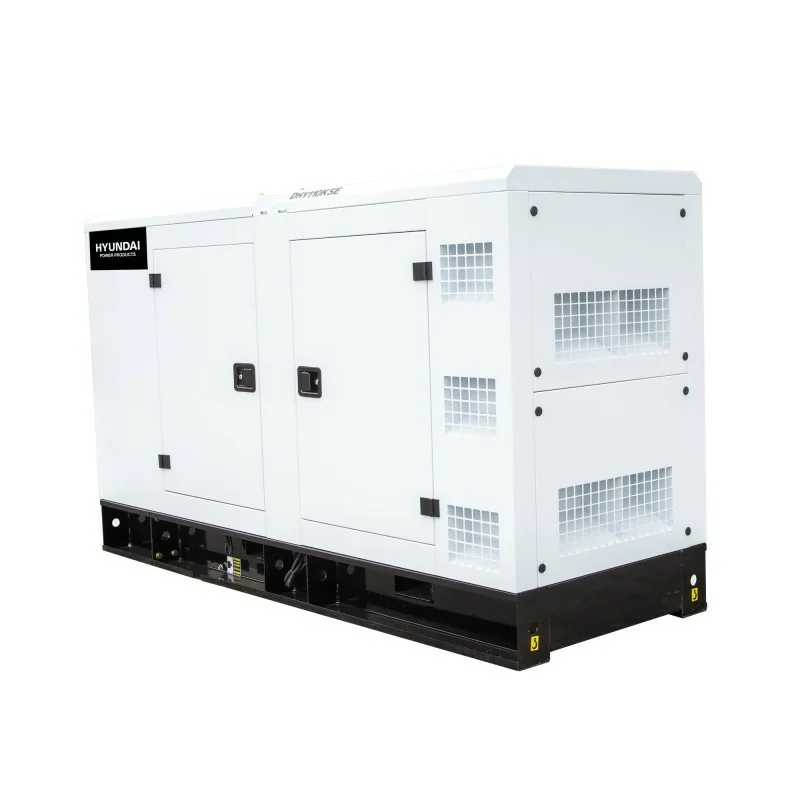

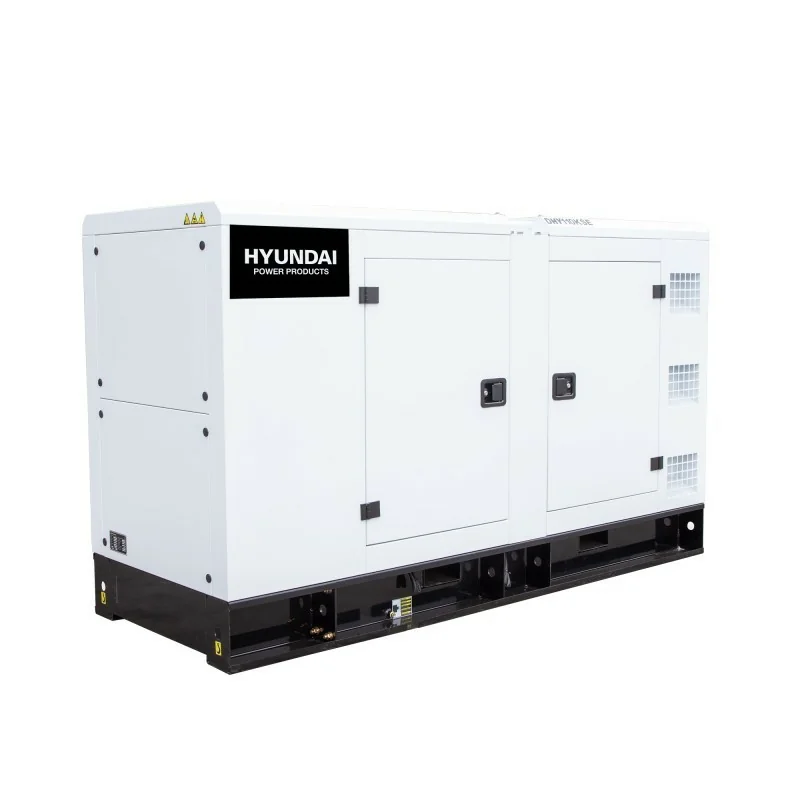

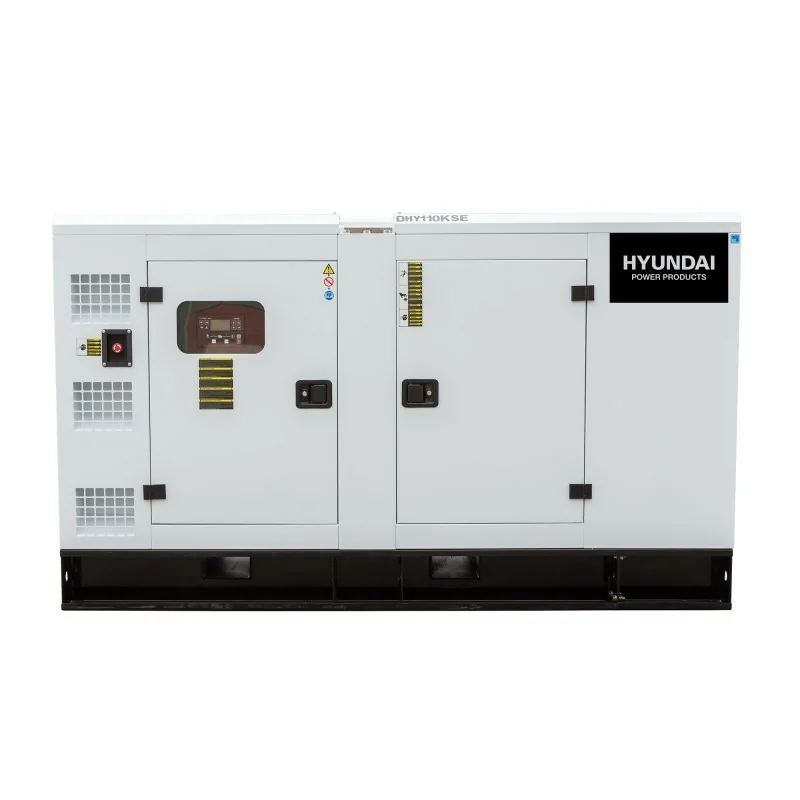

The Hyundai 1,500 RPM Three-Phase Soundproof Generator DHY110KSE is an efficient and robust solution for those who require constant power. With a rated power of 100 KVA / 80 kW and an emergency power of 110 KVA, it is ideal for industrial applications. Its soundproof design allows for quieter operation, reaching only 69 dBA at a distance of 7 meters.
This generator features a galvanized steel body to resist corrosion and ensure a long service life. Its AVR regulator ensures stable power output, while wide doors facilitate maintenance and access to the equipment's interior. In addition, fuel filling from the outside increases convenience in use.
It is equipped with various monitoring systems such as oil pressure, cooling temperature and fuel level control, which help maintain optimal operation. With an autonomy of 11 hours at 100% load, the DHY110KSE is perfect for tasks that require continuous power for long periods.
| MODEL | DHY110KSE |
| Frequency (Hz) | 50 Hz |
| Rotation Speed (r/min) | 1.500 r/min |
| Power Factor | 0,8 |
| Rated Power (KVA/KW) | 100 KVA / 80 kW |
| Emergency Power (KVA) | 110 KVA |
| Rated Current (A) | 143 A |
| Sound Level (7m, 75% load) (dBA) | 69 dBA |
| Autonomy at 100% | 11 h |
| Consumption at 100% load (L/hours) | 24 L/h |
| Radiator coolant capacity (L) | 24 L |
| Standard tank capacity (L) | 245 L |
| HYUNDAI engine model | HY4A140 |
| Rated power at 1,500 rpm (kW) | 95 kW |
| Number of cylinders | 4 |
| Aspiration | Turbo |
| Oil sump capacity (L) | 20 L |
| Displacement (cc) | 6.870 cc |
| Model | 274C |
| Degree of protection | IP23/H |
| Weight (Kg) | 1.480 kg |
| Dimensions (cm) | 290 x 100 x 170 cm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
| This generating set allows to request, with a surcharge, a tank extension of 500L, 1000L or 1500L through our customer service. |
