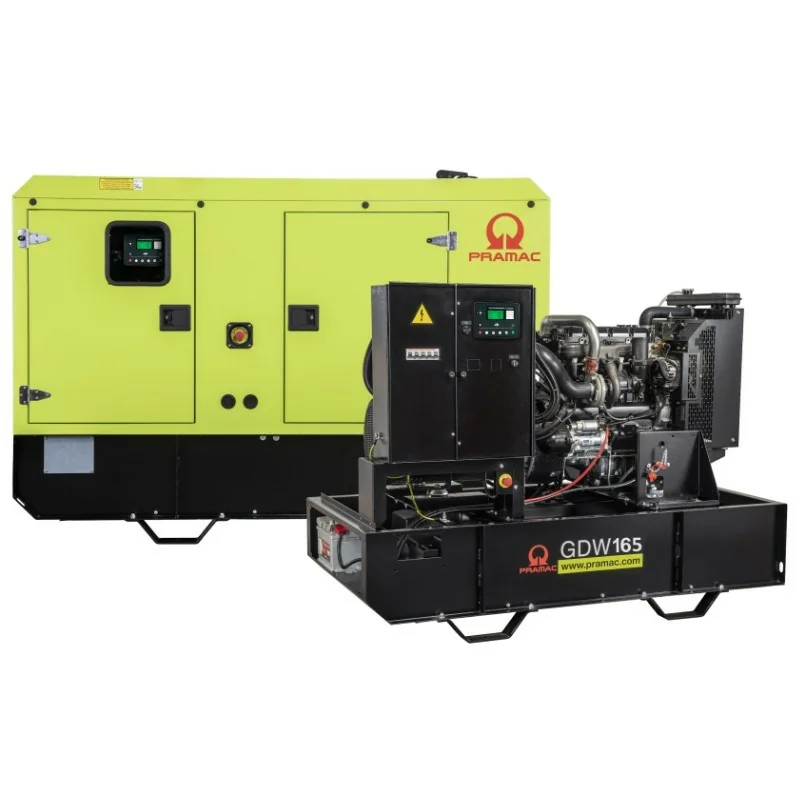

The GDW165P/FNE generator set is an excellent choice for those looking for reliability and efficiency. With a rated power of 150.0 kVA / 120.0 kW, it offers exceptional performance even in high demand situations. Thanks to its Perkins 1106A-70TAG2 engine and Mecc Alte alternator, this generator provides stable operation with an efficiency of 93.2% and an autonomy of up to 14 hours at 75% load.
This three-phase generator is designed to operate efficiently and safely, even in demanding environments, with a consumption of 24.98 L/h at 75% load. Its 350 L tank capacity and 79 dBA sound level at 1 m ensure extended operation without sacrificing comfort or power.
In addition, the GDW165P/FNE stands out for its durability and resistance thanks to its IP 23 protection and ±1% voltage tolerant system. Its dimensions of 309 x 110 x 185.2 cm in the soundproof version make it a versatile choice for various industrial and commercial applications.
MODEL | GDW165P/FNE |
Frequency | 50 Hz |
Rotation speed | 1500RPM |
Power Factor | 0.8 ϕ |
Rated Power (KVA/KW) | 150.0 kVA / 120.0 kW |
Emergency Power (KVA/KW) | 165.0 kVA / 132.0 kW |
Motor | |
Autonomy at 75% | 14.01 h |
Consumption at 75% load | 24.98 L/h |
Refrigerant capacity | 20.5 L |
Standard tank capacity | 350 L |
Engine model | Perkins 1106A-70TAG2 |
Number of cylinders | 6 in line |
Aspiration | Turbo |
Oil capacity | 18 L |
Displacement | 7010 cc |
Sound level Soundproof version | |
Guaranteed sound level (LWA) | 97 dBA |
Sound pressure @ 1 m | 79 dBA |
Sound pressure @ 7 m | 68 dBA |
Alternator Specifications | |
Alternator | Mecc Alte |
Model | ECP34 1L4 C |
Connections | Star Series |
Frequency | 50 Hz |
Voltage | 400 V |
Phases | 3 |
Power factor | 0.8 ϕ |
Emergency power (27ºC) | 165 kVA |
Nominal power (40ºC) | 150 kVA |
Efficiency @ 100% | 93.2% |
Type | Brushless |
Poles | 4 |
Voltage tolerance | ±1% |
Class | H |
Protection | IP 23 |
Battery values | |
Battery voltage | 12 V |
Voltage | 400/230 V |
Frequency | 50 Hz |
Phases | 3 |
Power factor | 0.8 ϕ |
Maximum current | 238 A |
Rated current | 217 A |
Thermomagnetic circuit breaker | 250 A |
Weight and Dimensions | |
Open weight | 1522 Kg |
Soundproof Weight | 1880 Kg |
Open Dimensions (cm) | 261 x 110 x 154 |
Soundproof Dimensions (cm) | 309 x 110 x 185 |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
The batteries included in some machines are a free gift, so they are exempt from warranty. |
