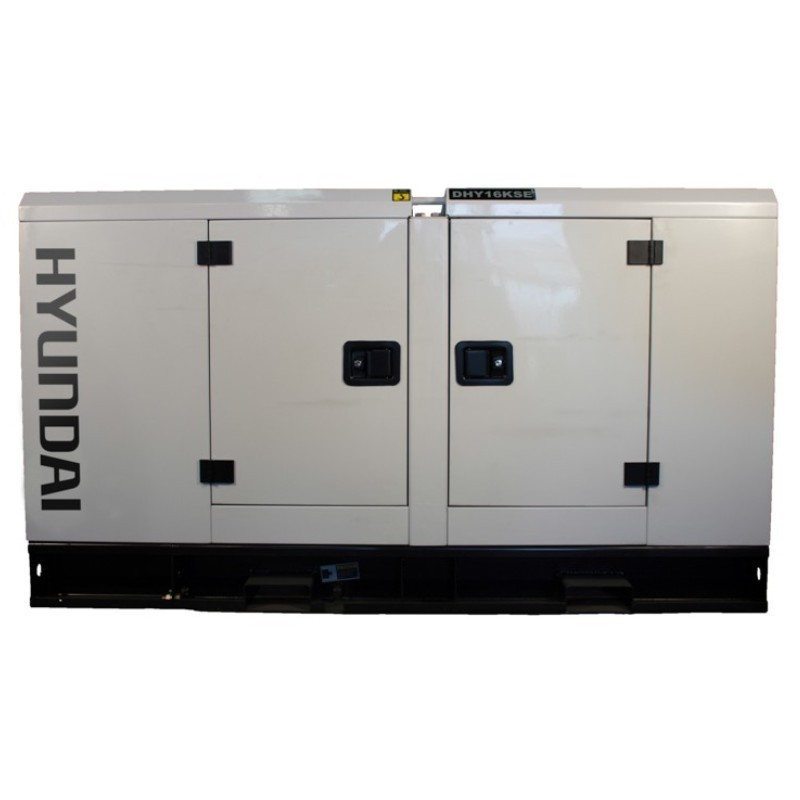

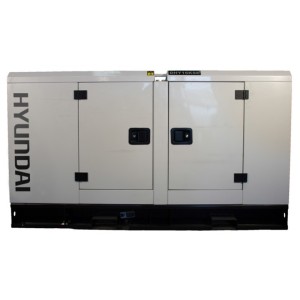

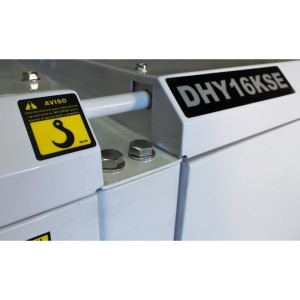

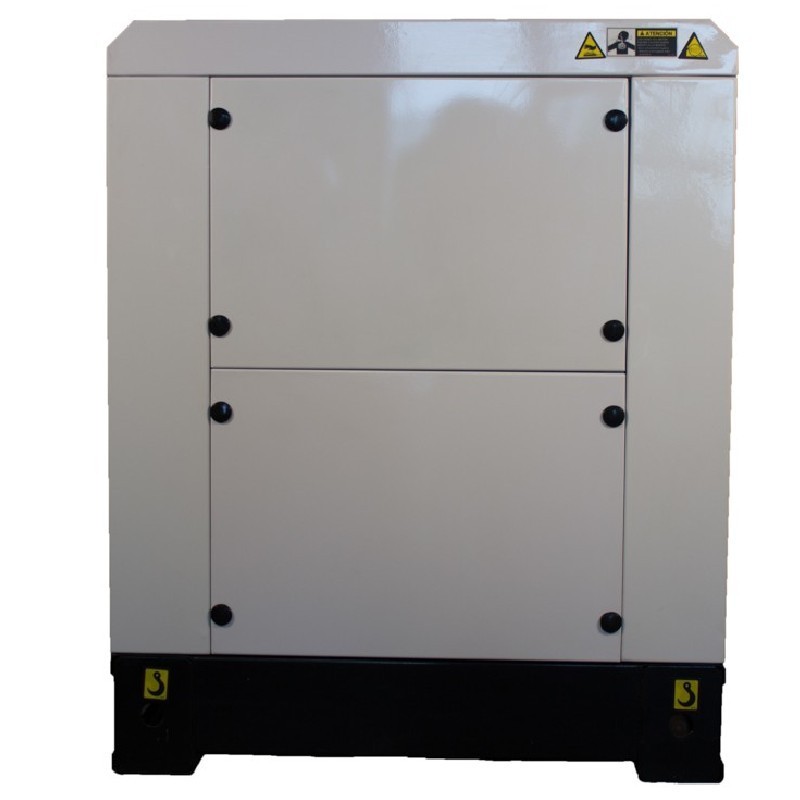

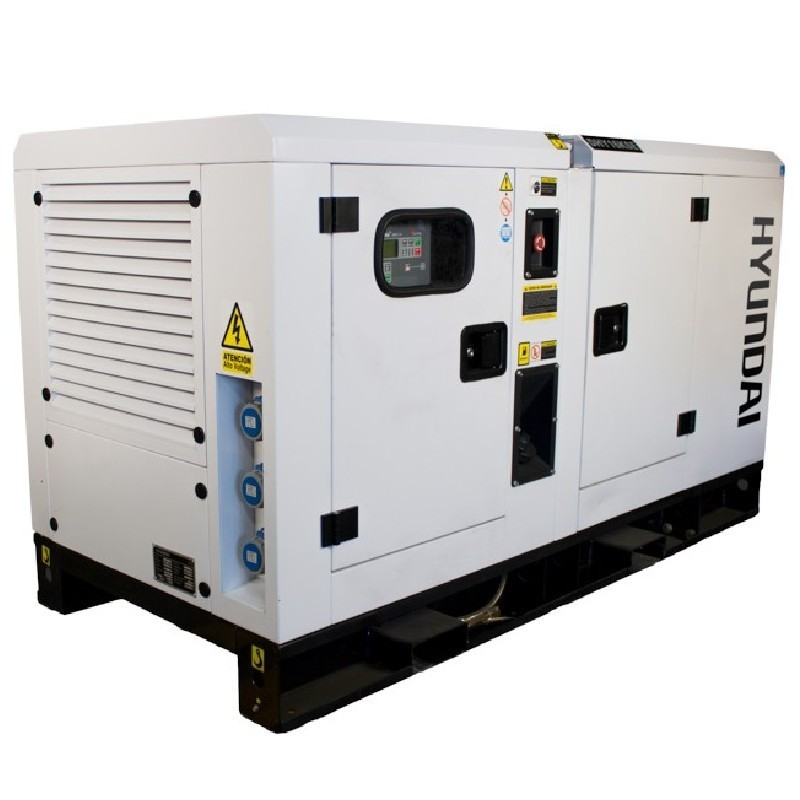

The DHY16KSE three-phase generator set Hyundai is a robust generator designed to provide reliable power without the noise common to other equipment. With a manual or volt-free contact start, it is suitable for installations with ATS or programmers, making it a versatile choice for a variety of applications. Its galvanized and painted steel construction protects it from rust and ensures long-lasting durability.
The DHY16KSE offers a rated power of 15 KVA (12 kW), with a power factor of 0.8 and an emergency power of 16.5 KVA. The motor speed is 1,500 r/min, ensuring stable performance over time. Its sound level of 66 dBA at 75% load makes it a quiet option for applications where noise is a concern. In addition, it has an autonomy of 15.4 hours at 100% load.

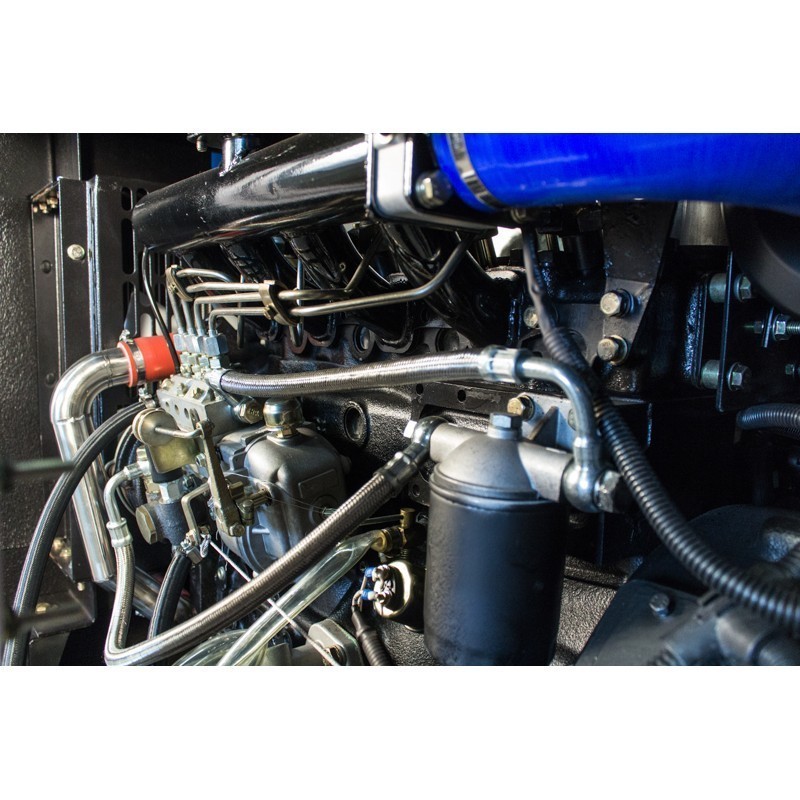

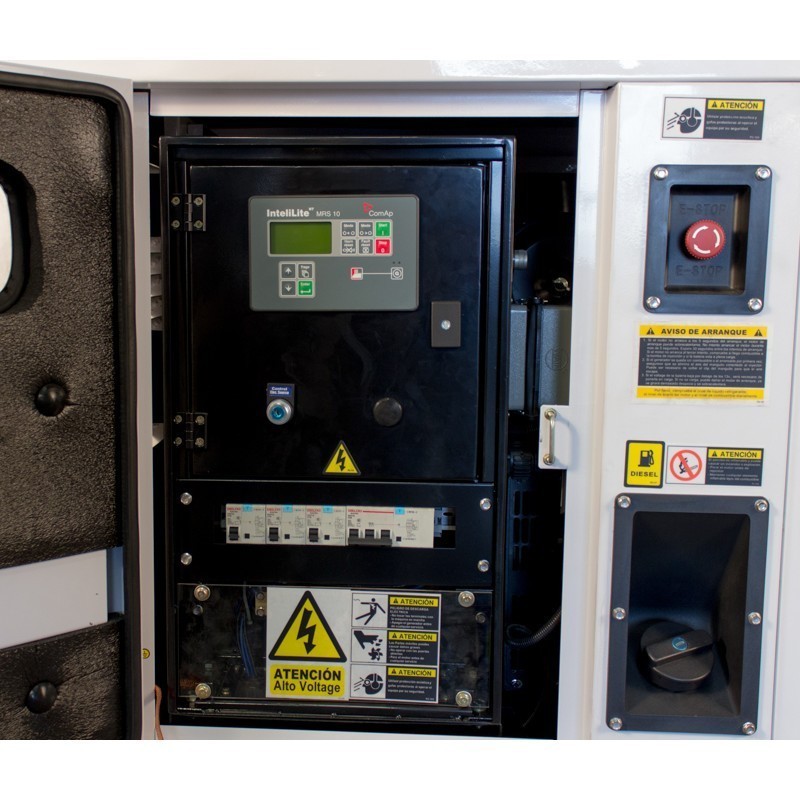

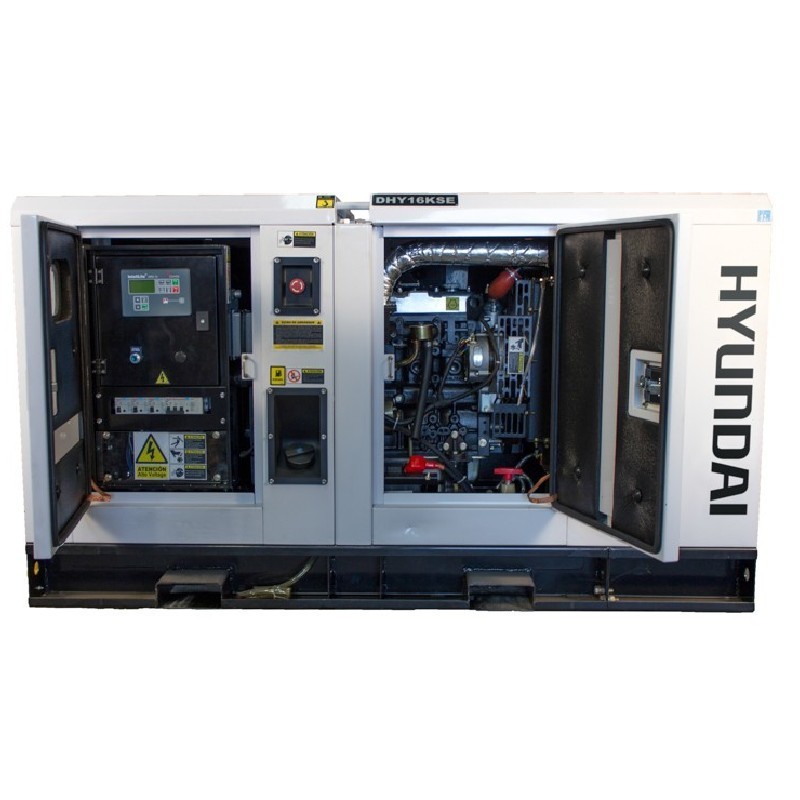

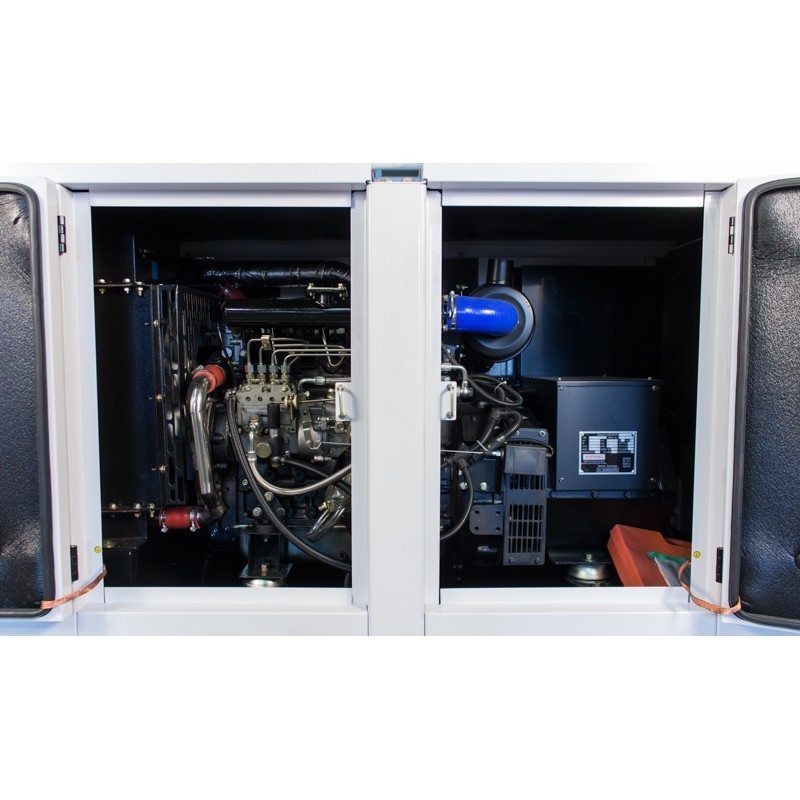

With a HYUNDAI HY485 4-cylinder engine and a displacement of 2,200 cc, the generator is efficient and easy to maintain. Its standard tank capacity is 78 L, allowing for extended operation without the need for frequent refueling. The cooling system is also efficient, with a 7 L coolant capacity. In addition, detailed cooling temperature, oil pressure and rpm readings provide a clear view of performance at all times.
The AVR regulator ensures stable and controlled voltage, protecting your connected equipment. Thanks to its alarms for low oil pressure, high temperature or low fuel level, the generator ensures continuous and safe operation. With a functional and rugged design, the DHY16KSE is ideal for industrial, commercial or backup power projects.

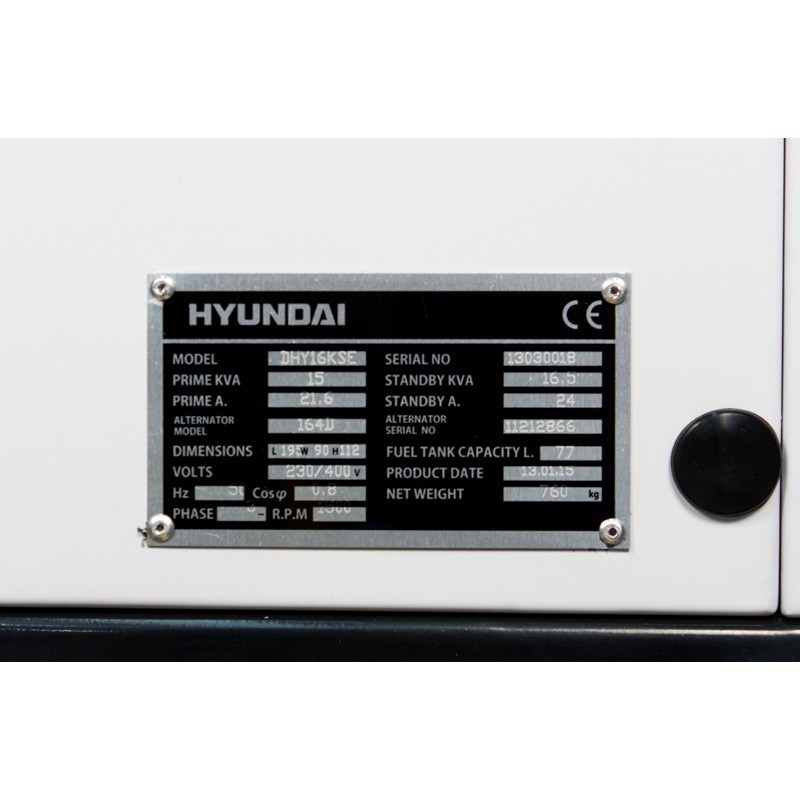

| MODEL | DHY16KSE |
| Voltage | 400 V |
| Frequency (Hz) | 50 Hz |
| Rotation speed (r/min) | 1.500 r/min |
| Power Factor | 0,8 |
| Rated Power (KVA/KW) | 15 KVA / 12 kW |
| Emergency Power (KVA) | 16,5 KVA |
| Rated Current (A) | 21,6 A |
| Noise Level (7m, 75% load) (dBA) | 66 dBA |
| Autonomy at 100% | 15,4 h |
| Consumption at 100% load (L/hours) | 5 L/h |
| Radiator coolant capacity (L) | 7 L |
| Standard tank capacity (L) | 78 L |
| HYUNDAI engine model | HY485 |
| Rated power at 1,500 rpm (kW) | 17 kW |
| Number of cylinders | 4 |
| Aspiration | Natural |
| Oil sump capacity (L) | 6 L |
| Displacement (cc) | 2.200 cc |
| Model | 164D |
| Degree of protection | IP23/H |
| Weight (Kg) | 760 kg |
| Dimensions (cm) | 190 x 90 x 110 cm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
| This generating set allows to request, with a surcharge, a tank extension of 500L, 1000L or 1500L through our customer service. |
