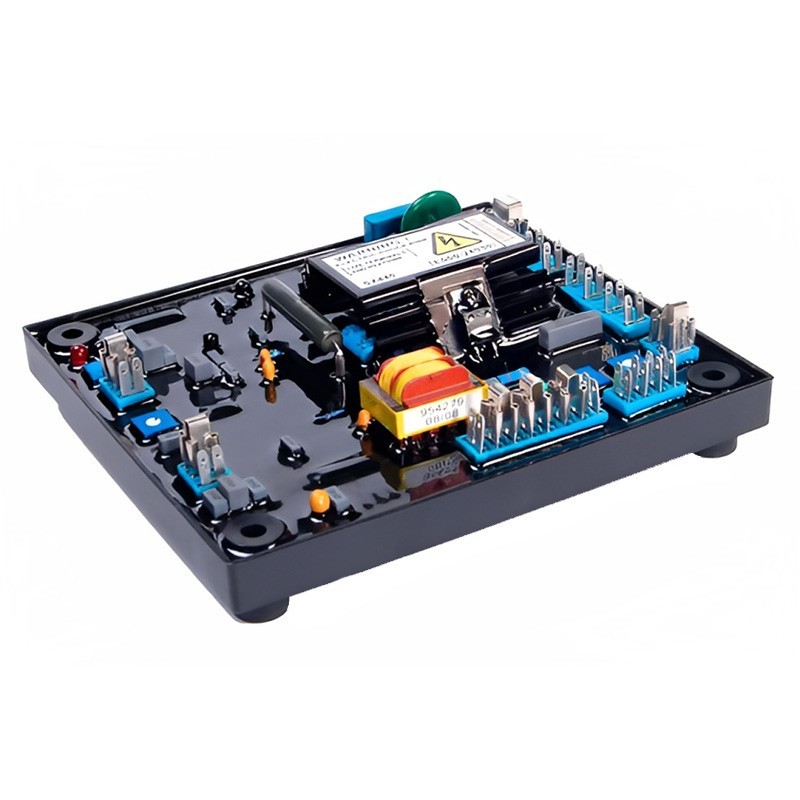

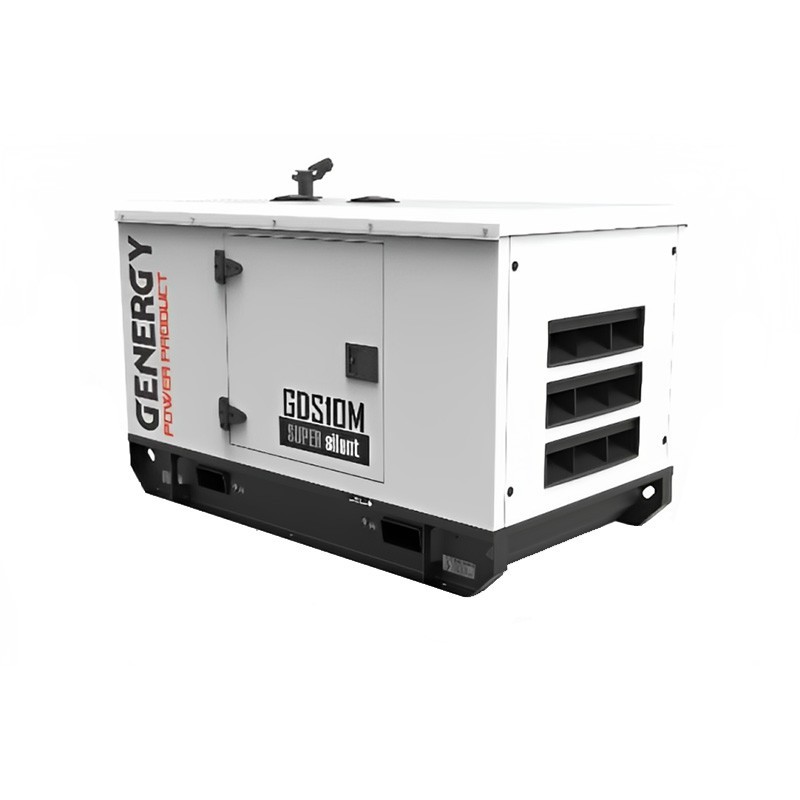

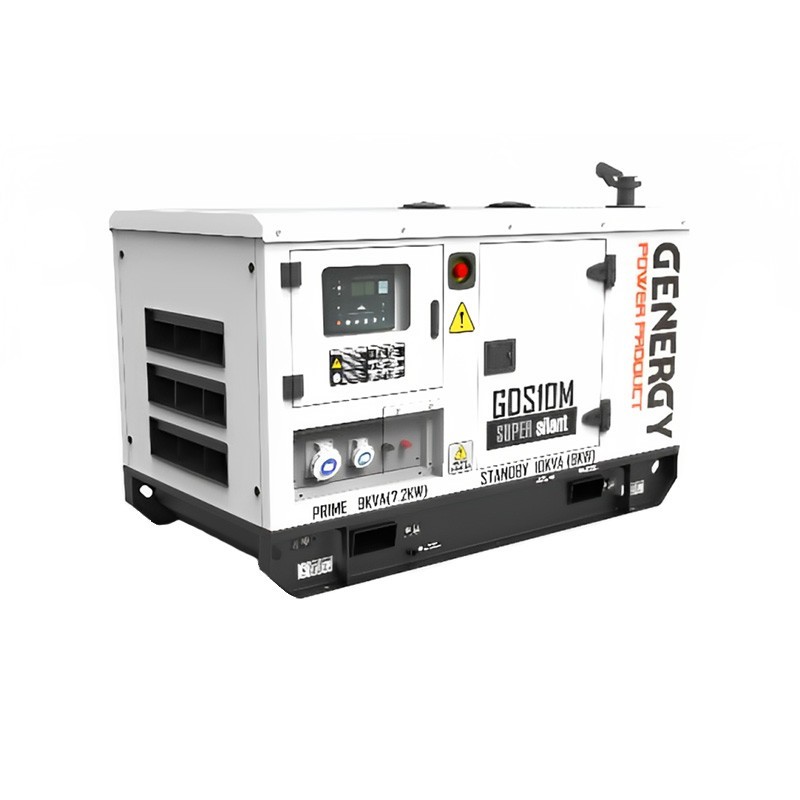

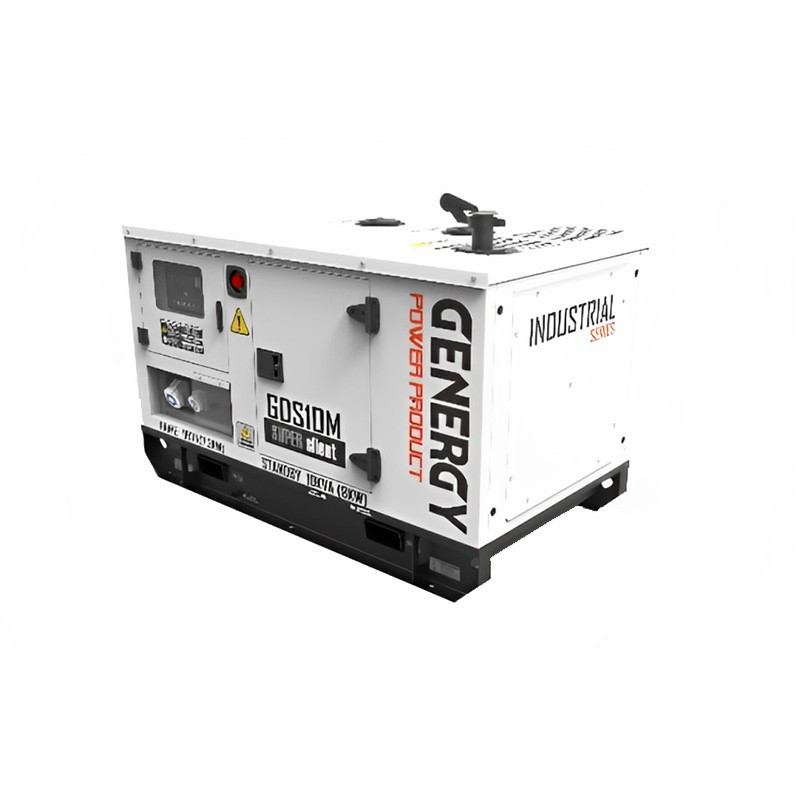

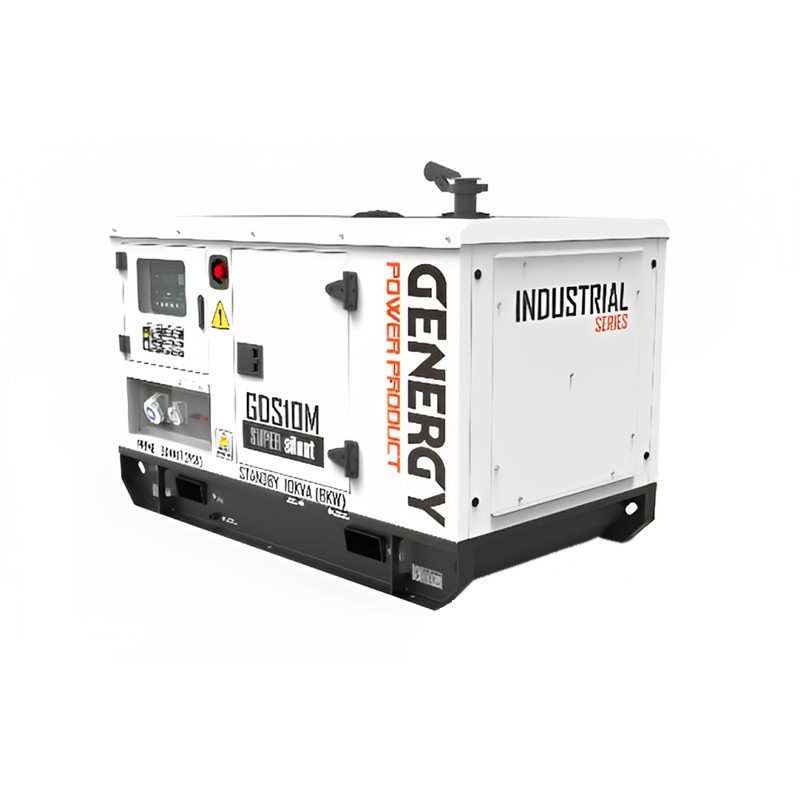

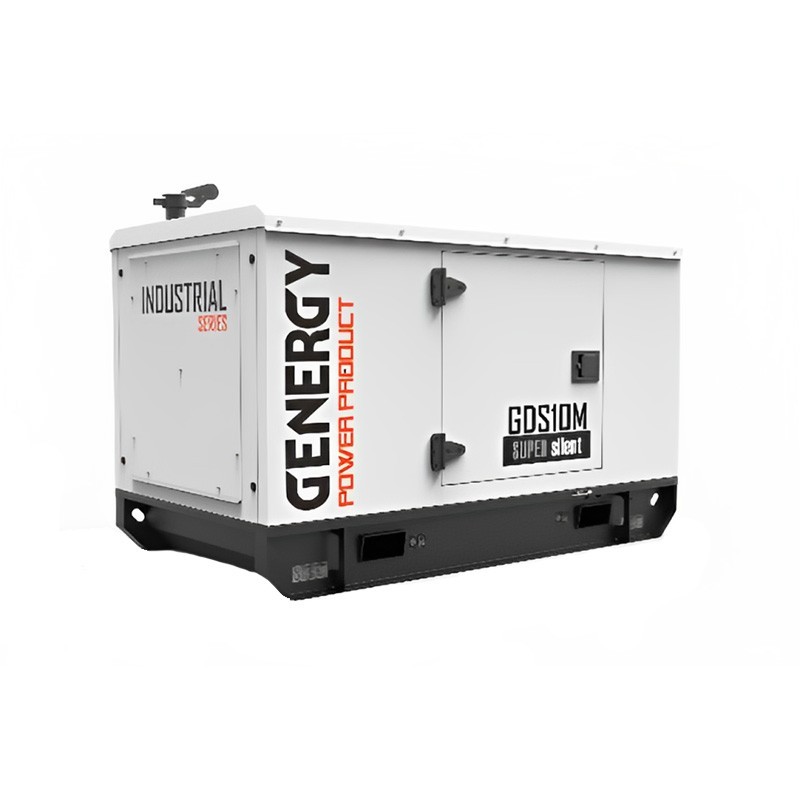

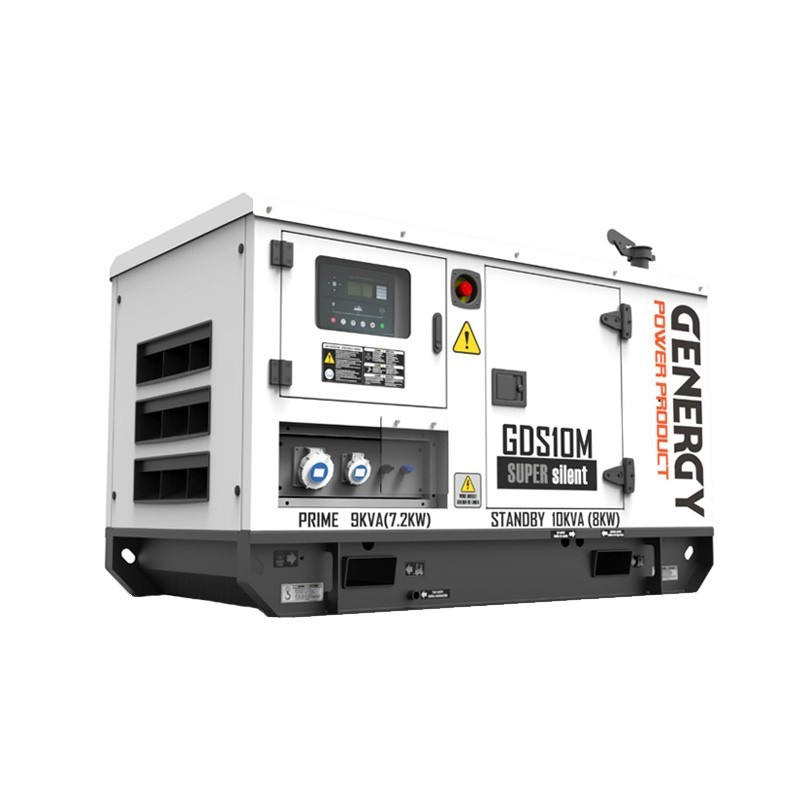

The Single Phase Genset Genergy GDS10M 10kVA with an Electronic stabilization system "AVR" has a weight of 500Kg, and its fuel tank capacity is 35L. Its average sound pressure is 70dB.
It has a voltage of 230V and a frequency of 50Hz, with a single-phase current, and its dimensions are 1710x940x1060mm. Its fuel consumption is 0.47l/h - 0.94l/h - 1.41l/h - 1.88l/h at 25% 50% 50% 75% 100% of its power respectively.
The diesel electric generator Genergy GDS10M has a rated power of 9 kVA / 7.2 kW and a maximum power of 10 kVA / 8 kW, with a displacement of 1357 cc. It is equipped with a copper coil.
| GENERATOR MODEL | GDS10M (REF 20005) |
| Stabilization system | AVR" electronics |
| Voltage - Frequency | 230V - 50Hz |
| Maximum Power | 9 kVA (7.2kW) |
| Nominal Power | 10 kVA (8kW) |
| Power Factor | 0.8 |
| Nominal current | 39 A |
| Average sound pressure at 7Mts LpA | 70 dB |
| Guaranteed sound power level LwA 2000/14/EC Amendment 2005/88/EC | 95 dB |
| Start-up type | Electric |
| Fuel tank capacity | 35 L |
| Fuel consumption 25% 50% 75% 100% (L/H) | 0.47 -0.94 - 1.41 - 1.88 |
| General protection degree | IP23 |
| Dimensions | 1710x940x1060 mm |
| Weight | 500 Kg |
| ALTERNATOR | SINC164BX-230 |
| Nominal speed - Number of poles | 1500RPM - 4 |
| Excitation system | Self-excited |
| Phases | Single phase |
| Total harmonic distortion | No load |
| Telephone interference | >2% |
| Efficiency | 79.2% |
| Insulation grade | H |
| Degree of protection | IP23 |
| MOTOR | GENERGY-380DY |
| Displacement | 1357 cc |
| Speed control | Mechanics |
| Number of cylinders and arrangement | 3 in line |
| Injection system | Direct |
| Aspiration | Natural |
| Cooling system | Water |
| Diameter X Stroke | 80X90 mm |
| Motor drive power | 11 kW |
| Lubrication oil capacity | 4.5L (SAE10W40) |
| Coolant capacity | 4 L |
| IMPORTANT It is mandatory for the customer to check oil and grease levels before start-up ! |
| If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
