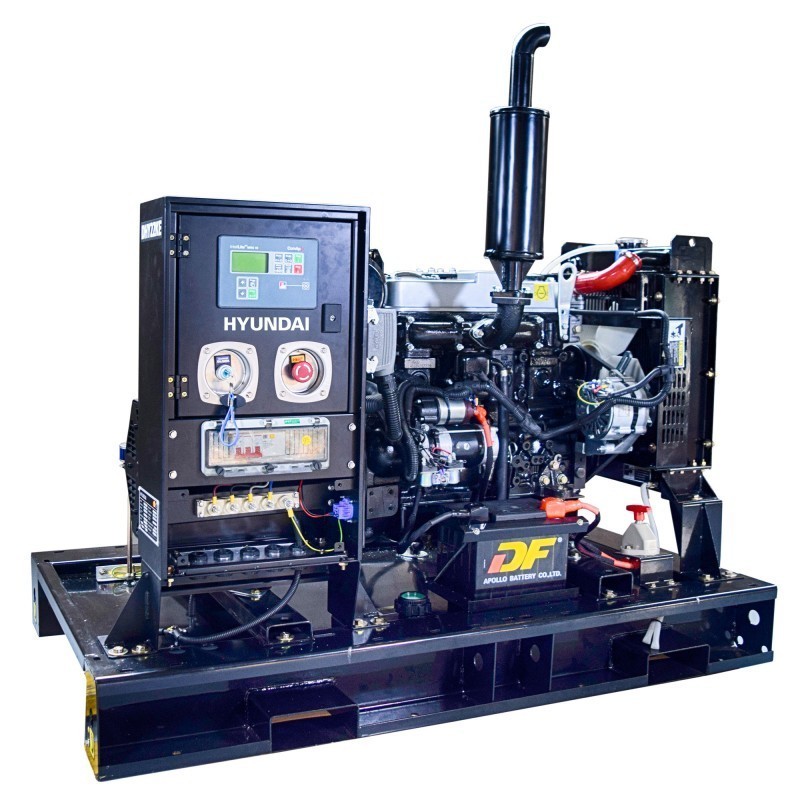

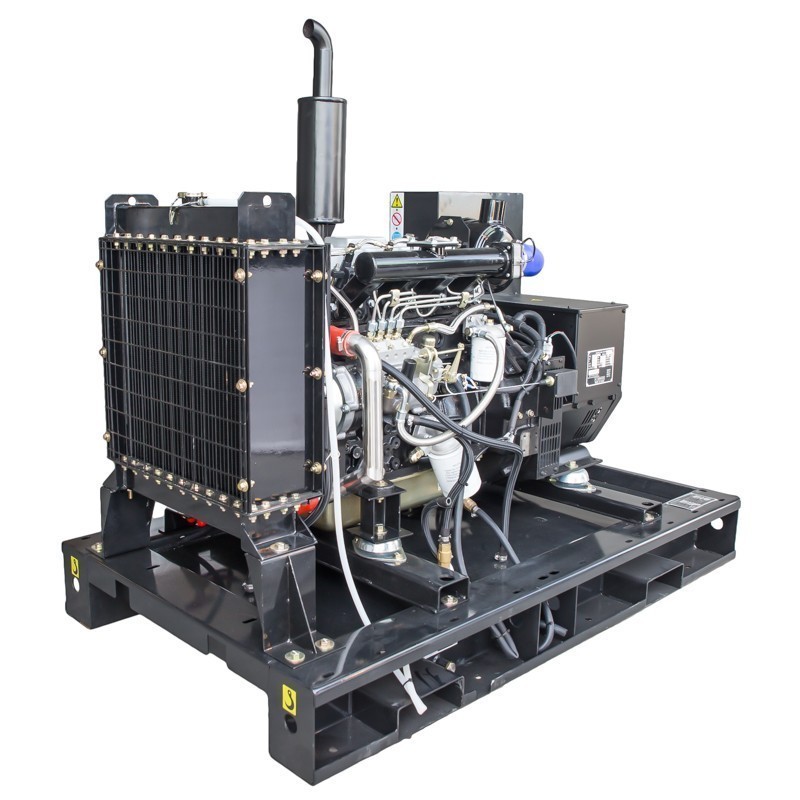

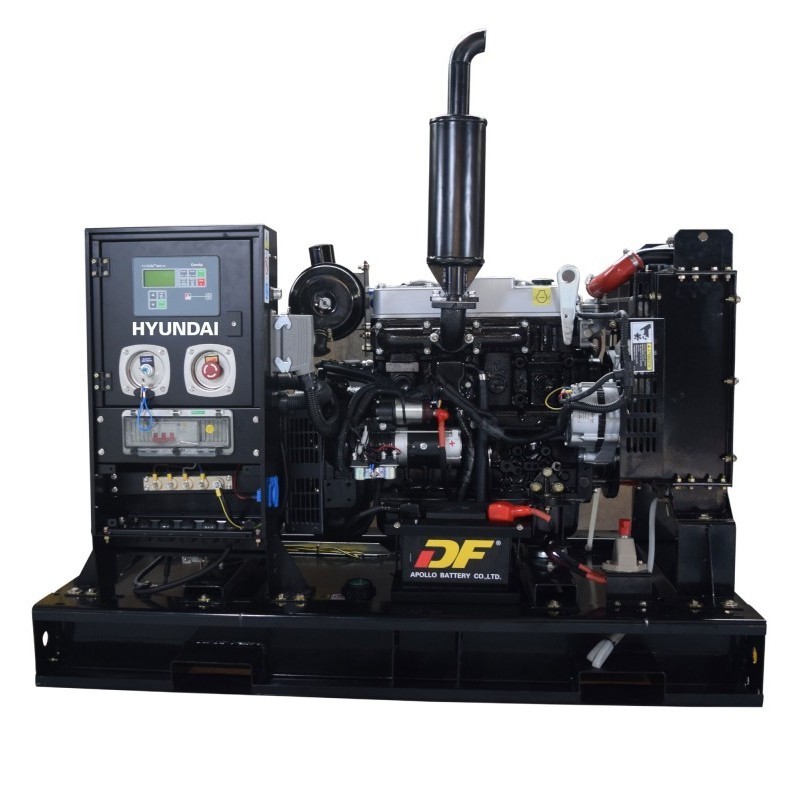

The DHY22KE open three-phase 1,500RPM generator set offers a robust and efficient solution for demanding energy needs. With a rated power of 20 KVA / 16 kW and an autonomy of up to 12 hours, it is designed for continuous operation in industrial or commercial environments.
It integrates a digital display that allows monitoring of key parameters such as oil pressure, water temperature, frequency or fuel level, as well as alerts for faults or abnormal conditions. All designed for safe and hassle-free use. Its open system facilitates quick drainage by means of a 1/4 turn valve, and its structure with forklift access, lifting rings and fork passage make it very easy to transport and install.
With an adjusted consumption of 6.3 L/h at 100% load, the DHY22KE also stands out for its low sound level of 65 dBA, making it a quiet and reliable choice for powering heavy equipment or critical systems.
| MODEL | DHY22KE |
| Frequency (Hz) | 50 |
| Rotation speed (r/min) | 1.500 |
| Power Factor | 0,8 |
| Nominal Power (KVA/KW) | 20 KVA / 16 kW |
| Emergency Power (KVA) | 22 KVA |
| Rated Current (A) | 29 A |
| Noise Level (7m, 75% load) (dBA) | 65 dBA |
| Autonomy at 100% | 12 h |
| Consumption at 100% load (L/hours) | 6.3 L/h |
| Radiator coolant capacity (L) | 10,2 L |
| Standard tank capacity (L) | 78 L |
| Engine model | HY490 |
| Rated power at 1,500 rpm (kW) | 21 kW |
| Number of cylinders | 4 |
| Aspiration | Natural |
| Oil sump capacity (L) | 6,5 L |
| Displacement (cc) | 2.500 cc |
| Alternator | 184E |
| Degree of protection | IP23/H |
| Weight (Kg) | 505 Kg |
| Dimensions (cm) | 156 x 90 x 98 cm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
| This generating set allows to request, with a surcharge, a tank extension of 500L, 1000L or 1500L through our customer service. |
