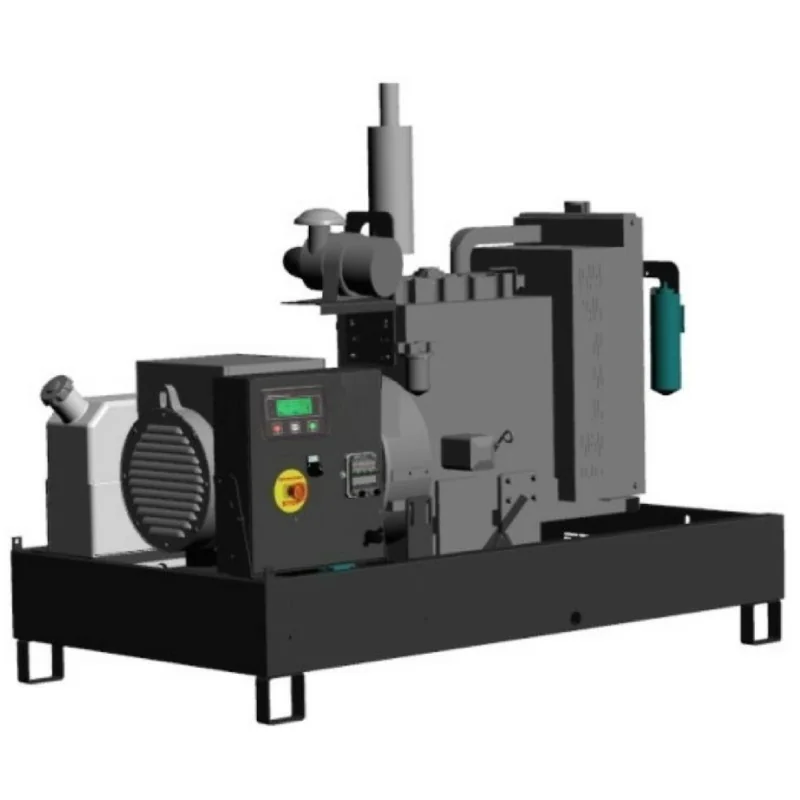

This GBW45Y generator set stands out for its reliability and power, making it ideal for both industrial and commercial applications. With an emergency power of 45.33 kVA and 36.26 kW, and a rated power of 43.03 kVA and 34.42 kW, it offers consistent performance even in demanding conditions. Its Yanmar 4TNV98T-GPGE engine ensures excellent efficiency and reliability.
Designed to operate on diesel fuel, this model offers an autonomy of up to 6.29 h at 75% load, and an electric starting capacity of 1.1 kW. Its Mecc Alte alternator ensures constant power distribution with a power factor of 0.8 ϕ.
With a 51 L fuel capacity and robust construction, the GBW45Y is an efficient and economical solution to maintain the continuity of your operations.
| MODEL | GBW45Y |
| Frequency | 50 Hz |
| Voltage | 400 V |
| Power factor | 0.8 ϕ |
| Phases | 3 |
| Emergency Power (kVA/kW) | 45.33 kVA / 36.26 kW |
| Nominal Power (kVA/kW) | 43.03 kVA / 34.42 kW |
| Motor | |
| Engine Make | Yanmar |
| Model | 4TNV98T-GPGE |
| Cooling System | Water |
| Number of cylinders | 4 in line |
| Displacement | 3319 cc |
| Aspiration | Turbo |
| Speed regulator | Mechanical |
| Prime gross power | 39.7 kW |
| Maximum power | 41.8 kW |
| Oil capacity | 10.5 L |
| Coolant capacity | 4.2 L |
| Fuel | Diesel |
| Consumption at 75% load | 8.11 L/h |
| Consumption at 100% load | 10.92 L/h |
| Autonomy at 75% load | 6.29 h |
| Autonomy at 100% | 4.67 h |
| Starting system | Electric |
| Starting capacity | 1.1 kW |
| System voltage | 12 V |
| Alternator Specifications | |
| Alternator | Mecc Alte |
| Model | ECP32 2S4 C |
| Voltage | 400 V |
| Frequency | 50 Hz |
| Power factor | 0.8 ϕ |
| Poles | 4 |
| Type | Brushless |
| Voltage tolerance | ±1% |
| Efficiency at 75% load | 88.7% |
| Class | H |
| Protection | IP 23 |
| Weight and Dimensions | |
| Dimensions (cm) | 200 x 92 x 110 |
| Dry weight | 580 Kg |
| Tank capacity | 51 L |
| Tank material | Plastic |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
