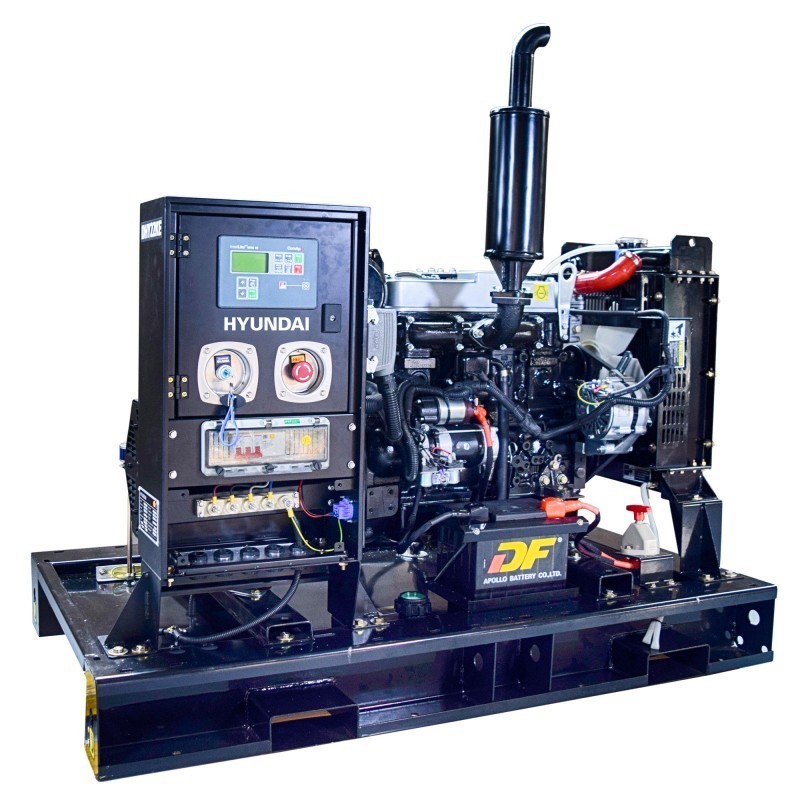

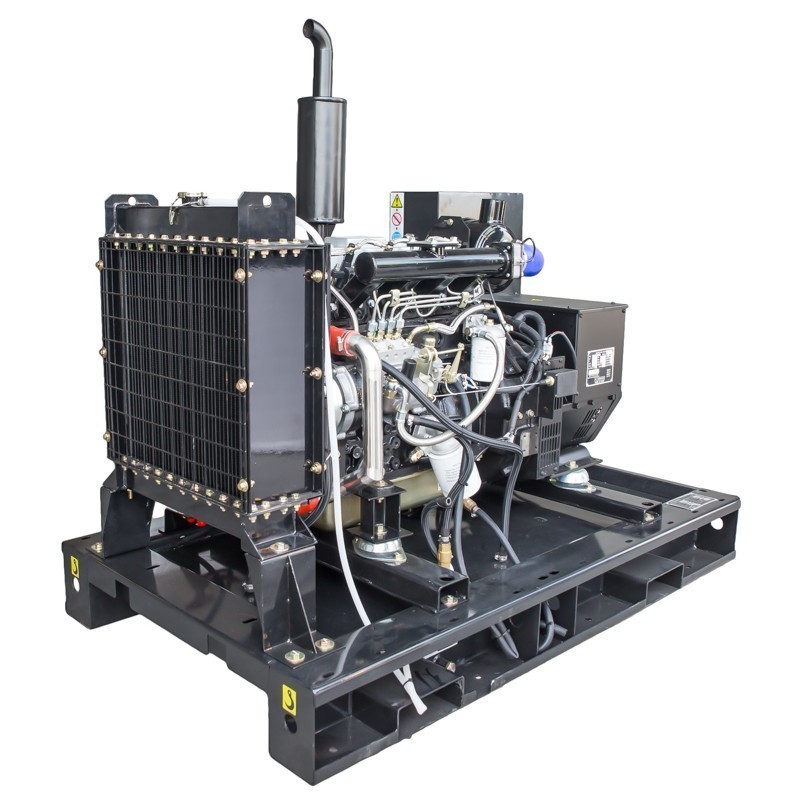

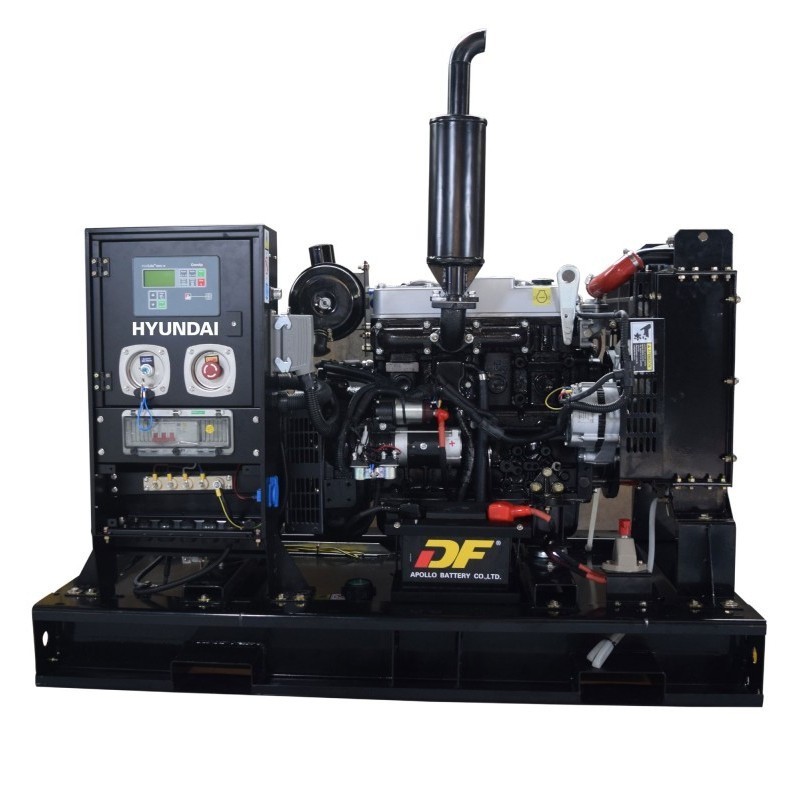

The DHY45KE open three-phase 1,500 RPM generator set offers an exceptional power output of 40 KVA / 32 kW, ideal for industrial and commercial applications. Its autonomy of up to 8.5 hours and its consumption of 10.9 L/h at 100% load guarantee operational efficiency during long periods of operation.
Equipped with a digital display that allows monitoring parameters such as water temperature, oil pressure and fuel level, this generator provides safety at all times. In addition, it has alarms for possible faults and abnormal conditions. The DHY45KE 's robust structure facilitates transportation and installation, thanks to its forklift access and lifting rings.
Its low sound level of 65 dBA makes it a reliable and unobtrusive choice for noise-sensitive environments. With a standard tank capacity of 93 L and a 38 kW engine , the DHY45KE is the perfect solution for those looking for a powerful, efficient and easy-to-operate generator.
| MODEL | DHY45KE |
| Frequency (Hz) | 50 |
| Rotation speed (r/min) | 1.500 |
| Power Factor | 0,8 |
| Rated Power (KVA/KW) | 40 KVA / 32 kW |
| Emergency Power (KVA) | 44 KVA |
| Rated Current (A) | 57 A |
| Sound Level (7m, 75% load) (dBA) | 65 dBA |
| Autonomy at 100% | 8,5 h |
| Consumption at 100% load (L/hours) | 10.9 L/h |
| Radiator coolant capacity (L) | 12 L |
| Standard tank capacity (L) | 93 L |
| Engine model | HYD4DX21-53D |
| Rated power at 1,500 rpm (kW) | 38 kW |
| Number of cylinders | 4 |
| Intake | Natural |
| Oil sump capacity (L) | 8,3 L |
| Displacement (cc) | 4.100 cc |
| Alternator | 184J |
| Degree of protection | IP23/H |
| Weight (Kg) | 770 Kg |
| Dimensions (cm) | 181 x 95 x 102 cm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
| This generating set allows to request, with a surcharge, a tank extension of 500L, 1000L or 1500L through our customer service. |
