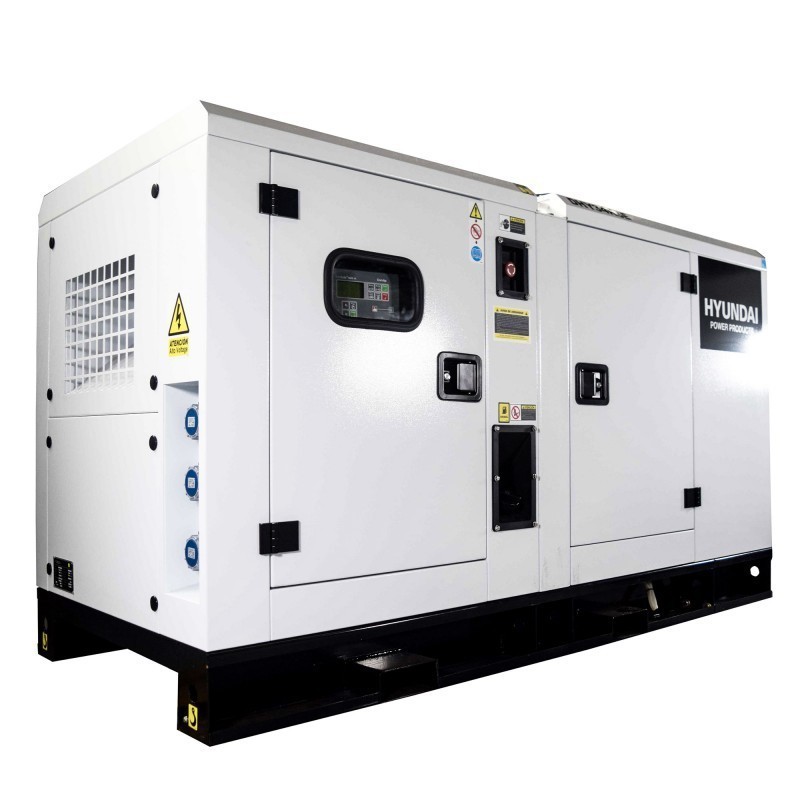

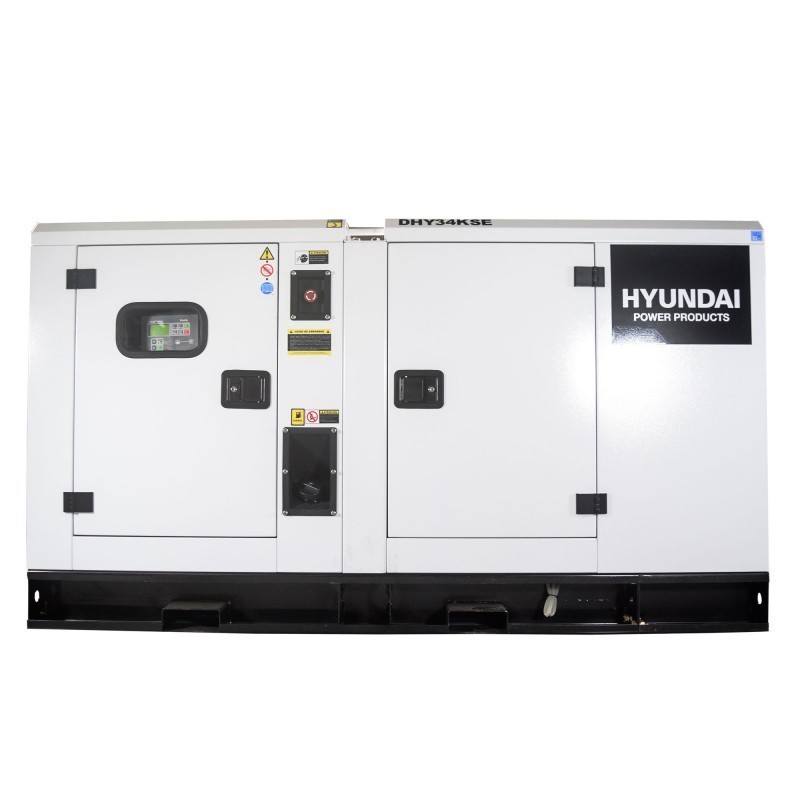

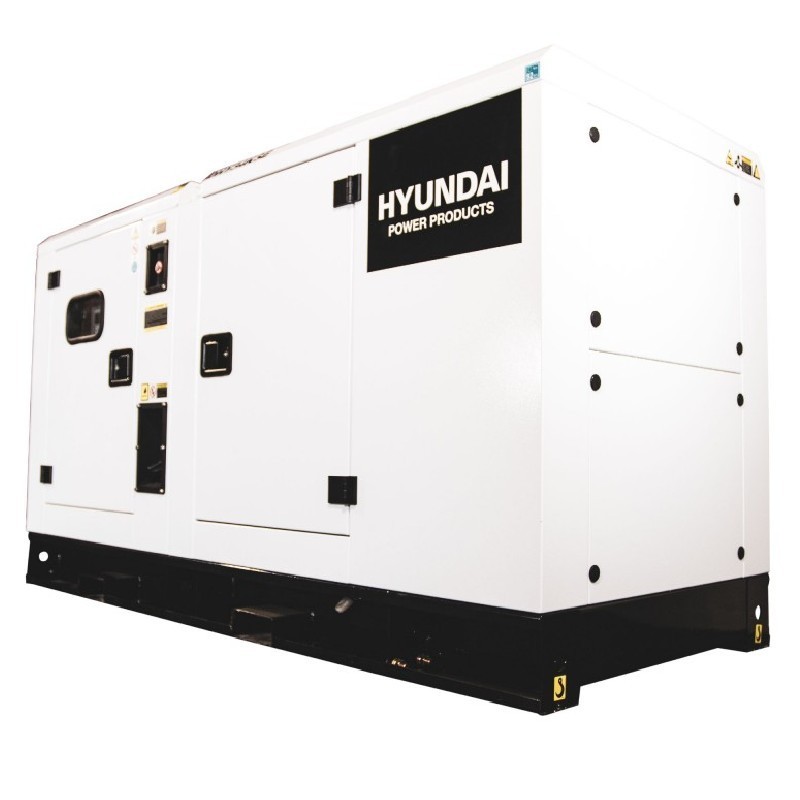

The DHY34KSE generator set Hyundai is an ideal choice for those looking for reliability and efficiency in industrial applications. With a rated power of 31.3 KVA / 25 kW and a maximum capacity of 34.4 KVA, this equipment guarantees a constant power supply even under demanding conditions. Its soundproof design allows for unobtrusive operation, with a sound level of 66 dBA at full load.

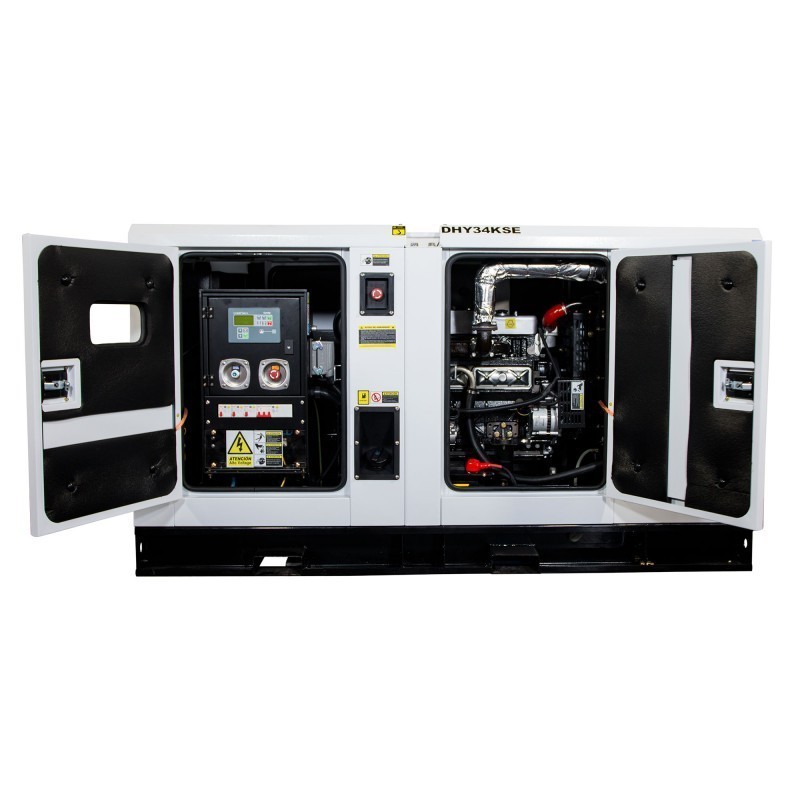

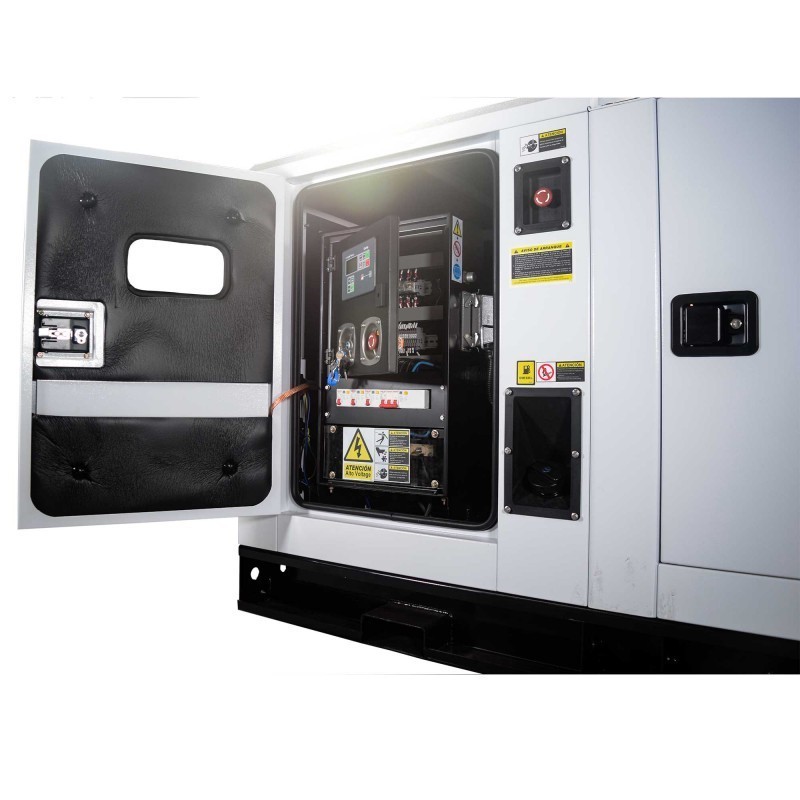

Equipped with a galvanized steel body painted to protect against rust, it stands out for its strength and easy maintenance. The wide doors allow easy access to the interior, facilitating servicing and repairs. In addition, fuel filling from the outside improves user comfort, while the AVR regulator ensures voltage stability at all times.

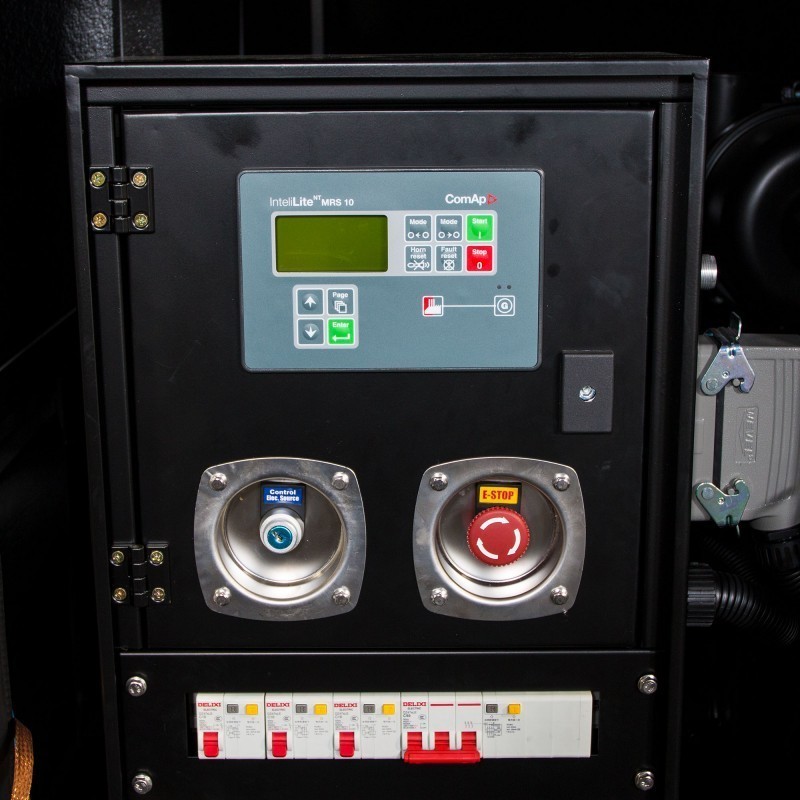

This generator set is an excellent choice for keeping essential electrical equipment running, avoiding interruptions in areas where power is irregular. With an autonomy of 10 hours at 100% load and a consumption of 9.5 L/h, the DHY34KSE offers efficient and economical performance. In addition, the control display and safety alarms allow constant monitoring of the generator's status.

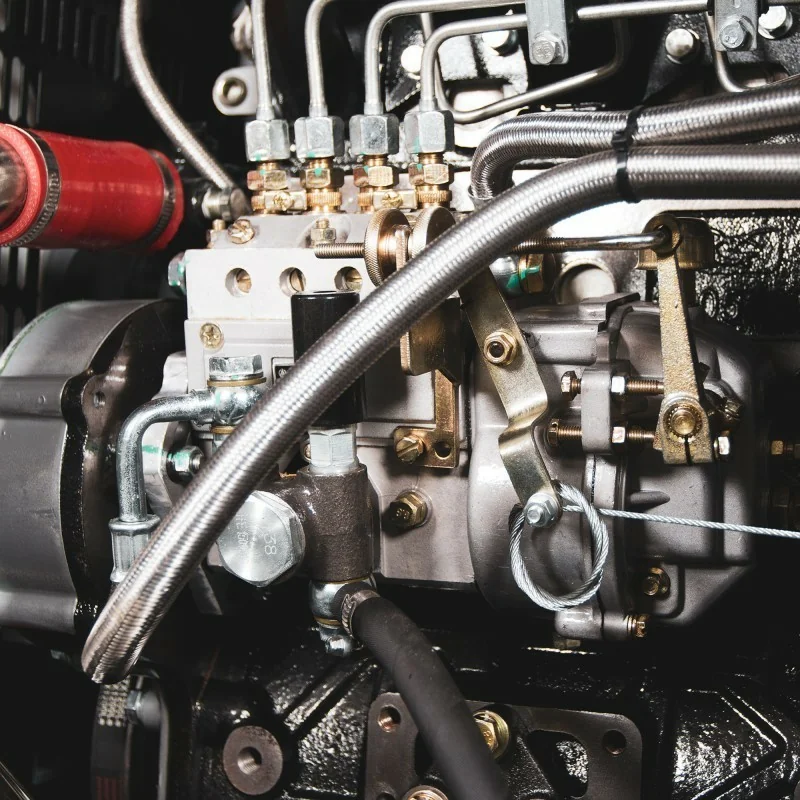

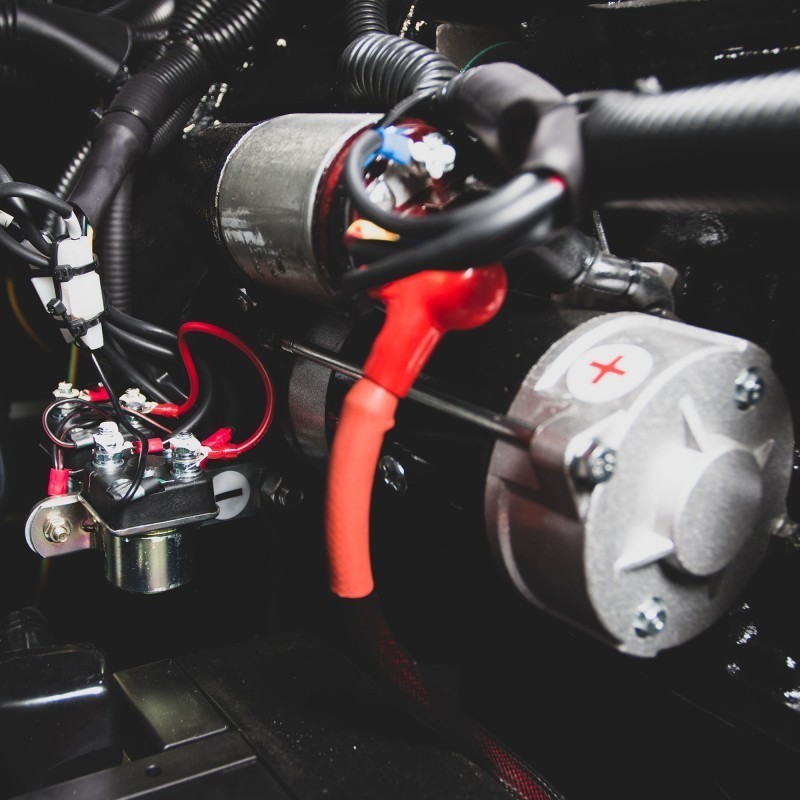

With a capacity of 93 L in its fuel tank and a weight of 980kg, the Hyundai DHY34KSE generator set is a powerful and reliable solution for industry and commerce, providing continuous power in any situation. In addition, the Hyundai 4-stroke, water-cooled engine ensures greater durability and performance.
| MODEL | DHY34KSE |
| Frequency (Hz) | 50 Hz |
| Rotation Speed (r/min) | 1.500 r/min |
| Power Factor | 0,8 |
| Rated Power (KVA/KW) | 31.3 KVA / 25 kW |
| Emergency Power (KVA) | 34,4 KVA |
| Rated Current (A) | 45 A |
| Noise Level (7m, 75% load) (dBA) | 66 dBA |
| Autonomy at 100% | 10 h |
| Consumption at 100% load (L/hours) | 9.5 L/h |
| Radiator coolant capacity (L) | 12 L |
| Standard tank capacity (L) | 93 L |
| HYUNDAI engine model | HY4102 |
| Rated power at 1,500 rpm (kW) | 32 kW |
| Number of cylinders | 4 |
| Intake | Natural |
| Oil sump capacity (L) | 10,2 L |
| Displacement (cc) | 3.800 cc |
| Model | 184G |
| Degree of protection | IP23/H |
| Weight (Kg) | 980 kg |
| Dimensions (cm) | 220 x 95 x 123 cm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless there is a pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
| This generating set allows to request, with a surcharge, a tank extension of 500L, 1000L or 1500L through our customer service. |
