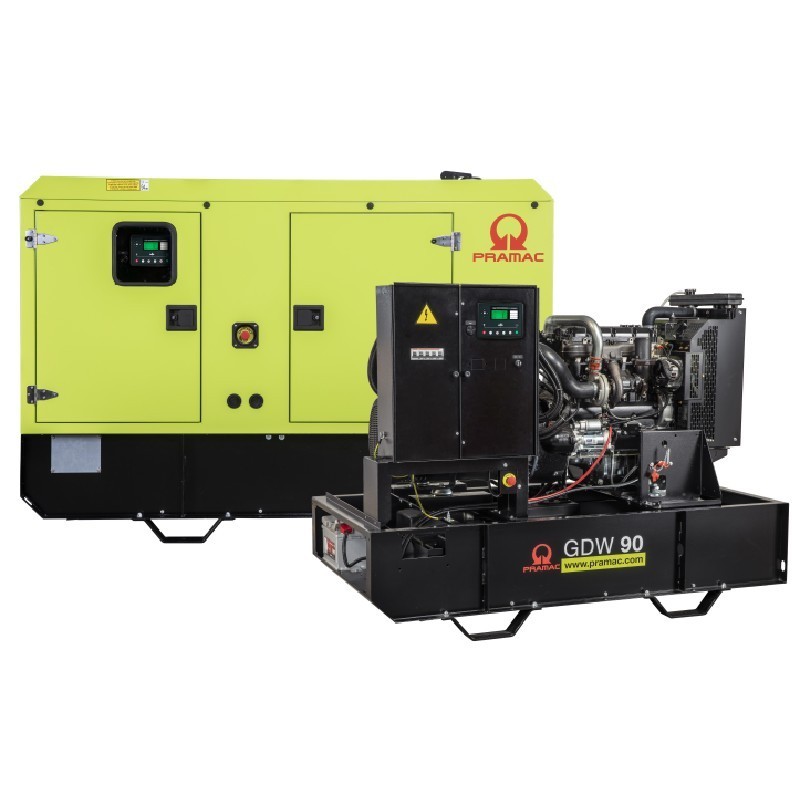

Three-phase generator set Pramac GDW90I 90.8kVA


  • Revolutions per minute: 1500RPM
  • Rated power (KVA/kW): 82,5 kVA / 66 kW
  • Displacementrated power (KVA/kW): 4500 cc
En stock
icon Power Supply
Power Supply
Diesel
icon Stabilization
Stabilization
AVR
icon Current
Current
Three-phase
icon Startup
Startup
Electric
icon Engine
Engine
Other engines
icon Displacement
Displacement
4500 cc
icon Engine type
Engine type
4 times
icon Power rating
Power rating
82.5 kVA
icon Maximum power
Maximum power
90.8 kVA
icon Type of winding
Type of winding
Copper
icon Generator Type
Generator Type
Open
icon Generator Type
Generator Type
Soundproofed
icon Number of cylinders
Number of cylinders
4
icon Panel
Panel
digital
icon ✔️
✔️
Water-cooled
icon ✔️
✔️
Quiet
€12,334.53 excl. VAT
€14,924.78 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Select
Qty

Request a quote
close

Request a quote


Three-phase generator set Pramac GDW90I 90.8kVA
€14,924.78
Select
Qty

Generator Set Pramac GDW90I

The GDW90I/FNE is a robust electric generator, ideal for applications requiring high power. With a rated power of 82.5 kVA / 66.0 kW and an emergency power of 90.8 kVA / 72.6 kW, this model ensures reliable performance. Its 4-cylinder NEF45SM3 engine and 4500 cc offers an autonomy of 10.28 hours at 75% load, optimizing both consumption and efficiency.

With a Mecc Alte ECP32-2L4 C alternator that stands out for its efficiency of 90% at full load. In addition, its soundproofing system reduces the sound level to 64 dBA at 7 meters, making it an ideal choice for environments where noise is a concern. The generator has a power factor of 0.8 ϕ and a frequency of 50 Hz, providing stable and continuous power.

Safety and durability are guaranteed with IP 23 protection on its alternator and an efficient cooling system, with capacity for 18.5 L of coolant. This model also includes an advanced control system that facilitates operation and maintenance. With a tank capacity of 209 L, the GDW90I/FNE is a reliable choice for large-scale projects that require continuous and stable power.

MODEL GDW90I/FNE
Frequency 50 Hz
Rotational Speed 1500RPM
Power Factor 0.8 ϕ
Rated Power (KVA/KW) 82.5 kVA / 66.0 kW
Emergency Power (KVA/KW) 90.8 kVA / 72.6 kW
Motor
Autonomy at 75% 10.28 h
Consumption at 75% load 14.25 L/h
Refrigerant capacity 18.5 L
Standard tank capacity 209 L
Engine model NEF45SM3
Number of cylinders 4
Aspiration Turbo
Oil capacity 12.8 L
Displacement 4500 cc
Sound level Soundproof version
Guaranteed sound level (LWA) 93 dBA
Sound pressure @ 1 m 76 dBA
Sound pressure @ 7 m 64 dBA
Alternator Specifications
Alternator Mecc Alte
Model ECP32-2L4 C
Winding Standard
Connections Star Series
Frequency 50 Hz
Voltage 400 V
Phases 3
Power factor 0.8 ϕ
Emergency power (27ºC) 91 kVA
Nominal power (40ºC) 82.5 kVA
Efficiency @ 100% 90.0%
Type Brushless
Poles 4
Voltage tolerance ±1%
Class H
Protection IP 23
Battery values
Battery voltage 12 V
Voltage 400 V
Frequency 50 Hz
Phases 3
Power factor 0.8 ϕ
Maximum current 131 A
Rated current 119 A
Thermomagnetic circuit breaker 125 A
Weight and Dimensions
Open weight 963 Kg
Weight Soundproof Weight 1284 Kg
Open Dimensions (cm) 200 x 100 x 154
Soundproof Dimensions (cm) 240 x 103 x 172
